Plan 72978DA Country Craftsman Home Plan with RV Garage

Country Craftsman Home Plan with RV Garage

Plan 72978DA

  • 2,652

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Nested gables add depth to the front elevation of this country, Craftsman home plan, with an exposed truss adding a rustic touch to the front porch. The 2-car garage and RV storage extend from the front of the home in order to create a parking courtyard near the front entry.
  • Double doors welcome you inside, where the great room's vaulted ceiling continues to the back, 3-seasons porch. A fireplace anchors the left wall of the great room, which opens to the eat-in kitchen.
  • An oversized cooktop island in the kitchen includes an eating bar, and the adjoining dining area offers access to a covered patio, perfect for grilling.
  • The owner's suite serves as a true getaway, and boasts French doors to the backyard, dual closets, and a 4-fixture bath with skylights and access to the neighboring laundry room.
  • A guest suite, quiet den, and craft room occupy the left side of the home.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

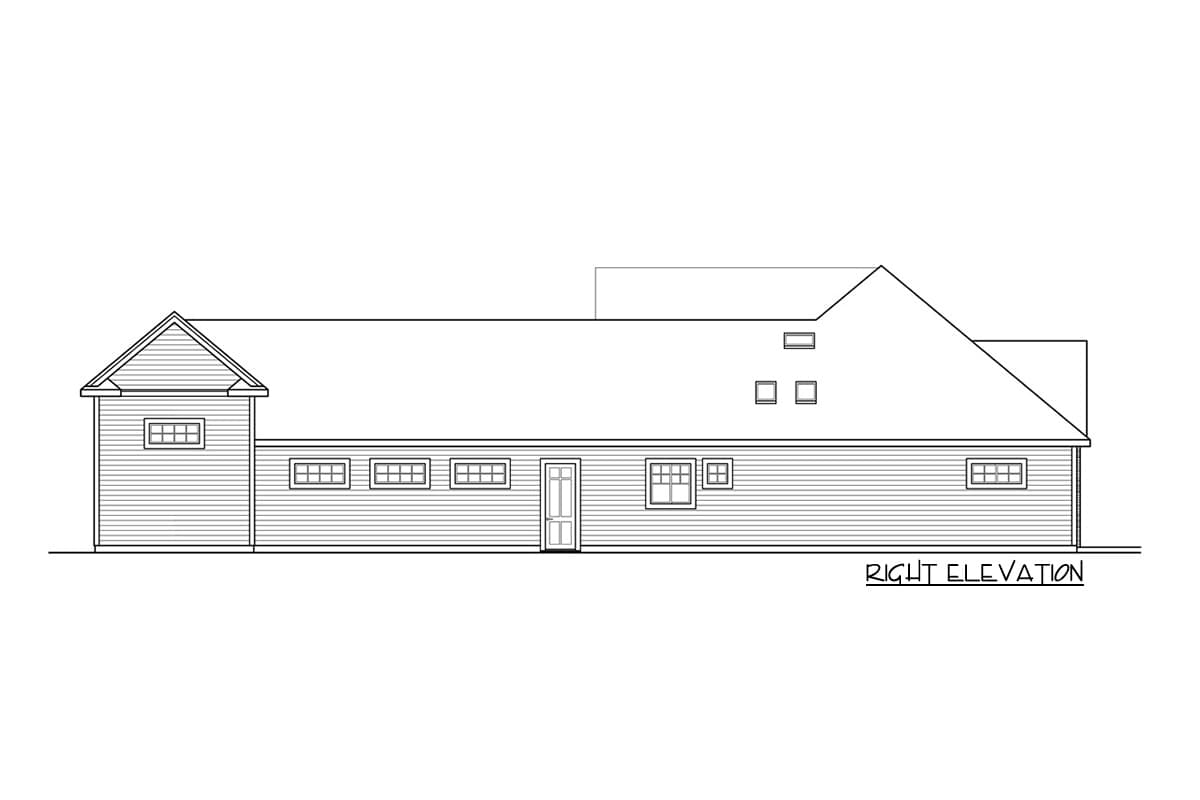

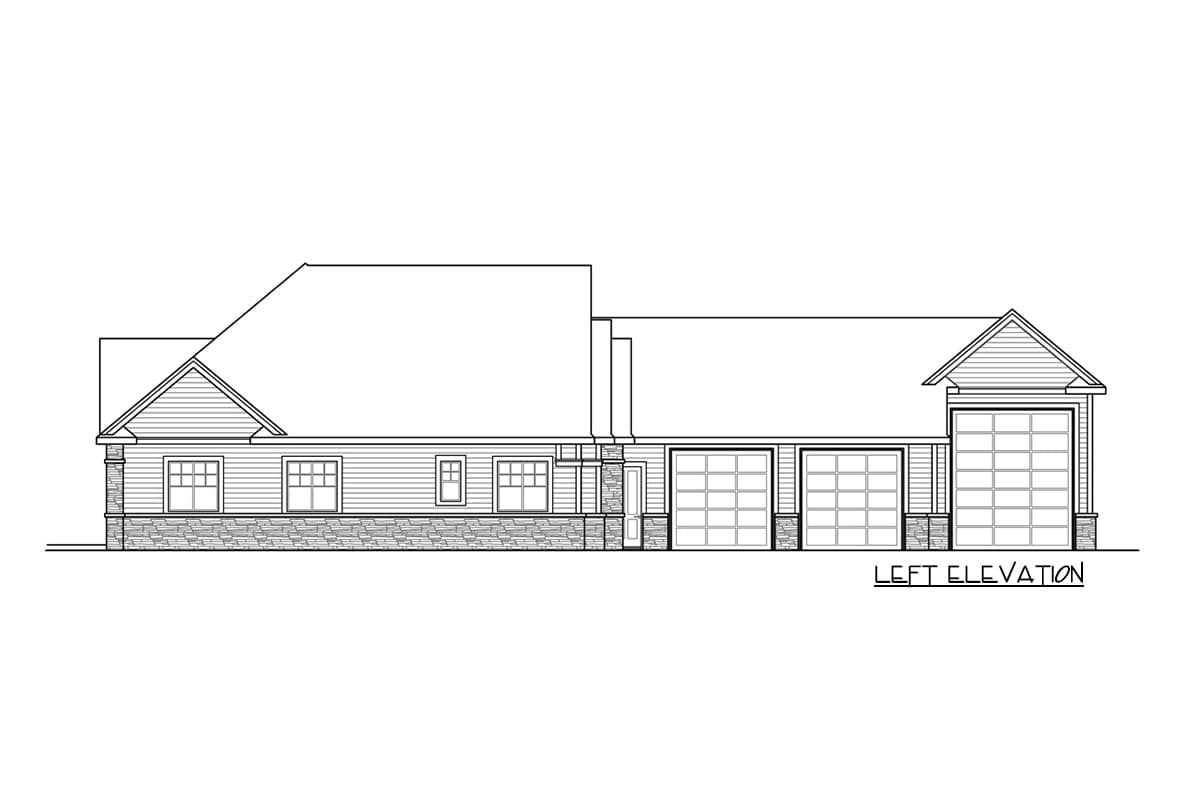

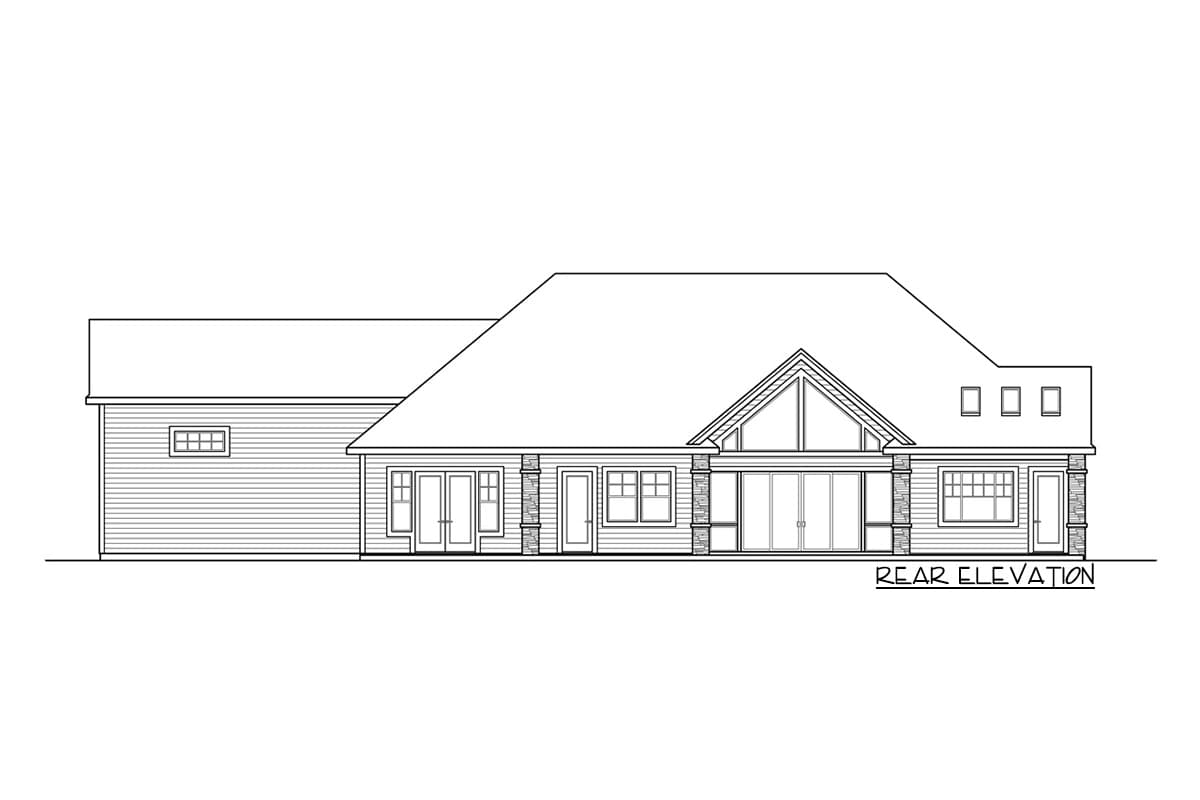

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

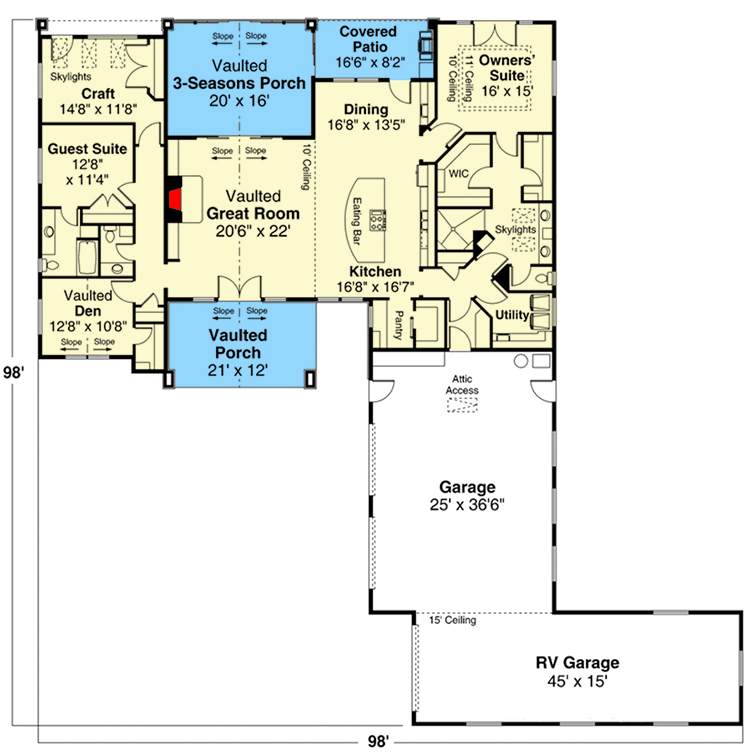

Floor Plan

Plan details



Country Craftsman Home Plan with RV Garage

  • 2,652

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Printed $870
  • PDF Light $1,110
  • 5 Sets + PDF $1,230
  • PDF - Single-Build $2,165
  • CAD - Single-Build $2,345
  • CAD - Unlimited Build $2,595
  • View all purchase option online

About This Plan

  • Nested gables add depth to the front elevation of this country, Craftsman home plan, with an exposed truss adding a rustic touch to the front porch. The 2-car garage and RV storage extend from the front of the home in order to create a parking courtyard near the front entry.
  • Double doors welcome you inside, where the great room's vaulted ceiling continues to the back, 3-seasons porch. A fireplace anchors the left wall of the great room, which opens to the eat-in kitchen.
  • An oversized cooktop island in the kitchen includes an eating bar, and the adjoining dining area offers access to a covered patio, perfect for grilling.
  • The owner's suite serves as a true getaway, and boasts French doors to the backyard, dual closets, and a 4-fixture bath with skylights and access to the neighboring laundry room.
  • A guest suite, quiet den, and craft room occupy the left side of the home.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,652 sq. ft.
  • 1st Floor: 2,652 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 98' 0"
  • Depth: 98' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: RV Garage, Attached
  • Area: 1675 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
