Plan 911025JVD

Country Craftsman House Plan Under 2500 Square Feet with Outdoor Fireplace

Heated S.F.
2,490
Beds
3
Baths
2.5
Stories
1
Cars
3

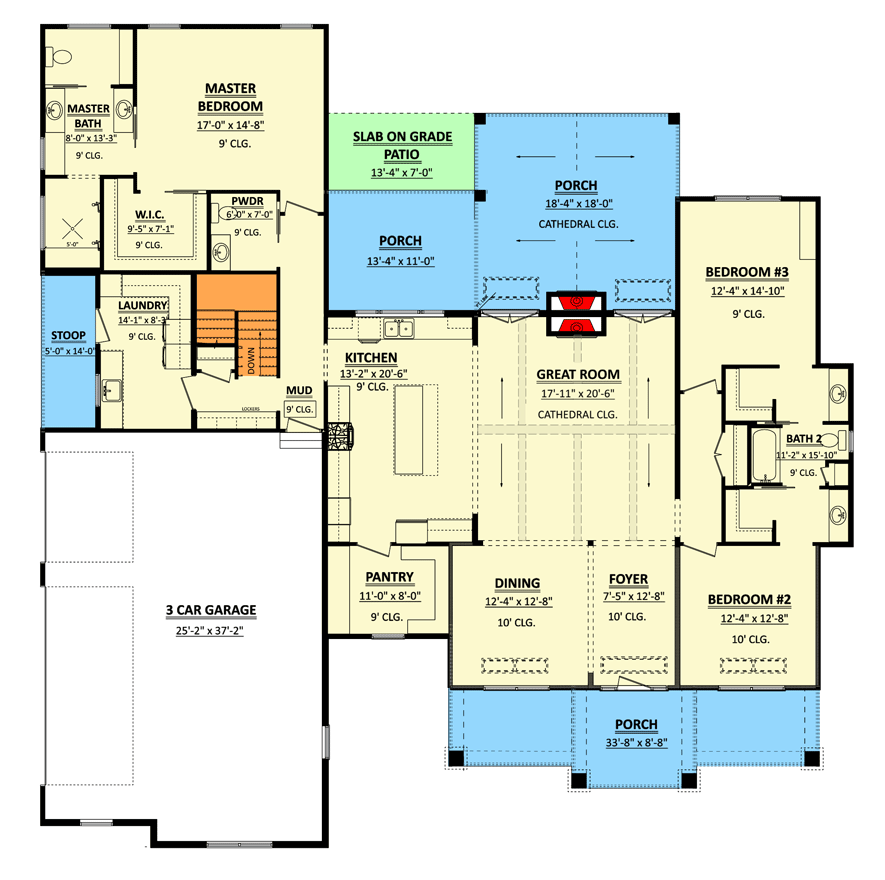

Floor Plan

Plan 911025JVD

Main Level
Main Level

Plan 911025JVD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 911025JVD: Country Craftsman House Plan Under 2500 Square Feet with Outdoor Fireplace - Floor Plan - Main Level - Country, Craftsman, New American, Ranch

Plan Details

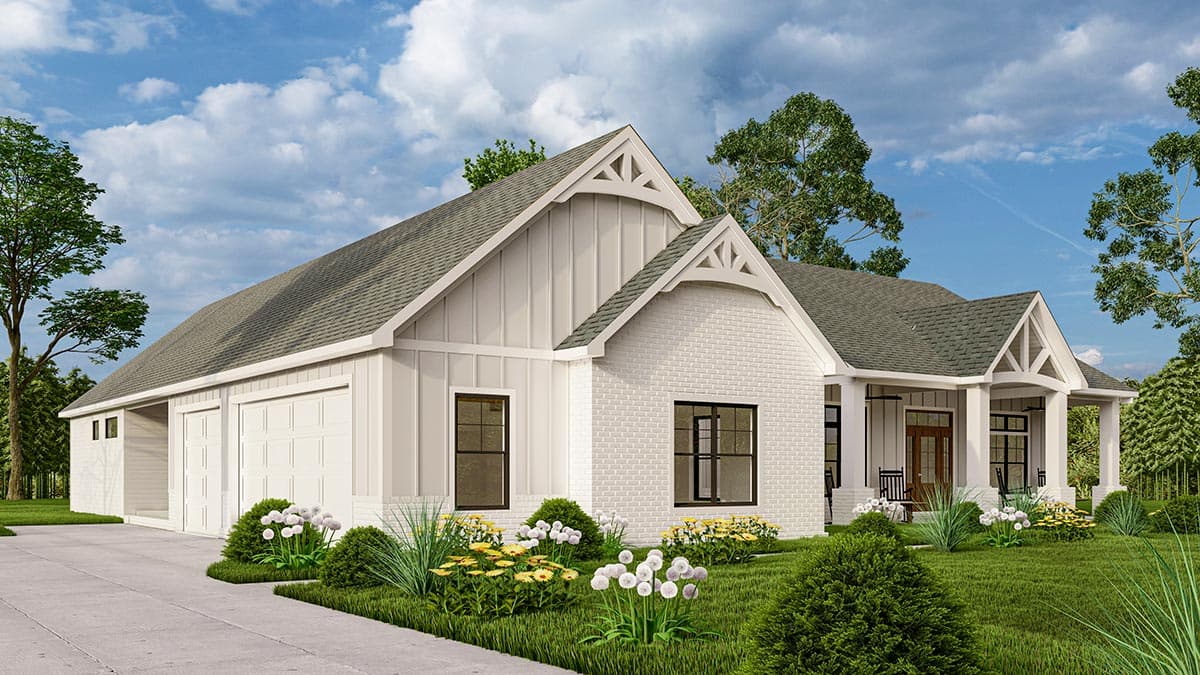

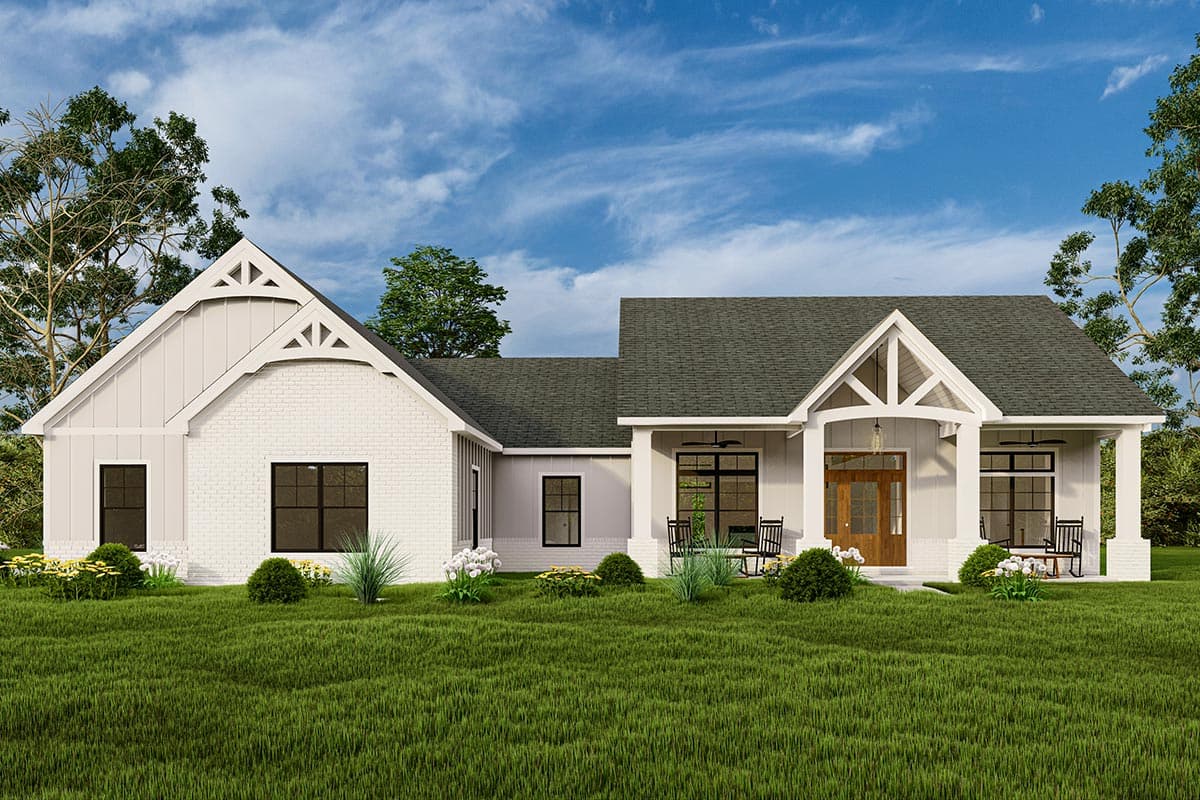

  • An attractive 8'8"-deep front porch with a gable center portion with timber detailing - also reflected in two other gable peaks - gives this 2,490 square foot country farmhouse great curb appeal. Painted brick and board and batten siding add to the appeal.

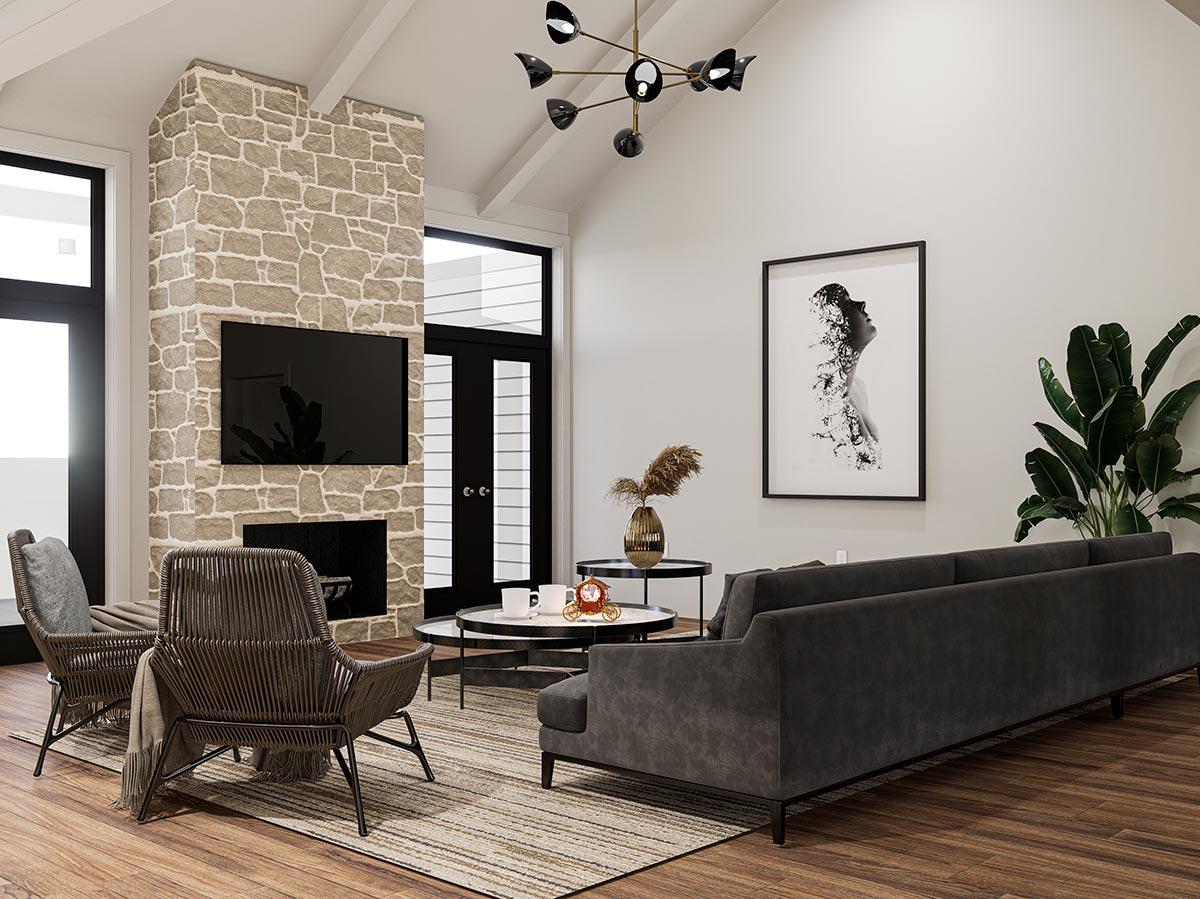

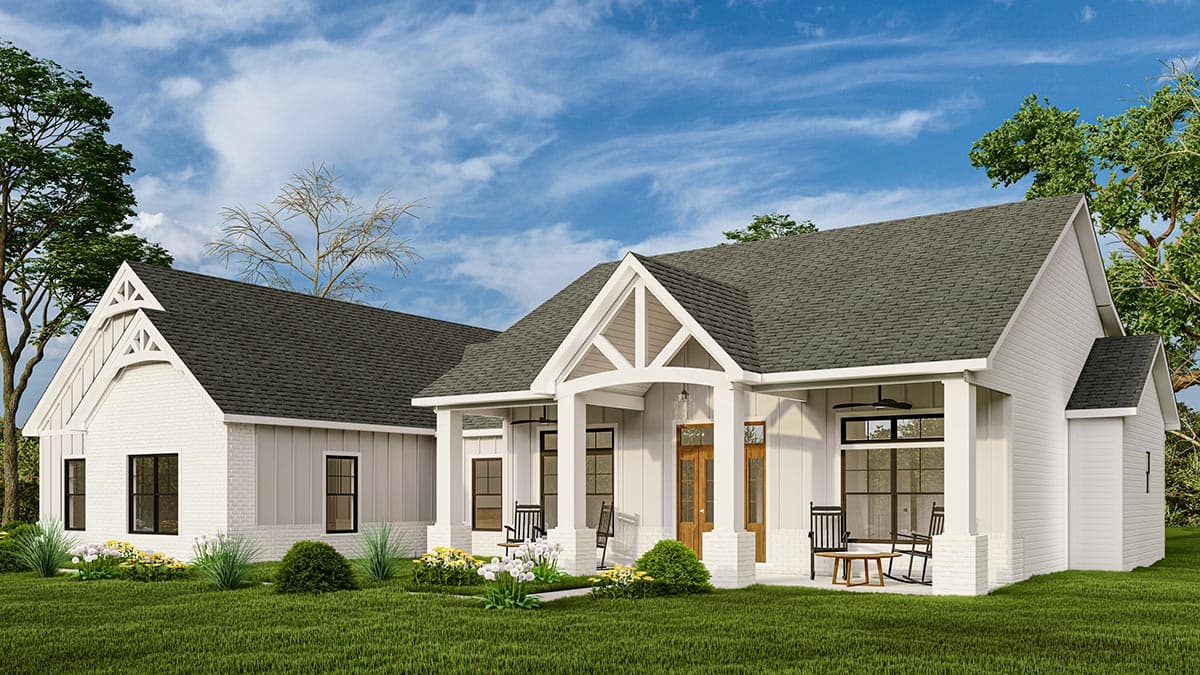

  • The great room has a vaulted and beamed ceiling with a fireplace on the back wall. French doors flank the fireplace and take you to a vaulted rear porch with outdoor fireplace giving you a fresh air space for entertaining.

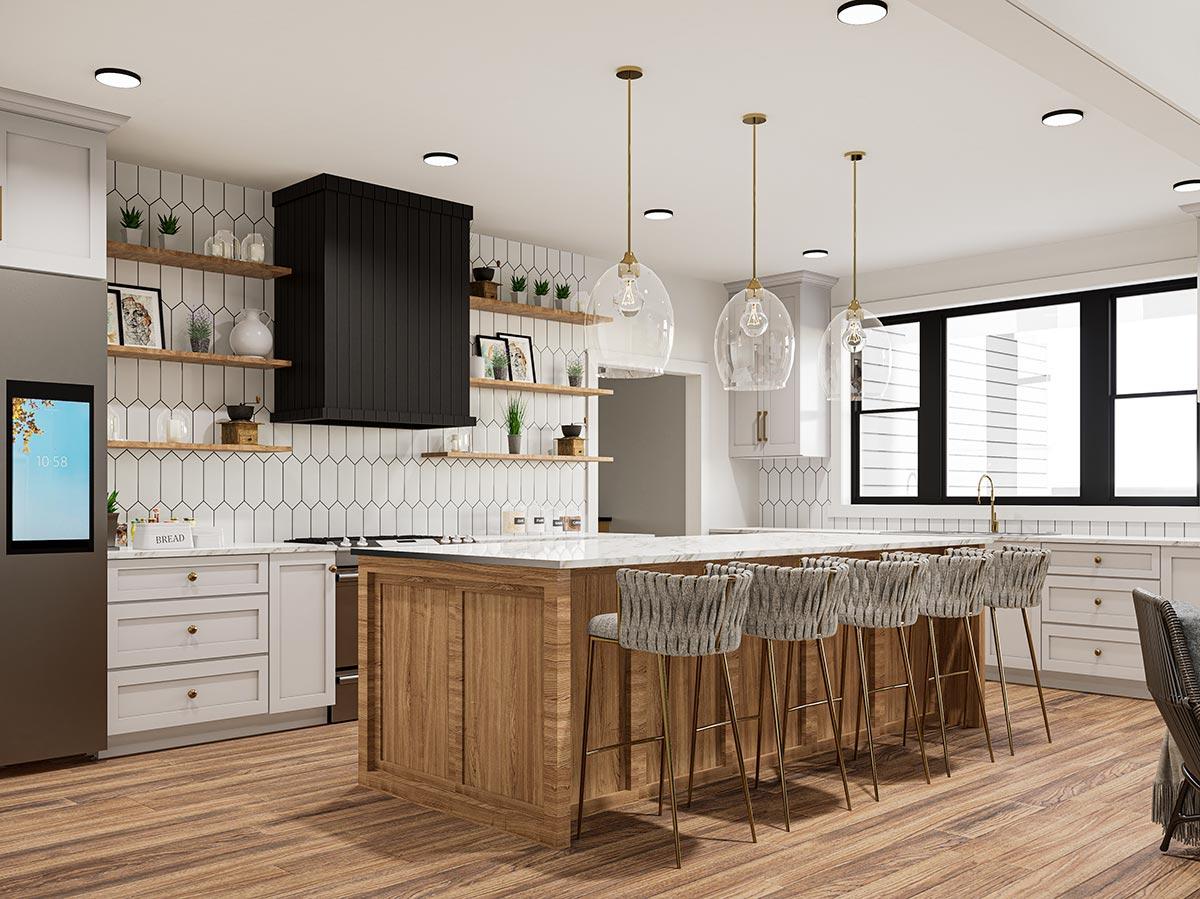

  • The kitchen has a large (11' by 8') walk-in pantry, a roomy island with seating and a double sink centered on windows looking out across the back.
  • The bedrooms are in a split layout with the master suite occupying the left side of the home and two bedrooms with a shared bath on the right.

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)

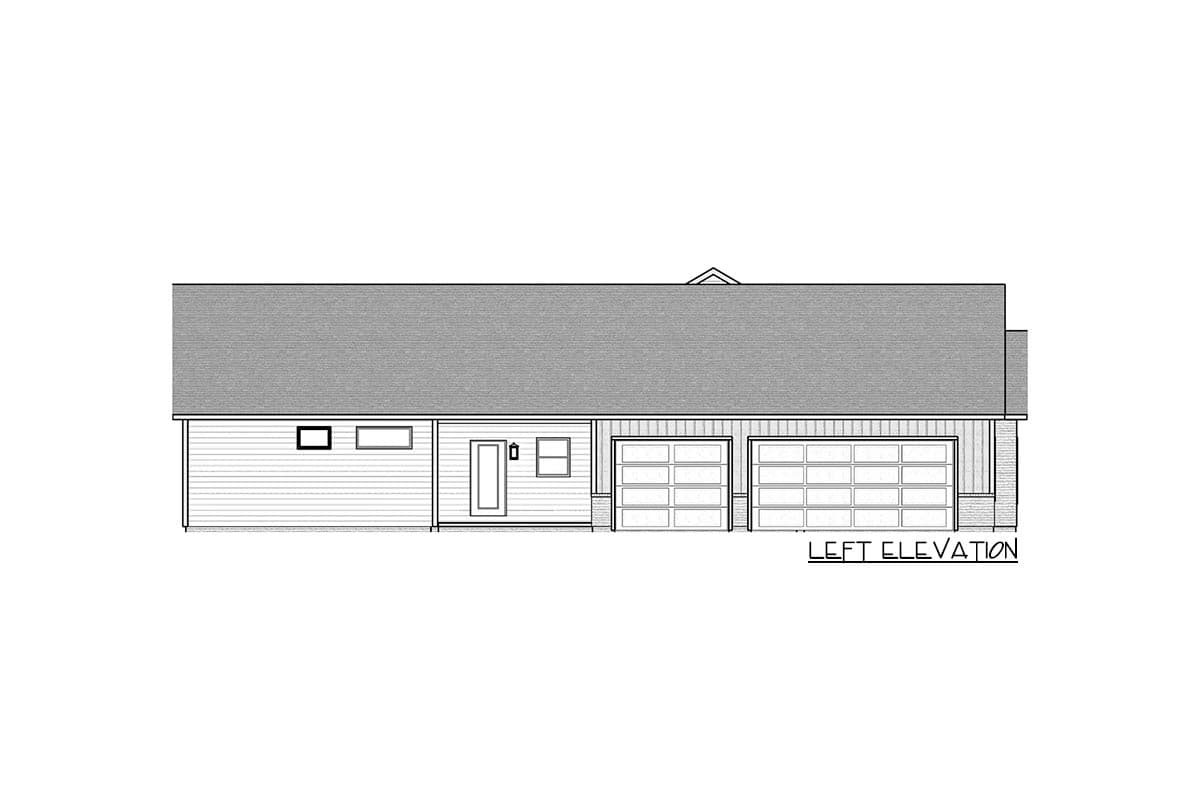

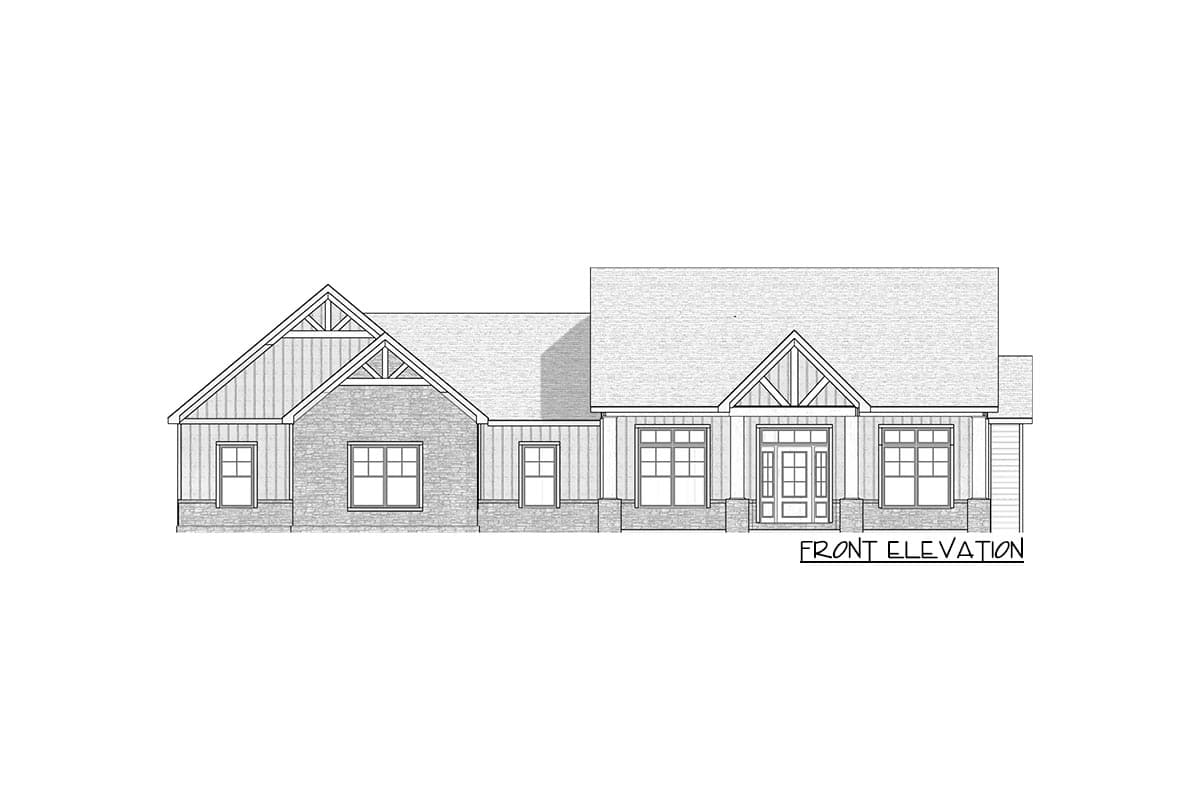

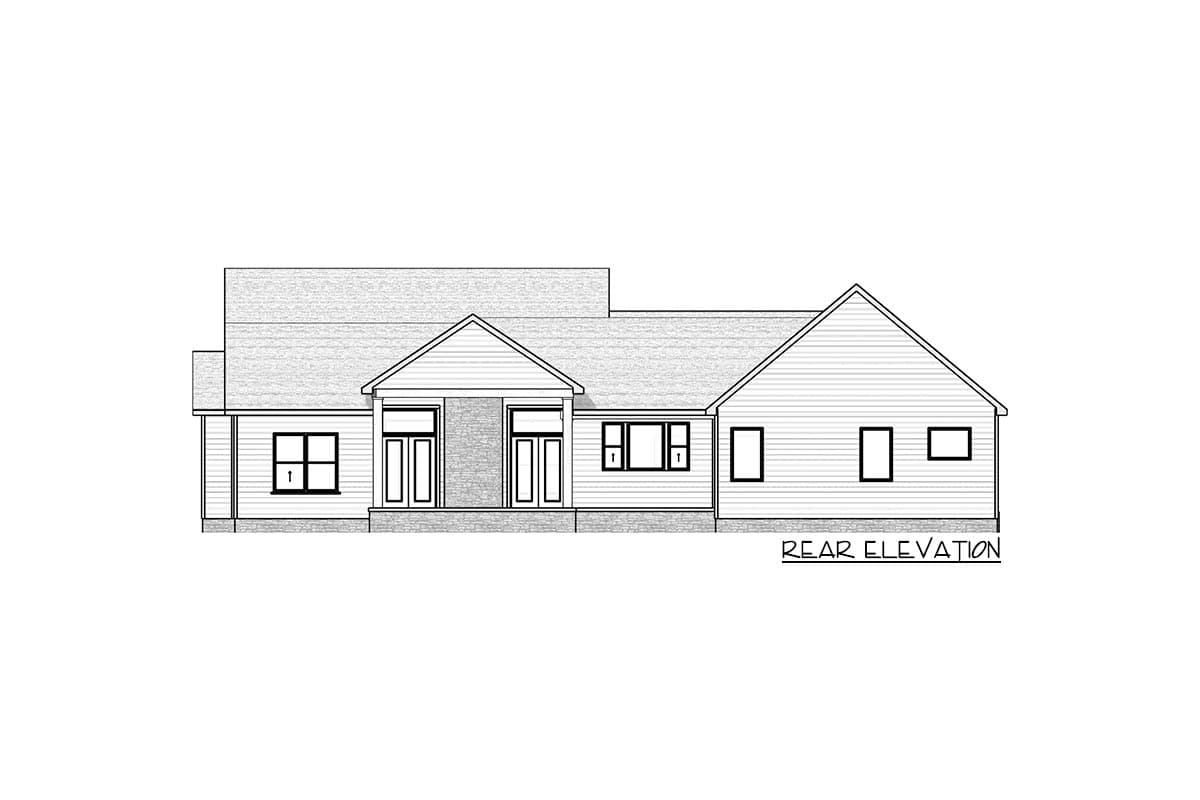

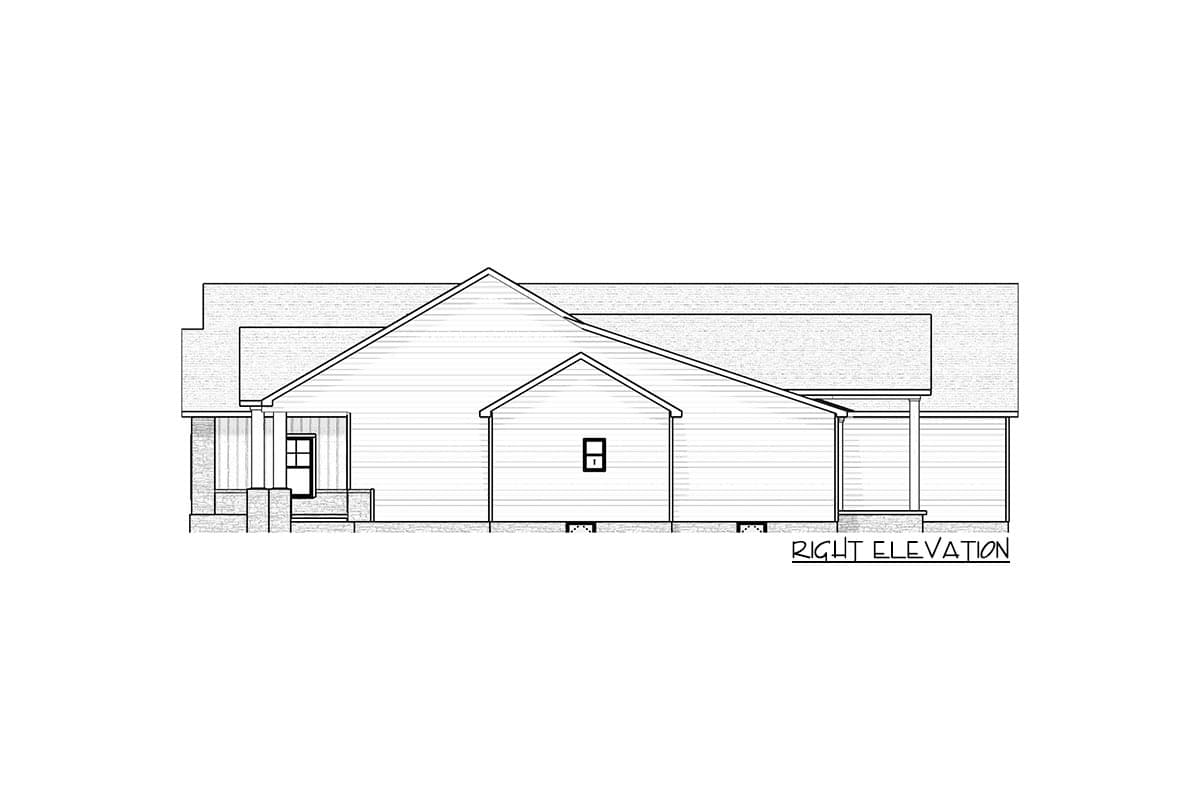

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Span charts and other misc details
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,490 sq. ft.

1st Floor

2,490 sq. ft.

Basement Unfinished

2,402 sq. ft.

Porch, Front

273 sq. ft.

Porch, Rear

506 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

73' 8"

Depth

74' 8"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

977 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Room

Ceiling Type

Height

Great Room

Vaulted

14' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Walk-in Pantry
