Country Craftsman House Plan with Private Master Suite

Plan 24377TW

  • 2,834

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This attractive Country Craftsman house plan comes with options so you can customize the home to fit your lifestyle.

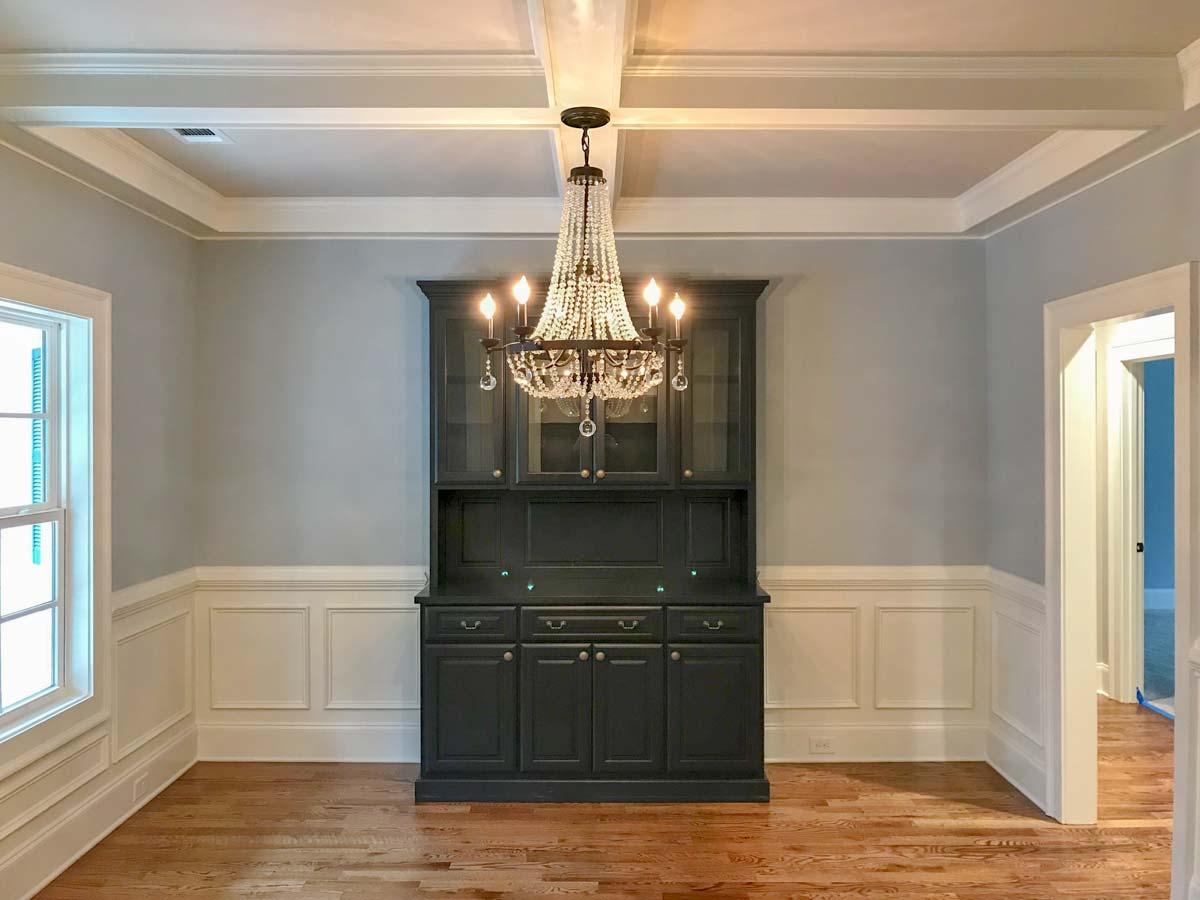

  • You can have three bedrooms and a study or four bedrooms and use the formal dining room space as an optional study.

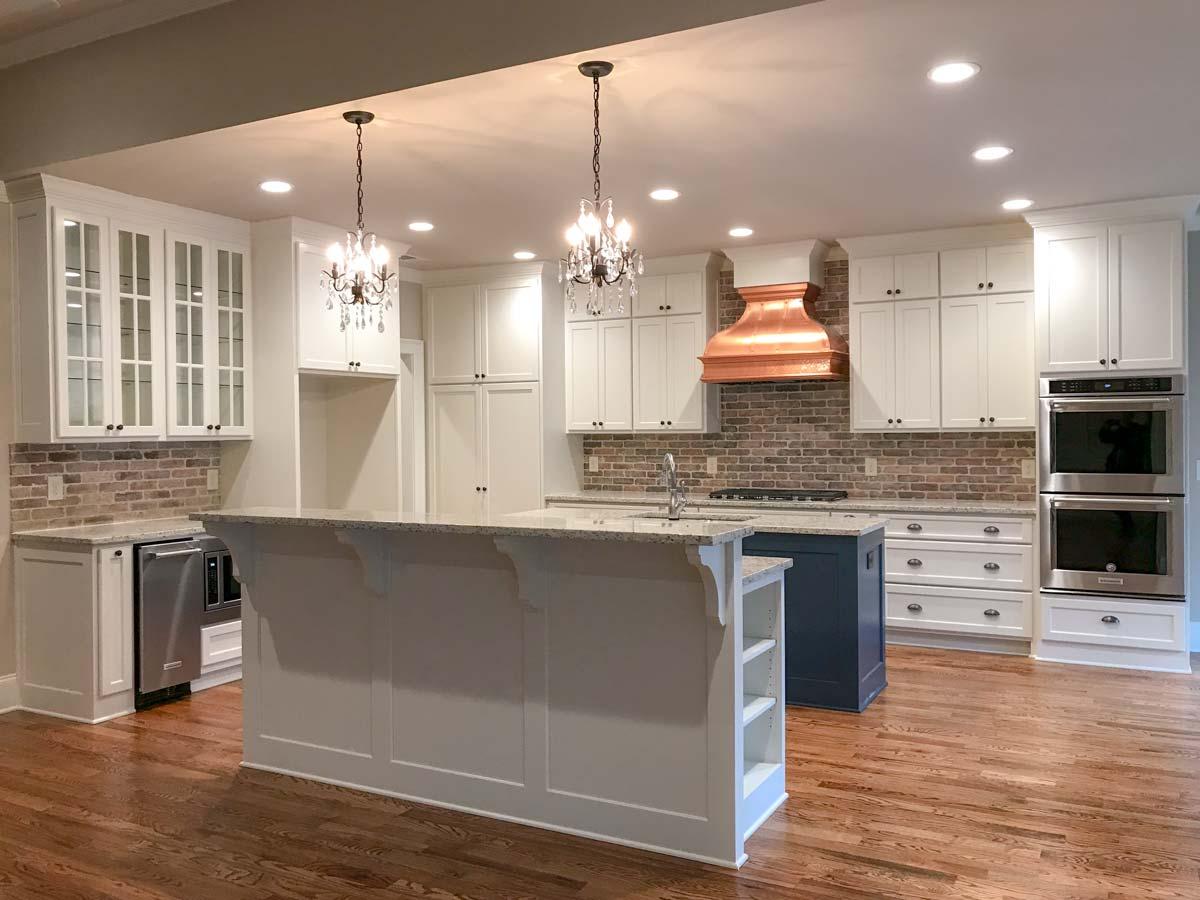

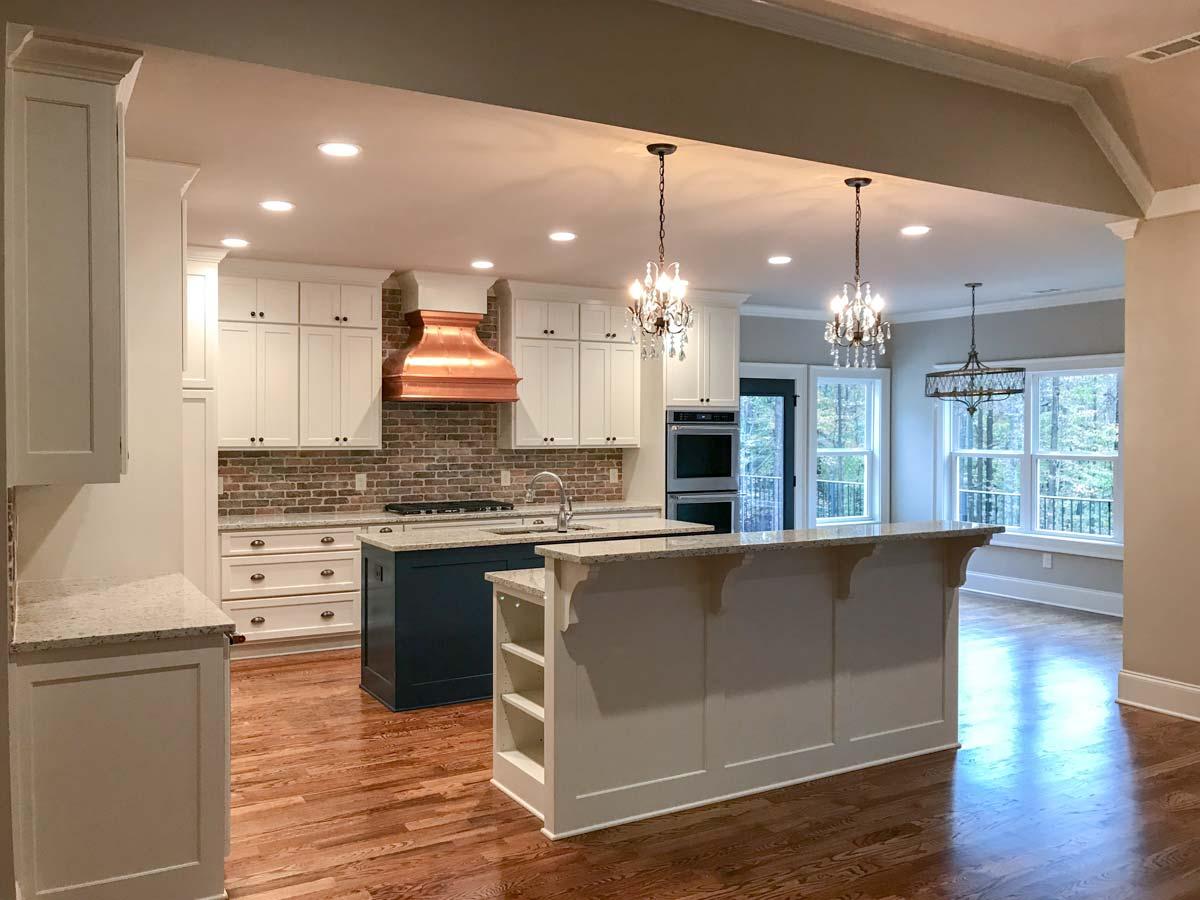

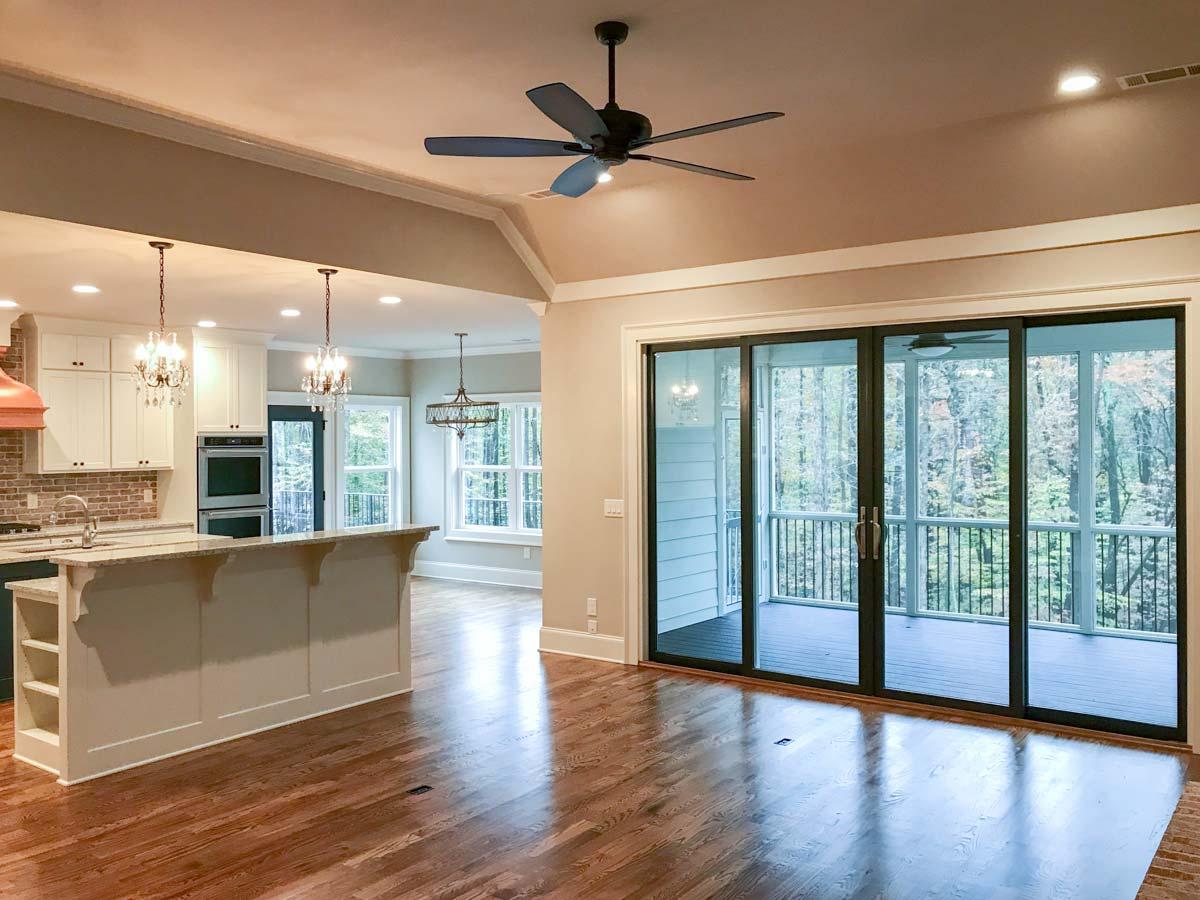

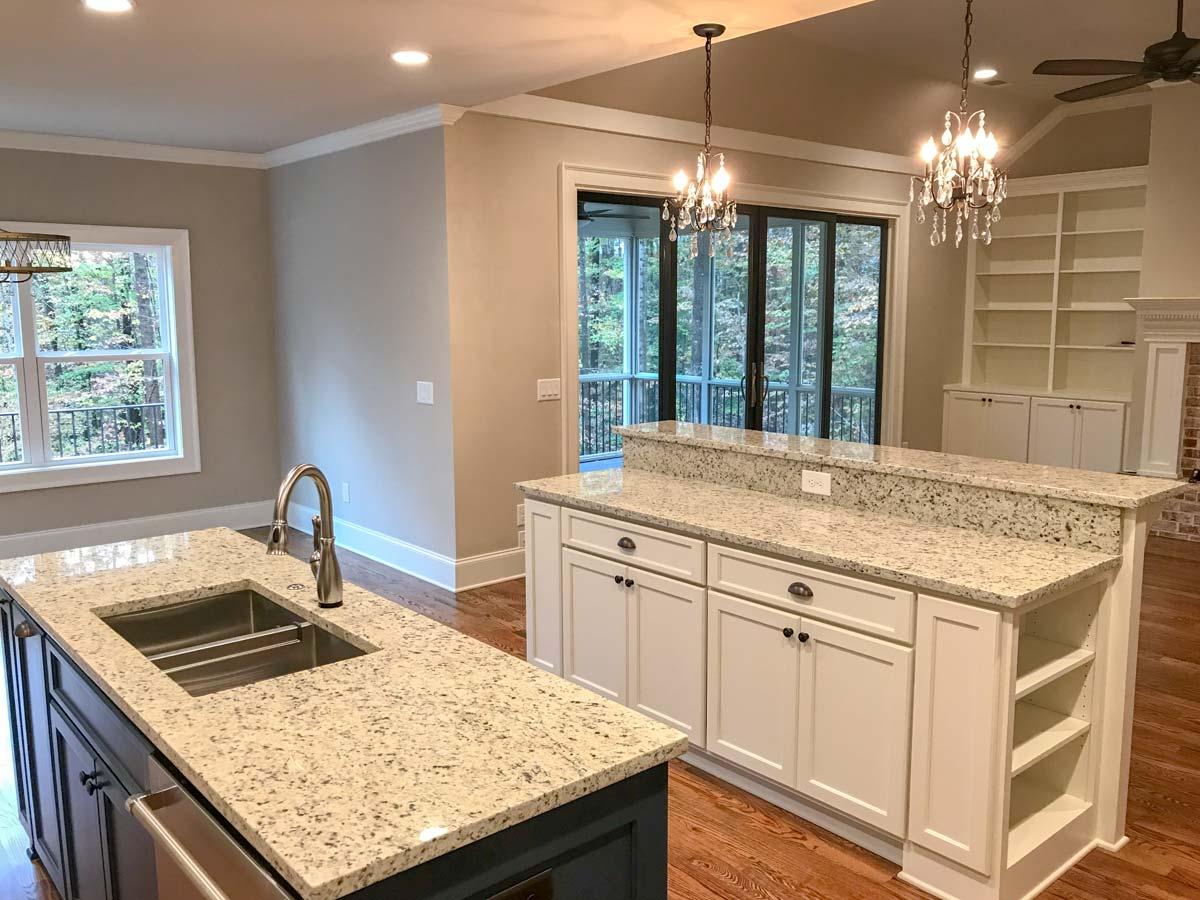

  • The main living area in back is all open concept so you get sweeping views from the kitchen to the breakfast nook and huge great room with its 11' high ceiling.
  • Built-ins that flank the fireplace are not only nice to look at, they give you extra storage.

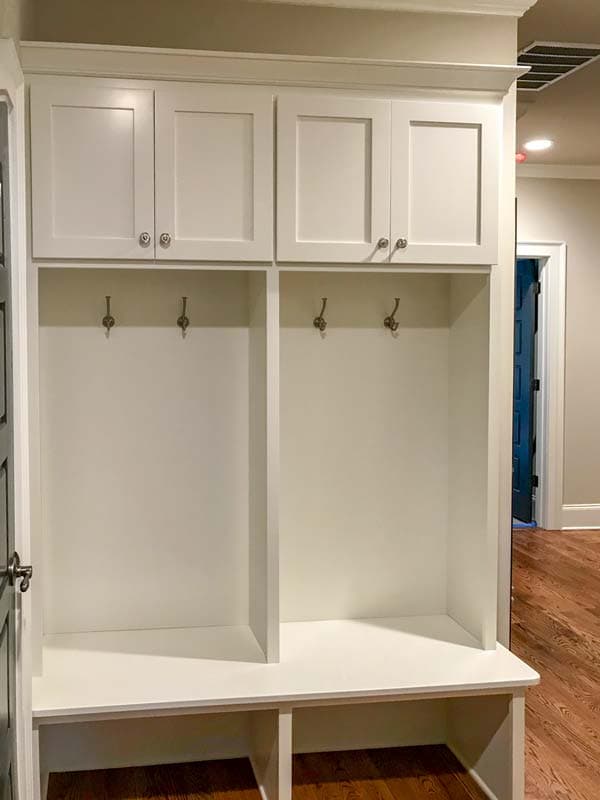

  • And look at that huge walk-in pantry off the mud room!

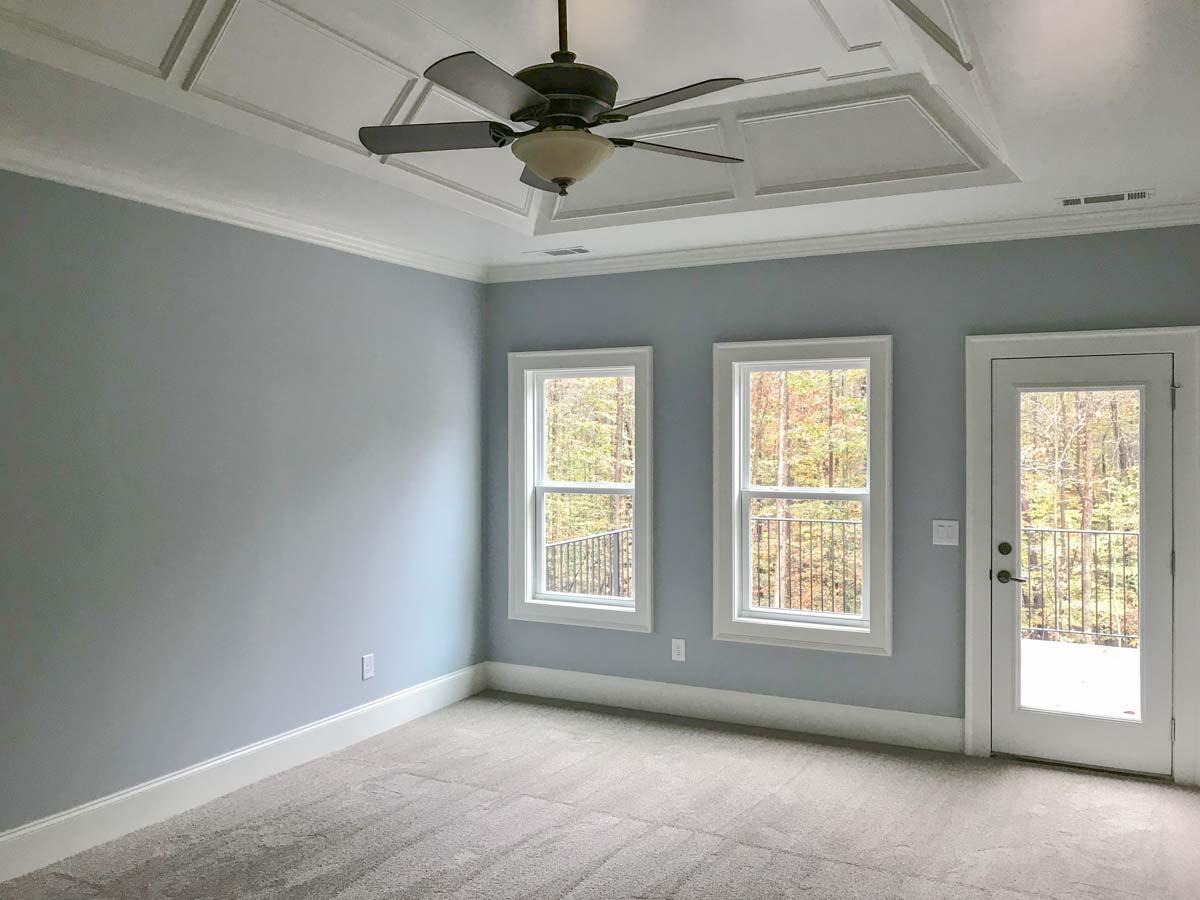

  • With its secluded location at the back of the house, the master suite becomes a true retreat with a double tray ceiling and a door to the back deck.

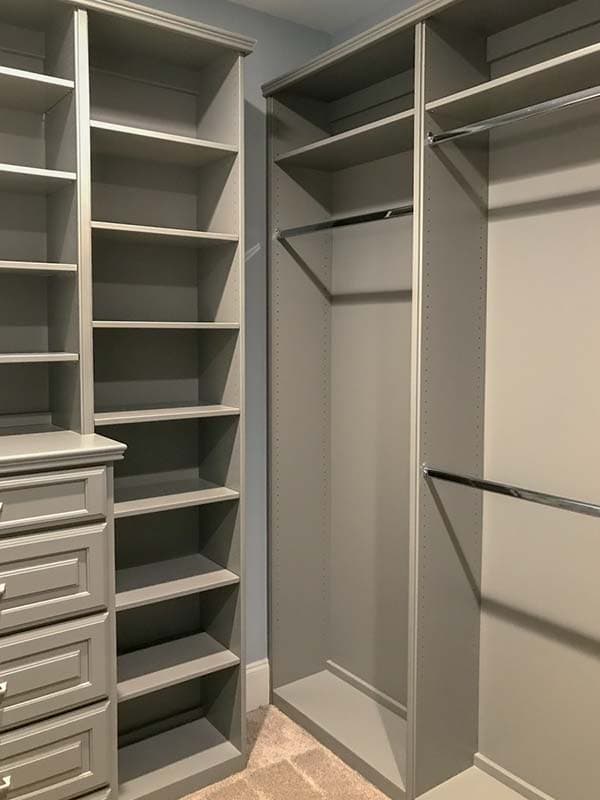

  • His and her walk-in closets are separated by the spacious master bathroom.

The plans include the following:

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

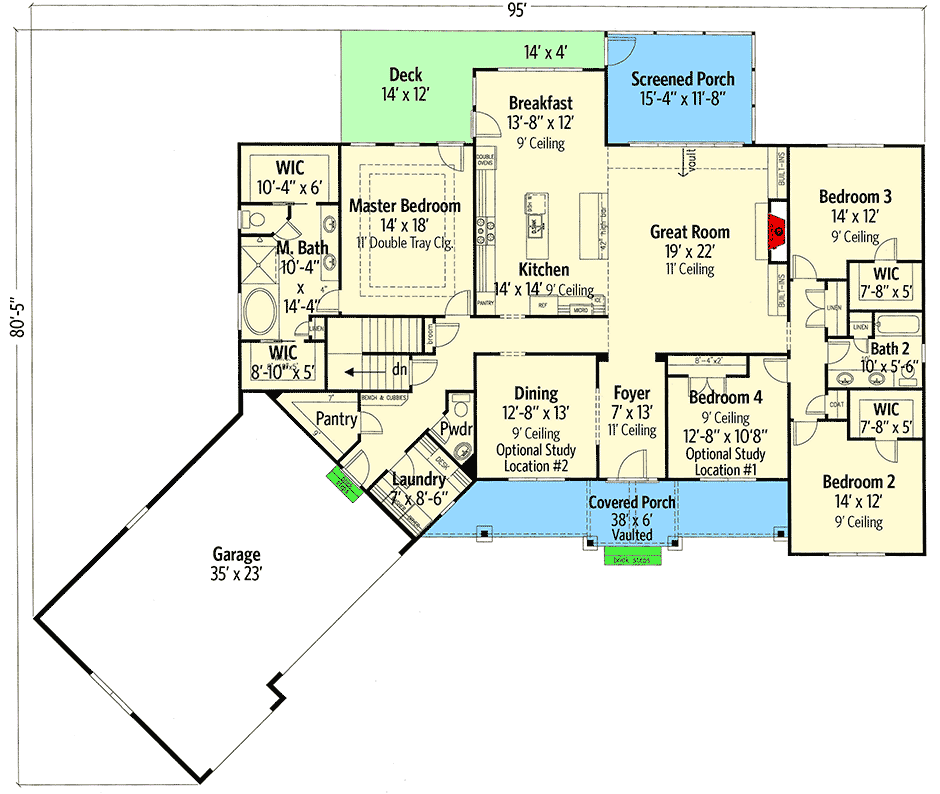

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

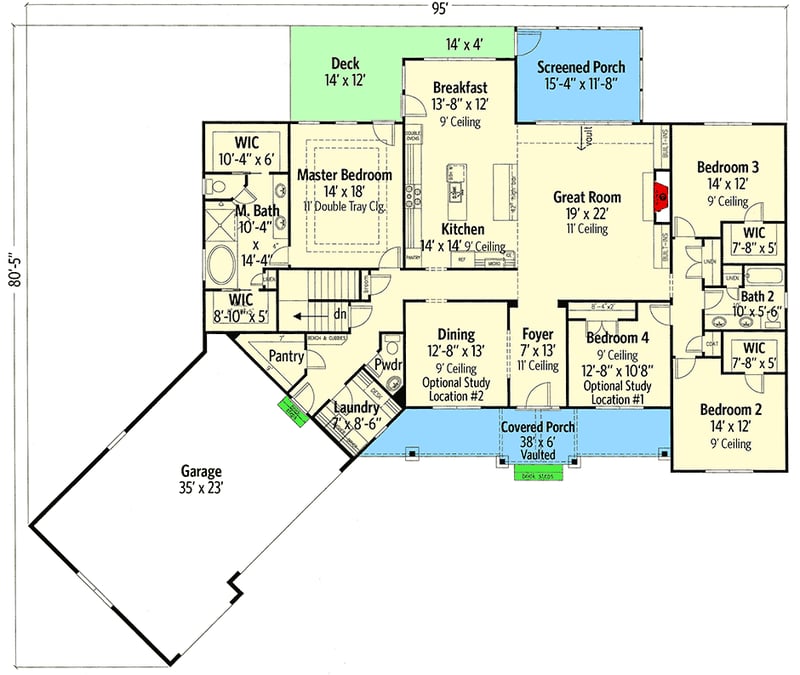

Country Craftsman House Plan with Private Master Suite - 24377TW floor plan - Main Level

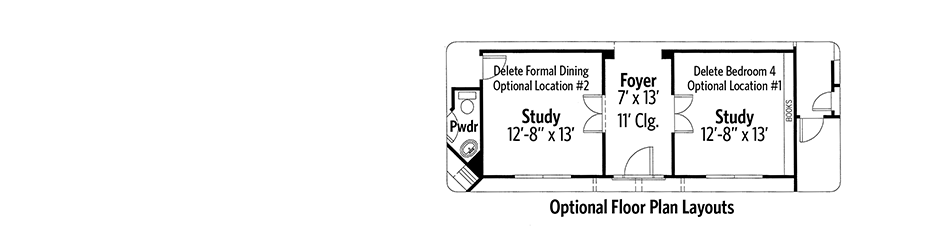

Optional Layout

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Craftsman House Plan with Private Master Suite - 24377TW floor plan - Optional Layout

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

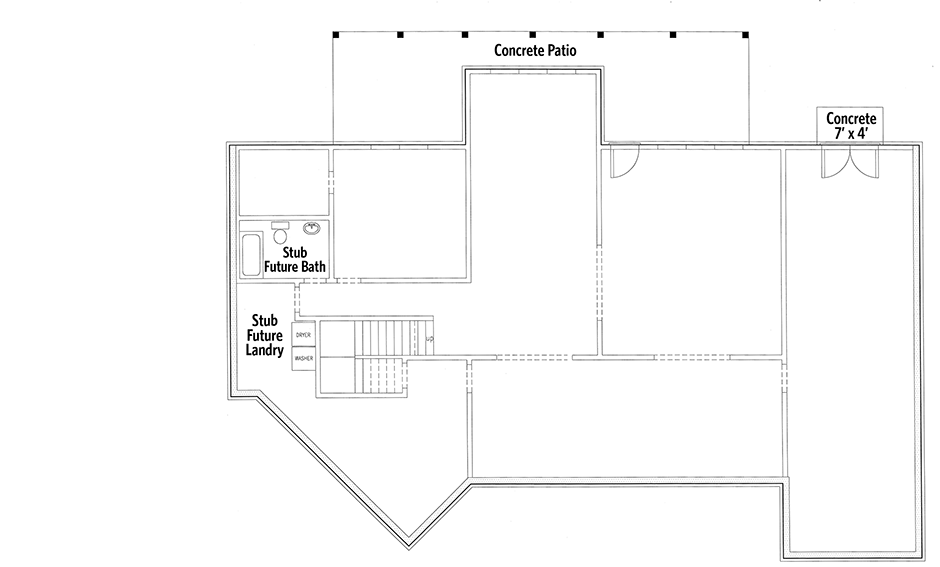

Country Craftsman House Plan with Private Master Suite - 24377TW floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,834 sq. ft.
  • 1st Floor: 2,834 sq. ft.
  • Porch, Rear: 189 sq. ft.
  • Porch, Front: 226 sq. ft.
  • Basement Unfinished: 2,834 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 95' 0"
  • Depth: 80' 5"
  • Max ridge height: 25' 3"

Garage

  • Type: Attached
  • Area: 822 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections
