Country Craftsman Plan with RV Garage

Plan 25742GE

  • 2,402

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Deep overhangs supported by wooden brackets, tapered columns, along with brick, stone, and metal roof accents name a few of the eye-catching exterior features on this Country Craftsman plan.
  • An RV garage attaches to the double garage, each of which provides rear overhead doors for drive-through accessibility. A mud / laundry room combo neighbors a powder bath upon entering.
  • The two-story lodge room opens to the kitchen and dining area, and hosts a grand fireplace surrounded by bookshelves. The adjacent outdoor living space can be converted into a sunroom for year-round living, if preferred.
  • Enjoy the comforts of a main-floor master bedroom that includes a spacious bath and walk-in closet.
  • Bedroom suites 2 and 3 are located upstairs with the option to add a fourth bedroom for future growth.

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

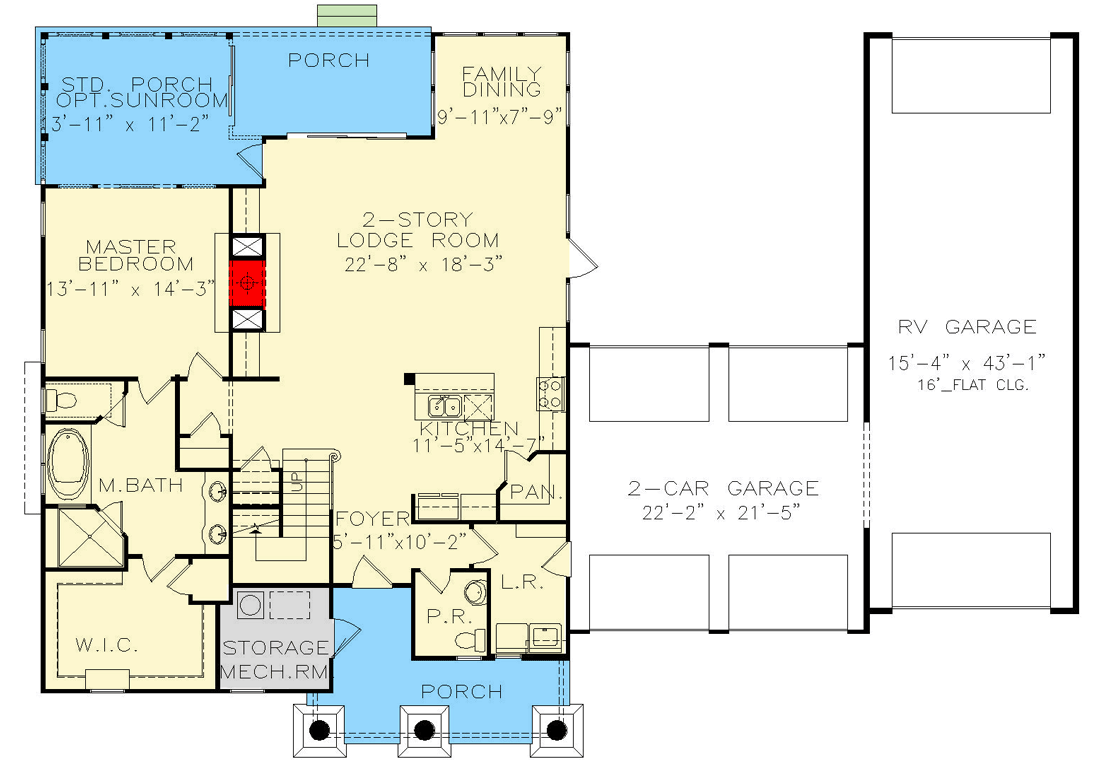

Country Craftsman Plan with RV Garage - 25742GE floor plan - Main Level

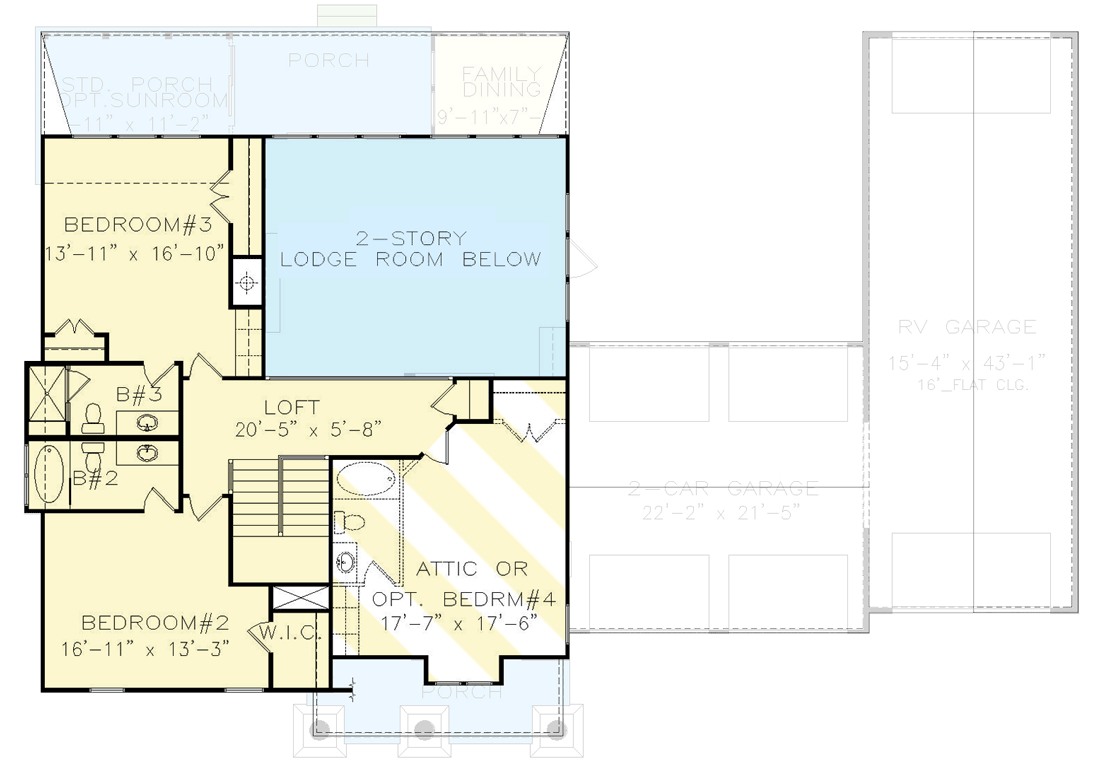

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Craftsman Plan with RV Garage - 25742GE floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,402 sq. ft.
  • 1st Floor: 1,563 sq. ft.
  • 2nd Floor: 839 sq. ft.
  • Sunroom: 175 sq. ft.
  • Bonus: 331 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 78' 6"
  • Depth: 55' 3"
  • Max ridge height: 31' 4"

Garage

  • Type: Attached
  • Area: 1206 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 1" Second Floor / 9' 1"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Country Craftsman Plan with RV Garage

  • 2,402

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,250
  • CAD - Single-Build $2,250
  • View all purchase option online

About This Plan

  • Deep overhangs supported by wooden brackets, tapered columns, along with brick, stone, and metal roof accents name a few of the eye-catching exterior features on this Country Craftsman plan.
  • An RV garage attaches to the double garage, each of which provides rear overhead doors for drive-through accessibility. A mud / laundry room combo neighbors a powder bath upon entering.
  • The two-story lodge room opens to the kitchen and dining area, and hosts a grand fireplace surrounded by bookshelves. The adjacent outdoor living space can be converted into a sunroom for year-round living, if preferred.
  • Enjoy the comforts of a main-floor master bedroom that includes a spacious bath and walk-in closet.
  • Bedroom suites 2 and 3 are located upstairs with the option to add a fourth bedroom for future growth.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,402 sq. ft.
  • 1st Floor: 1,563 sq. ft.
  • 2nd Floor: 839 sq. ft.
  • Sunroom: 175 sq. ft.
  • Bonus: 331 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 78' 6"
  • Depth: 55' 3"
  • Max ridge height: 31' 4"

Garage

  • Type: Attached
  • Area: 1206 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 1" Second Floor / 9' 1"

Roof

  • Framing Type: Stick
Plan 25742GE
View this and more for this plan by visiting www.architechtecturaldesigns.com/25742GE
|
Need Help? 800-854-7852
|
