Country Craftsman Triplex House Plan with Three 2-Bed 2-Bath 1000 Sq Ft Units

Heated S.F.
1,000
Units
3
Width
Depth

Floor Plan

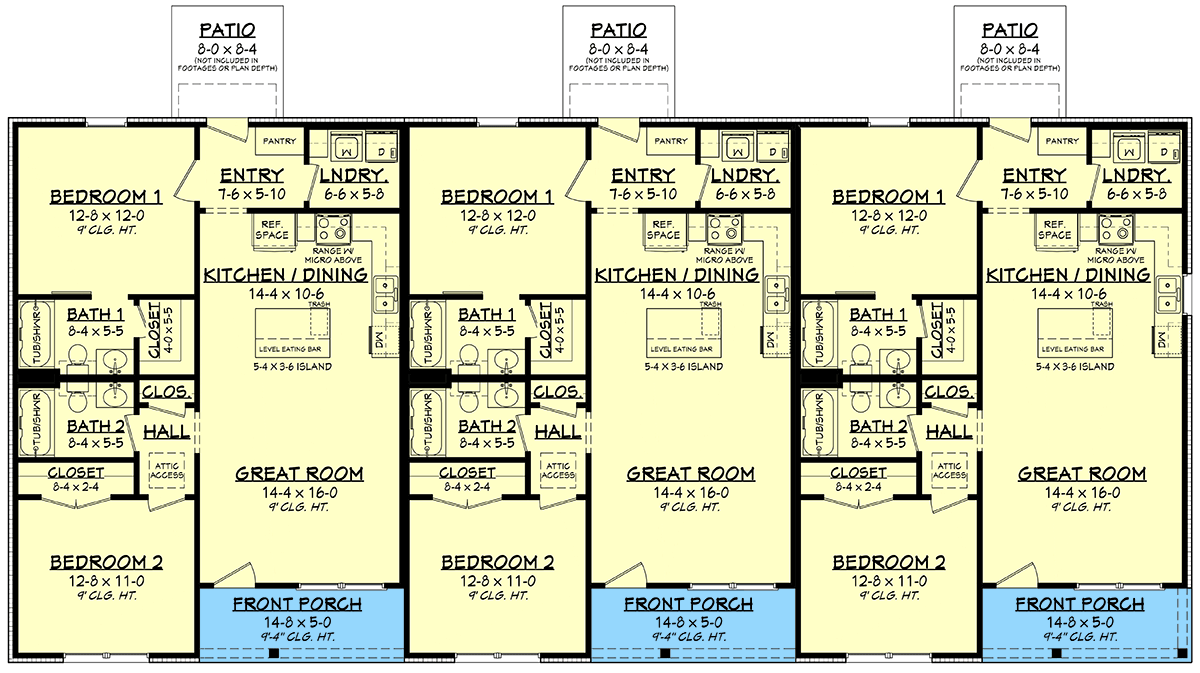

Plan 51998HZ

Main Level
Main Level

Plan 51998HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 51998HZ: Country Craftsman Triplex House Plan with Three 2-Bed 2-Bath 1000 Sq Ft Units - Floor Plan - Main Level - Country, Craftsman, Ranch, Traditional

Plan Details

  • This charming Country Craftsman triplex plan offers three identical units, each boasting 1,000 sq. ft. of living space with 2 bedrooms and 2 bathrooms. The exterior features classic Craftsman design elements.
  • Upon entry, you'll find a welcoming open-concept layout that seamlessly connects the kitchen and dining areas, perfect for modern living.
  • The great room, measuring 14'4" x 16', serves as the heart of each unit, offering an inviting space for relaxation and gatherings.
  • Each unit contains a primary bedroom suite thoughtfully separated from the second bedroom, ensuring privacy and comfort.
  • Enjoy outdoor living on the front porches or the individual rear patios, ideal for morning coffee or evening relaxation.
Unit A/B/C
Heated Area
1,000Sq. Ft.
1000 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Dimensions
28'width
38' 4"depth
Unfinished Areas
219 Sq. Ft. Porch, Front

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
