Country Craftsman with Bonus Over Garage

Plan 16899WG

  • 2,662

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • Decorative wood trim, dormers and intricate roof lines contribute to the exciting curb appeal of this Craftsman house plan.
  • As an added bonus, you get a spacious open floor plan with all the main rooms able to enjoy the huge vaulted and beamed family room.
  • Back to back fireplaces warm the family room and the outdoor lanai.
  • Split bedrooms mean a secluded master suite and this one boasts a tray ceiling, large master bathroom and a huge walk-in closet that opens directly into the laundry room.
  • Each of the other family bedroom has a walk-in closet with a shared bathroom between them.
  • Even the garage is special with its workshop area, 3 garage bays and a large storage room.
  • Should you need more space, an enormous bonus room over the garage awaits your finishing touches.

Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

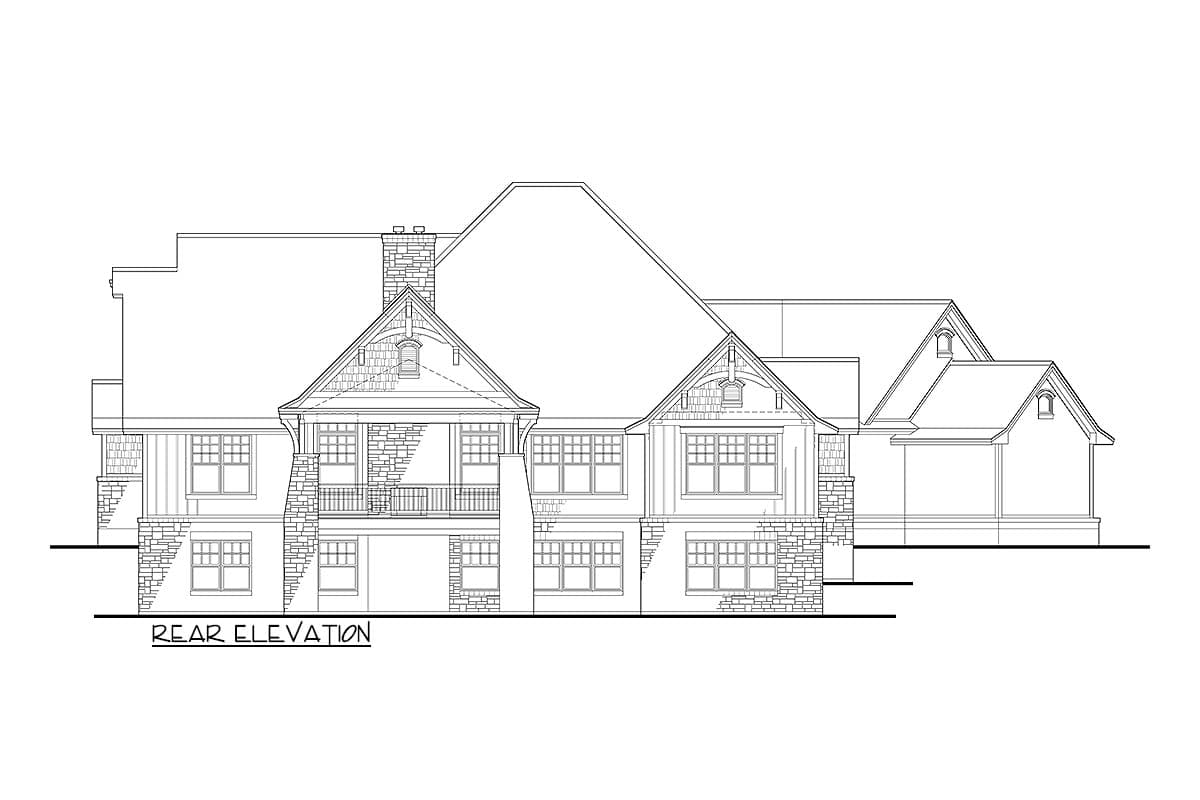

Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.

Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.

Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,

Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.

Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.

Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibbs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.


Plan details

Square Footage Breakdown

  • Total Heated Area: 2,662 sq. ft.
  • 1st Floor: 2,662 sq. ft.
  • Lanai: 322 sq. ft.
  • Porch, Front: 227 sq. ft.
  • Bonus: 650 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl, Slab
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 98' 3"
  • Depth: 78' 7"
  • Max ridge height: 32' 7"

Garage

  • Type: Attached
  • Area: 1120 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Bonus 8' 0"
Room Type Height
Dining Room 10' 0"
Foyer 10' 0"
Family Room Vaulted

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 16 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections



Country Craftsman with Bonus Over Garage

  • 2,662

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,345
  • 5 Sets $1,495
  • 5 Sets + PDF $1,595
  • PDF - Unlimited Build $1,740
  • CAD - Single-Build $2,145
  • CAD - Unlimited Build $2,540
  • View all purchase option online

About This Plan

  • Decorative wood trim, dormers and intricate roof lines contribute to the exciting curb appeal of this Craftsman house plan.
  • As an added bonus, you get a spacious open floor plan with all the main rooms able to enjoy the huge vaulted and beamed family room.
  • Back to back fireplaces warm the family room and the outdoor lanai.
  • Split bedrooms mean a secluded master suite and this one boasts a tray ceiling, large master bathroom and a huge walk-in closet that opens directly into the laundry room.
  • Each of the other family bedroom has a walk-in closet with a shared bathroom between them.
  • Even the garage is special with its workshop area, 3 garage bays and a large storage room.
  • Should you need more space, an enormous bonus room over the garage awaits your finishing touches.

Floor Plans

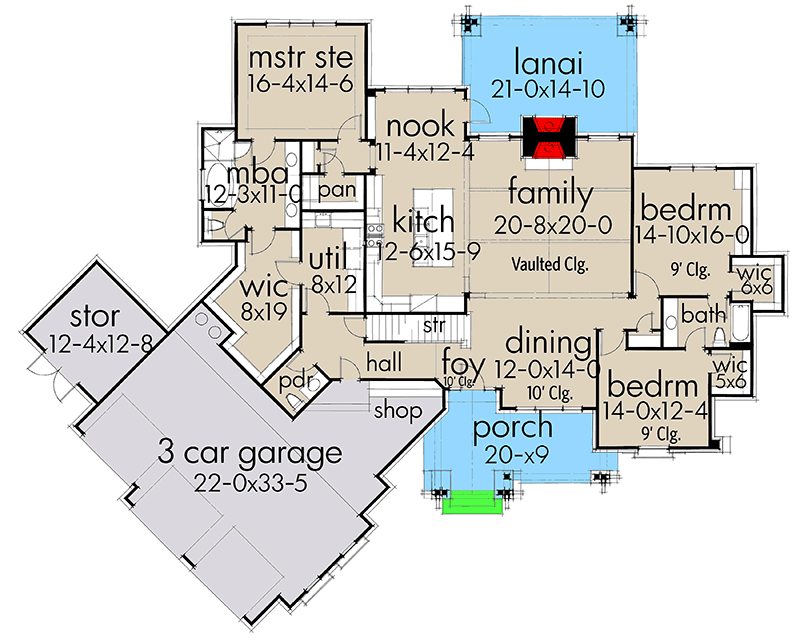

  • Main Level

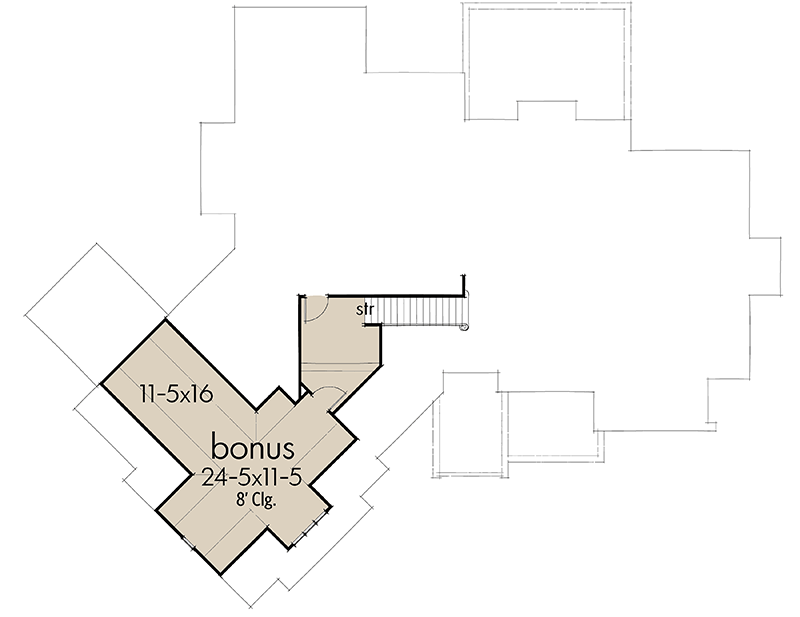

  • Bonus

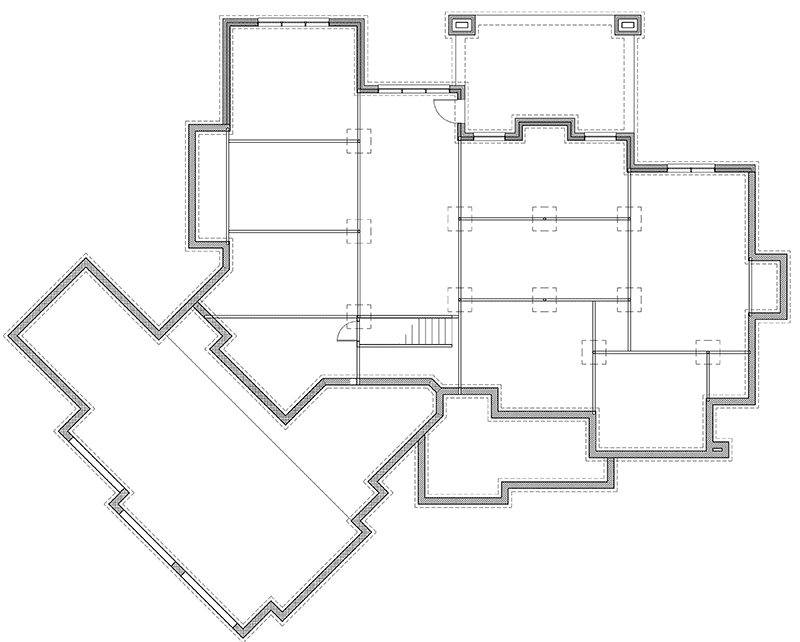

  • Walkout Basement
