Plan 500010VV
EXCLUSIVE
Country Craftsman with Bonus Over Garage
Heated S.F.
2,988
Beds
4
Baths
2.5 - 3.5
Stories
2
Cars
2
What's Included
Plan Details
  • A broad front porch with four tapered columns greets you to this 4 bed country farmhouse plan.
  • The foyer is flanked by the study and dining rooms, the latter connected to the kitchen giving the home a circular flow.
  • The family room has a fireplace and access to the back porch and is open to the kitchen.
  • The kitchen island has counter seating and a large walk-in pantry gives you great storage
  • The upstairs gives you four bedrooms each with their own bath plus a large laundry room. Expand over the garage if you need more space.
  • Related Plan: Get an alternate exterior and gain a game room on the main floor with house plan 500007VV.
What's Included
  • Cover sheet with notes
  • Foundation
  • Floor plans

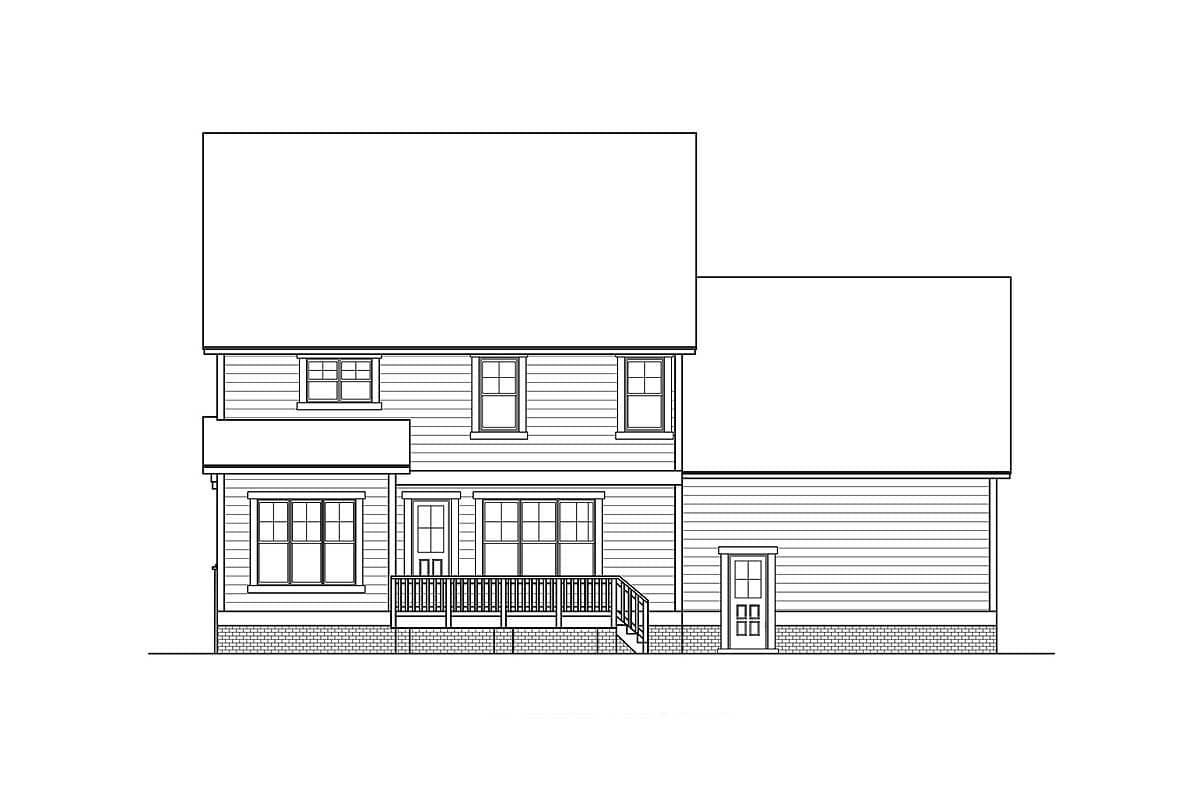

  • Elevations
  • Sections
  • Framing plans
  • Electrical plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Country Craftsman with Bonus Over Garage

  • 2,988

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

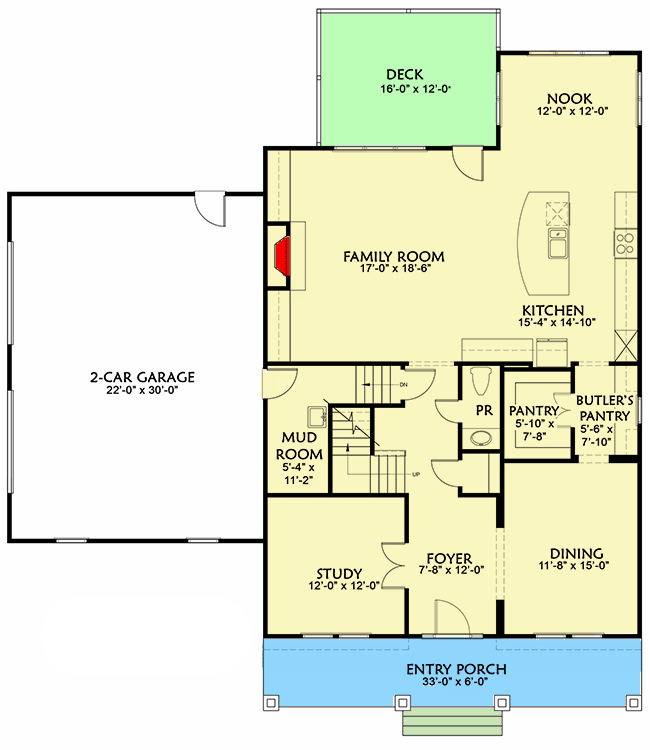

  • Main Level

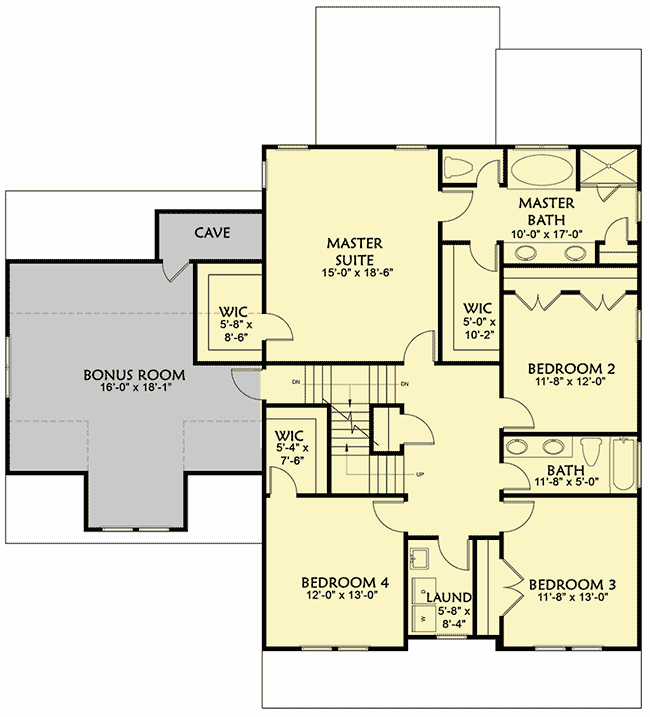

  • 2nd Floor

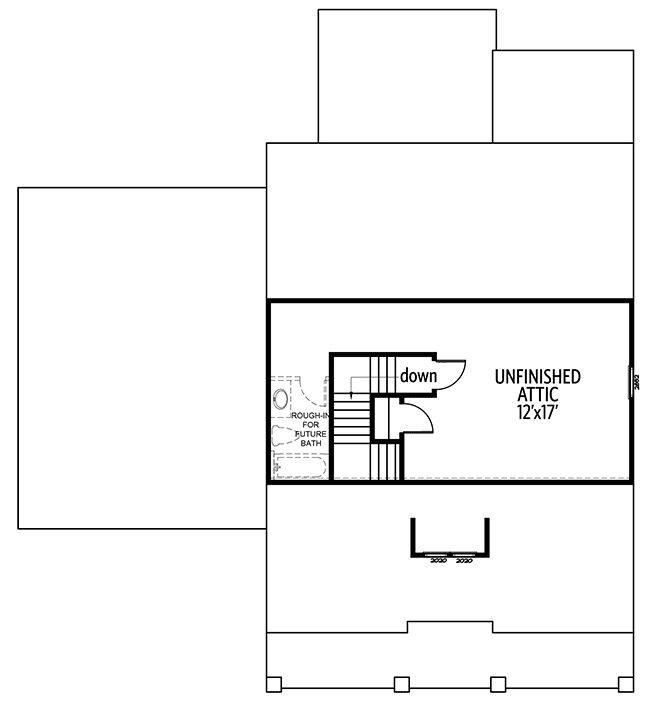

  • Attic

Plan Details

Square Footage Breakdown

  • Total: 2,988 sq. ft.
  • 1st Floor: 1,525 sq. ft.
  • 2nd Floor: 1,463 sq. ft.

Dimensions

  • Width: 55' 4"
  • Depth: 61' 4"
  • Max ridge height: 37' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 685 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick And Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Country Craftsman with Bonus Over Garage

  • 2,988

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Country Craftsman with Bonus Over Garage

  • 2,988

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,988 sq. ft.
  • 1st Floor: 1,525 sq. ft.
  • 2nd Floor: 1,463 sq. ft.

Dimensions

  • Width: 55' 4"
  • Depth: 61' 4"
  • Max ridge height: 37' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 685 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick And Truss

    Main Level

    2nd Floor

    Attic
