Plan 52286WM
Country Home Plan with Bonus room and Split Bedroom Layout
Heated S.F.
2,487
Beds
4
Baths
3.5
Stories
1-2
Cars
3
Photos
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

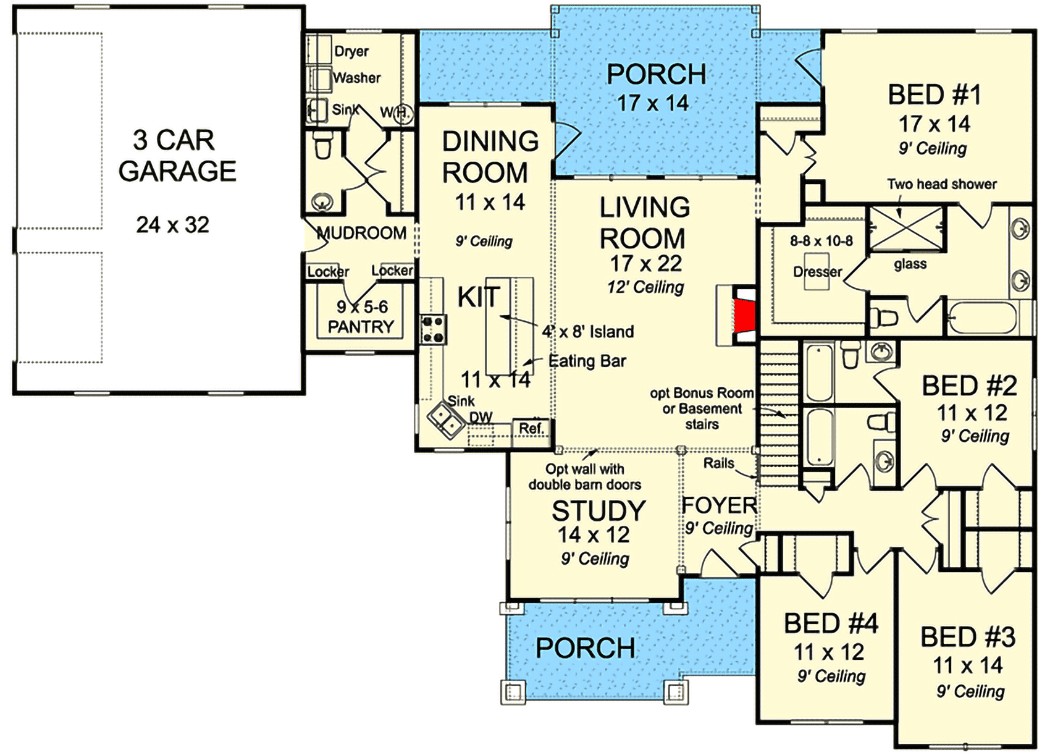

Country Home Plan with Bonus room and Split Bedroom Layout - 52286WM floor plan - Main Level
Optional Bonus Room
Reverse Floor Plan

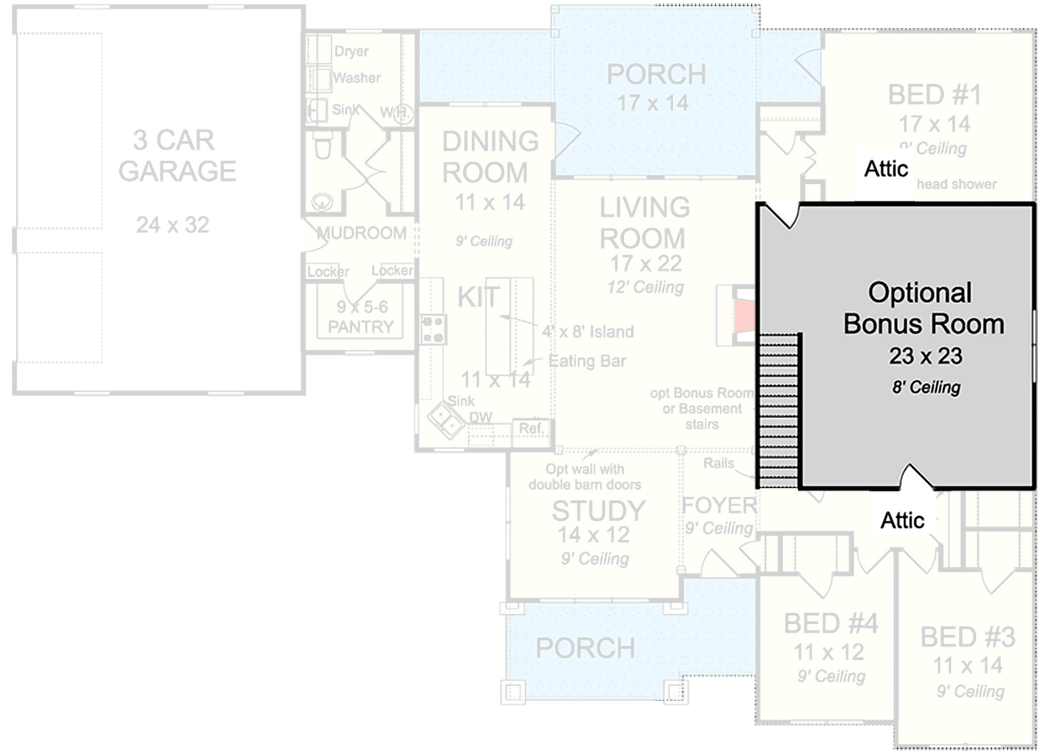

Country Home Plan with Bonus room and Split Bedroom Layout - 52286WM floor plan - Optional Bonus Room
Plan Details
  • Enjoy one-level living with this 4-bed home plan with bonus expansion. Four supports on brick bases support the gable over the covered front entry.
  • Step inside the foyer and enjoy views through the living room to the porch beyond. To your left, the study comes with an option to enclose the space with barn doors.
  • The kitchen has a functional island with seating on one side and work space on the other. Steps away lies the walk-in pantry and the door to the garage making unloading groceries a breeze.
  • The dining room opens to the back porch as does the master bedroom. Three bedrooms are cluster around two bathrooms.

What's Included
  • Front elevation and construction notes

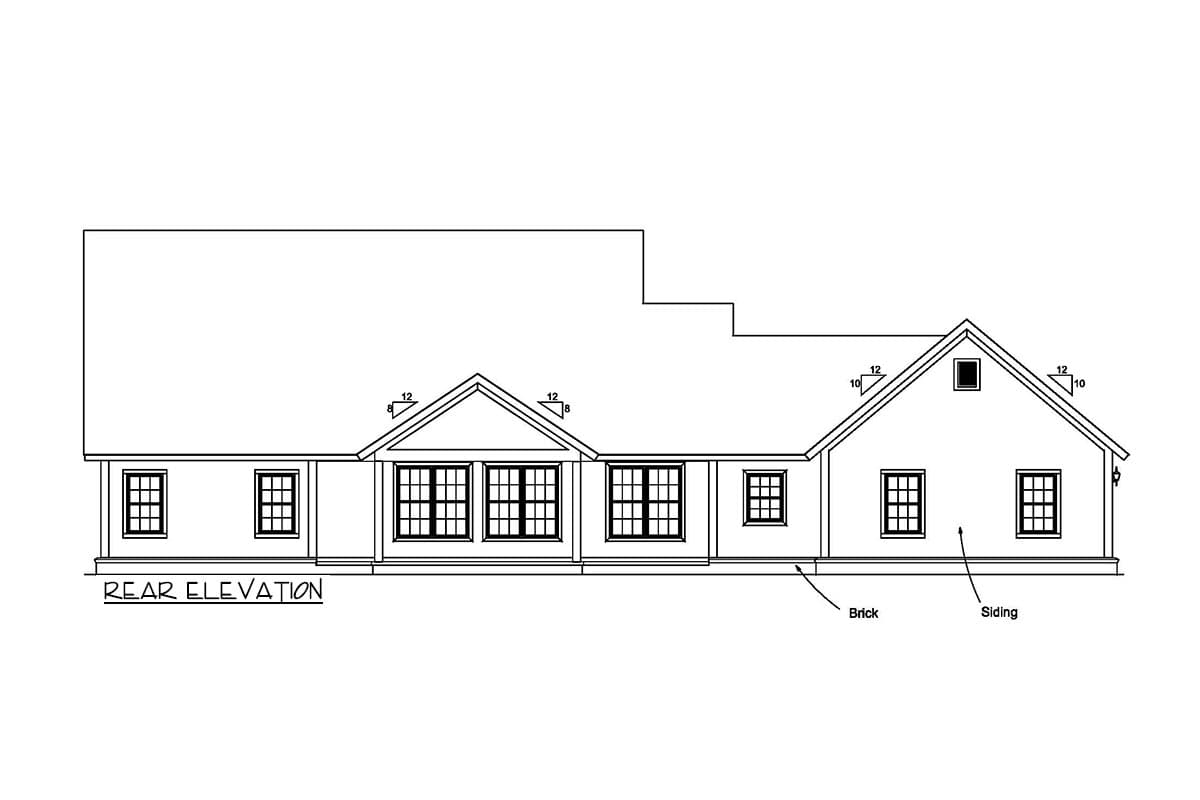

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Country Home Plan with Bonus room and Split Bedroom Layout

  • 2,487

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optional Bonus Room

Plan Details

Square Footage Breakdown

  • Total: 2,487 sq. ft.
  • 1st Floor: 2,487 sq. ft.

Dimensions

  • Width: 84' 0"
  • Depth: 61' 0"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 768 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick Or Truss
