Country Home Plan with Relaxing Covered Front Porch

Plan 59637ND

  • 3,060

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Relax on the covered front porch that wraps around the front and side of this attractive home plan.
  • Your guests are sure to notice and appreciate the open feel throughout this design.
  • At the heart of this home is the well-equipped kitchen including a bar that connects to the breakfast area and hearth room.
  • The private study and master suite complete the main floor of this home.
  • The upper floor houses two spacious bedrooms, each with a computer center and private access to a shared bathroom.
  • Related Plans: Get alternate versions with house plans 5904ND, 59298ND and 59707ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

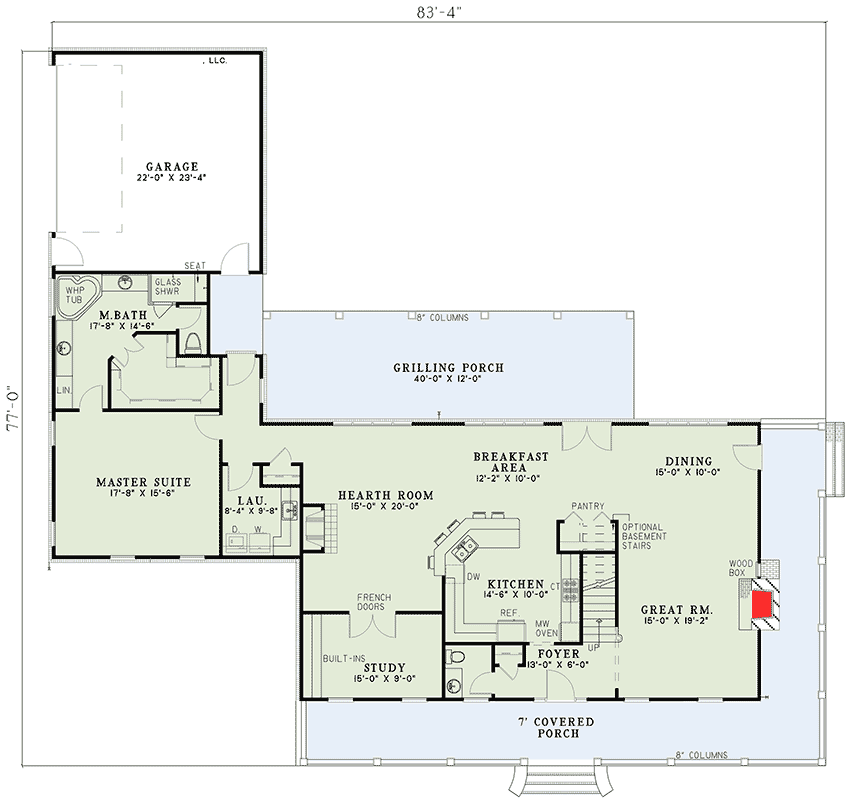

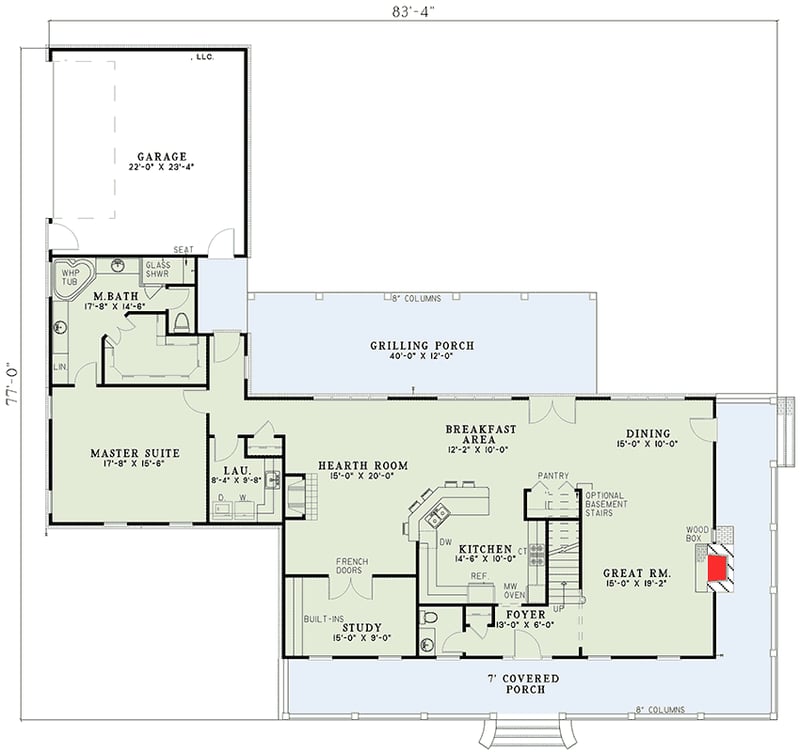

Country Home Plan with Relaxing Covered Front Porch - 59637ND floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

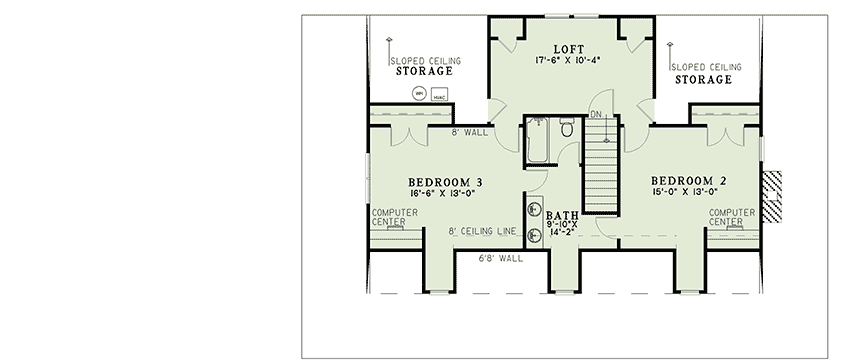

Country Home Plan with Relaxing Covered Front Porch - 59637ND floor plan - 2nd Floor

Country Home Plan with Relaxing Covered Front Porch

  • 3,060

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,060 sq. ft.
  • 1st Floor: 2,204 sq. ft.
  • 2nd Floor: 856 sq. ft.

Dimensions

  • Width: 83' 4"
  • Depth: 77' 0"
  • Max ridge height: 26' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 540 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Country Home Plan with Relaxing Covered Front Porch

  • 3,060

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Country Home Plan with Relaxing Covered Front Porch

  • 3,060

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,060 sq. ft.
  • 1st Floor: 2,204 sq. ft.
  • 2nd Floor: 856 sq. ft.

Dimensions

  • Width: 83' 4"
  • Depth: 77' 0"
  • Max ridge height: 26' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 540 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick

    Main Level

    2nd Floor
