Plan 35542GH

Country Home with Library Loft

Heated S.F.
3,816
Beds
2 - 4
Baths
2 - 3
Stories
1-2
Cars
2

Floor Plan

Plan 35542GH

Main Level
Main Level
Second Level
Second Level
Lower Level
Lower Level

Plan 35542GH

M-F 9am-5pm EST |

1-203-761-8500

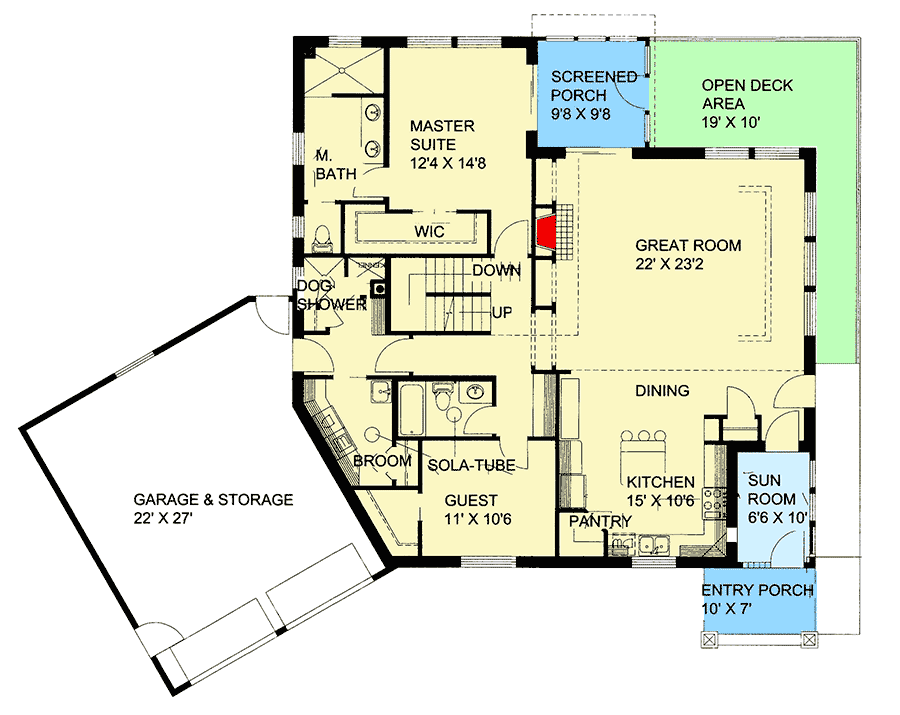

Main Level

Plan 35542GH: Country Home with Library Loft - Floor Plan - Main Level - Country

Second Level

Plan 35542GH: Country Home with Library Loft - Floor Plan - Second Level - Country

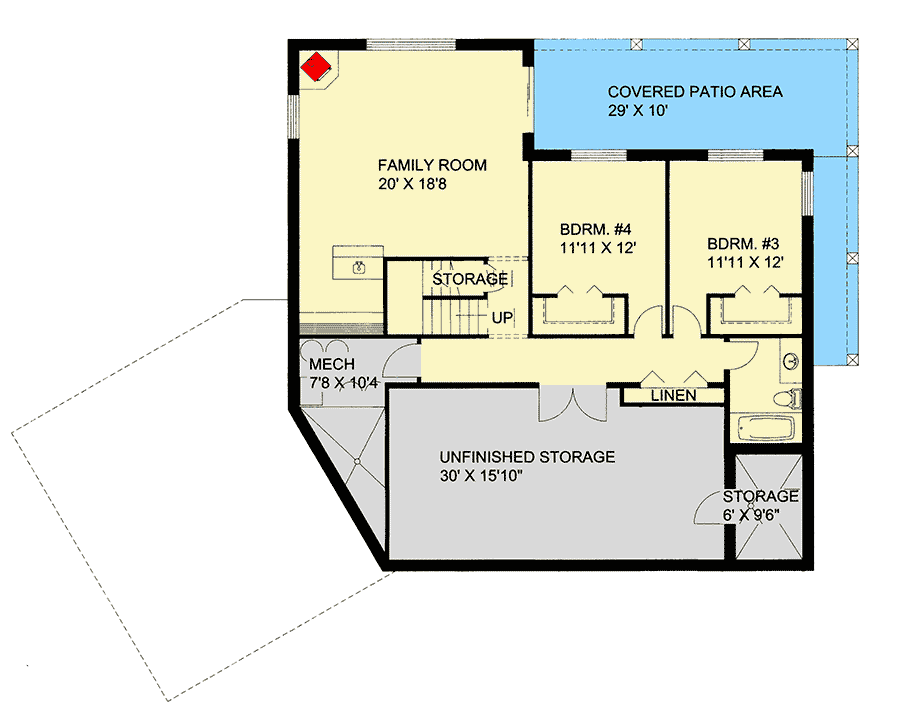

Lower Level

Plan 35542GH: Country Home with Library Loft - Floor Plan - Lower Level - Country

Plan Details

  • An entry porch opens to a sunroom in this house plan perfect for a rear sloping lot.
  • The great room is open to above and has a fireplace and access to the screened porch in back.
  • The master suite is one of two bedrooms on the main floor. It has screened porch access and a large walk-in closet. The guest bedroom is in front and has full bath access.
  • Stairs go up to the a library loft with view of the great room below.
  • The lower level gives you two more bedrooms, a family room with corner fireplace and lots of storage.

What's Included

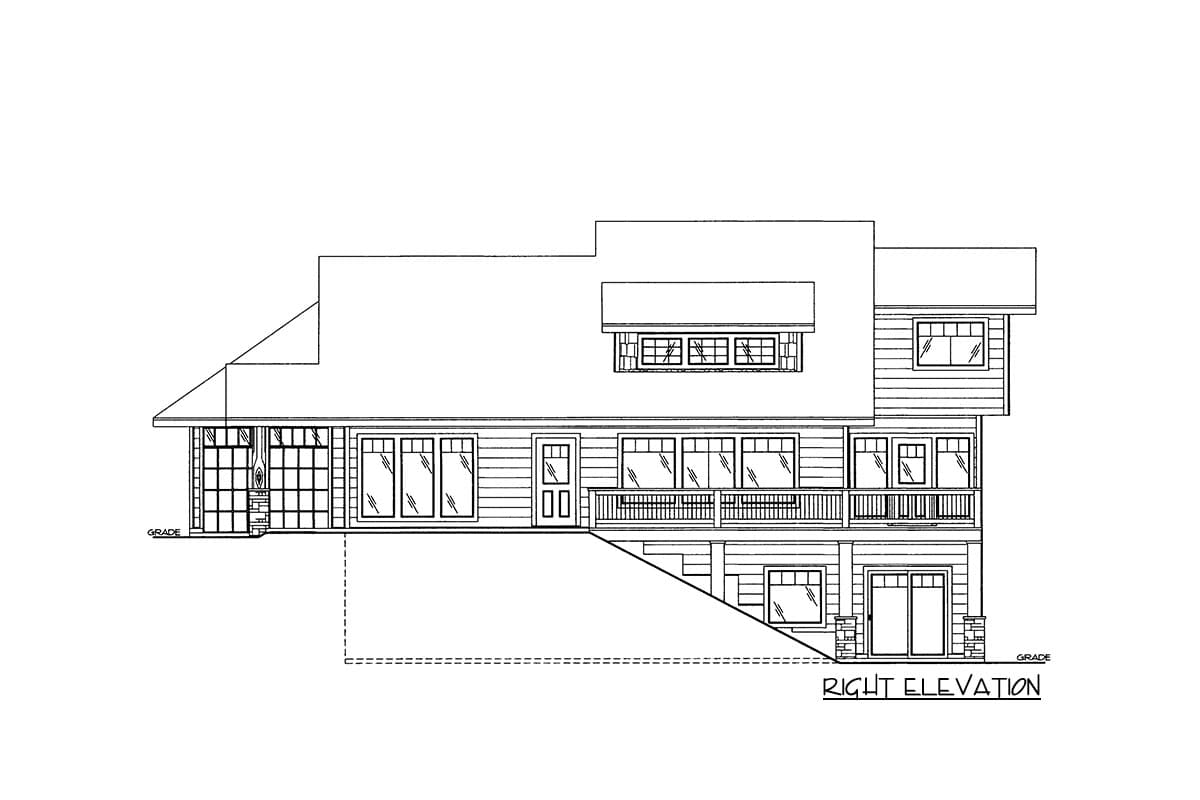

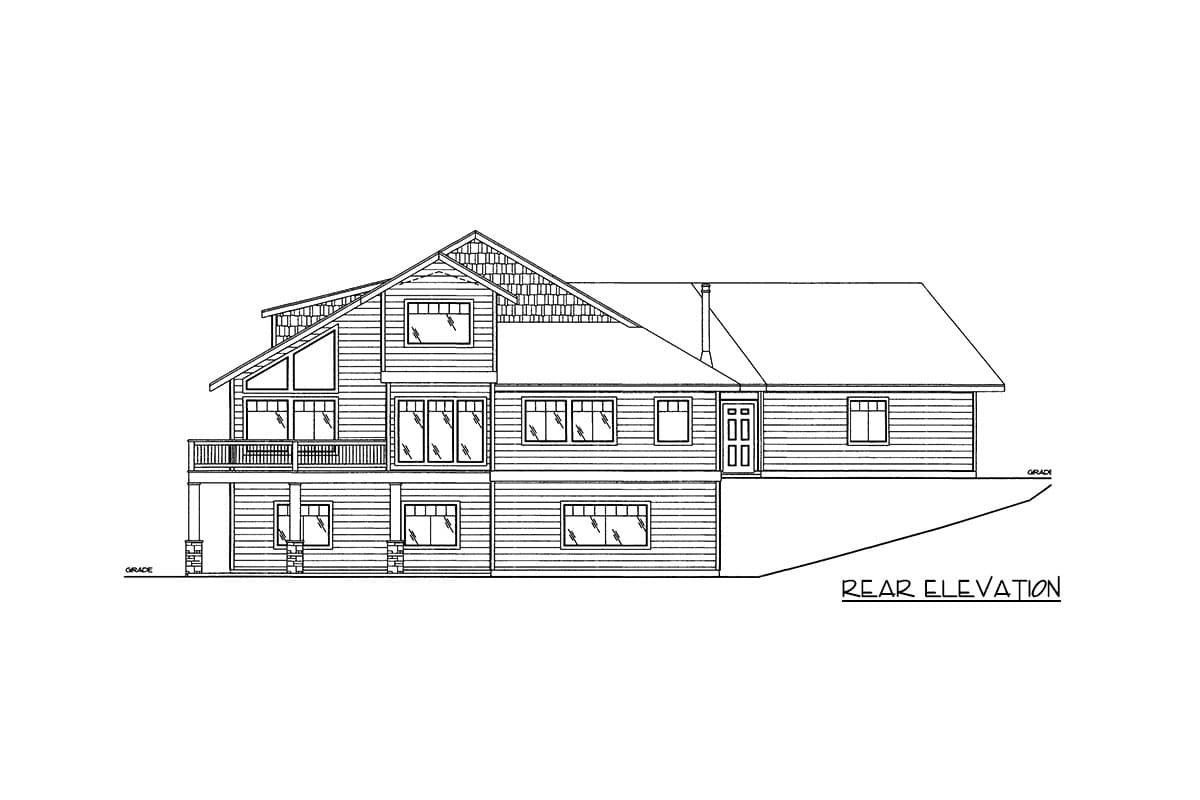

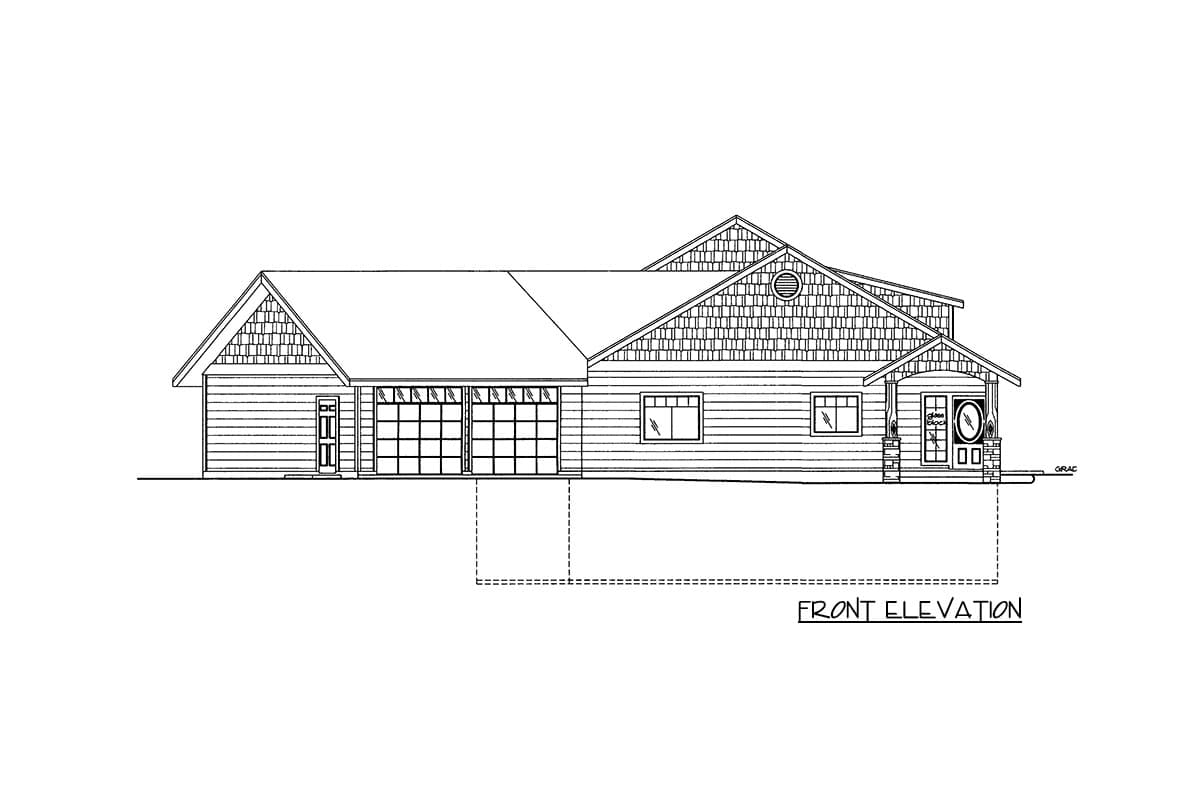

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,816 sq. ft.

Lower Level

1,945 sq. ft.

1st Floor

1,871 sq. ft.

Screened Porch

100 sq. ft.

Entry

70 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

ICF

Dimensions

Width

71' 10"

Depth

59' 9"

Max Ridge Height

34' 5"

Garage

Type

Attached

Area

658 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

7' 10"

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

N on N

Framing Type

Stick And Truss

Architectural Style

Country

Special Features

Bedrooms - Clustered

Home Office

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Sunroom

Plan Collections

Home Office

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,816 sq. ft.

Lower Level

1,945 sq. ft.

1st Floor

1,871 sq. ft.

Screened Porch

100 sq. ft.

Entry

70 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

ICF

Dimensions

Width

71' 10"

Depth

59' 9"

Max Ridge Height

34' 5"

Garage

Type

Attached

Area

658 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

7' 10"

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

N on N

Framing Type

Stick And Truss

Architectural Style

Country

Special Features

Bedrooms - Clustered

Home Office

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Sunroom

Plan Collections

Home Office

Sloping Lot
