Country House Plan with Wrap-Around Porch

Plan 46334LA

  • 2,737

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

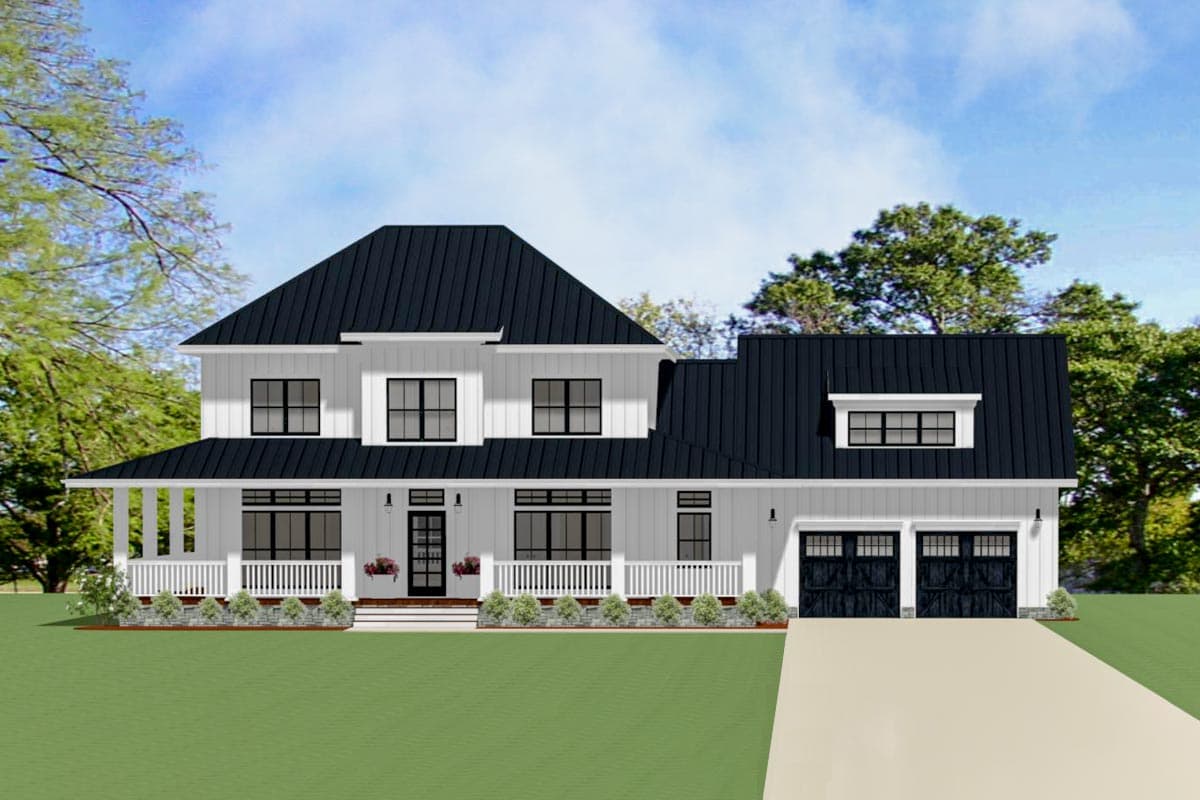

  • Metal roofing and lots of transom windows enhance this Country house plan that boasts a wrap-around porch.
  • You can sit in the shade or head to the open deck in back to grab some sunshine.
  • Sliding barn doors close off the study that has one wall with built-ins.
  • The L-shaped main living area is set at the back of the home and is all open concept.
  • The home comes with lots of storage from the walk-in pantry to the big storage room at the back of the garage.
  • On the upper floor, the master bedroom walk-in closet comes with a special treat - a door right into the second floor laundry room.
  • Optional bonus space adds an extra 426 square feet of living space if finished.

This plan set has the following details:


  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

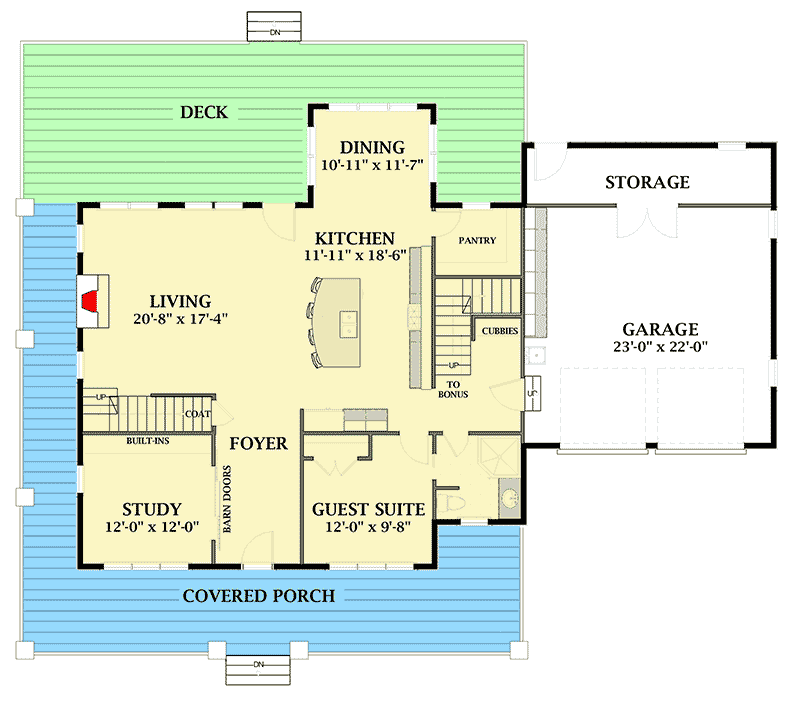

Country House Plan with Wrap-Around Porch - 46334LA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

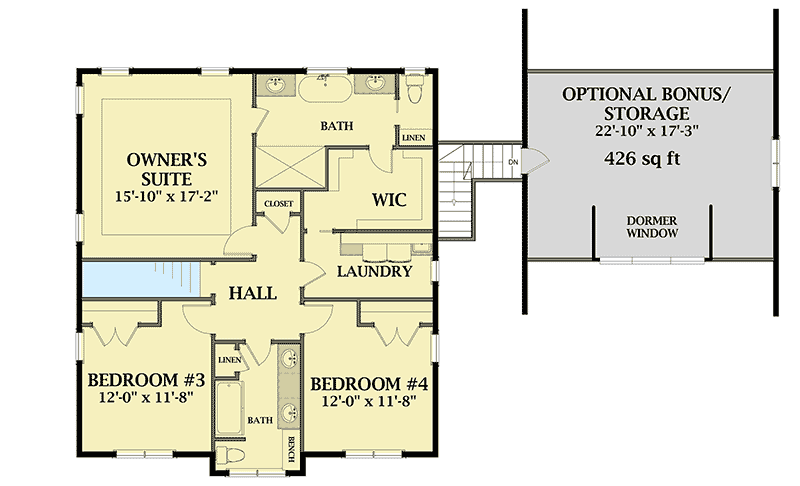

Country House Plan with Wrap-Around Porch - 46334LA floor plan - 2nd Floor

Country House Plan with Wrap-Around Porch

  • 2,737

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,737 sq. ft.
  • 1st Floor: 1,504 sq. ft.
  • 2nd Floor: 1,233 sq. ft.

Dimensions

  • Width: 70' 10"
  • Depth: 57' 8"
  • Max ridge height: 31' 3"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 538 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Daylight, Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Country House Plan with Wrap-Around Porch

  • 2,737

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Country House Plan with Wrap-Around Porch

  • 2,737

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,737 sq. ft.
  • 1st Floor: 1,504 sq. ft.
  • 2nd Floor: 1,233 sq. ft.

Dimensions

  • Width: 70' 10"
  • Depth: 57' 8"
  • Max ridge height: 31' 3"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 538 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Daylight, Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12

    Main Level

    2nd Floor
