Plan 52289WM
Country Ranch House Plan
Heated S.F.
1,639
Beds
3
Baths
2
Stories
1
Cars
3
Plan Details
  • A classic covered porch ushers you into this one level Country Ranch home.
  • From the front foyer, you can see right into the huge living room with its 11' high ceiling.
  • Sliding glass doors take you out to the big rear porch.
  • The kitchen island has a raised eating bar and the kitchen sink overlooks the back yard.
  • Bedrooms are all grouped together on the right side of the home and every bedroom gets a walk-in closet.
What's Included
  • Front elevation and construction notes

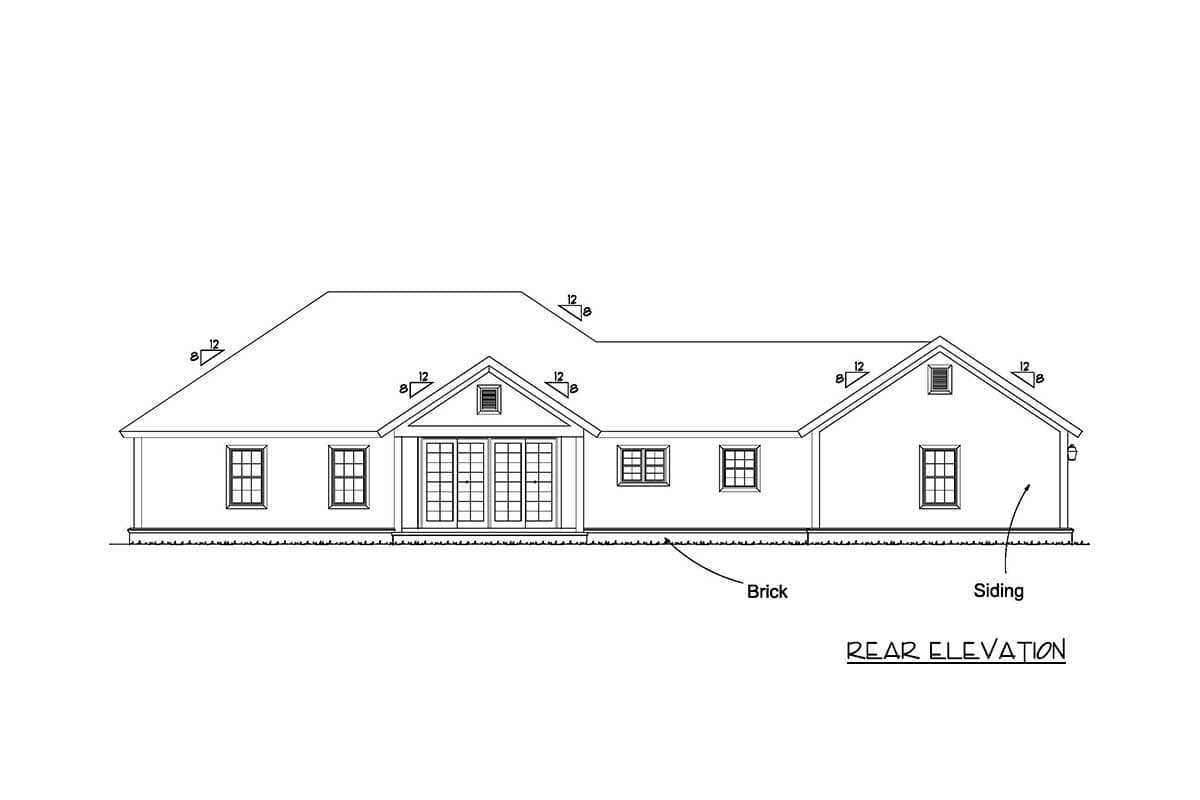

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Country Ranch House Plan

  • 1,639

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

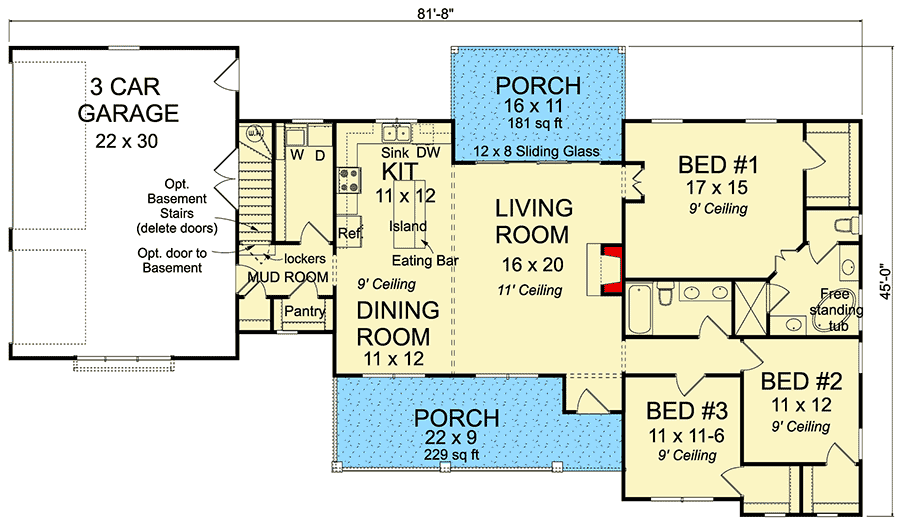

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,639 sq. ft.
  • 1st Floor: 1,639 sq. ft.

Dimensions

  • Width: 81' 8"
  • Depth: 45' 0"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 701 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
