Plan 72971DA Country Ranch House Plan with 1 Bedroom

Country Ranch House Plan with 1 Bedroom

Plan 72971DA

  • 900

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • 2

    Cars

  • This country, ranch house plan presents a traditional exterior with 900 sq ft of heating living space.
  • The formal and garage entryways merge to take advantage of a nearby coat closet, while the open living spaces are located directly to the left.
  • A cooktop island resides in the center of the kitchen and includes an eating bar, while a neighboring dining nook offers frontal views. The laundry room is accessible from the kitchen, and includes a door to the side yard.
  • The owner's suite boasts a walk-in closet, and a pocket door grants access to the home's full bath.
  • The forward-facing double garage attaches to the side of the home, and includes a door to the backyard.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

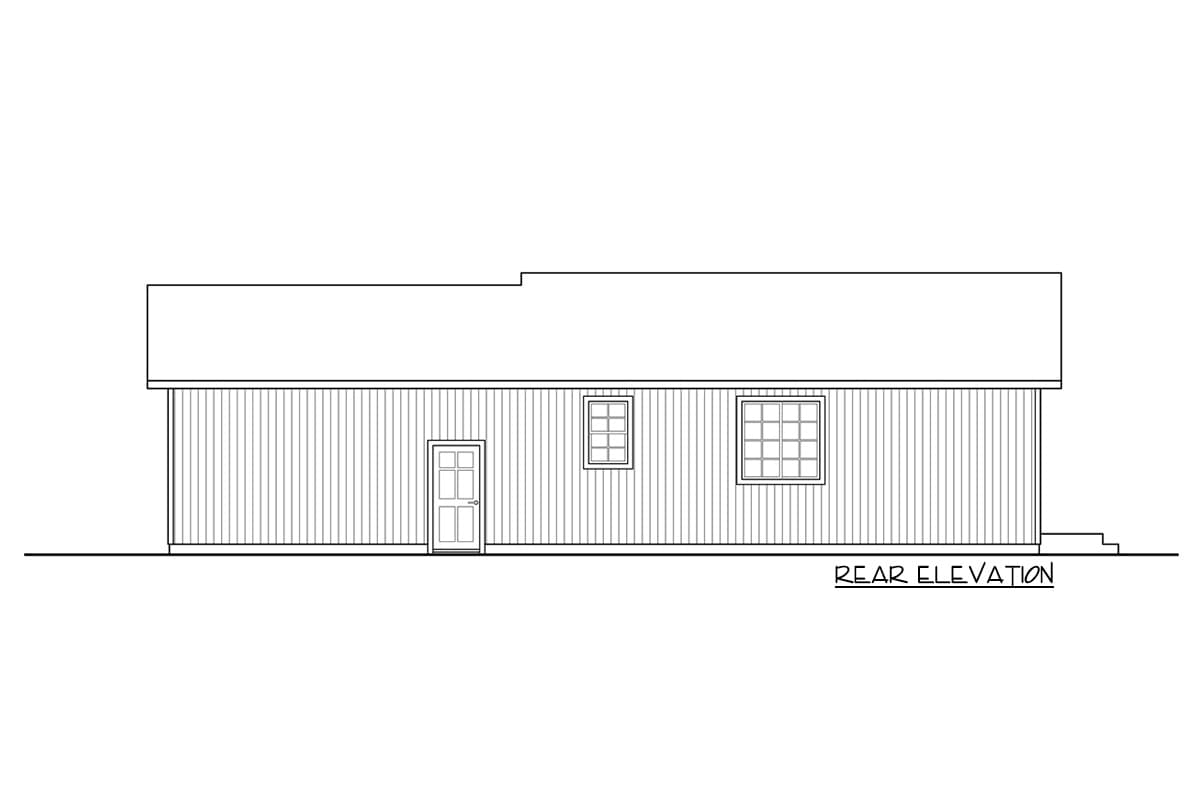

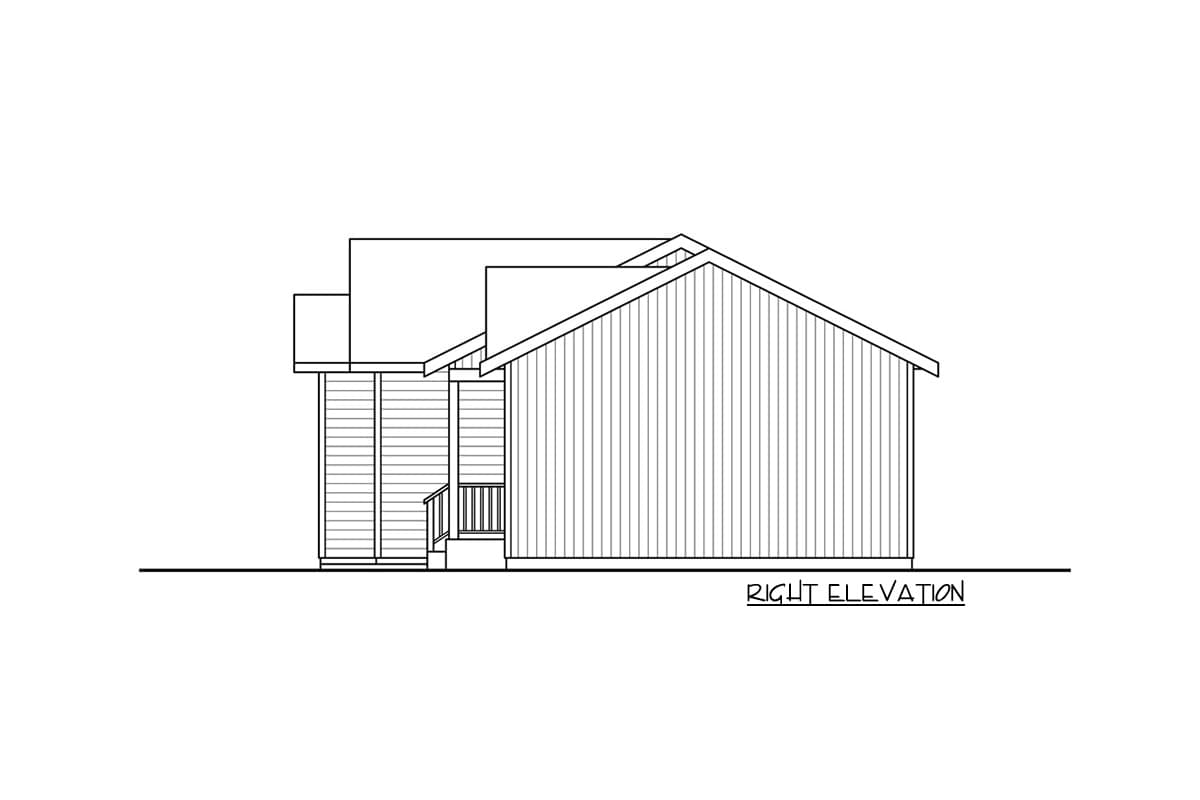

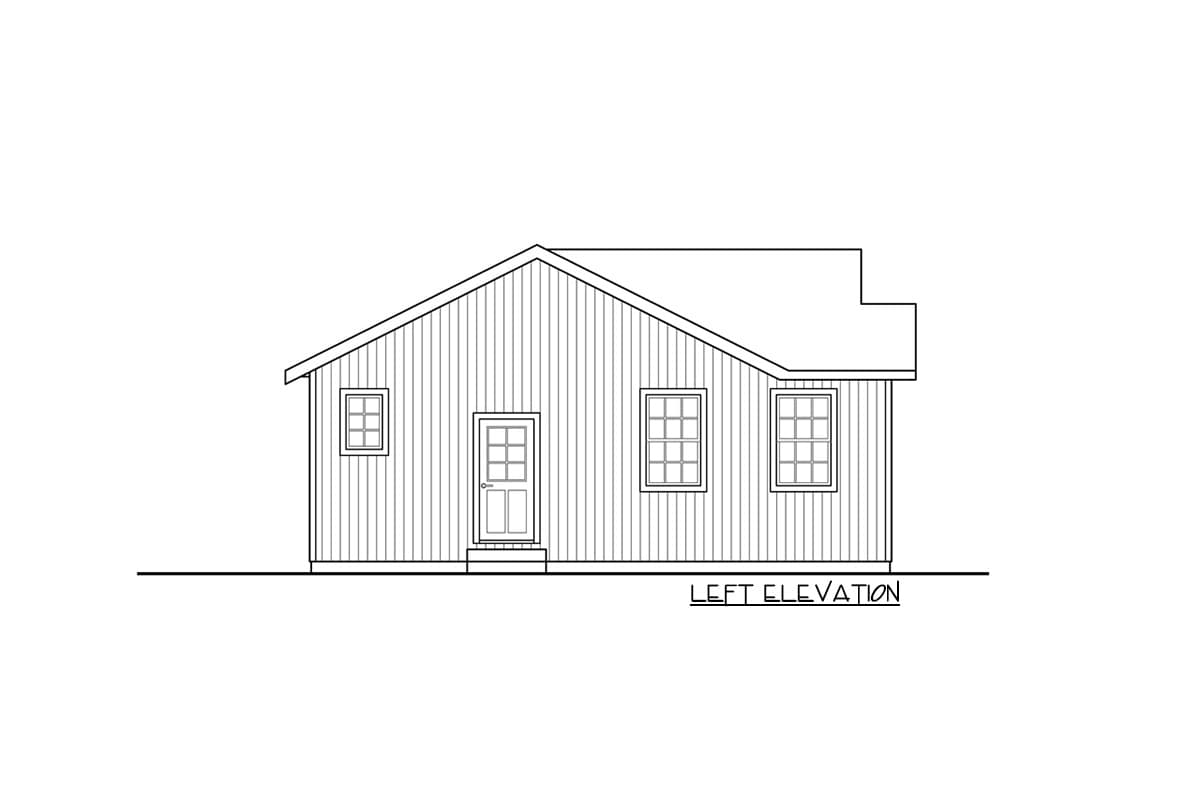

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details

Architectural Style



Country Ranch House Plan with 1 Bedroom

  • 900

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Printed $525
  • PDF Light $745
  • 5 Sets + PDF $815
  • PDF - Single-Build $1,295
  • CAD - Single-Build $1,395
  • CAD - Unlimited Build $1,545
  • View all purchase option online

About This Plan

  • This country, ranch house plan presents a traditional exterior with 900 sq ft of heating living space.
  • The formal and garage entryways merge to take advantage of a nearby coat closet, while the open living spaces are located directly to the left.
  • A cooktop island resides in the center of the kitchen and includes an eating bar, while a neighboring dining nook offers frontal views. The laundry room is accessible from the kitchen, and includes a door to the side yard.
  • The owner's suite boasts a walk-in closet, and a pocket door grants access to the home's full bath.
  • The forward-facing double garage attaches to the side of the home, and includes a door to the backyard.

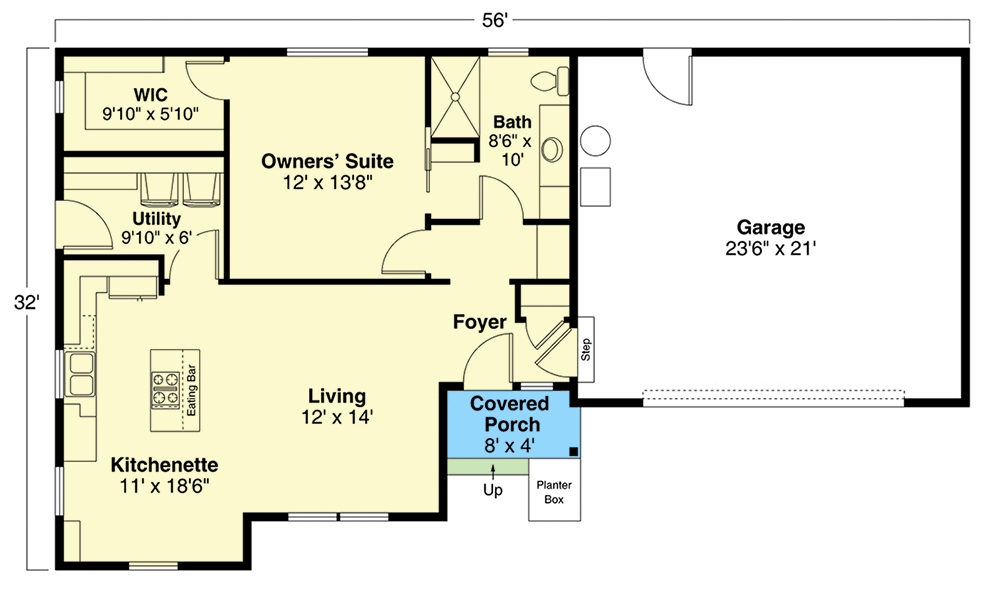

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 900 sq. ft.
  • 1st Floor: 900 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 56' 0"
  • Depth: 32' 0"
  • Max ridge height: 18' 0"

Garage

  • Type: Attached
  • Area: 529 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
