Plan 52506WM

Country Ranch House Plan with Split Bedrooms and Butler Pantry

Heated S.F.
2,137
Beds
4
Baths
3.5
Stories
1
Cars
2

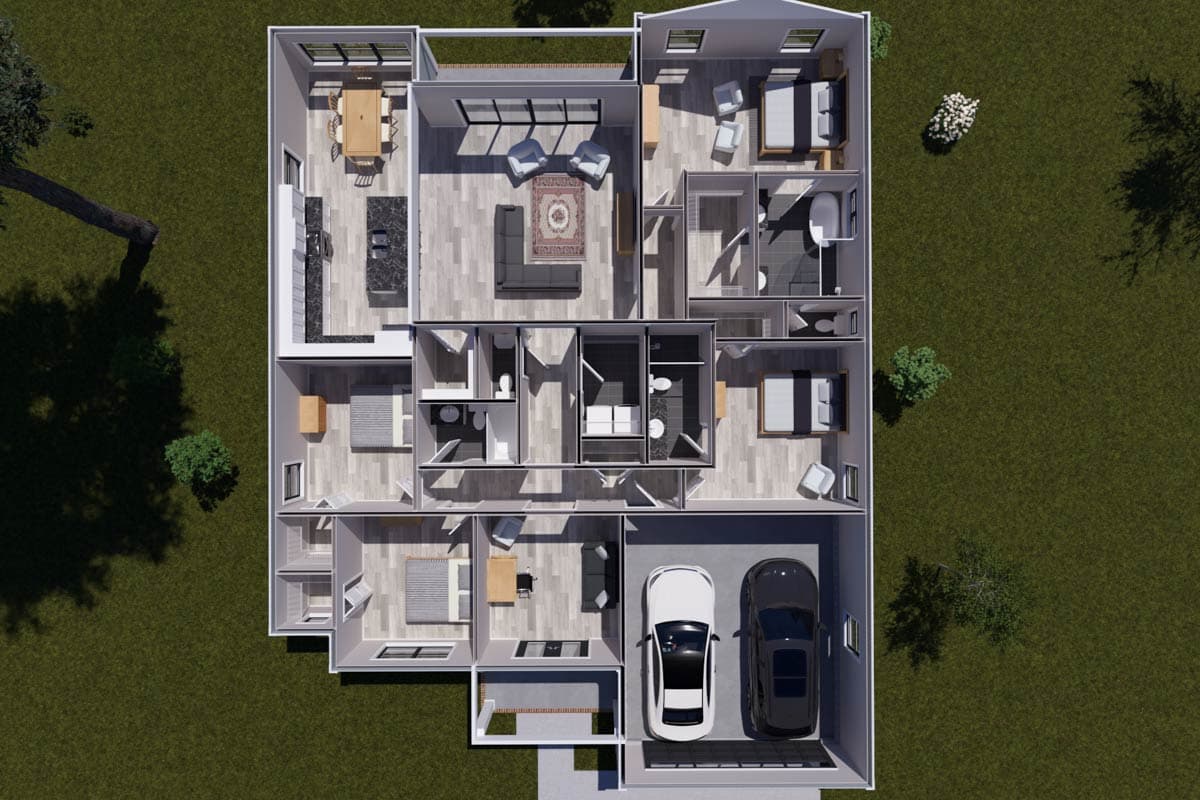

Floor Plan

Plan 52506WM

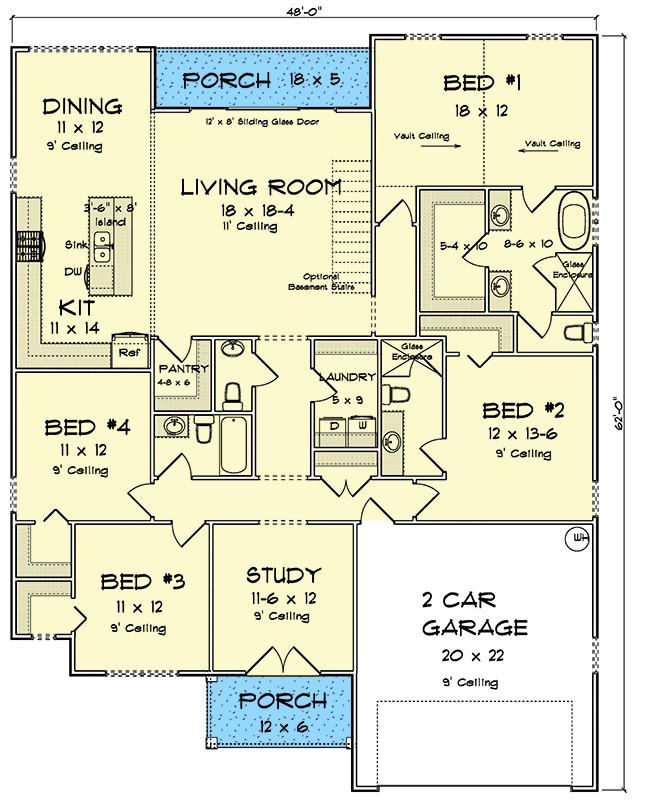

Main Level
Main Level

Plan 52506WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 52506WM: Country Ranch House Plan with Split Bedrooms and Butler Pantry - Floor Plan - Main Level - Country, Ranch

Plan Details

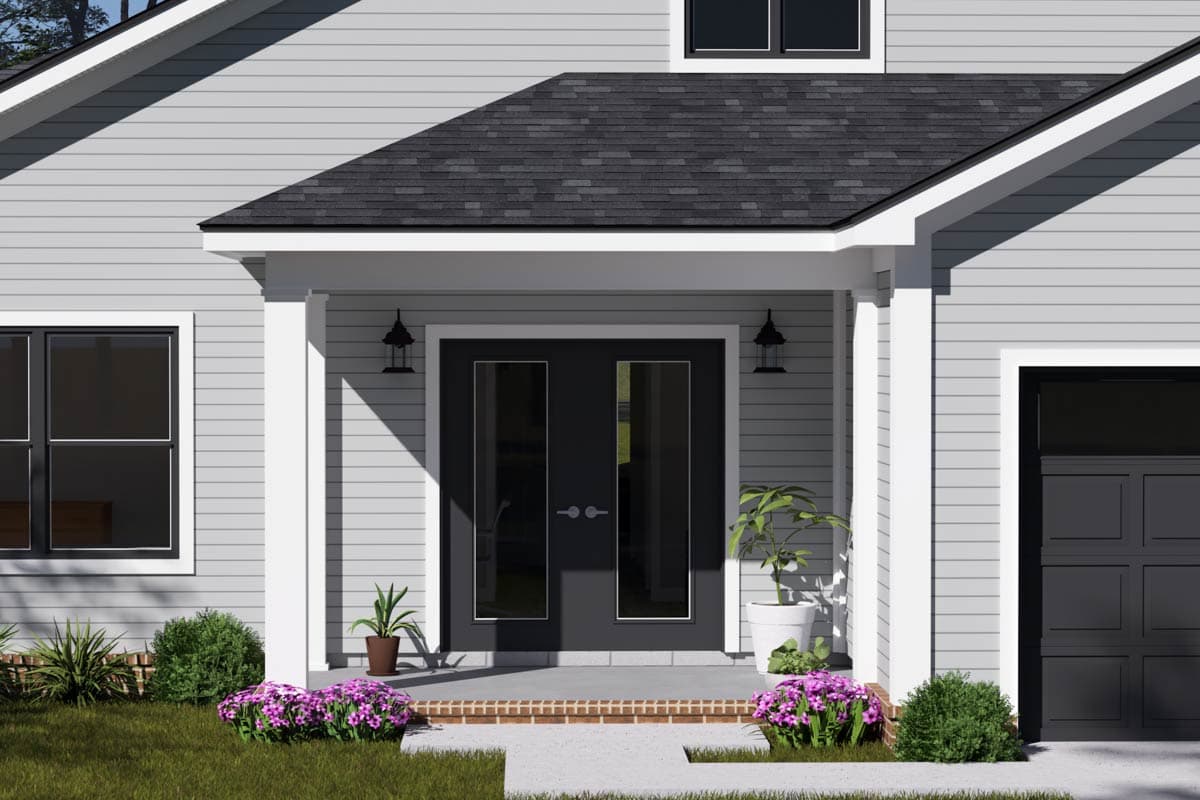

  • This inviting 2,137 sq. ft. Country Ranch house plan offers four bedrooms, three full bathrooms, one half bathroom, and an attached 440 sq. ft. two-car garage, showcasing a classic light grey siding and a welcoming façade.
  • Step through the elegant double front doors into a thoughtfully designed layout, where the main living areas flow seamlessly, balancing open gathering spaces with private retreats.

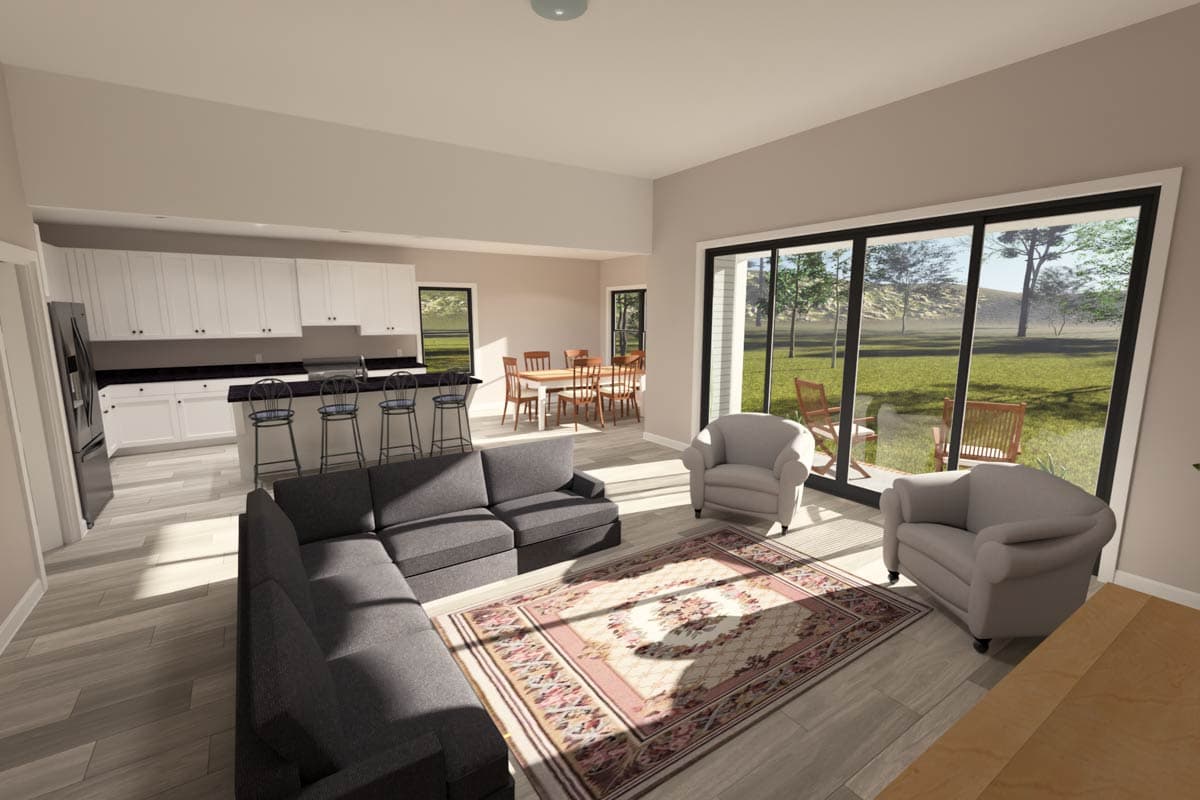

  • The heart of the home features an expansive living area, effortlessly connecting to the dining space and a well-appointed kitchen, complete with a practical butler's walk-in pantry, perfect for both everyday living and entertaining.

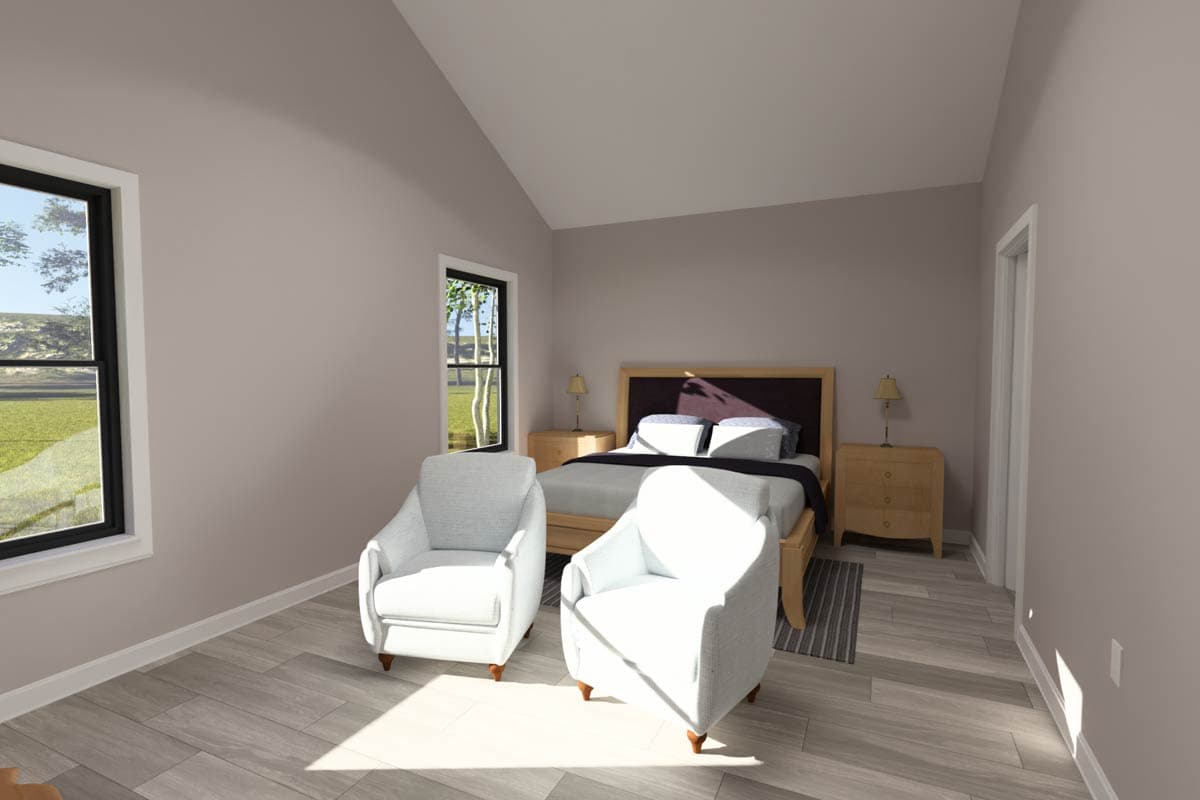

  • The luxurious first-floor master suite provides a private sanctuary, strategically separated from the three additional bedrooms, which are ideal for family or guests, ensuring a peaceful and serene environment.
  • A convenient mudroom and a dedicated main-level laundry room enhance daily functionality, offering practical spaces for organization and chores.
  • Enjoy morning coffee on the charming 72 sq. ft. covered front porch or unwind on the spacious 89 sq. ft. rear porch, offering ample opportunities for outdoor relaxation and connection with nature.
  • While the standard foundation is a slab, this versatile house plan offers optional basement and crawl space foundations, allowing for future expansion or additional storage tailored to your needs.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,137 sq. ft.

1st Floor

2,137 sq. ft.

Porch, Front

72 sq. ft.

Porch, Rear

89 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

48' 0"

Depth

62' 0"

Max Ridge Height

21' 6"

Garage

Type

Standard, Attached

Area

440 sq. ft.

Count

2 Cars

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Architectural Style

Country

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
