Plan 52539WM

Country Ranch House Plan with Split Bedrooms and Walk in Pantry

Heated S.F.
1,591
Beds
3
Baths
2
Stories
1
Cars
2
Tour

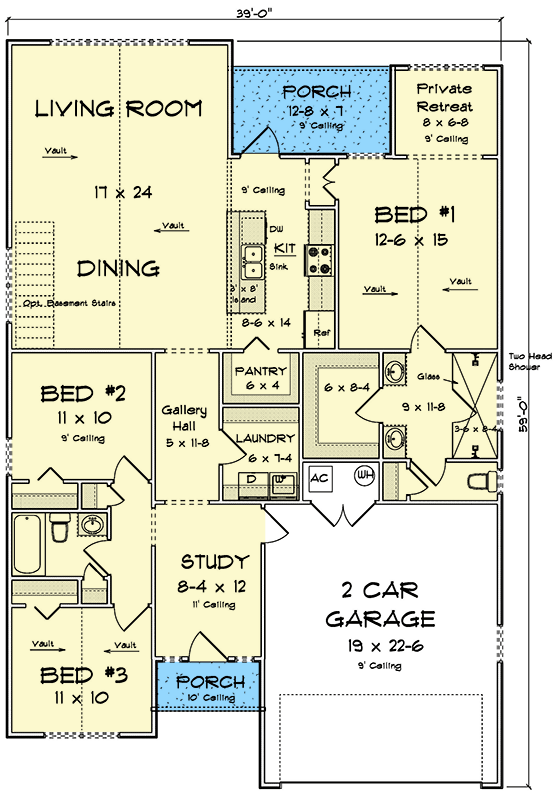

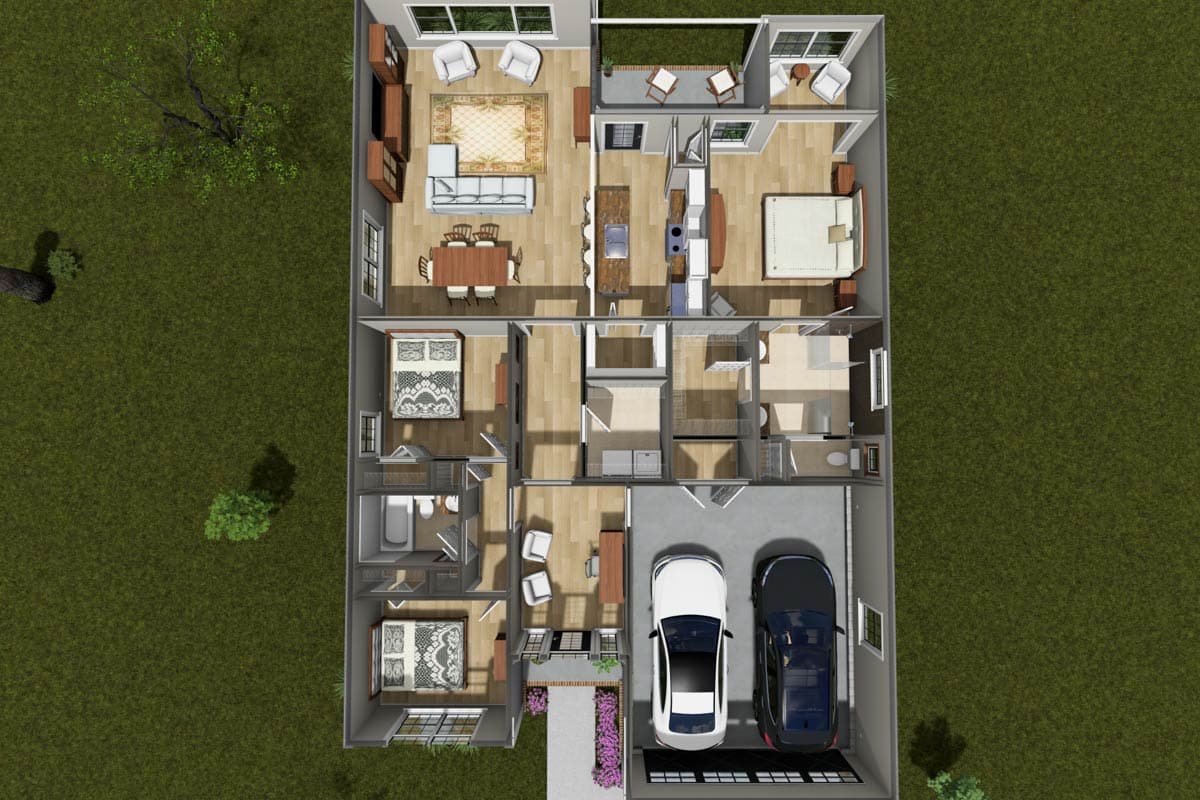

Floor Plan

Plan 52539WM

Main Level
Main Level

Plan 52539WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 52539WM: Country Ranch House Plan with Split Bedrooms and Walk in Pantry - Floor Plan - Main Level - Country, Ranch, Traditional

Plan Details

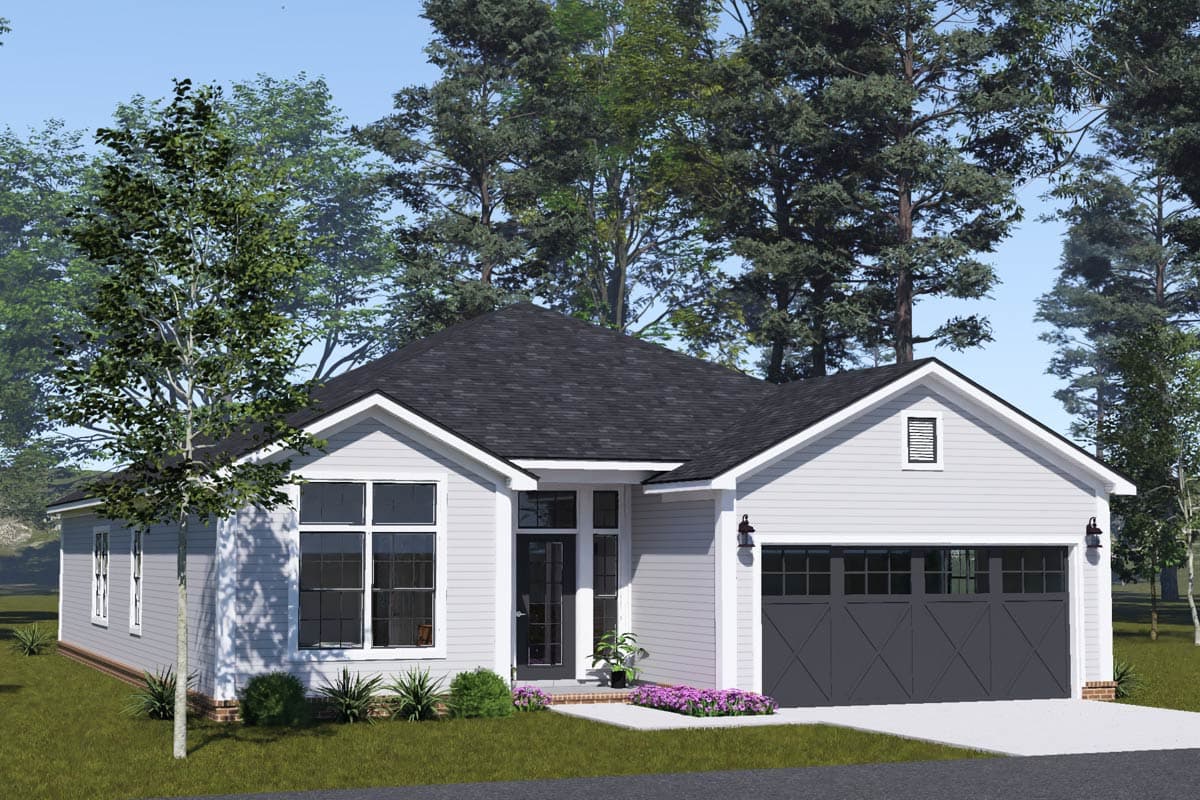

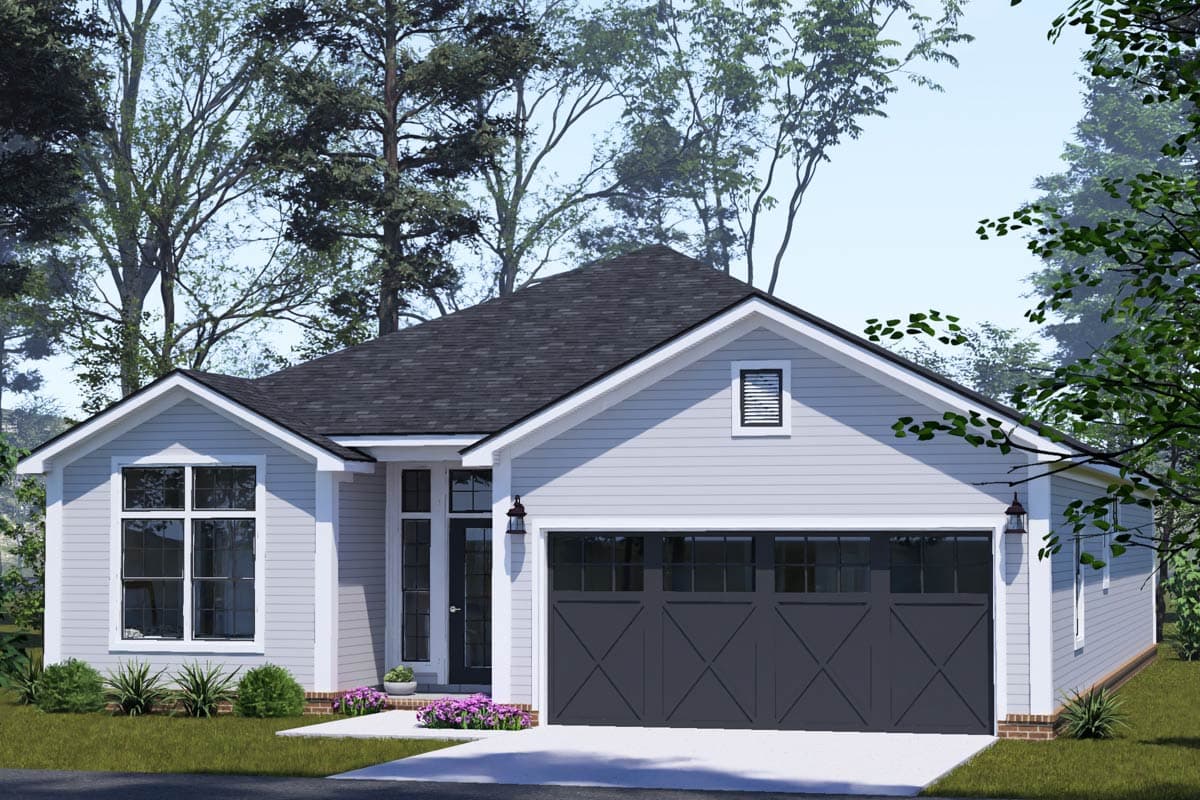

  • This 1,591 sq. ft. single-story home features 3 bedrooms, 2 bathrooms, and a spacious 2-car garage, all showcased in an inviting coastal ranch style.

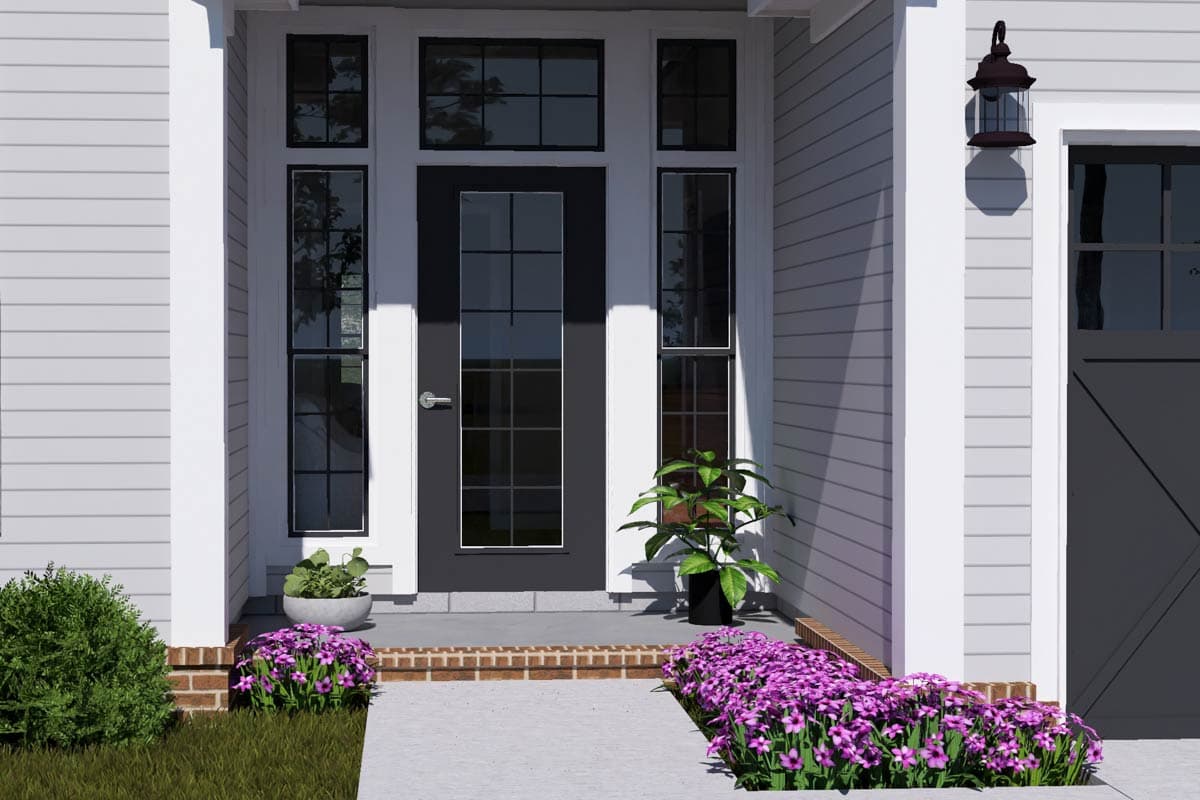

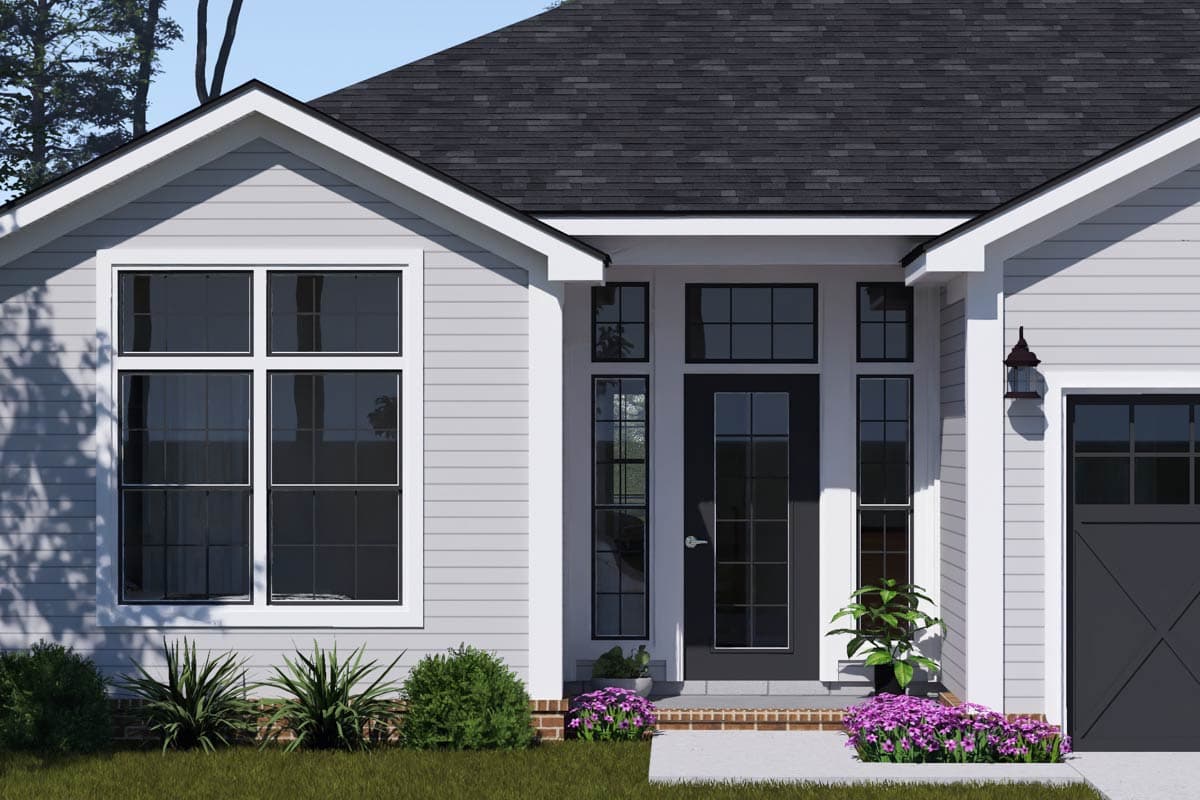

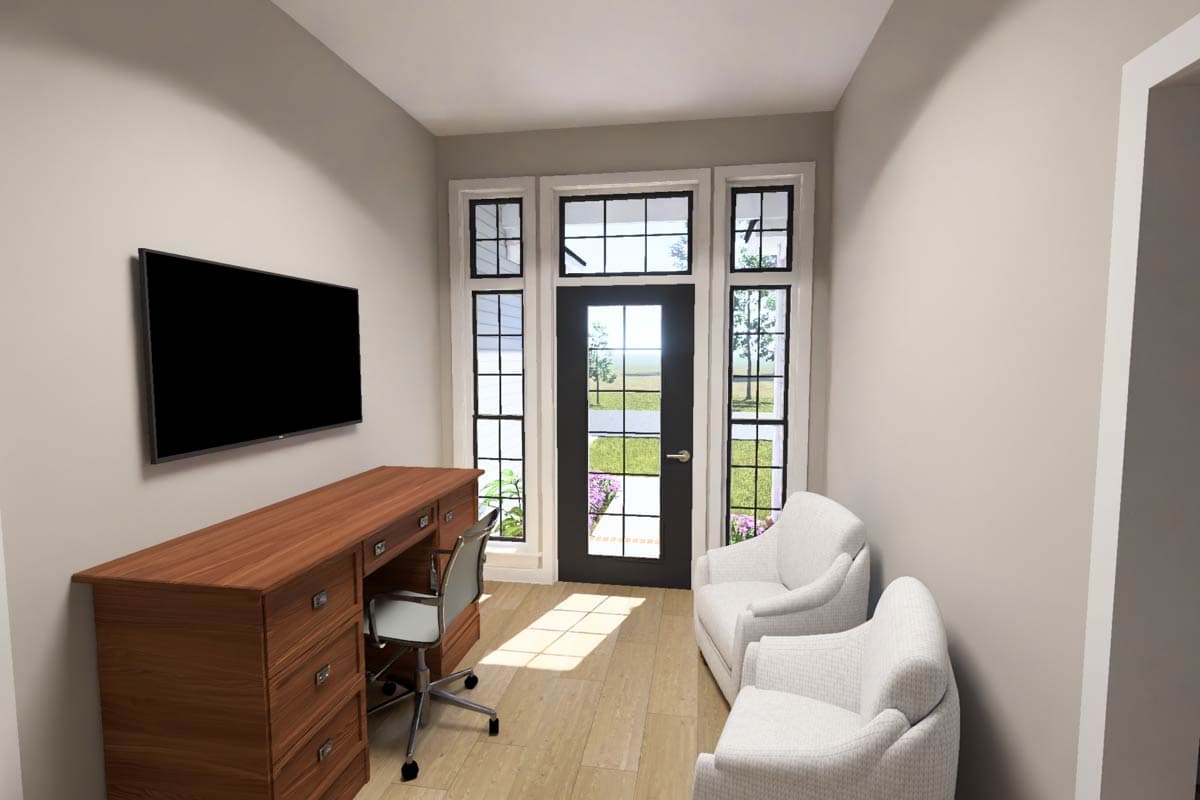

  • Step onto the welcoming front porch, then enter to find a naturally bright foyer with open sightlines that set a comfortable and airy tone, thanks to generous windows and high ceilings.

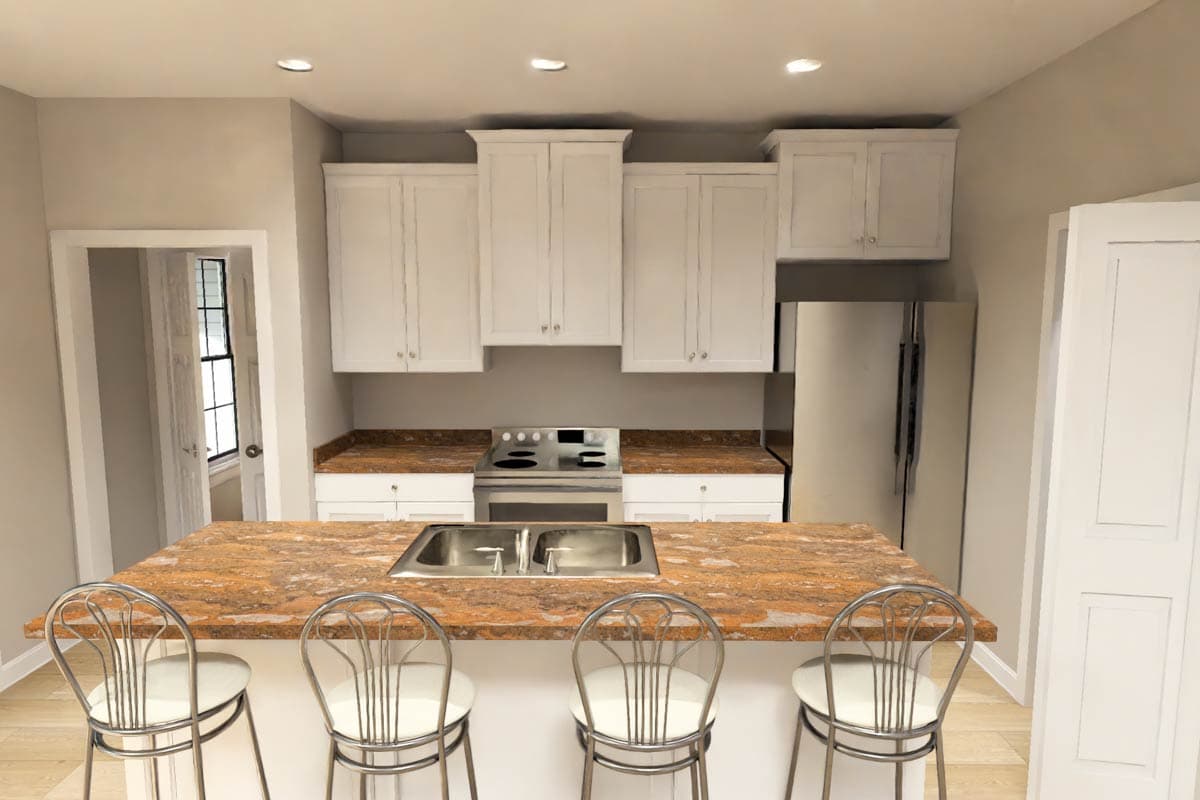

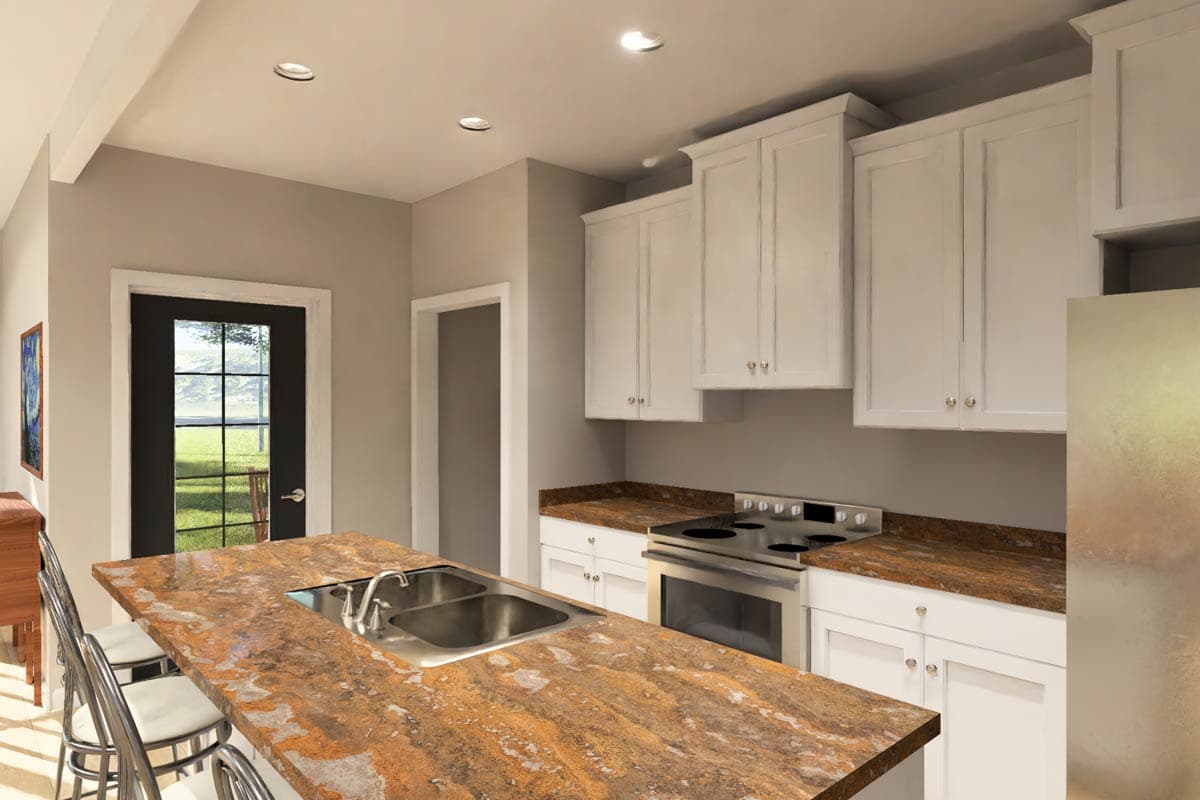

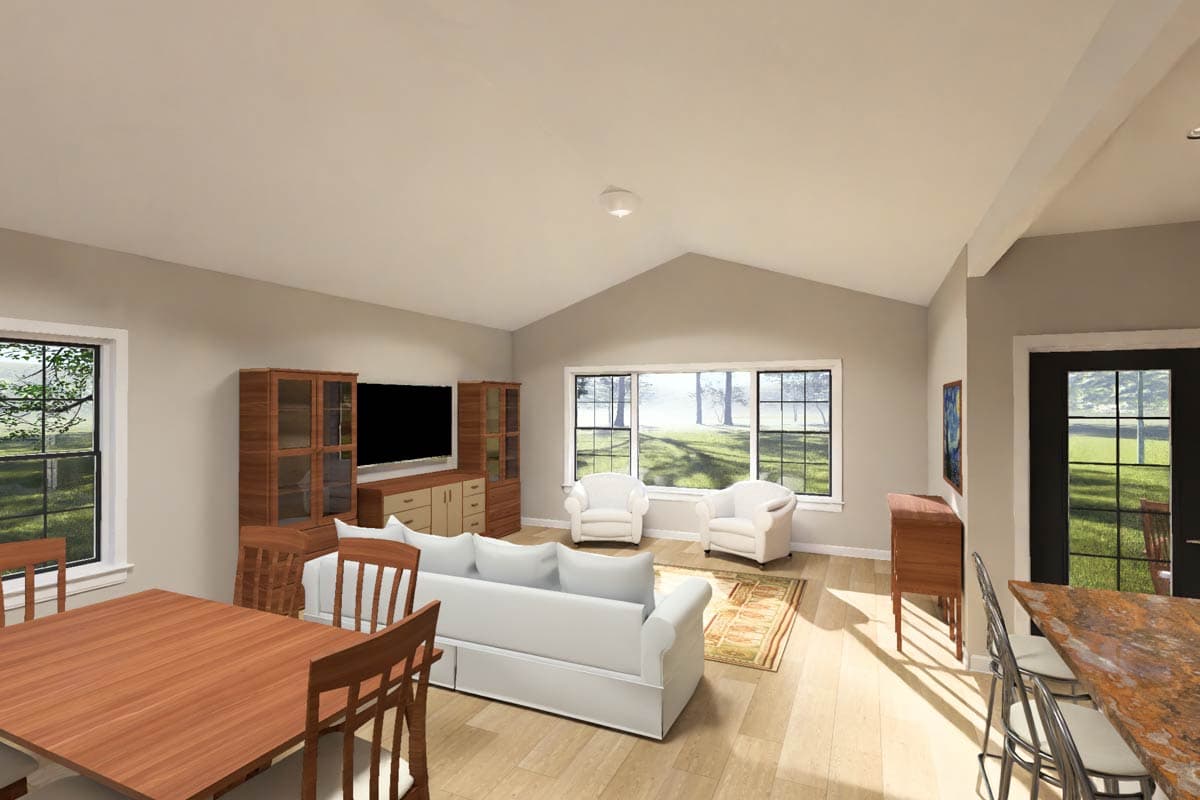

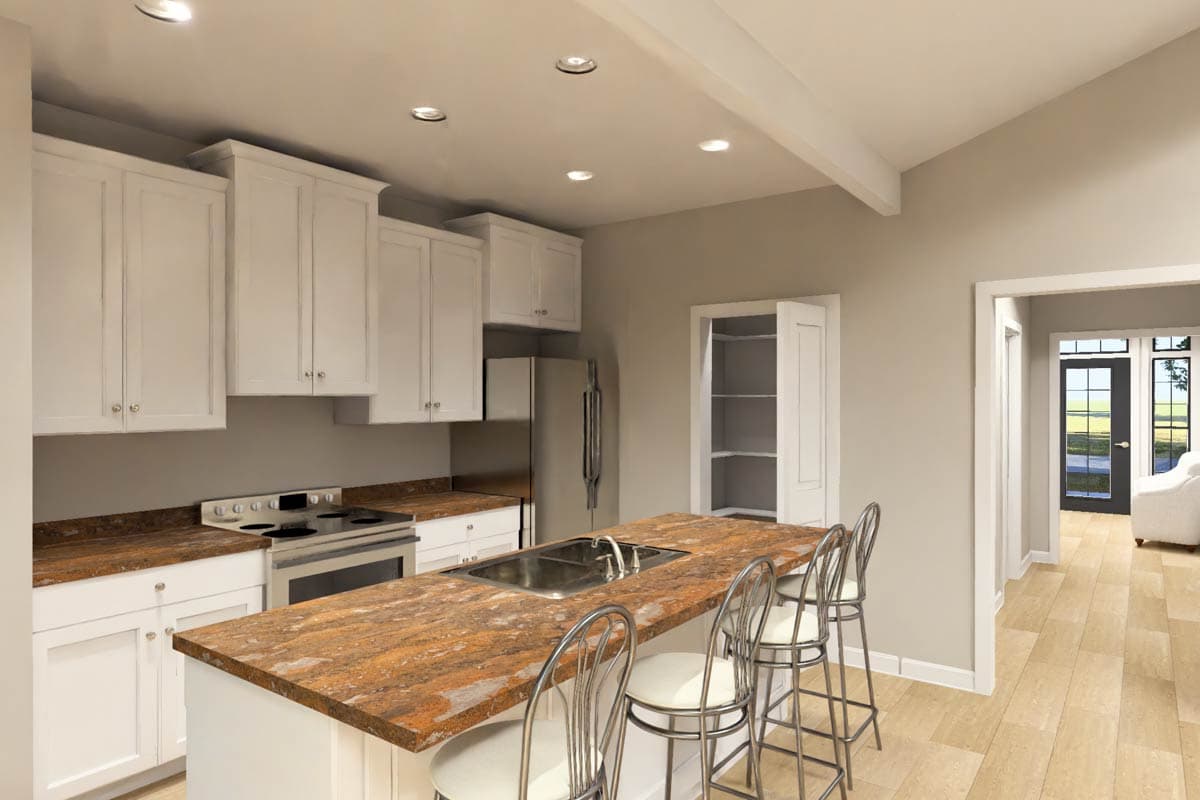

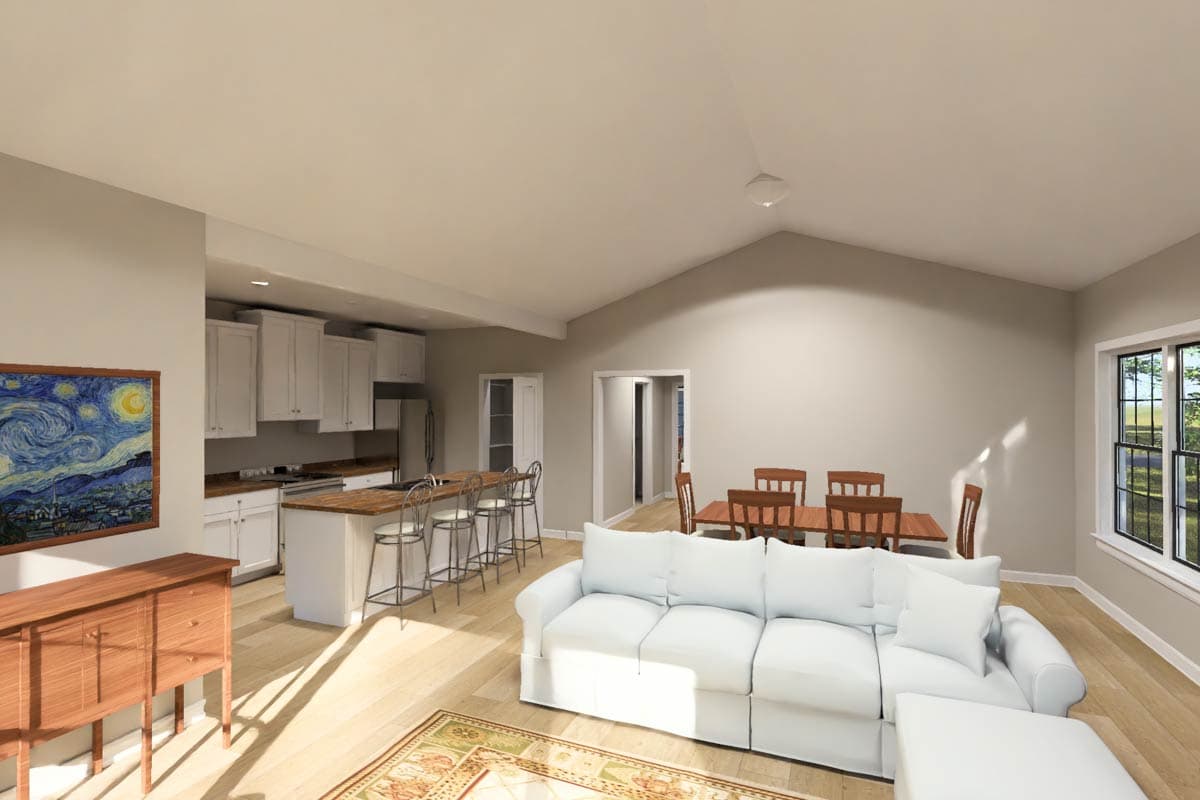

  • The open flow seamlessly connects the kitchen, dining, and living areas, with a central island making the kitchen a true gathering spot; a walk-in pantry provides excellent storage while keeping essentials within reach.

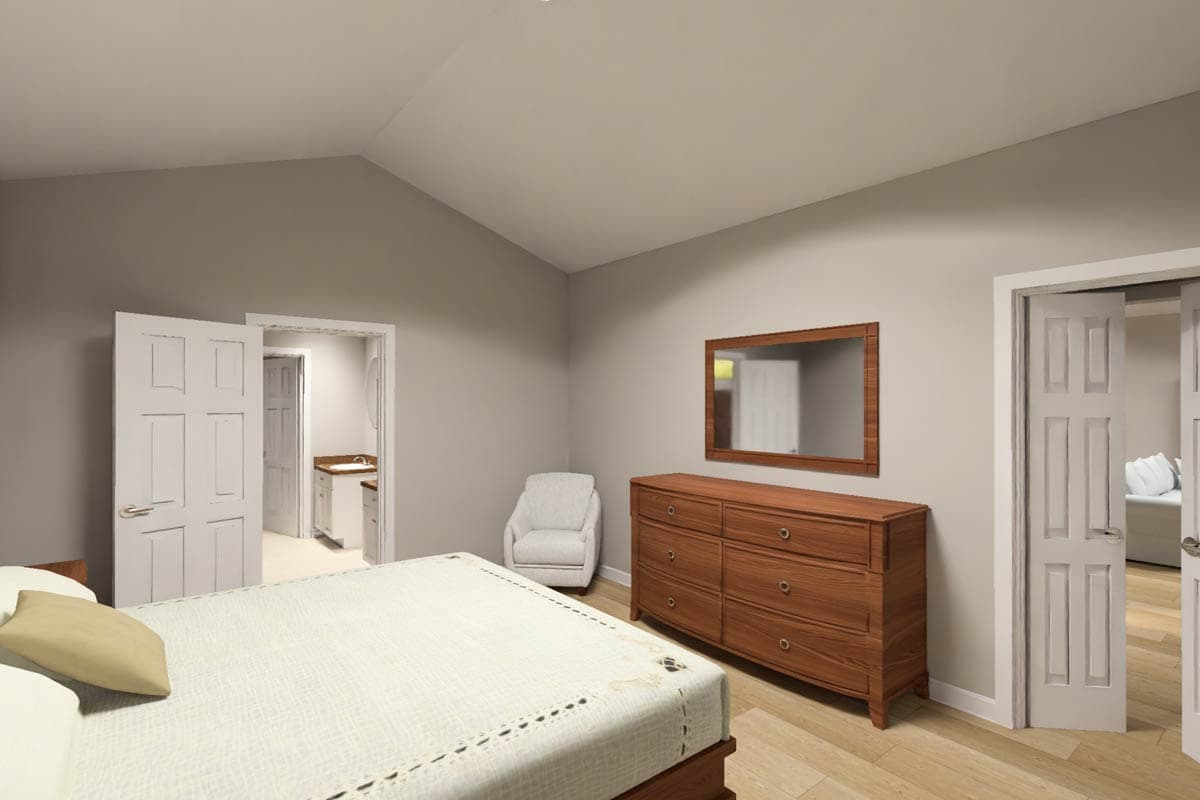

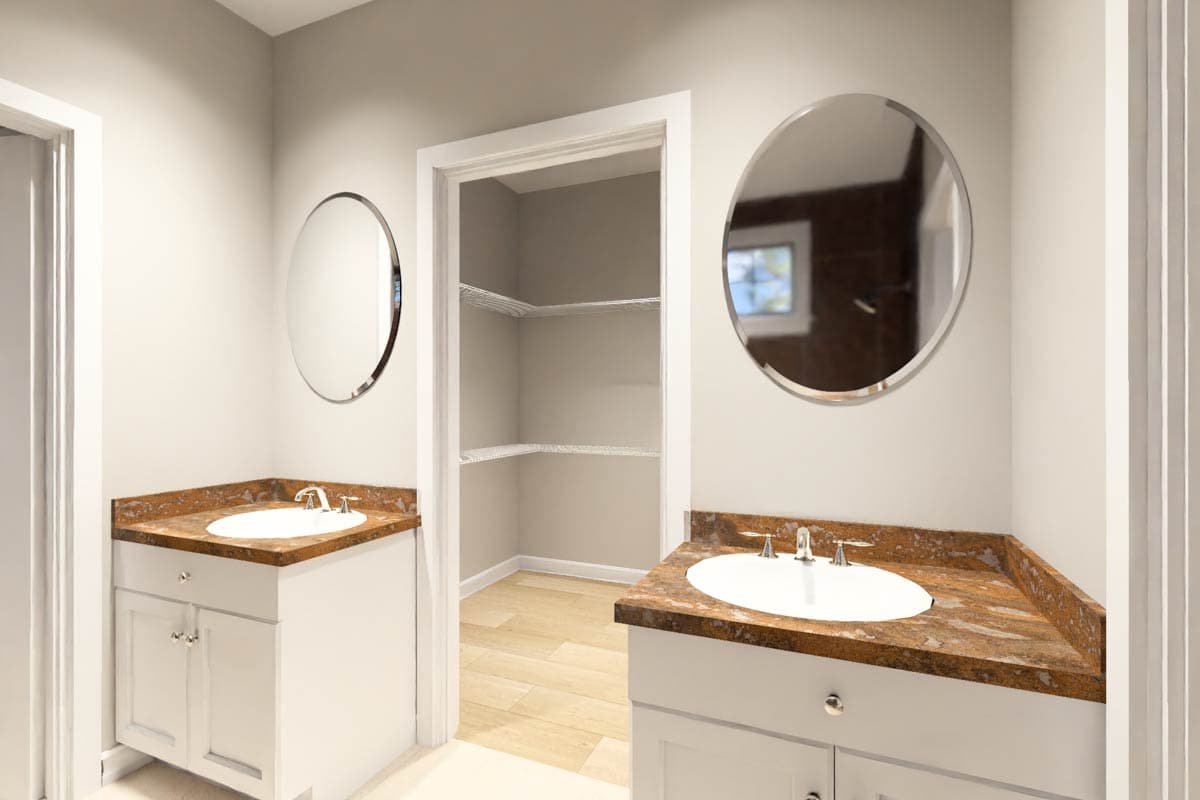

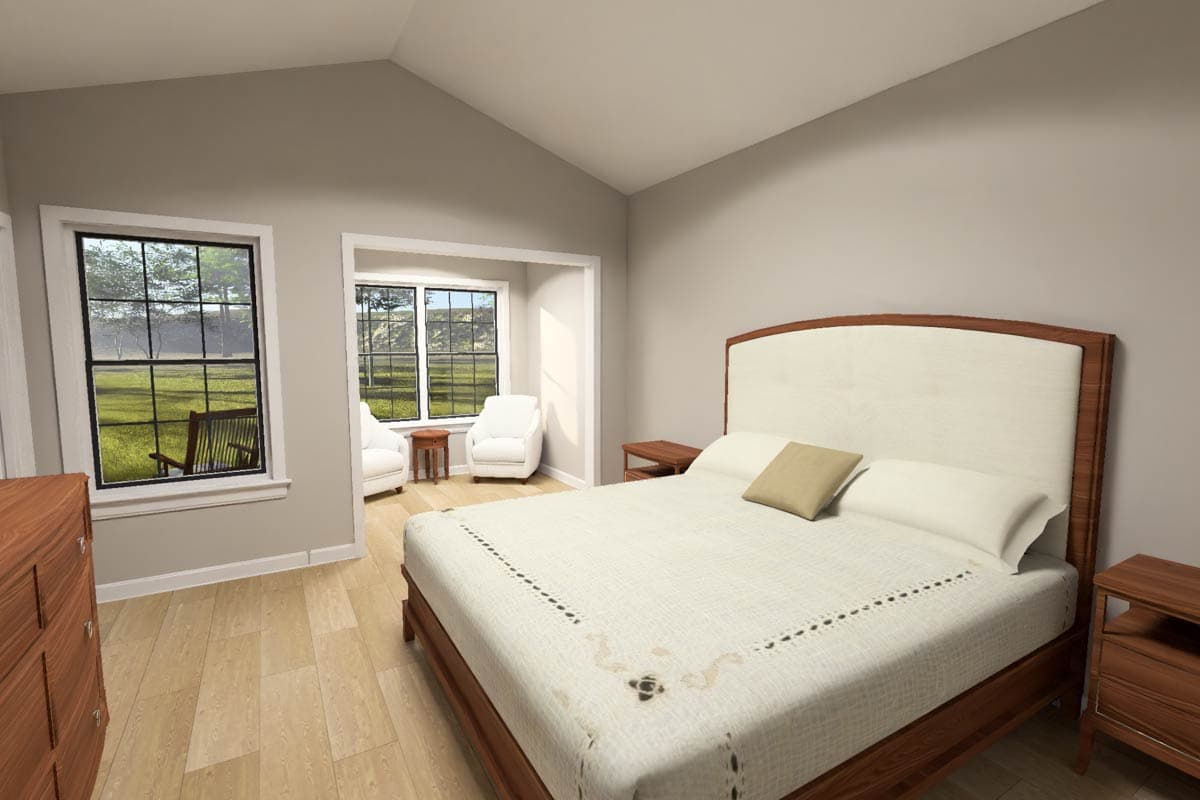

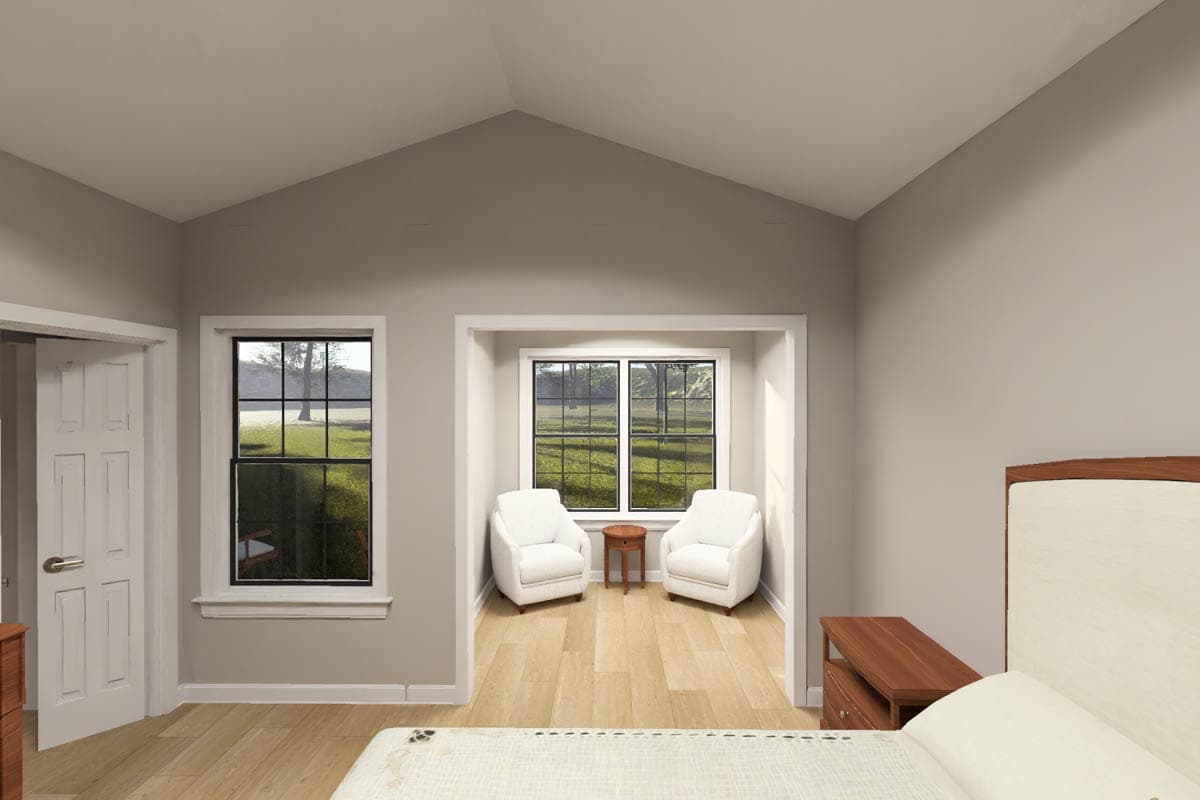

  • The split-bedroom design places the private wing primary suite—with a dedicated sitting area—away from the guest and family bedrooms for maximum privacy and relaxation.
  • Day-to-day organization is made easy with a convenient drop zone by the garage entry that feeds into a main-level laundry space.

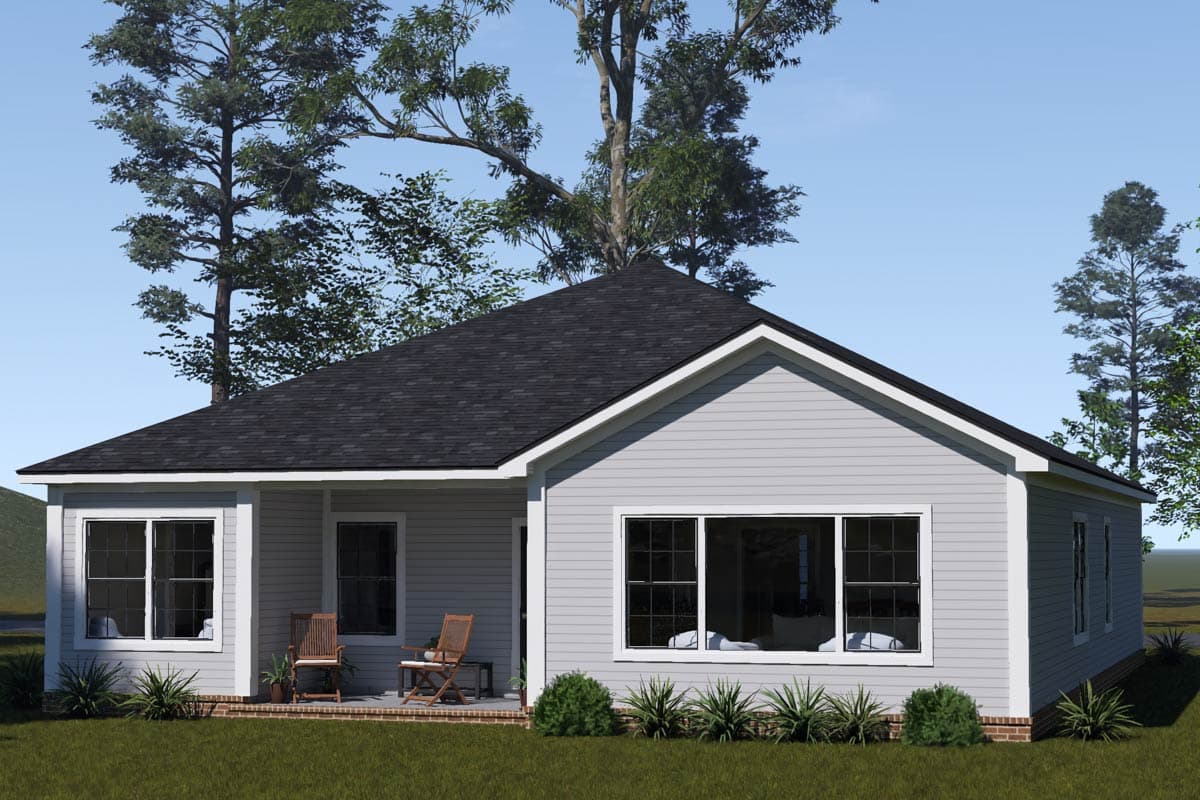

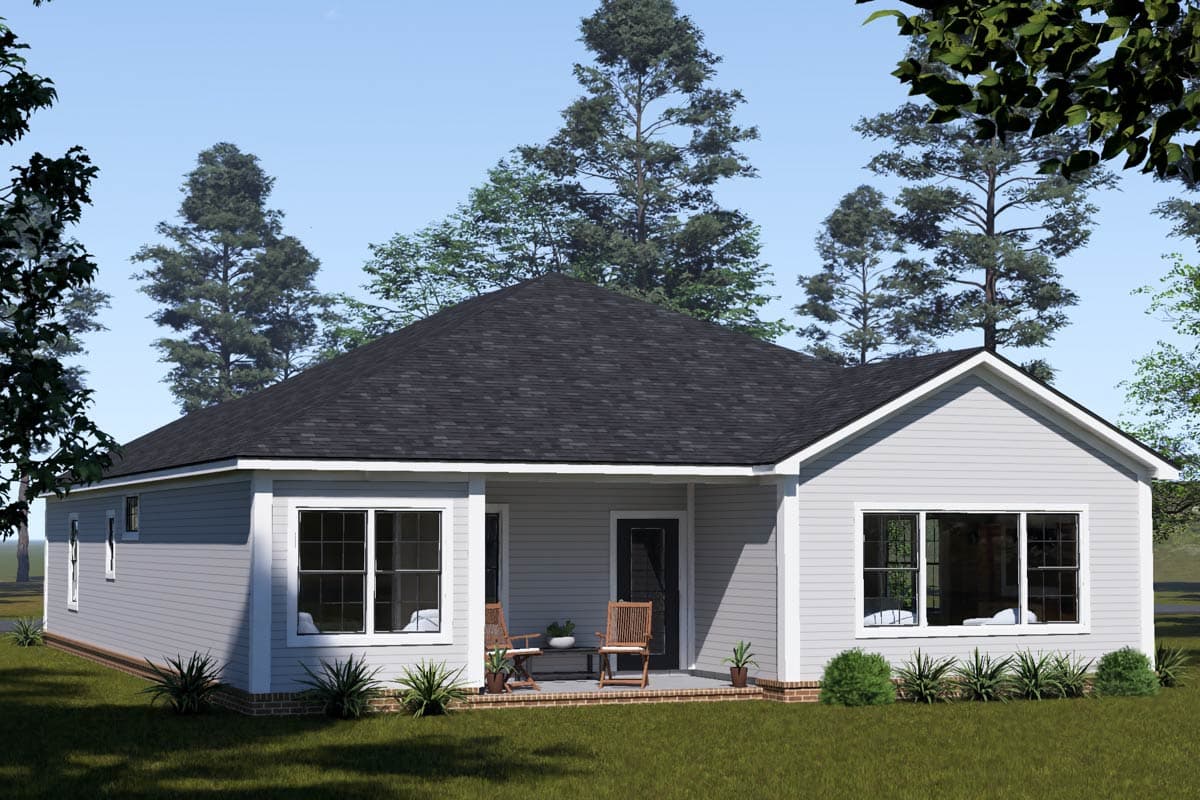

  • At the back, a covered porch acts as an outdoor extension of the living space, ideal for relaxing or connecting with nature just steps from your great room.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,591 sq. ft.

1st Floor

1,591 sq. ft.

Porch, Front

33 sq. ft.

Porch, Rear

89 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

59' 0"

Max Ridge Height

19' 3"

Garage

Type

Standard

Area

448 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,591 sq. ft.

1st Floor

1,591 sq. ft.

Porch, Front

33 sq. ft.

Porch, Rear

89 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

59' 0"

Max Ridge Height

19' 3"

Garage

Type

Standard

Area

448 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Walk-in Pantry
