Plan 623586DJ

Country Ranch House Plan with Split Beds and Butler Pantry

Heated S.F.
1,497
Beds
3
Baths
2
Stories
1
Cars
2
Tour

Floor Plan

Plan 623586DJ

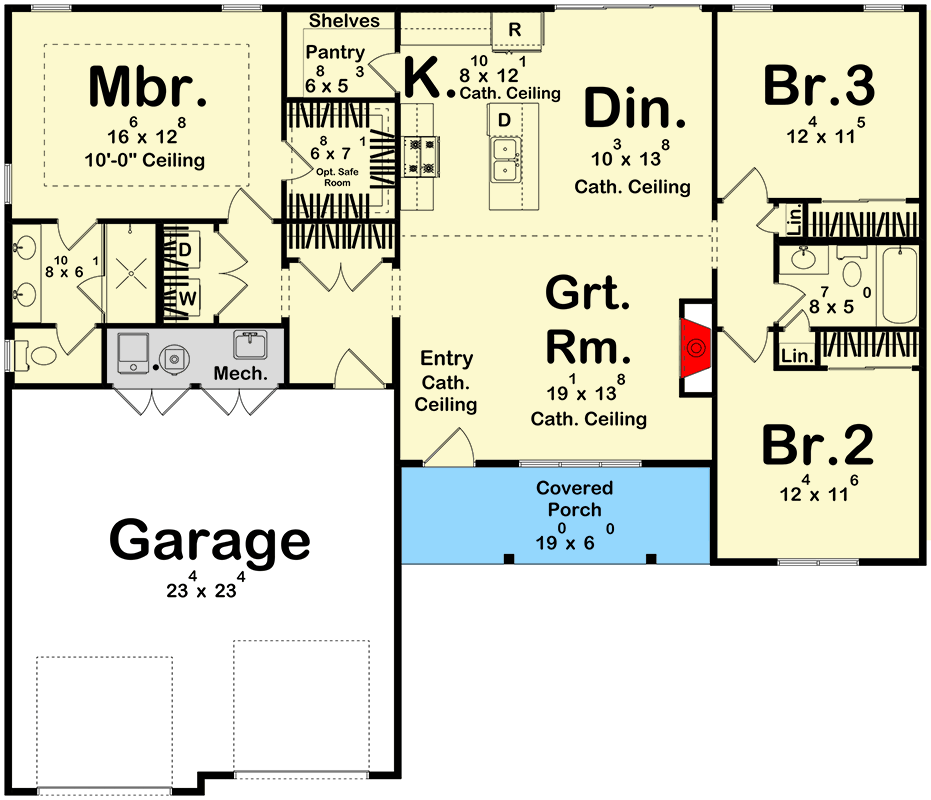

Main Level
Main Level

Plan 623586DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

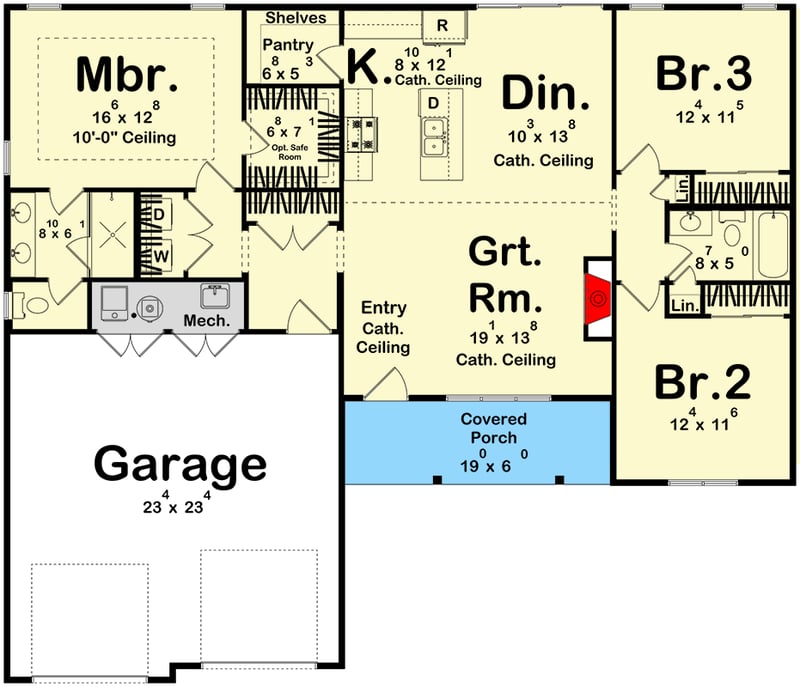

Plan 623586DJ: Country Ranch House Plan with Split Beds and Butler Pantry - Floor Plan - Main Level - Country, Ranch, Traditional

Plan Details

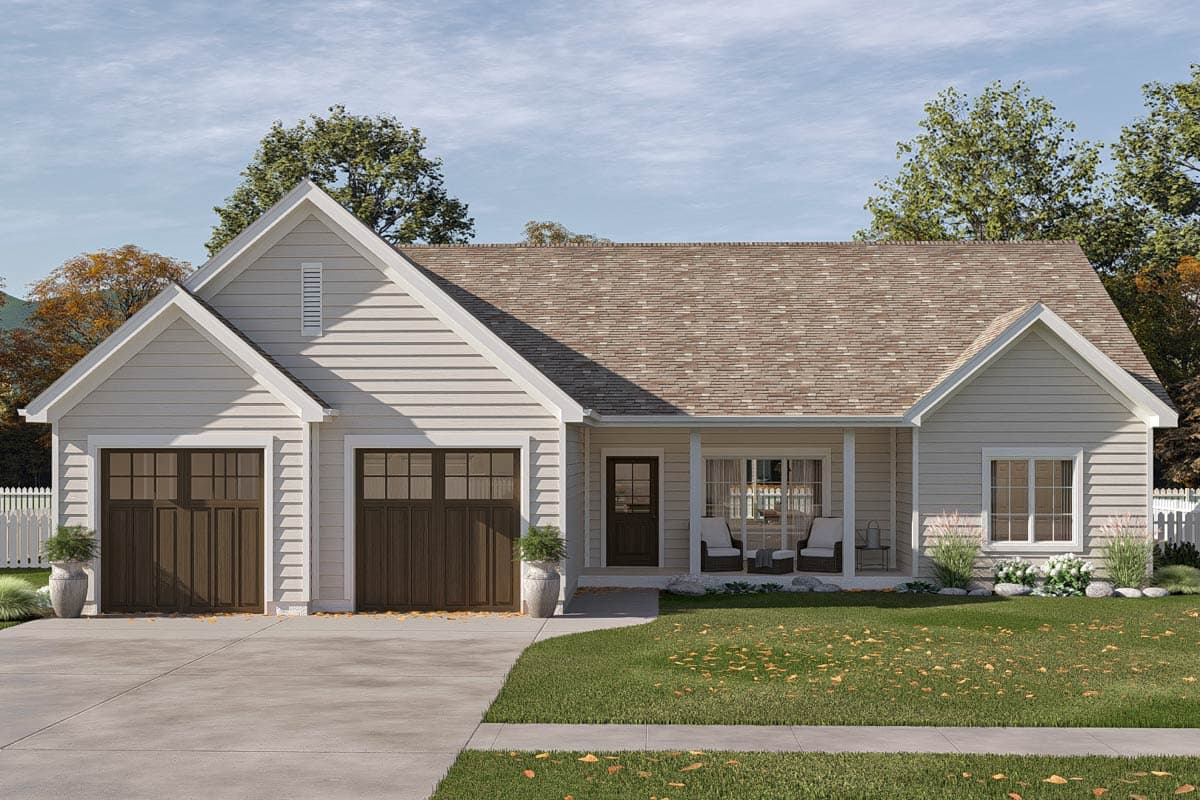

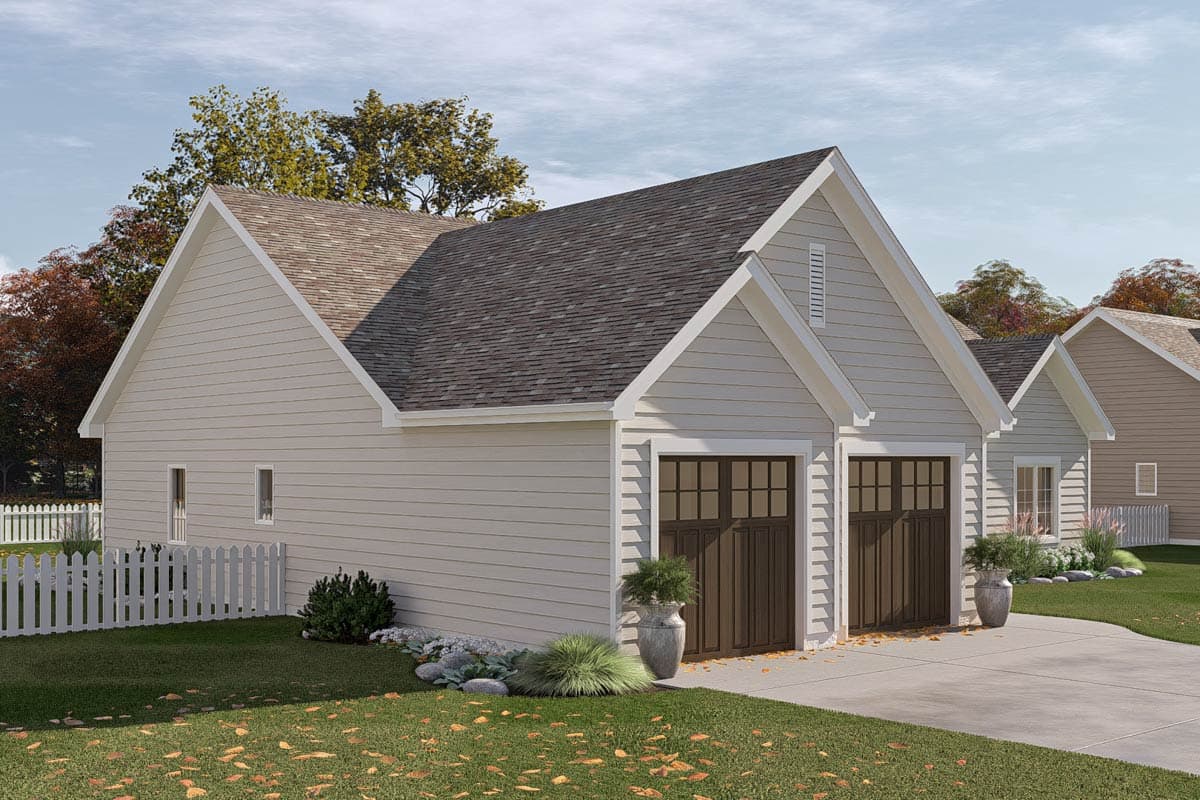

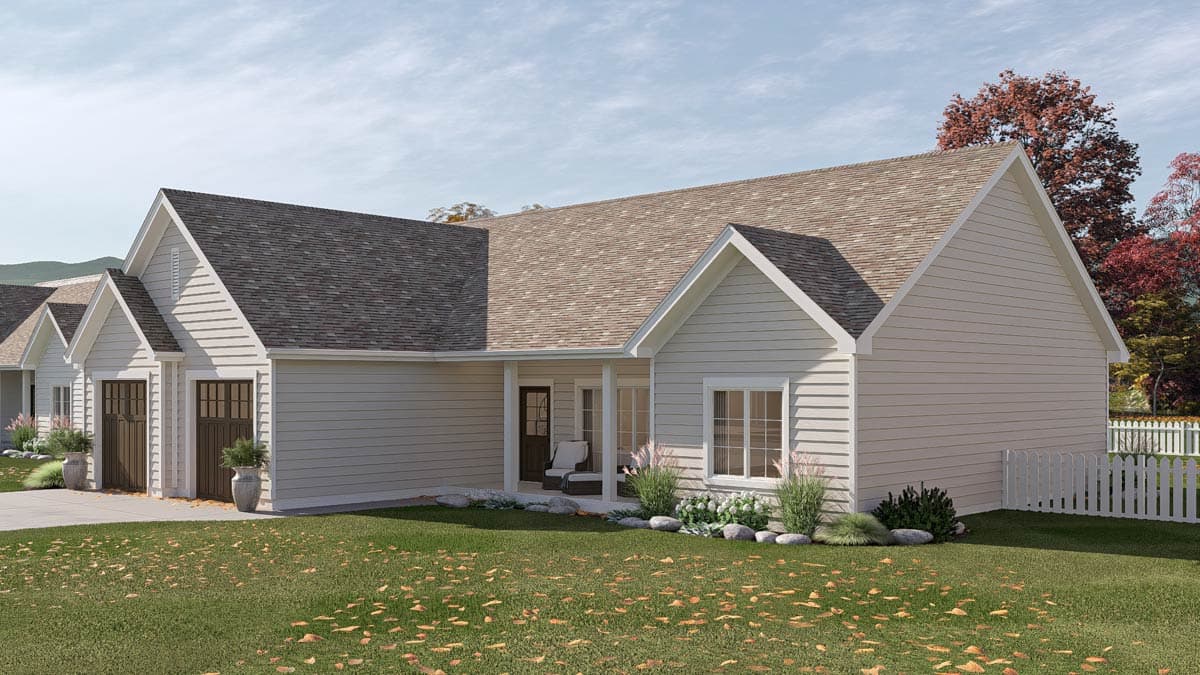

  • This inviting 1,497 sq. ft. Country Ranch house plan offers 3 bedrooms, 2 bathrooms, and an attached 578 sq. ft. two-car garage, showcasing a classic Traditional aesthetic with light siding and dark-stained garage doors.
  • Upon entering, the thoughtfully designed layout immediately reveals impressive 9-foot ceilings throughout the main level. A practical mudroom, conveniently accessible from the two-car garage, ensures a seamless transition into the home's core living spaces.

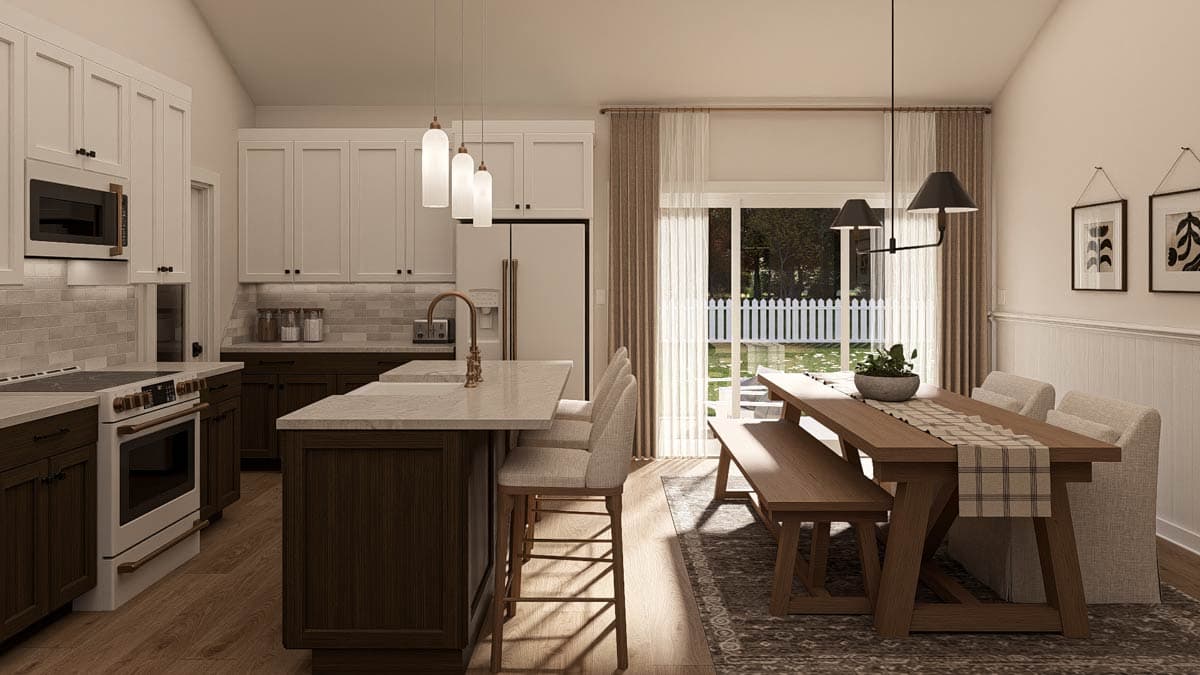

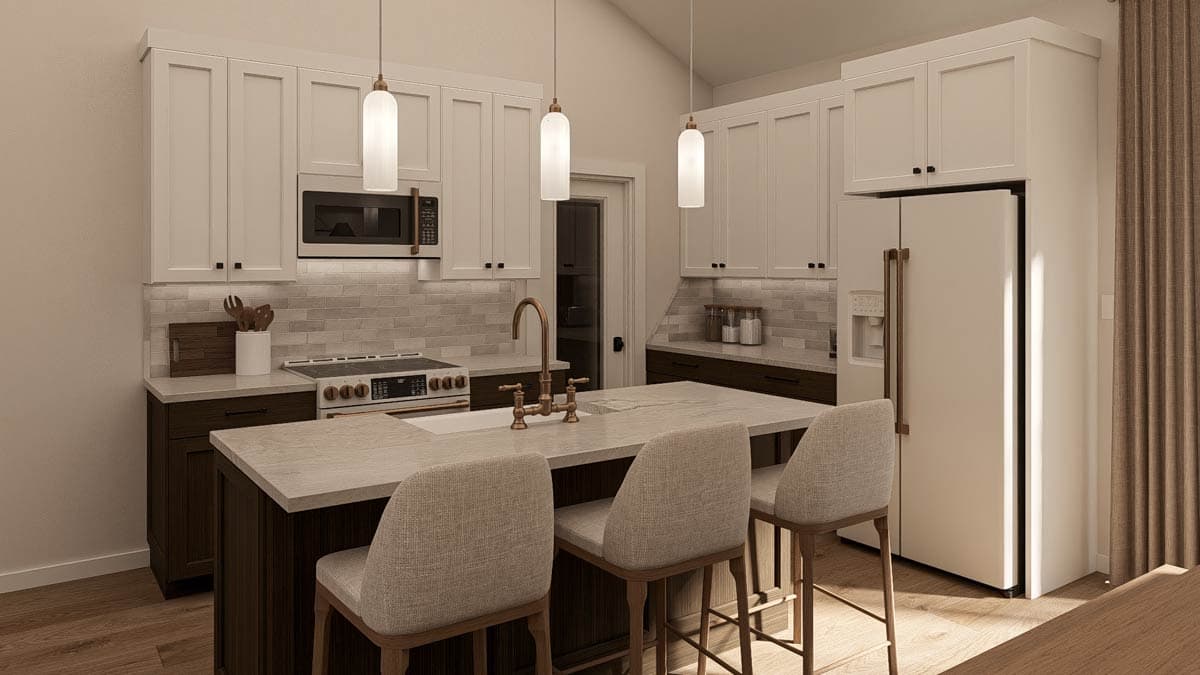

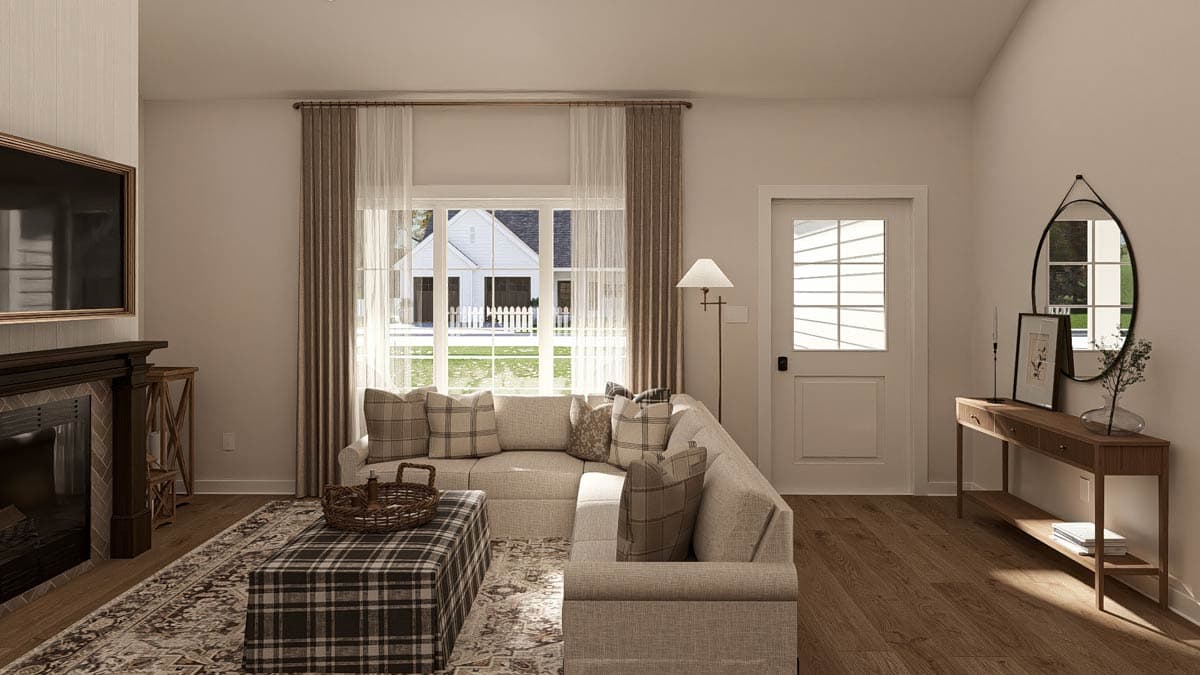

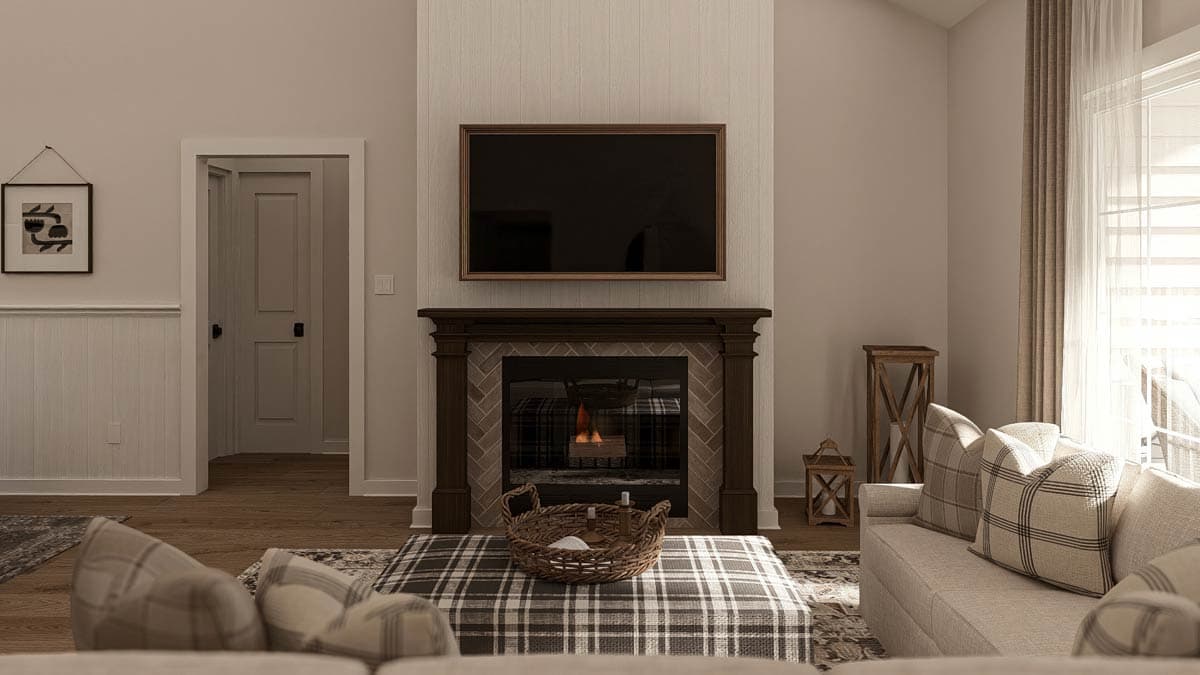

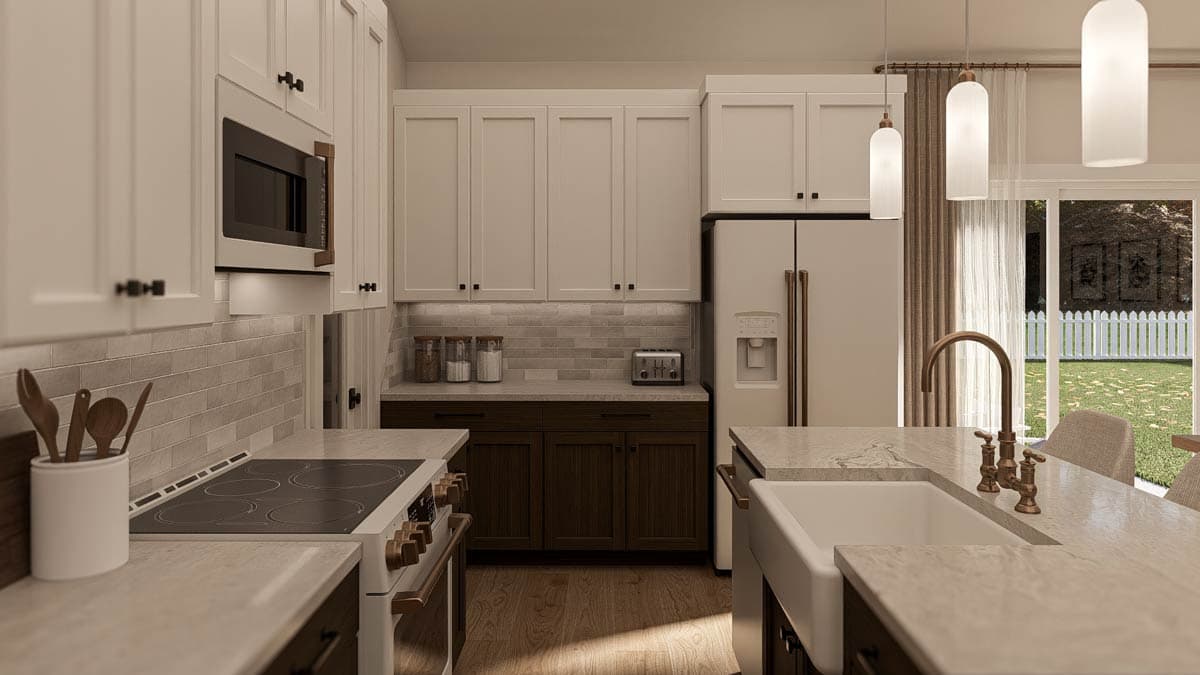

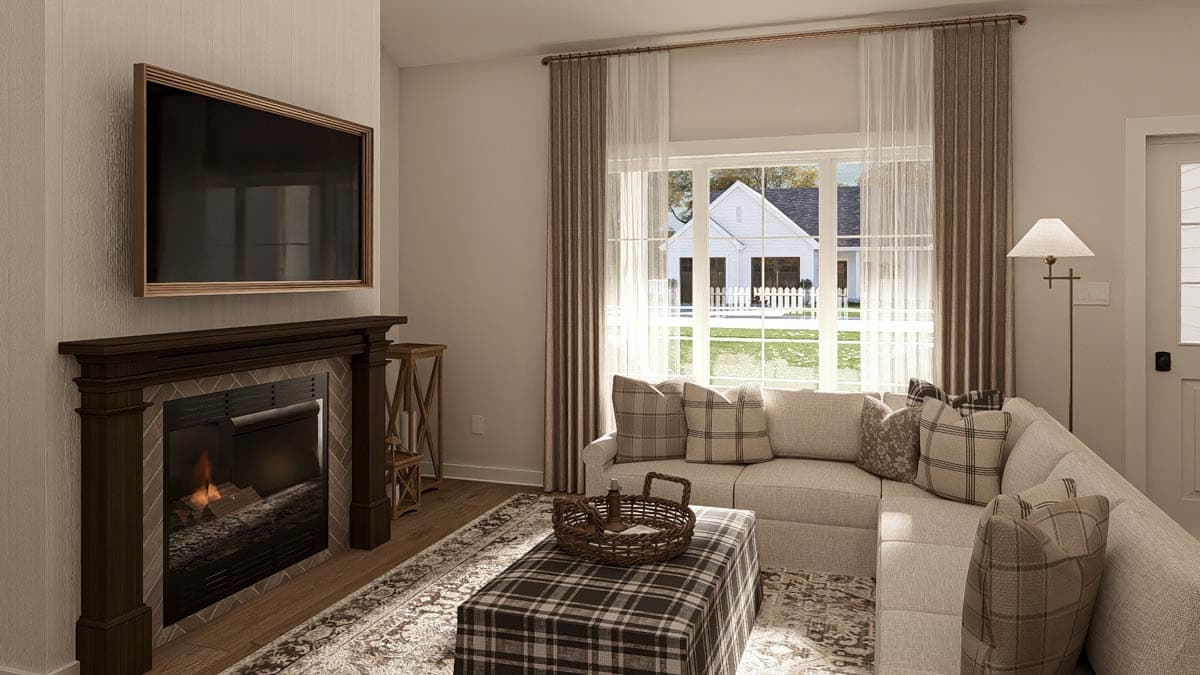

  • The expansive open-concept great room serves as the heart of the home, flowing effortlessly into the dining area and a gourmet kitchen featuring a coveted walk-in butler's pantry, ideal for culinary endeavors and seamless entertaining.

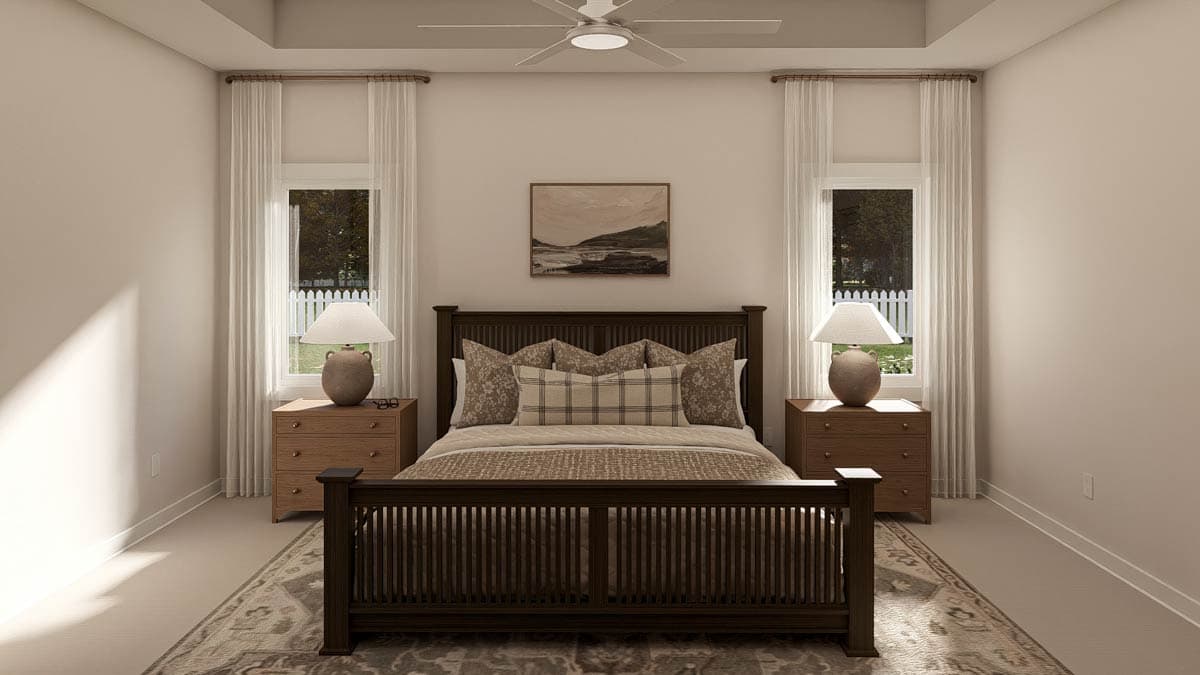

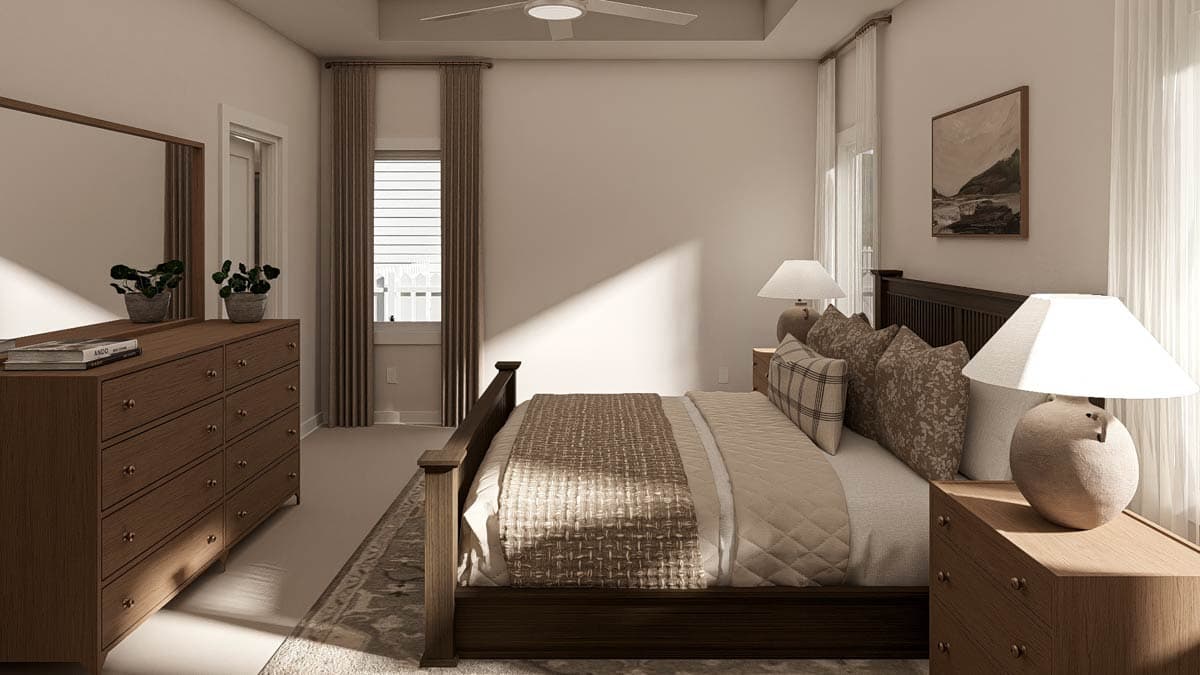

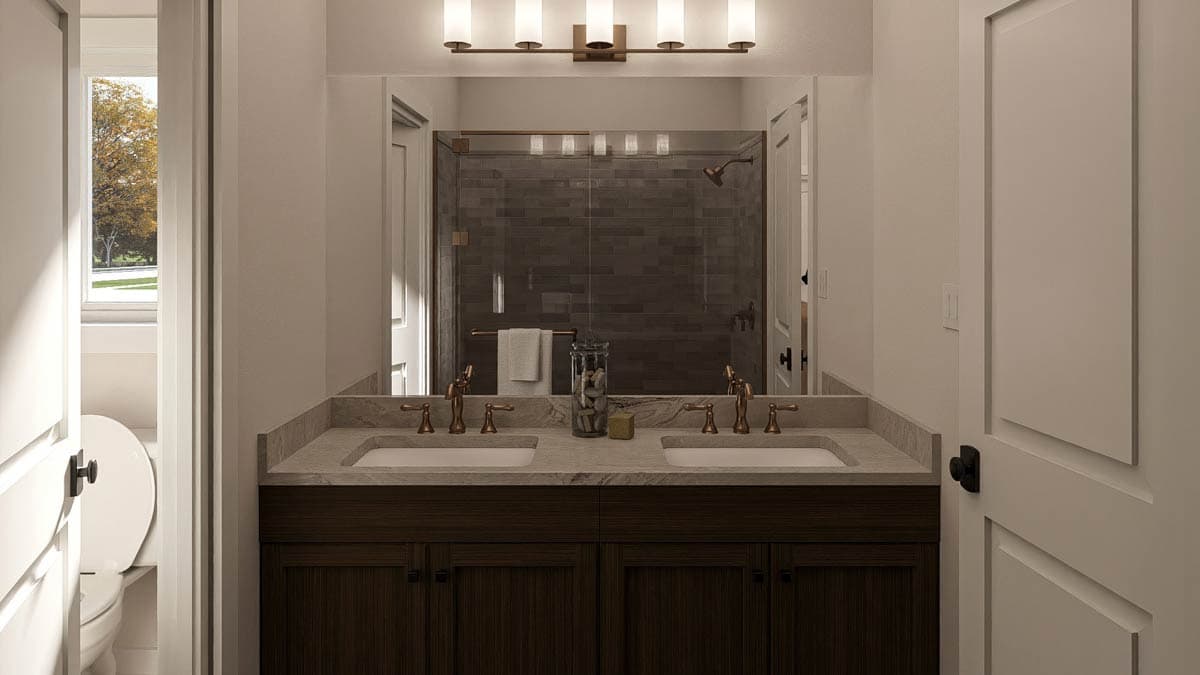

  • Designed for ultimate comfort, the private primary master suite occupies its own wing, complete with an ensuite bathroom, while two additional well-sized bedrooms are situated on the opposite side of the home, offering privacy and a tranquil retreat for family or guests.
  • Perfect for enjoying the outdoors, a charming 113 sq. ft. covered front porch invites relaxation, providing an idyllic setting for morning coffee or unwinding in the evening.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,497 sq. ft.

1st Floor

1,497 sq. ft.

Porch, Combined

113 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

48' 0"

Max Ridge Height

22' 1"

Garage

Type

Attached

Area

578 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,497 sq. ft.

1st Floor

1,497 sq. ft.

Porch, Combined

113 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

48' 0"

Max Ridge Height

22' 1"

Garage

Type

Attached

Area

578 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
