Plan 444038GDN Country Ranch Plan with Screened Porch and Split-bed Layout

1,747 3 2 1-2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Country Ranch Plan with Screened Porch and Split-bed Layout

Plan 444038GDN

  • 1,747

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Stories

  • 2

    Cars

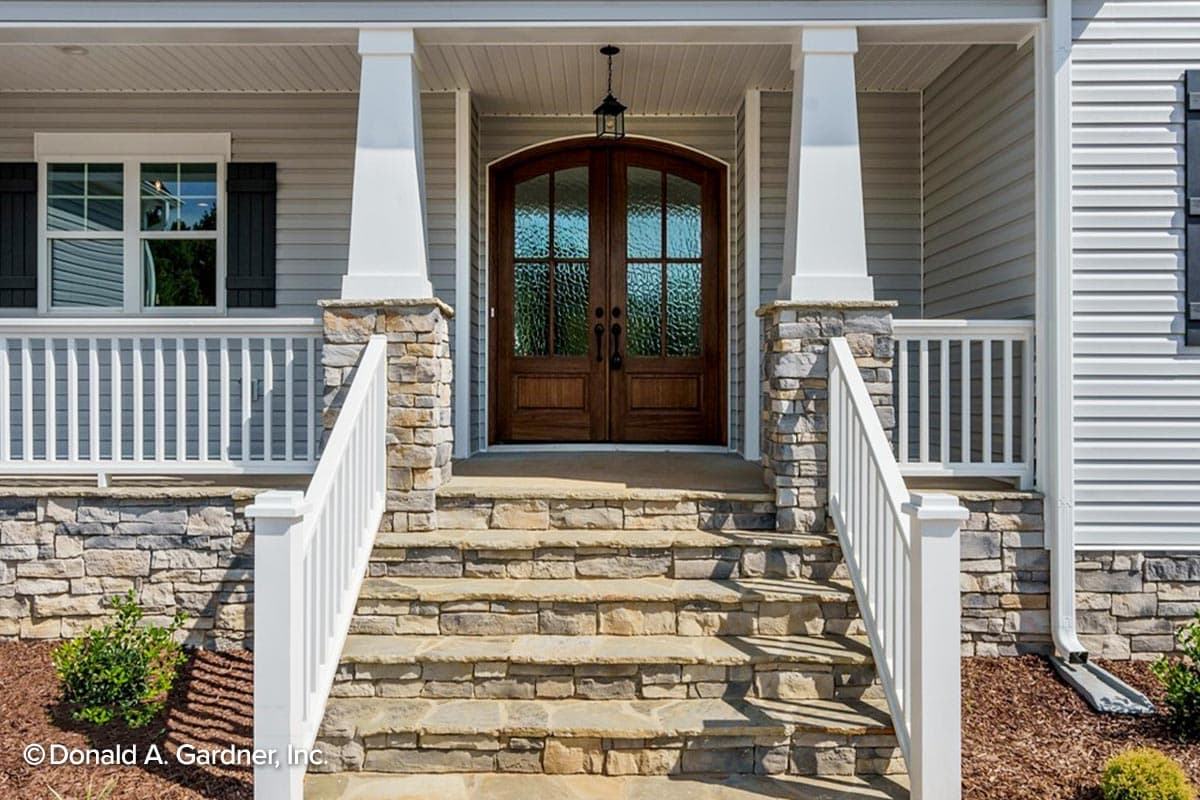

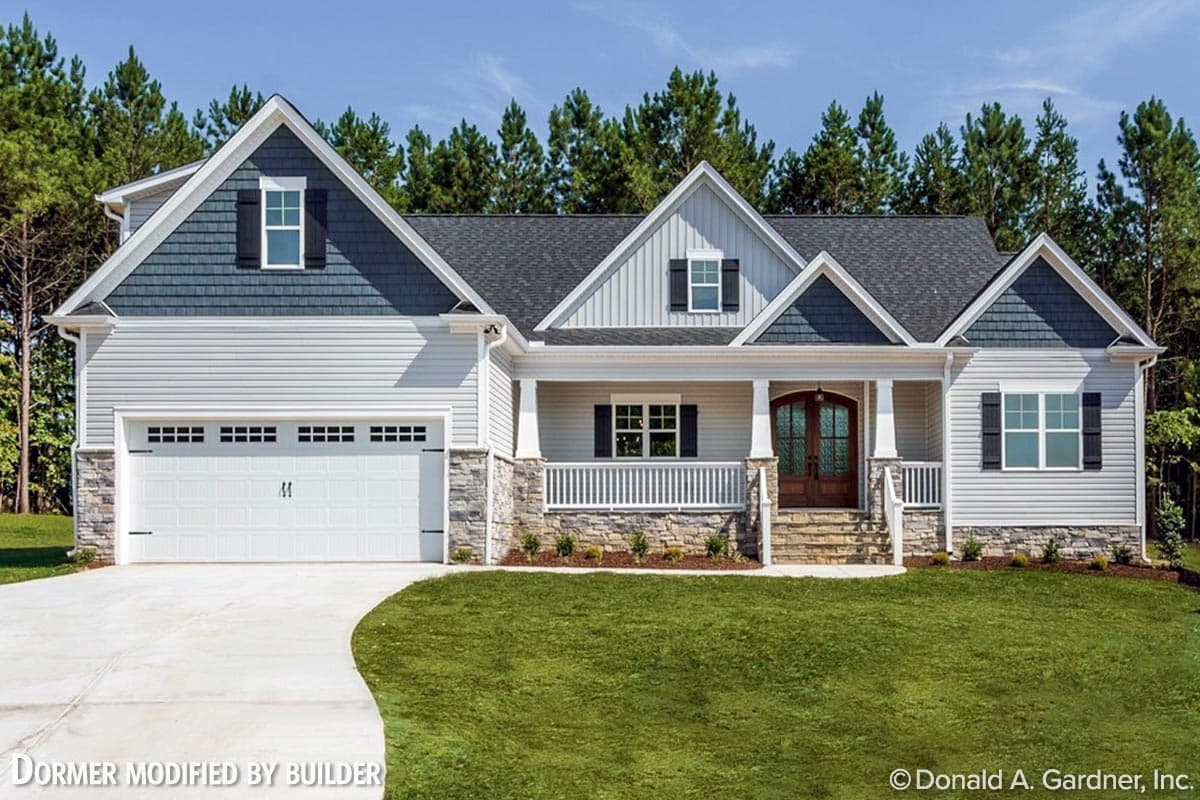

  • Shakes and vertical siding rest beneath gabled rooflines on the front elevation of this Country Ranch home plan. A front porch - 27' by 6'4" - completes the pretty picture.
  • With its front-entry garage, this home works well for narrow lots.

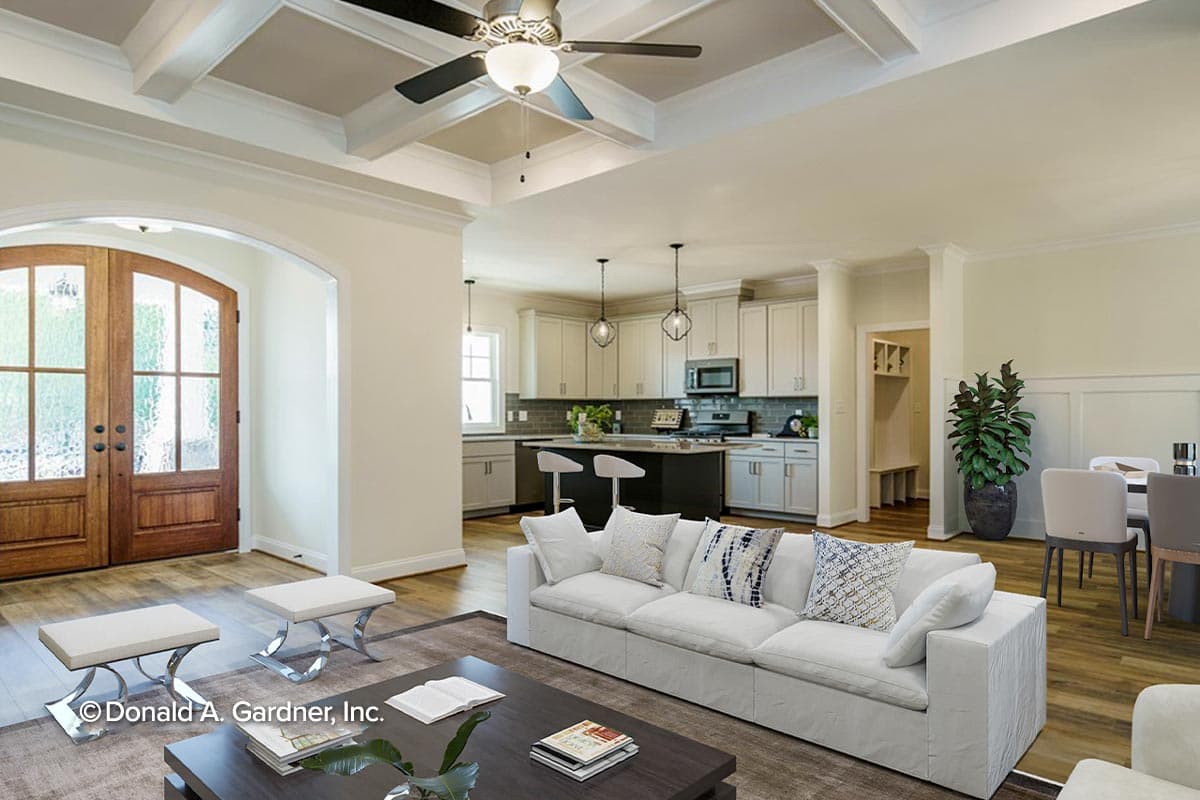

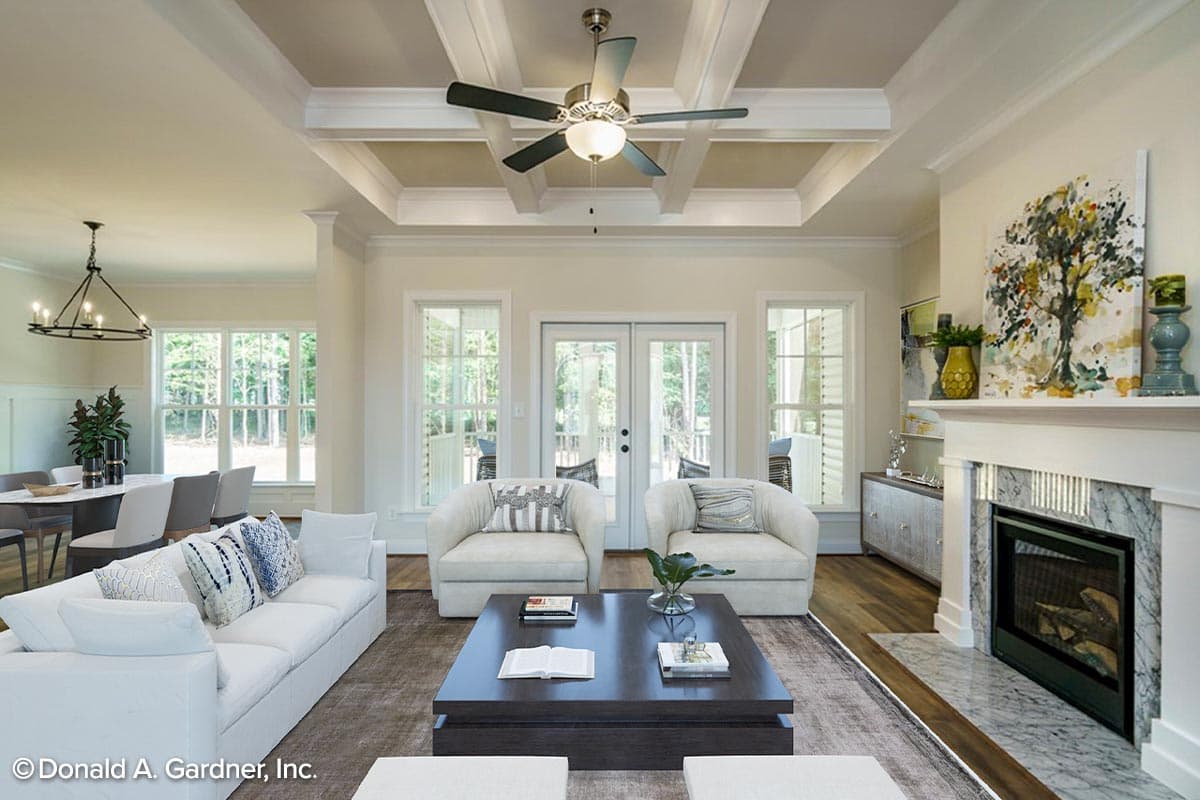

  • The efficient floor plan features open living spaces, creating an easy flow from room to room.

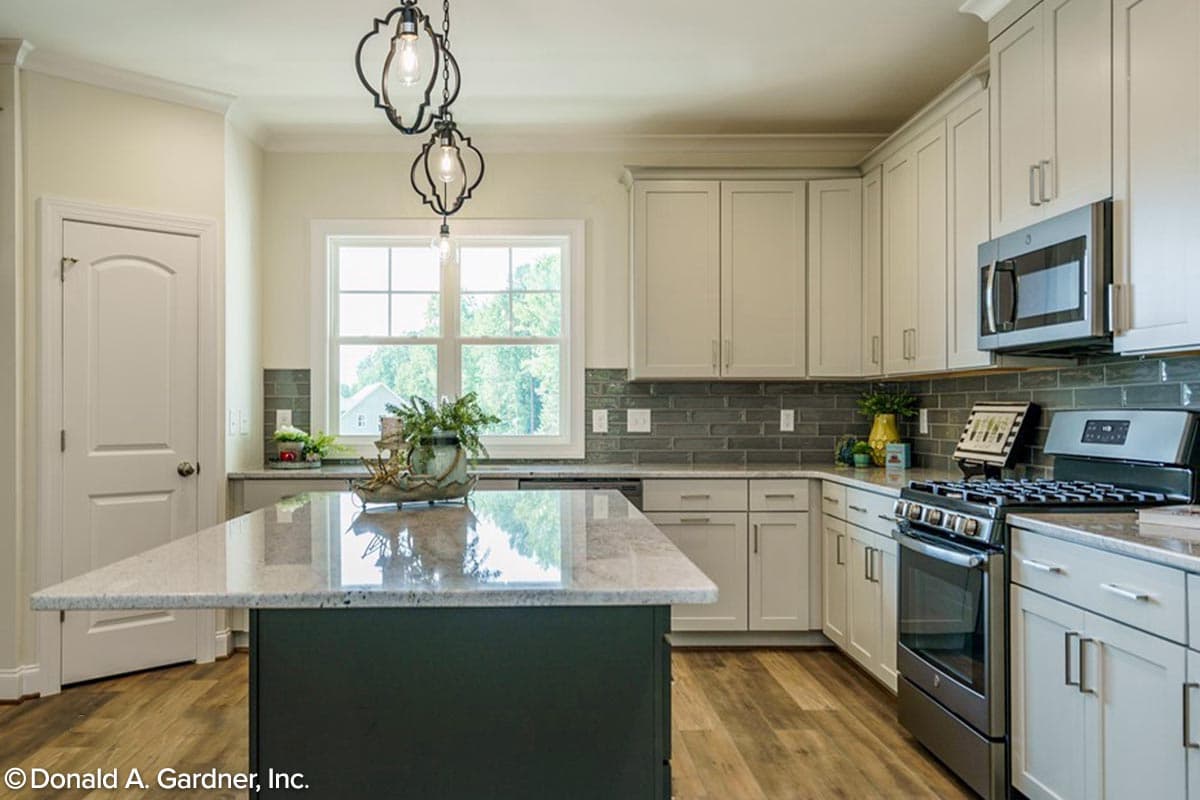

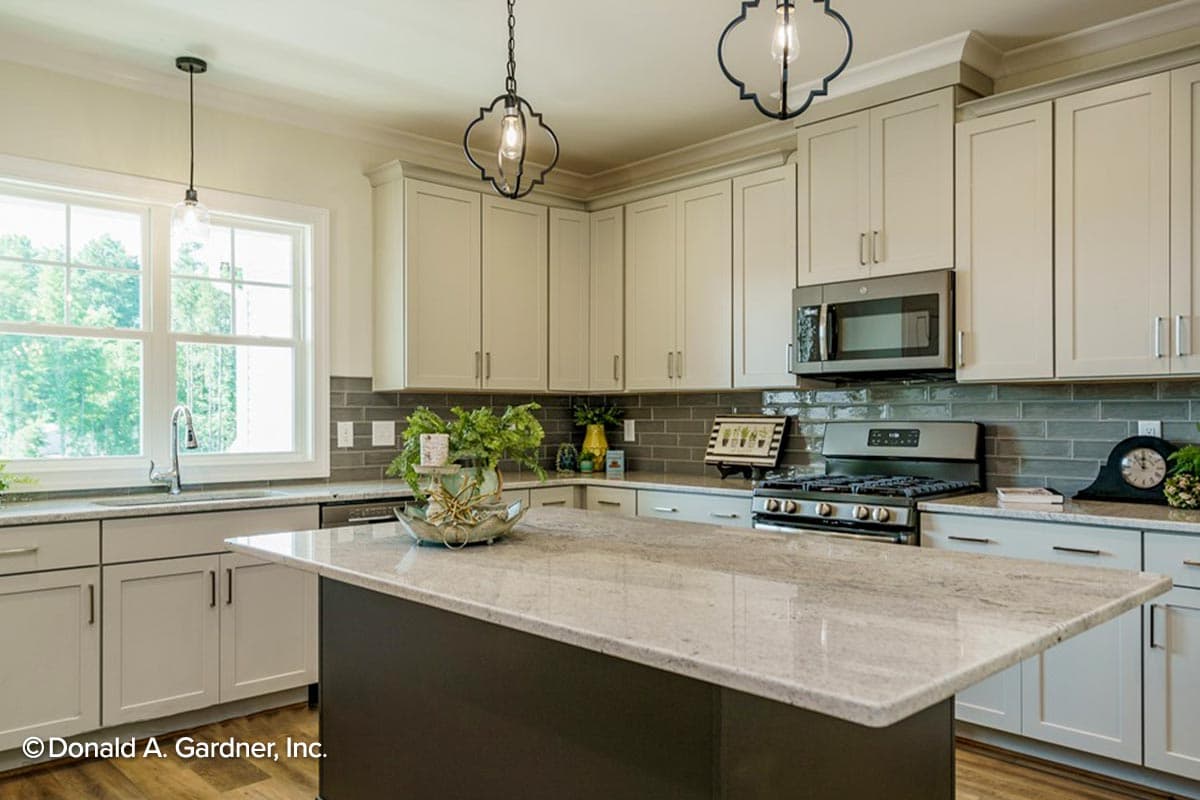

  • Storage is thoughtfully placed throughout the home, including a kitchen pantry, to keep everything organized.

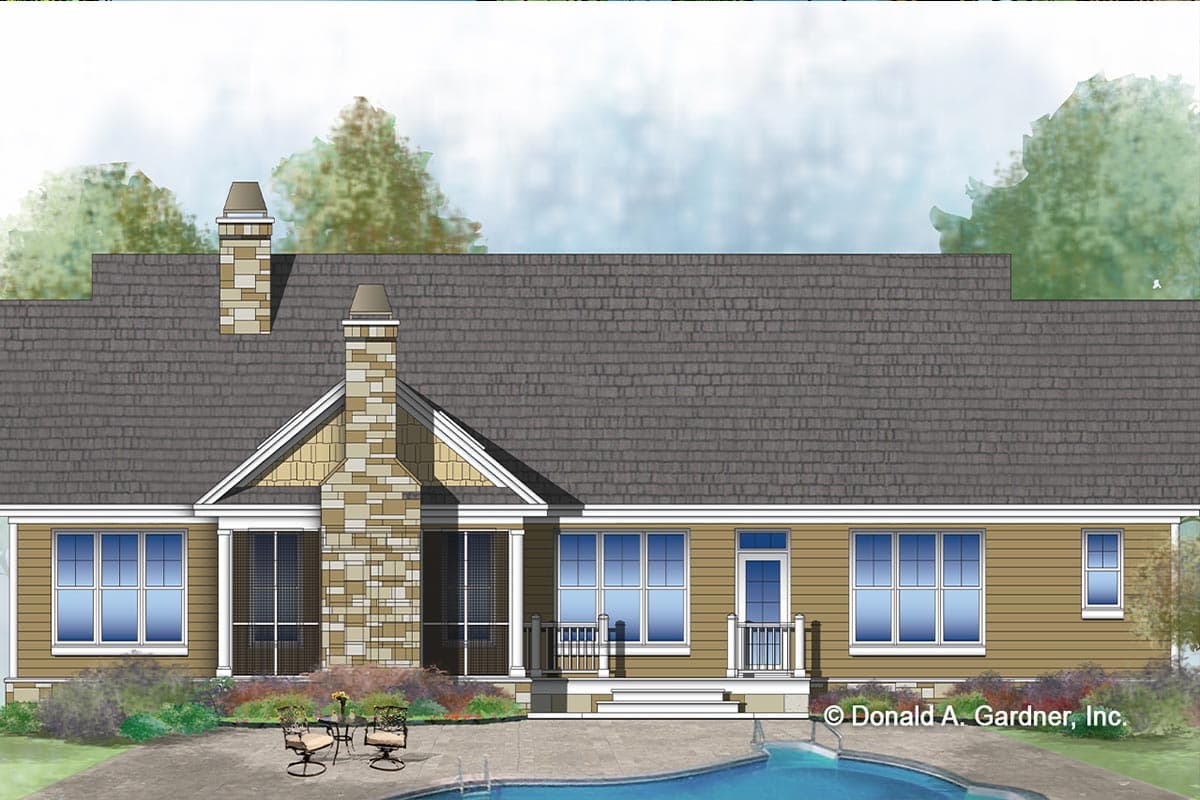

  • The large screened porch is a relaxing outdoor retreat with a fireplace, skylights, and a stunning 14'4" cathedral ceiling. The deck to the side (15'4" by 10") offers you more space for outdoor enjoyment.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

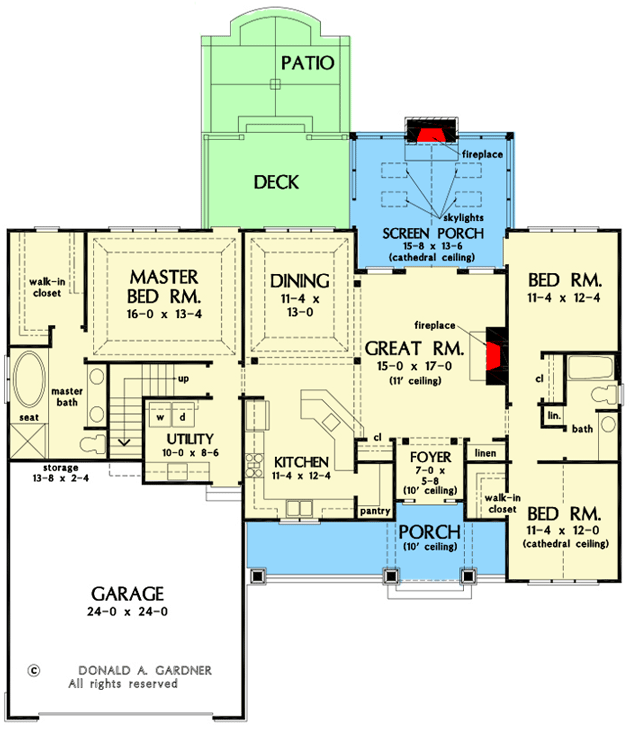

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Ranch Plan with Screened Porch and Split-bed Layout - 444038GDN floor plan - Main Level

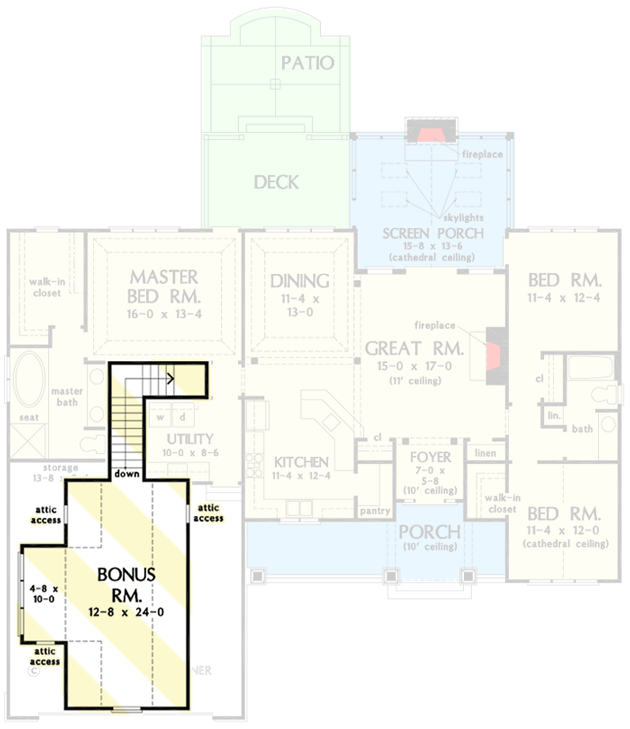

Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Ranch Plan with Screened Porch and Split-bed Layout - 444038GDN floor plan - Bonus Room

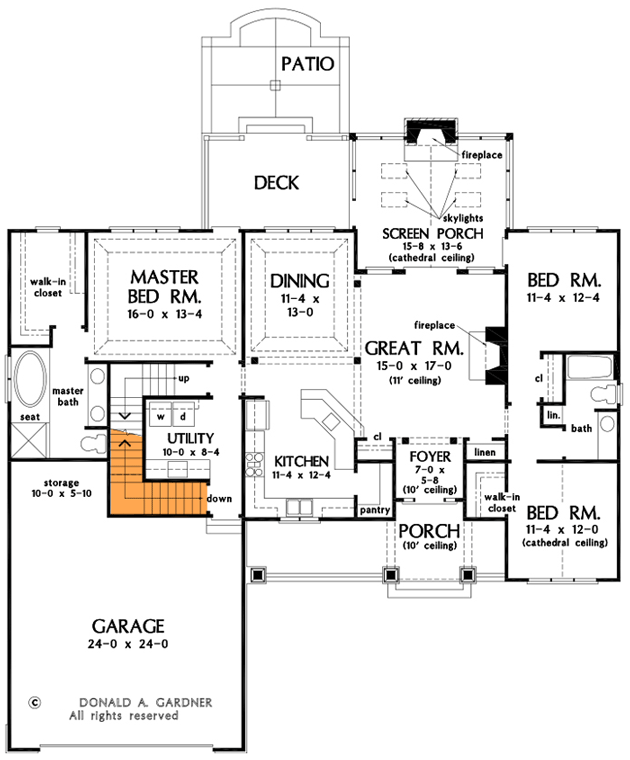

Basement Option

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Ranch Plan with Screened Porch and Split-bed Layout - 444038GDN floor plan - Basement Option

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,747 sq. ft.
  • 1st Floor: 1,747 sq. ft.
  • Covered Patio: 177 sq. ft.
  • Deck: 153 sq. ft.
  • Screened Porch: 241 sq. ft.
  • Porch, Front: 185 sq. ft.
  • Bonus: 441 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 63' 8"
  • Depth: 62' 2"
  • Max ridge height: 23' 10"

Garage

  • Type: Attached
  • Area: 632 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Foyer Flat 10' 0"
Dining Room Tray 10' 6"
Great Room Flat 11' 0"
Master Bedroom Tray 10' 6"
Bedroom 2 Cathedral 12' 0"
Screened Porch Cathedral 14' 4"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Country Ranch Plan with Screened Porch and Split-bed Layout

  • 1,747

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $1,105
  • PDF - Single-Build $1,305
  • 5 Sets + PDF $1,555
  • CAD Unlimited + PDF $2,610
  • View all purchase option online

About This Plan

  • Shakes and vertical siding rest beneath gabled rooflines on the front elevation of this Country Ranch home plan. A front porch - 27' by 6'4" - completes the pretty picture.
  • With its front-entry garage, this home works well for narrow lots.
  • The efficient floor plan features open living spaces, creating an easy flow from room to room.
  • Storage is thoughtfully placed throughout the home, including a kitchen pantry, to keep everything organized.
  • The large screened porch is a relaxing outdoor retreat with a fireplace, skylights, and a stunning 14'4" cathedral ceiling. The deck to the side (15'4" by 10") offers you more space for outdoor enjoyment.

Floor Plans

  • Main Level

  • Bonus Room

  • Basement Option

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,747 sq. ft.
  • 1st Floor: 1,747 sq. ft.
  • Covered Patio: 177 sq. ft.
  • Deck: 153 sq. ft.
  • Screened Porch: 241 sq. ft.
  • Porch, Front: 185 sq. ft.
  • Bonus: 441 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 63' 8"
  • Depth: 62' 2"
  • Max ridge height: 23' 10"

Garage

  • Type: Attached
  • Area: 632 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
