Plan 39137ST
Country Style Ranch
Heated S.F.
1,860
Beds
3
Baths
3
Stories
1
Cars
2
What's Included
Plan Details
  • The covered front porch on this country style ranch home plan presents a warm welcome as you approach the entry. The spacious foyer opens to the combination living room and dining room creating an attractive formal area for greeting guests and special occasion entertaining.
  • A work top island divides the kitchen and breakfast area, and provides usable space that is accessible from all sides. The breakfast area is surrounded by windows opening it visually to the outside. The rear door is located in the hall to the laundry room and basement stairs, creating a favorable traffic pattern.
  • The great room ceiling slopes to 12' and offers a comfortable gathering place for relaxing with family and friends. The master bedroom has a tray ceiling with a center height of 9', a large walk-in closet and a bath with double bowl vanity and shower.
  • Two additional bedrooms and a full basement complete this exciting one floor home.
What's Included
  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Country Style Ranch

  • 1,860

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

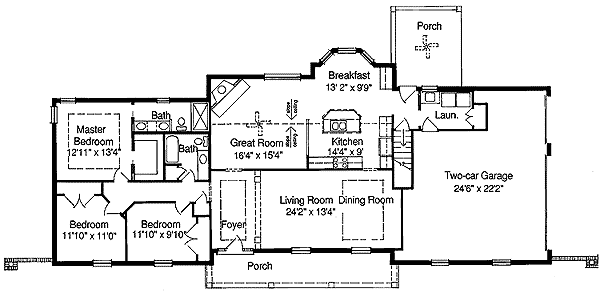

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,860 sq. ft.
  • 1st Floor: 1,860 sq. ft.

Dimensions

  • Width: 85' 4"
  • Depth: 36' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 550 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
