Plan 66288WE

Covered Lanai with Fireplace

Heated S.F.
3,451
Beds
3 - 4
Baths
4.5
Stories
2
Cars
2

Floor Plan

Plan 66288WE

Main Level
Main Level
2nd Floor
2nd Floor

Plan 66288WE

M-F 9am-5pm EST |

1-203-761-8500

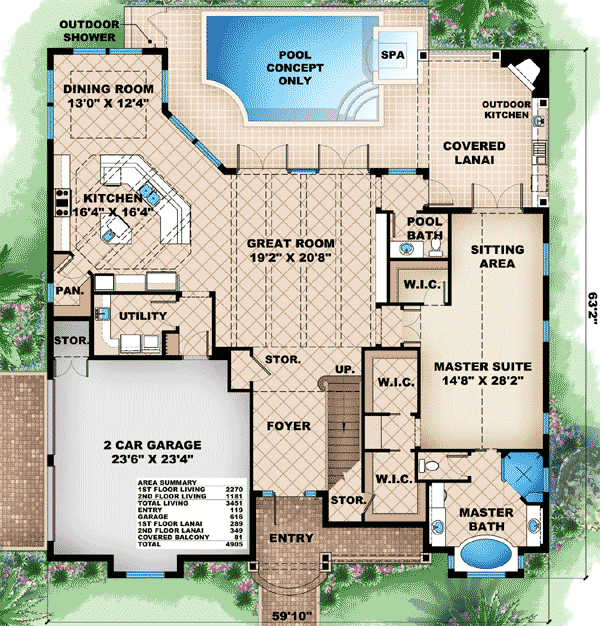

Main Level

Plan 66288WE: Covered Lanai with Fireplace - Floor Plan - Main Level - Florida-Style, Southern

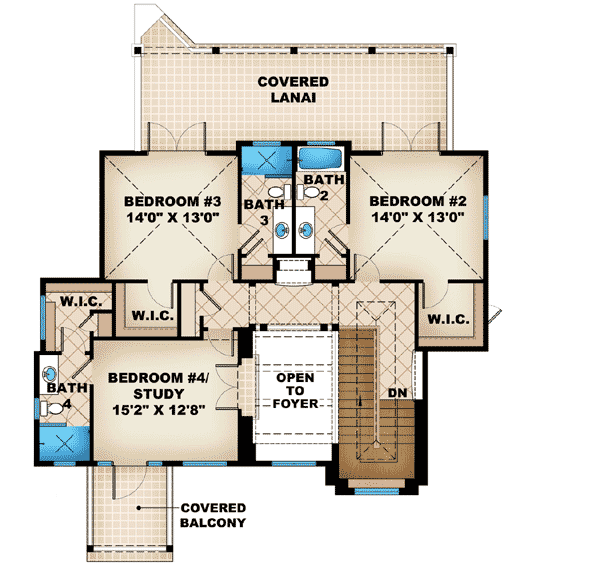

2nd Floor

Plan 66288WE: Covered Lanai with Fireplace - Floor Plan - 2nd Floor - Florida-Style, Southern

Plan Details

  • This cottage style house plan is perfect for your coastal lot. If you love a tongue and groove ceiling, this house plan is the one for you.
  • The great room, master suite, kitchen, dining room & bedrooms 2 & 3 all feature a tongue and groove ceiling with exposed beams. If that is not cozy enough, you can get quite comfortable on the covered lanai by the fireplace and listen to the rain on the metal roof.
  • All the bedrooms of this coastal house plan have vaulted ceilings, and their own bathrooms.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,451 sq. ft.

1st Floor

2,270 sq. ft.

2nd Floor

1,181 sq. ft.

Lanai

638 sq. ft.

Entry

119 sq. ft.

Balcony / Veranda

81 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

63' 2"

Depth

59' 10"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

616 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Southern

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,451 sq. ft.

1st Floor

2,270 sq. ft.

2nd Floor

1,181 sq. ft.

Lanai

638 sq. ft.

Entry

119 sq. ft.

Balcony / Veranda

81 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

63' 2"

Depth

59' 10"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

616 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Southern

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Walk-in Pantry
