Cozy 2-Bed Craftsman Cottage with 1-Car Side Garage

Plan 421534CHD

This plan plants 3 trees

859
Heated s.f.
2
Beds
2
Baths
2
Stories
1
Cars

This 859 square foot Craftsman cottage house plan places the 1-car garage (270 square feet) in back and opens to the side.
The main floor gives you 591 square feet of living space with a studio and kitchen in front and bedroom and bath (with laundry) in back.
Upstairs (268 square feet), a loft with walk-in closet and bath can be used as a second bedroom

Each plan set includes the following:

Cover Page
Foundation Plan with Notes and Footing Details
Dimensioned Floor Plans with Notes
Exterior Elevations and Roof Plan with Notes
Electrical Layout Plans with Legend

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

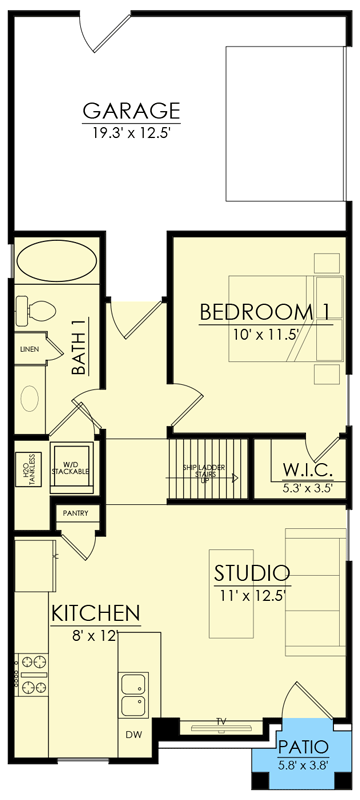

Cozy 2-Bed Craftsman Cottage with 1-Car Side Garage - 421534CHD floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

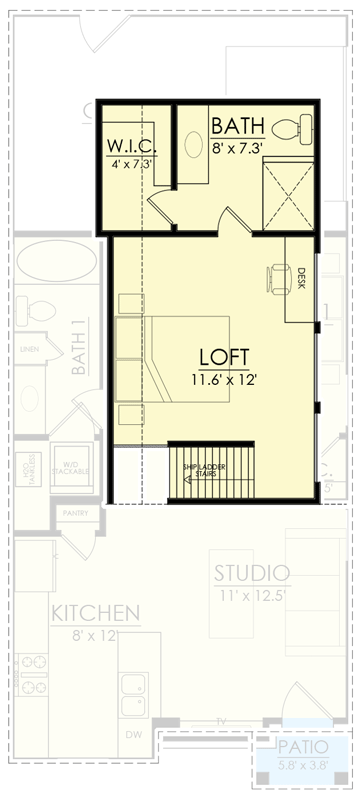

Cozy 2-Bed Craftsman Cottage with 1-Car Side Garage - 421534CHD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 859 sq. ft.
1st Floor: 591 sq. ft.
2nd Floor: 268 sq. ft.

Porch, Front: 19 sq. ft.

Beds/Baths

Bedrooms: 2

Full bathrooms: 2

Foundation Type

Standard Foundations: Slab

Optional Foundations: Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 20' 0"
Depth: 45' 4"

Garage

Type: Attached
Area: 270 sq. ft.
Count: 1 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 14 on 12

Framing Type: Stick

Architectural Style

Special features

Plan Collections

Scroll


Cozy 2-Bed Craftsman Cottage with 1-Car Side Garage 859 Heated s.f. 2 Beds 2 Baths 2 Floors 1 Car garage Buy This Plan PDF - Single-Build $1,195 5 Sets + PDF $1,445 PDF - Unlimited Build $1,795 CAD Unlimited + PDF $2,195 View all purchase option online About This Plan This 859 square foot Craftsman cottage house plan places the 1-car garage (270 square feet) in back and opens to the side. The main floor gives you 591 square feet of living space with a studio and kitchen in front and bedroom and bath (with laundry) in back. Upstairs (268 square feet), a loft with walk-in closet and bath can be used as a second bedroom Floor Plans Main Level 2nd Floor Plan Details Square Footage Breakdown Total Heated Area: 859 sq. ft. 1st Floor: 591 sq. ft. 2nd Floor: 268 sq. ft. Porch, Front: 19 sq. ft. Beds/Baths Bedrooms: 2 Full bathrooms: 2 Foundation Type Standard Foundations: Slab Optional Foundations: Crawl Exterior Walls Standard Type(s): 2x4 Optional Type(s): 2x6 Dimensions Width: 20' 0" Depth: 45' 4" Garage Type: Attached Area: 270 sq. ft. Count: 1 Cars Entry Location: Side Ceiling Heights Floor / Height: First Floor / 9' 0" Second Floor / 8' 0" Roof Primary Pitch: 14 on 12 Framing Type: Stick
