Cozy Cottage with Balcony Bedroom

Plan 55193BR

  • 1,062

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This cozy cottage has a bright and airy interior with lots of rear and side oriented glass and a soaring living room ceiling with dormer windows open to the living room.
  • The living space has direct access to a large covered rear porch for sitting and taking in the views.
  • The kitchen is compact but it is fully appointed, conveniently located and so very functional.
  • The utility closet and half bath are also well positioned for convenience.
  • The master suite has a large glass wall for open views and plenty of light. The master bath is full sized and contains a unique bath appliance garage plus there is a huge walk-in closet.
  • The upstairs balcony bedroom is ideal for kids space and it has its own bath and walk-in closet. The balcony can easily be converted to a wall if privacy is preferred over openness.  A door at the top of the stairs leads to attic space that could be used for future space or an additional bed room.

Plans include the following:

  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations



Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

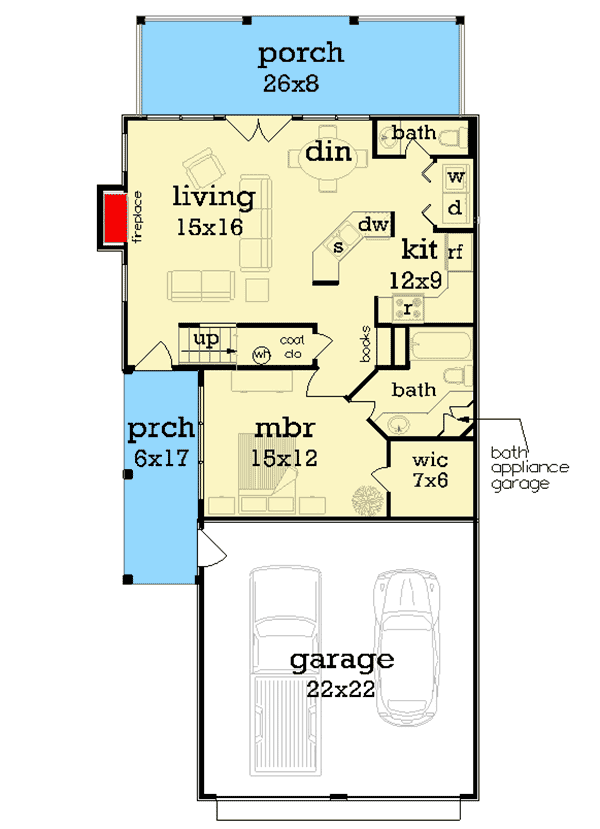

Cozy Cottage with Balcony Bedroom - 55193BR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

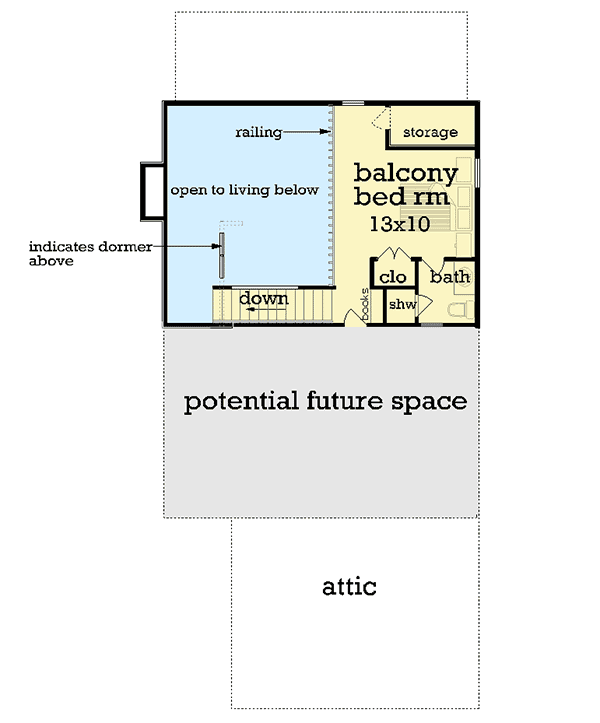

Cozy Cottage with Balcony Bedroom - 55193BR floor plan - 2nd Floor
