Cozy Cottage With Options

Plan 23398JD

  • 1,434

    HEATED S.F.

  • 3

    BEDS

  • 3

    BATHS

  • 2

    FLOORS

About this Plan

  • Horizontal and vertical siding combine to give an attractive look to this compact home plan designed for a narrow lot. Part of a series of plans available in multiple exteriors sizes, its great for a smaller budget.
  • The entry opens to a living room with fireplace and an efficient kitchen and dining room. All three spaces are open to each other.
  • A rear porch is steps away from the lower bedroom.

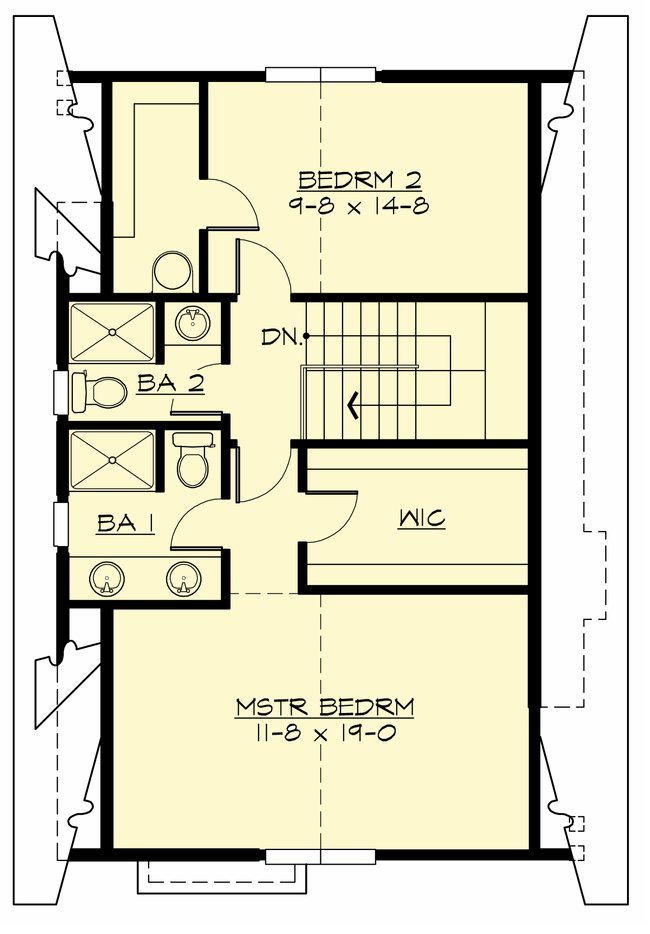

  • Upstairs, the vaulted master suite and vaulted bedroom 2 each have their own baths.
  • Related Plans: Get an alternate exterior with house plan 23293JD.
  • Get a smaller cottage with house plans 23292JD and 23397JD, both 1,113 sq. ft.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

See What's Included in this Plan...

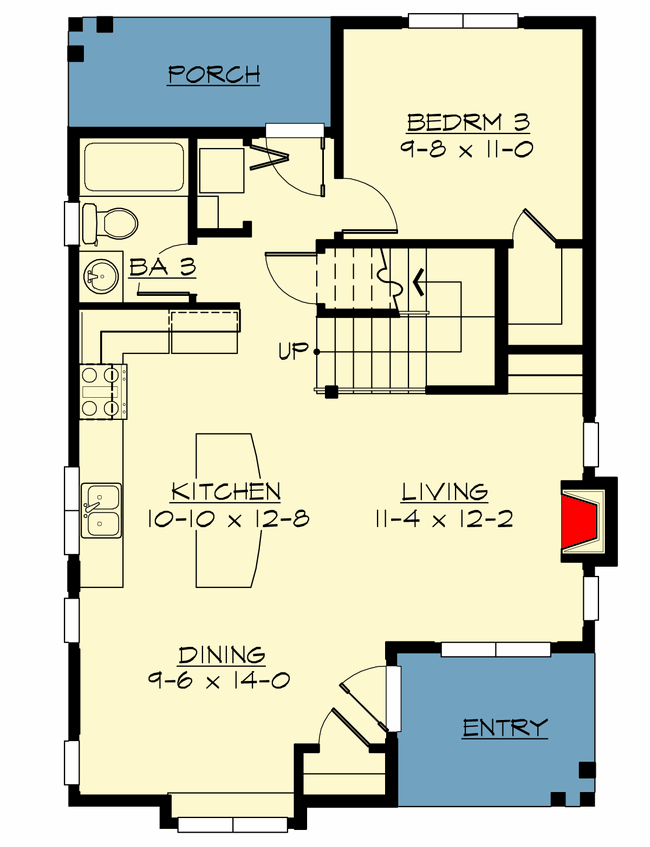

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,434 sq. ft.
  • 1st Floor: 752 sq. ft.
  • 2nd Floor: 682 sq. ft.
  • Entry: 63 sq. ft.
  • Porch, Rear: 60 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Dimensions

  • Width: 32' 0"
  • Depth: 37' 0"
  • Max ridge height: 25' 6"

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
