Plan 59569ND

Cozy Without Compromise

Pageloader

Cozy Without Compromise

Plan 59569ND

  • 1,075

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 1

    Stories

  • 1

    Cars

  • Cozy without compromise is the way to describe this efficiently designed home plan. Space for living begins with the covered front porch and extends to the back with a grilling porch where good times are waiting for you, your family and your guests.
  • The great room, open to the kitchen, soars with a vaulted ceiling giving the impression of a much larger living space.
  • The master suite features a walk-in closet, and a private half bath. Two more bedrooms and a second half bath complete this lovely home plan.
  • Related Plans: See these related house plans - For an alternate Craftsman exterior, see house plan 59771ND.
  • Also see these related house plans - 5987ND, 5988ND, 5989ND and 59545ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

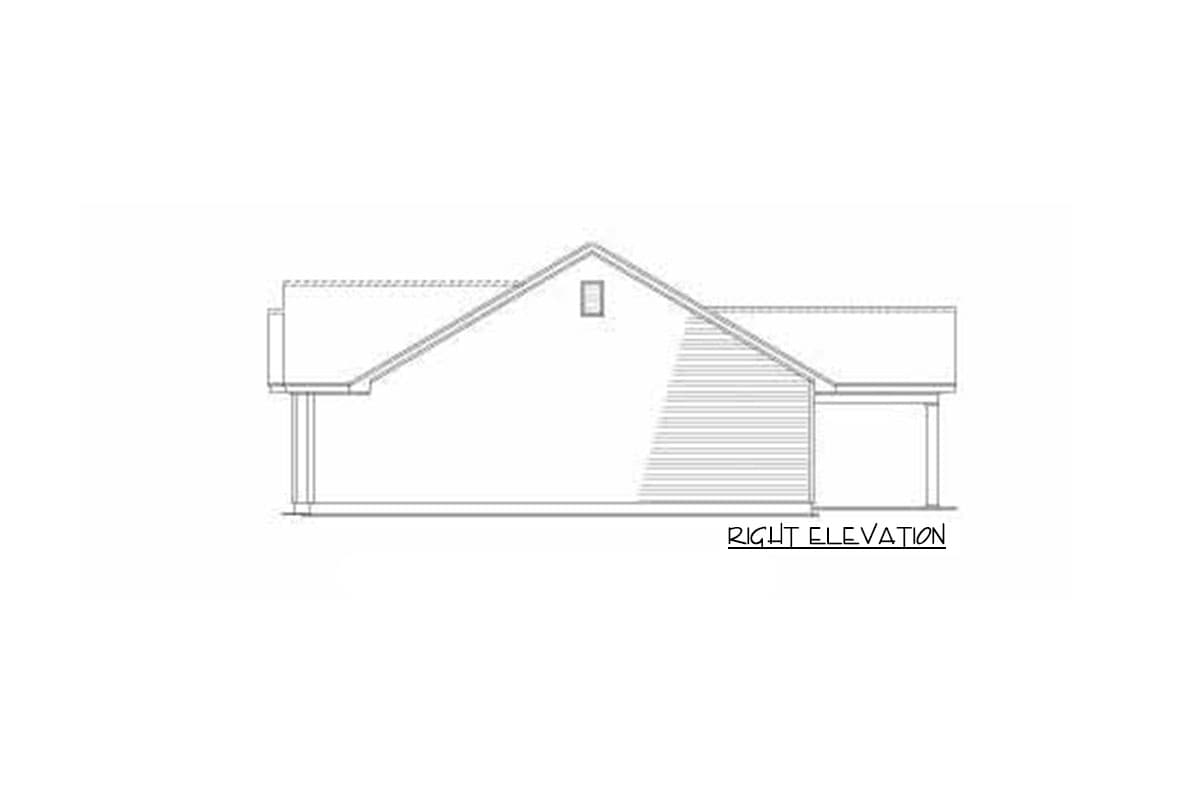

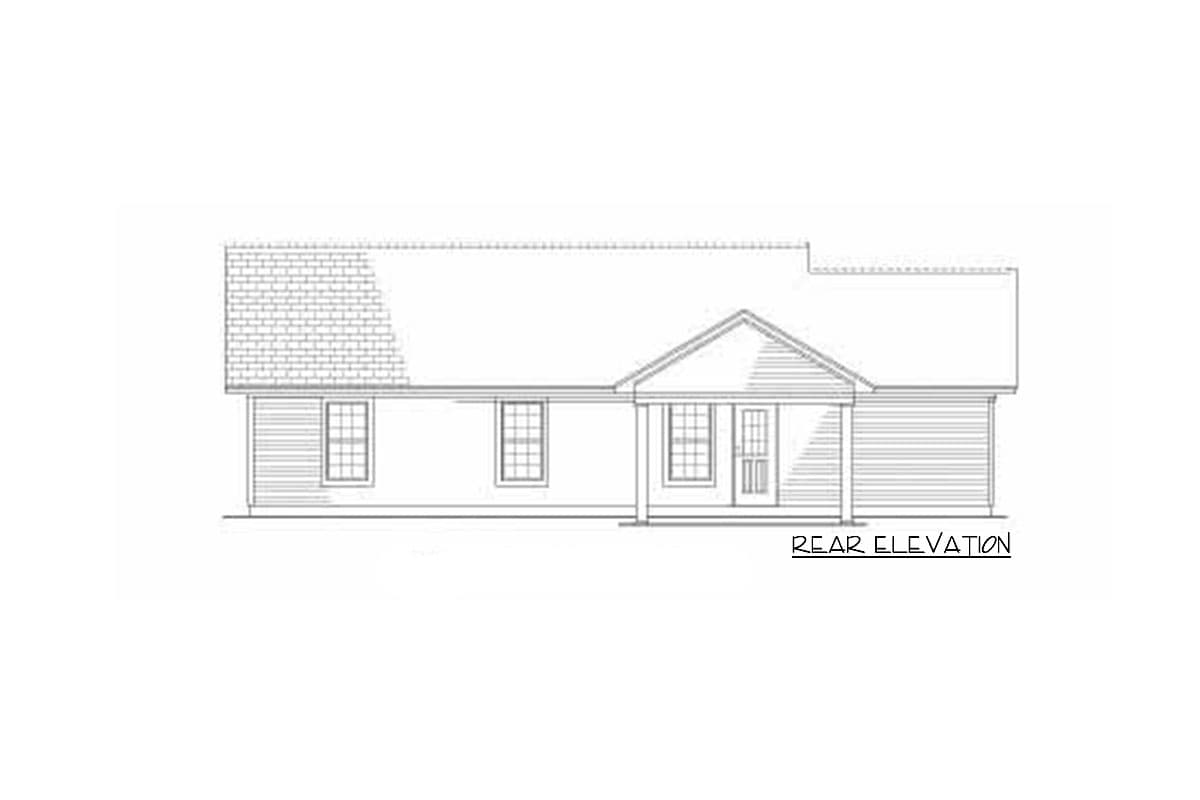

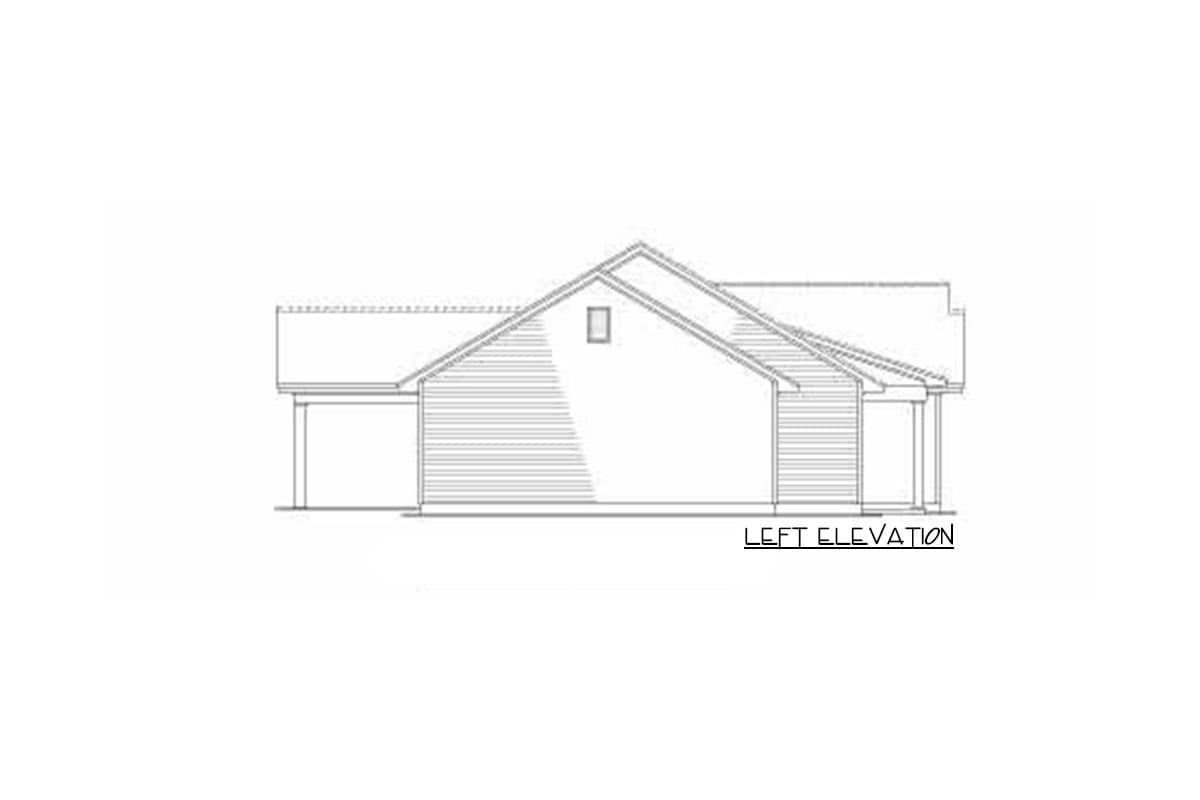

  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details

Architectural Style



Cozy Without Compromise

  • 1,075

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - single-use $600
  • 5 Sets $700
  • CAD $1,273
  • View all purchase option online

About This Plan

  • Cozy without compromise is the way to describe this efficiently designed home plan. Space for living begins with the covered front porch and extends to the back with a grilling porch where good times are waiting for you, your family and your guests.
  • The great room, open to the kitchen, soars with a vaulted ceiling giving the impression of a much larger living space.
  • The master suite features a walk-in closet, and a private half bath. Two more bedrooms and a second half bath complete this lovely home plan.
  • Related Plans: See these related house plans - For an alternate Craftsman exterior, see house plan 59771ND.
  • Also see these related house plans - 5987ND, 5988ND, 5989ND and 59545ND.

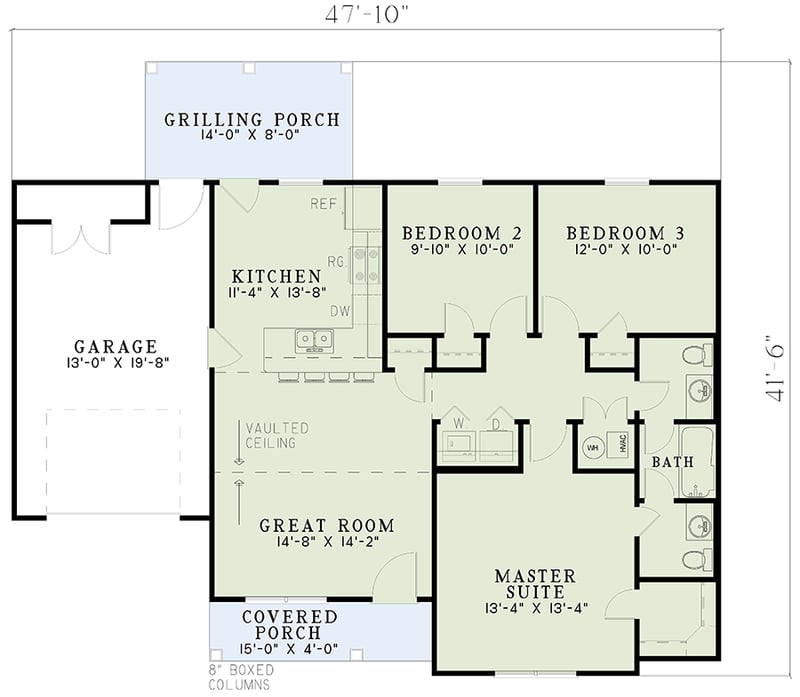

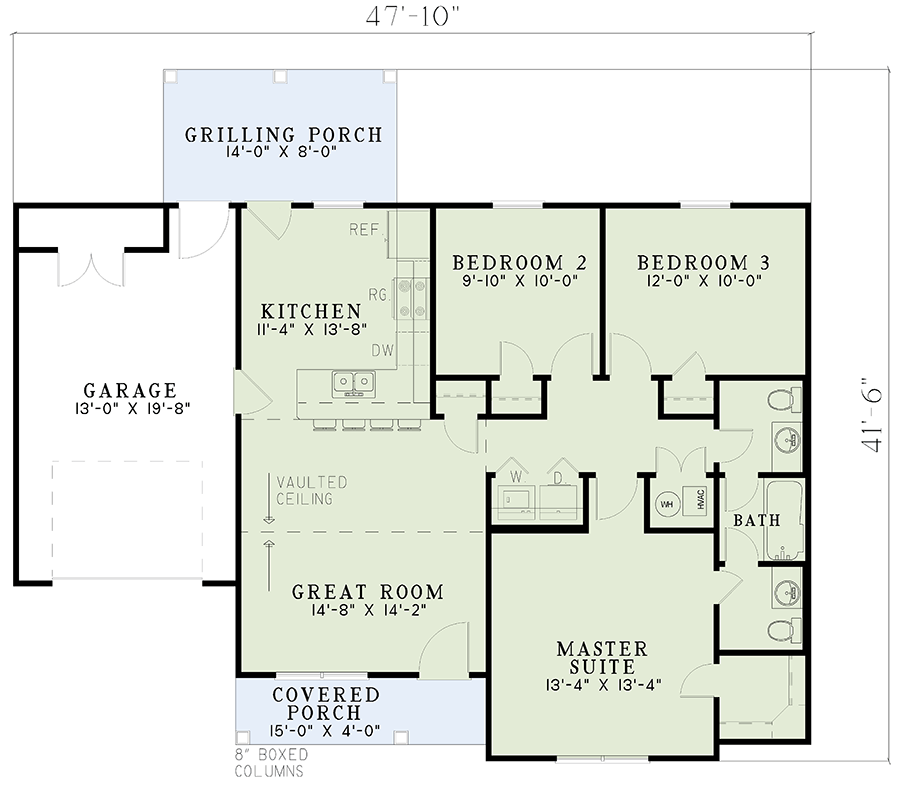

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,075 sq. ft.
  • 1st Floor: 1,075 sq. ft.
  • Porch, Combined: 172 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 47' 10"
  • Depth: 41' 6"
  • Max ridge height: 17' 1"

Garage

  • Type: Attached
  • Area: 306 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
