Plan 22195SL

Craftsman 3-Car Garage House Plan with 1-Bedroom Apartment

Heated S.F.
741
Beds
1
Baths
1
Stories
2
Cars
3

Floor Plan

Plan 22195SL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 22195SL

M-F 9am-5pm EST |

1-203-761-8500

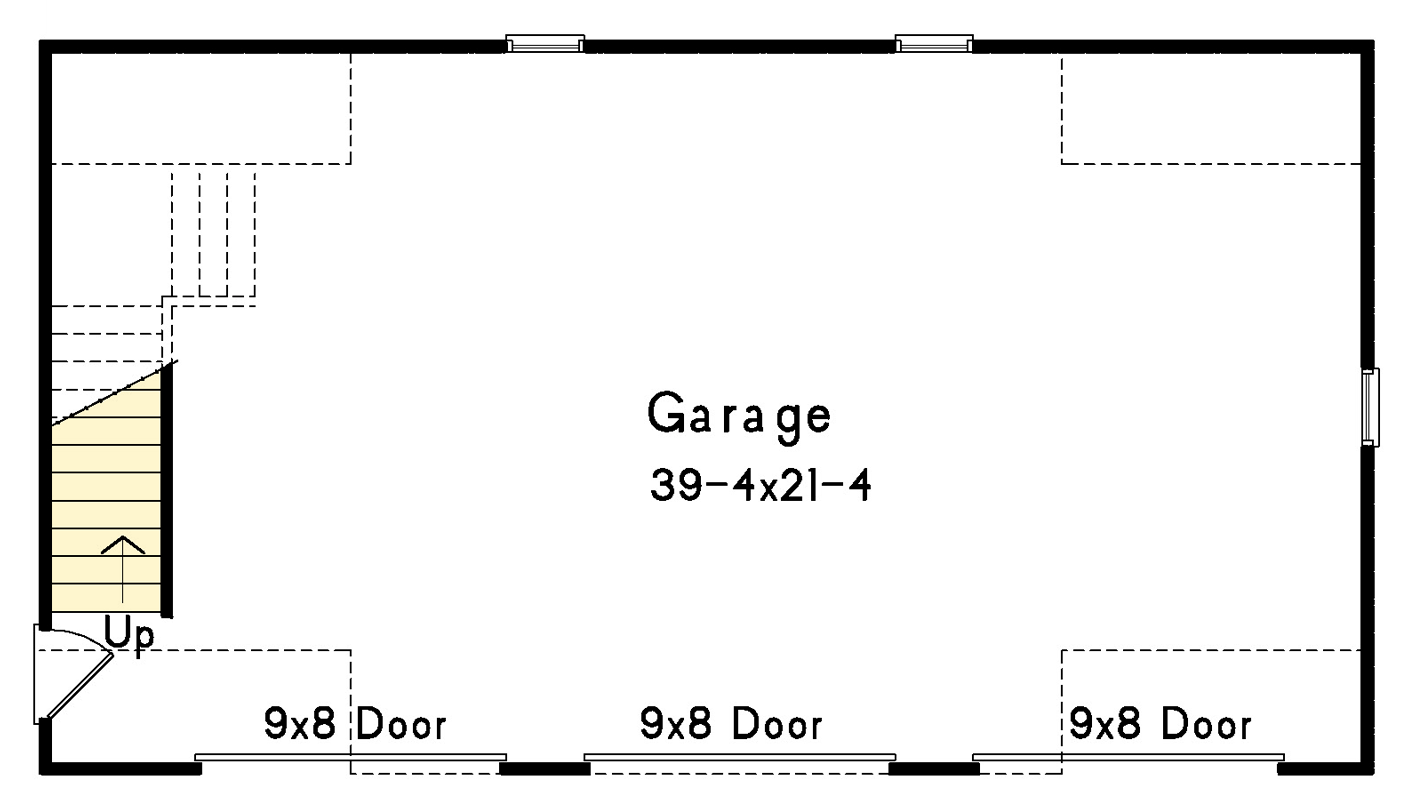

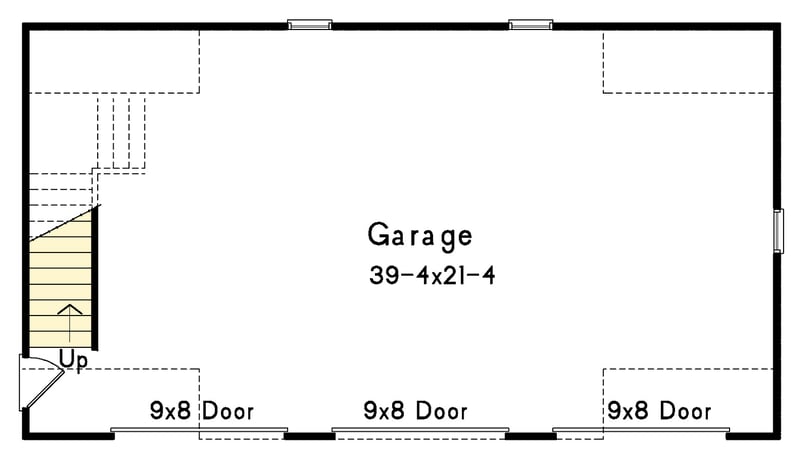

Main Level

Plan 22195SL: Craftsman 3-Car Garage House Plan with 1-Bedroom Apartment - Floor Plan - Main Level - Craftsman

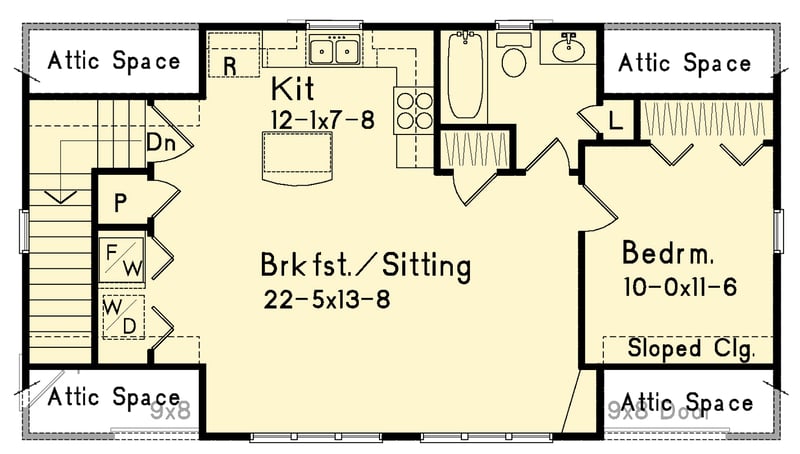

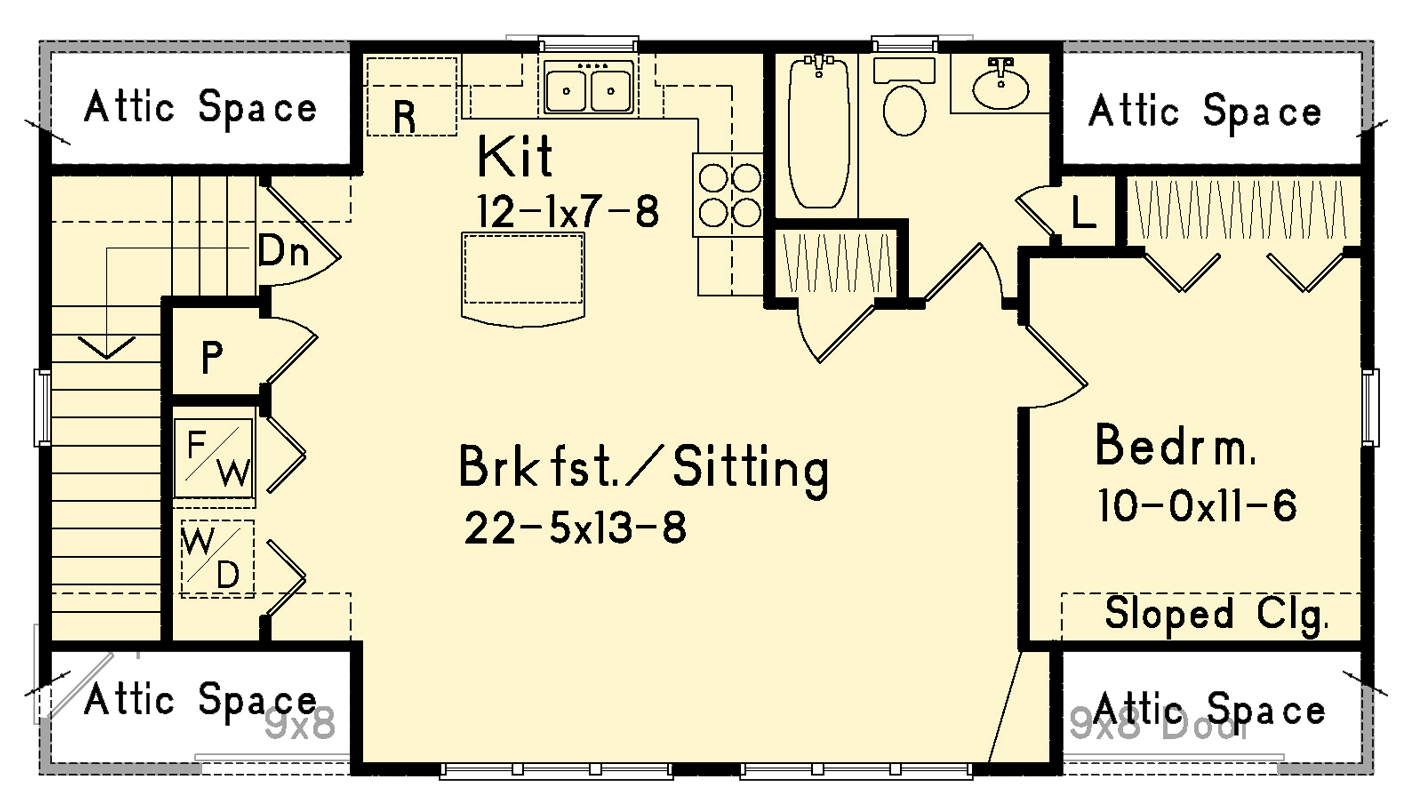

2nd Floor

Plan 22195SL: Craftsman 3-Car Garage House Plan with 1-Bedroom Apartment - Floor Plan - 2nd Floor - Craftsman

Plan Details

  • This Craftsman-style detached garage house plan offers a spacious 3-car garage below a 741 sq ft living space with 1 bedroom and 1 full bath.
  • The ground level features three front-entry garage bays, providing ample parking and storage for vehicles and equipment.
  • The upstairs living quarters include an open-concept layout with a comfortable living area, a dedicated breakfast nook, and an efficient kitchen.
  • The private upstairs master suite is conveniently located with an adjacent full bathroom and an upstairs laundry area for ease of use.

What's Included

  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

741 sq. ft.

2nd Floor

741 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

22' 0"

Max Ridge Height

25' 2"

Garage

Area

880 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Craftsman

Special Features

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

741 sq. ft.

2nd Floor

741 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

22' 0"

Max Ridge Height

25' 2"

Garage

Area

880 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Craftsman

Special Features

Breakfast Nook

Laundry - Upstairs

Master Suite - Upstairs
