Plan 11547KN Craftsman Bungalow With Rustic Log Siding

Craftsman Bungalow With Rustic Log Siding

Plan 11547KN

  • 1,544

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • Loaded with Craftsman charm, this cozy bungalow home plan can be for full-time living or a vacation getaway.
  • You get the look of a log home with the energy efficiency of 2x6 exterior walls.
  • A wide front porch is the ideal setting for sitting and relaxing. Inside, the living room with fireplace is bright and airy with lots of windows.
  • The kitchen with large island is open to the dining area. Nearby, a T-staircase leads to the second floor.
  • Romance is in the air in the vaulted master suite with warm fireplace, sitting area and private bath.
  • Two bedrooms and a hall bath complete this floor.
  • The full width from the left-most post to the end of the fireplace is 40'6" and the full depth from covered porch post to covered rear-entry stairs is 38'. The body of the home including the front porch measures 37'x30'.

Floor plans at ¼" scale

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

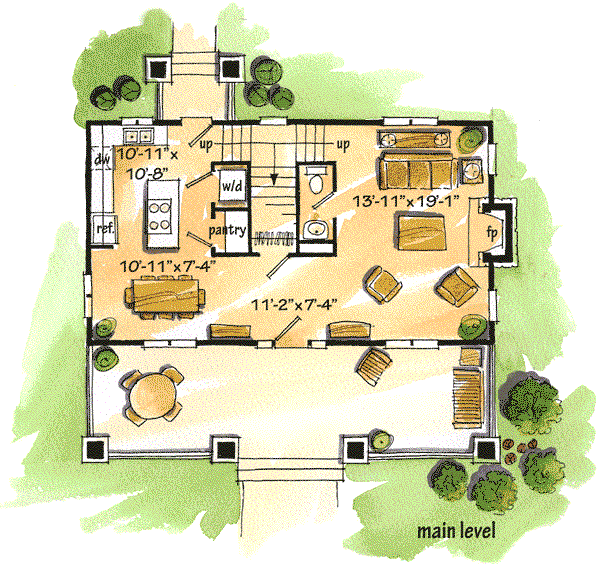

Craftsman Bungalow With Rustic Log Siding - 11547KN floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

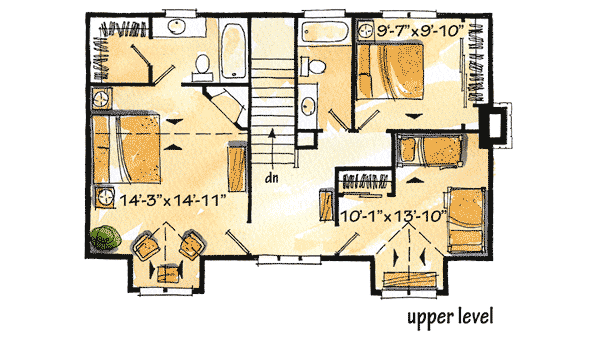

Craftsman Bungalow With Rustic Log Siding - 11547KN floor plan - 2nd Floor

Plan details

Architectural Style

Special features

Plan Collections

Craftsman Bungalow With Rustic Log Siding

  • 1,544

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

Buy This Plan
  • Study Set – Digital $550
  • PDF - Single-Build $1,575
  • CAD - Single-Build $1,775
  • View all purchase option online

About This Plan

  • Loaded with Craftsman charm, this cozy bungalow home plan can be for full-time living or a vacation getaway.
  • You get the look of a log home with the energy efficiency of 2x6 exterior walls.
  • A wide front porch is the ideal setting for sitting and relaxing. Inside, the living room with fireplace is bright and airy with lots of windows.
  • The kitchen with large island is open to the dining area. Nearby, a T-staircase leads to the second floor.
  • Romance is in the air in the vaulted master suite with warm fireplace, sitting area and private bath.
  • Two bedrooms and a hall bath complete this floor.
  • The full width from the left-most post to the end of the fireplace is 40'6" and the full depth from covered porch post to covered rear-entry stairs is 38'. The body of the home including the front porch measures 37'x30'.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,544 sq. ft.
  • 1st Floor: 740 sq. ft.
  • 2nd Floor: 804 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 6"
  • Depth: 38' 0"
  • Max ridge height: 26' 4"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
