Plan 25604GE Craftsman Bungalow With Sweeping Deck

3,463 2-5 2.5 - 4.5 1-2 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman Bungalow With Sweeping Deck

Plan 25604GE

  • 3,463

    Heated s.f.

  • 2-5

    Beds

  • 2.5 - 4.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • This Craftsman bungalow is loaded with versatility both inside and out.
  • The big open deck in back gives you sweeping views with a covered porch nearby that offers an outdoor kitchen and fireplace.
  • Vaulted and beamed ceilings top the foyer and lodge room while the keeping room has a coffered ceiling.
  • Views from the kitchen are marvelous, letting you see into the breakfast nook and keeping room.
  • Use bedroom 3 as an upscale office with its corner fireplace and coffered ceiling.
  • Finish the second floor and gain two more bedrooms and bathrooms along with a media loft, adding 753 square feet of living space to the home.
  • Related Plan: Get a 3-car garage with house plan 25812GE.

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

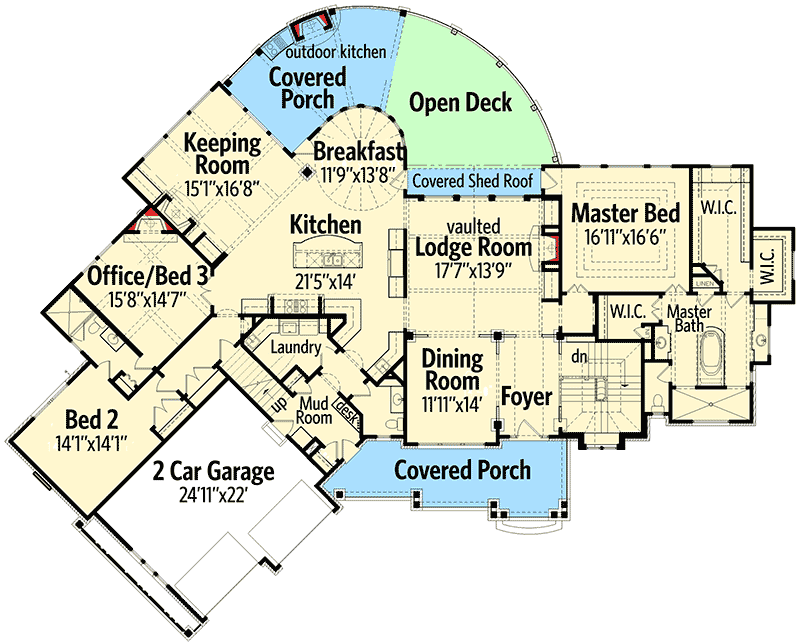

Craftsman Bungalow With Sweeping Deck - 25604GE floor plan - Main Level

Optional 2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman Bungalow With Sweeping Deck - 25604GE floor plan - Optional 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,463 sq. ft.
  • 1st Floor: 3,463 sq. ft.
  • Bonus: 753 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, 4, or 5
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 104' 3"
  • Depth: 84' 0"
  • Max ridge height: 28' 2"

Garage

  • Type: Attached
  • Area: 532 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Craftsman Bungalow With Sweeping Deck

  • 3,463

    Heated s.f.

  • 2-5

    Beds

  • 2.5 - 4.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Optional 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,463 sq. ft.
  • 1st Floor: 3,463 sq. ft.

Dimensions

  • Width: 104' 3"
  • Depth: 84' 0"
  • Max ridge height: 28' 2"

Beds/Baths

  • Bedrooms: 2, 3, 4, or 5
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 532 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Truss
