Plan 29904LDG

Craftsman Carriage House Plan with 2-Car 710 Square Foot Garage

Heated S.F.
665
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 29904LDG

Main Level
Main Level
2nd Floor
2nd Floor

Plan 29904LDG

M-F 9am-5pm EST |

1-203-761-8500

Main Level

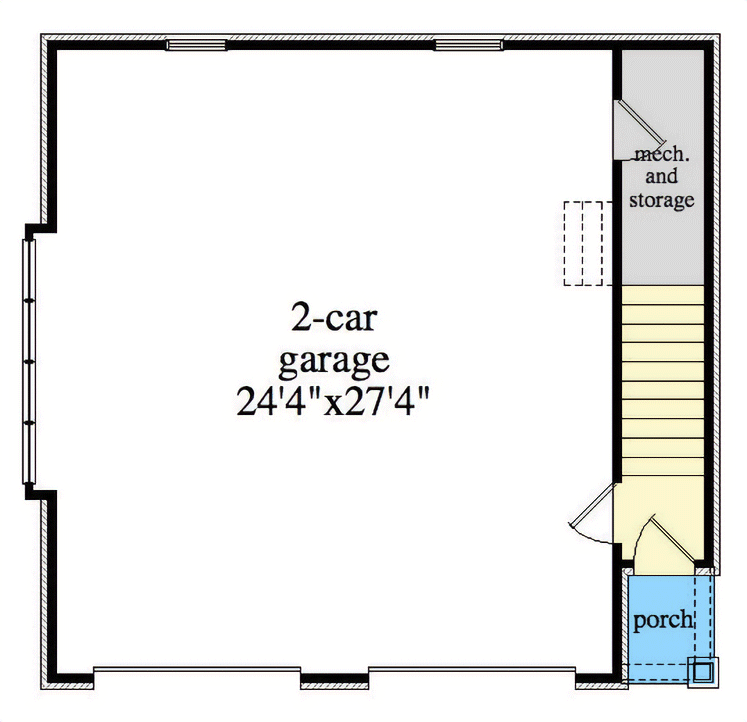

Plan 29904LDG: Craftsman Carriage House Plan with 2-Car 710 Square Foot Garage - Floor Plan - Main Level - Carriage, Country, Craftsman, New American, Rustic

2nd Floor

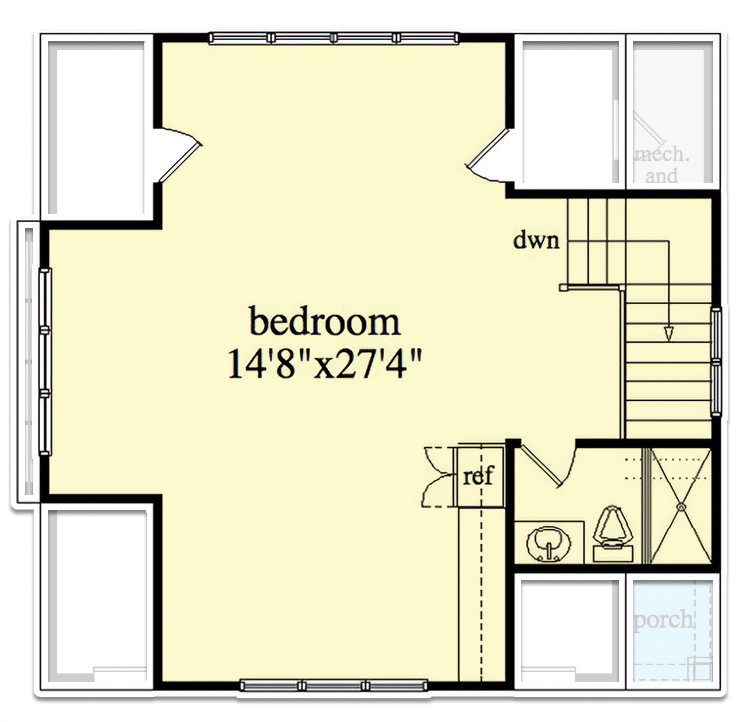

Plan 29904LDG: Craftsman Carriage House Plan with 2-Car 710 Square Foot Garage - Floor Plan - 2nd Floor - Carriage, Country, Craftsman, New American, Rustic

Plan Details

  • This idyllic Carriage house pairs well with Craftsman-style homes and presents 665 square feet of living space on the second level.
  • The first floor consists of a 2-car garage with natural light coming in through four side-by-side windows.
  • A covered porch merges with the garage entry to guide you upstairs, where windows on all sides ensure a light and airy living space.
  • The nearly 15' by 27' bedroom includes a refrigerator next to cabinetry, full bathroom, and attic access for storage.

What's Included

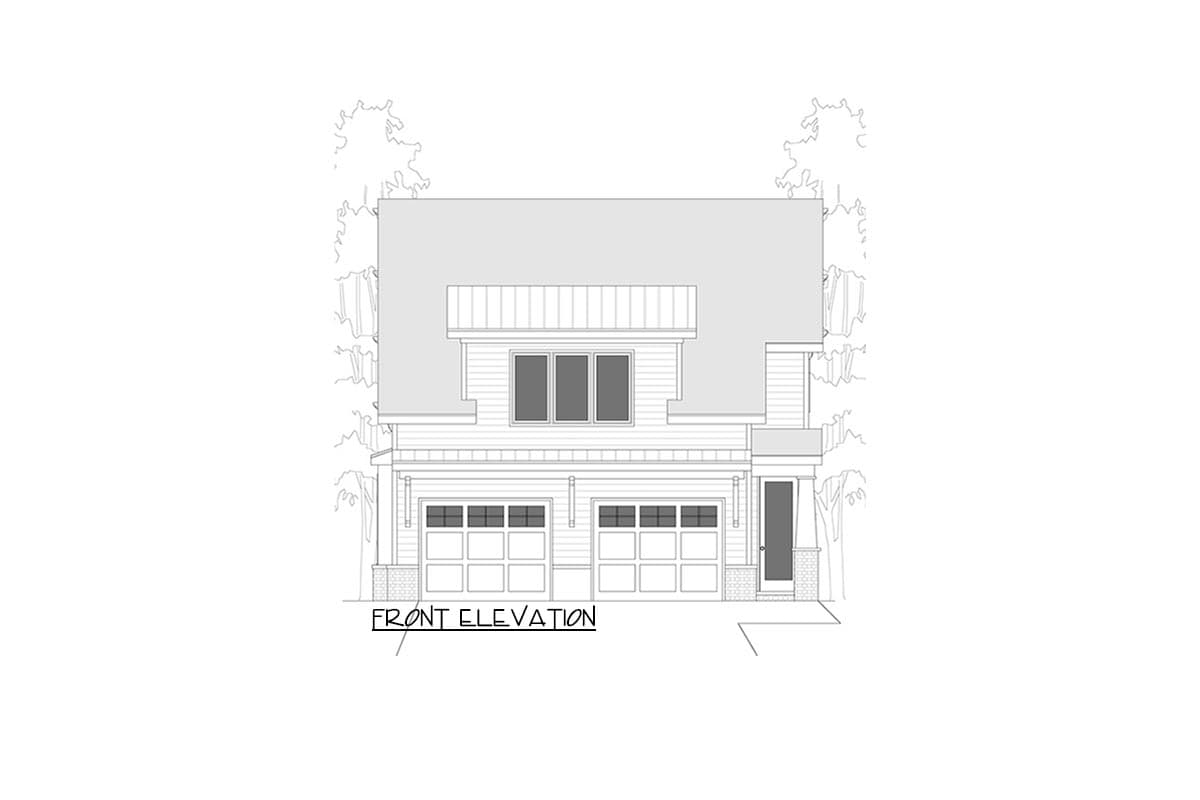

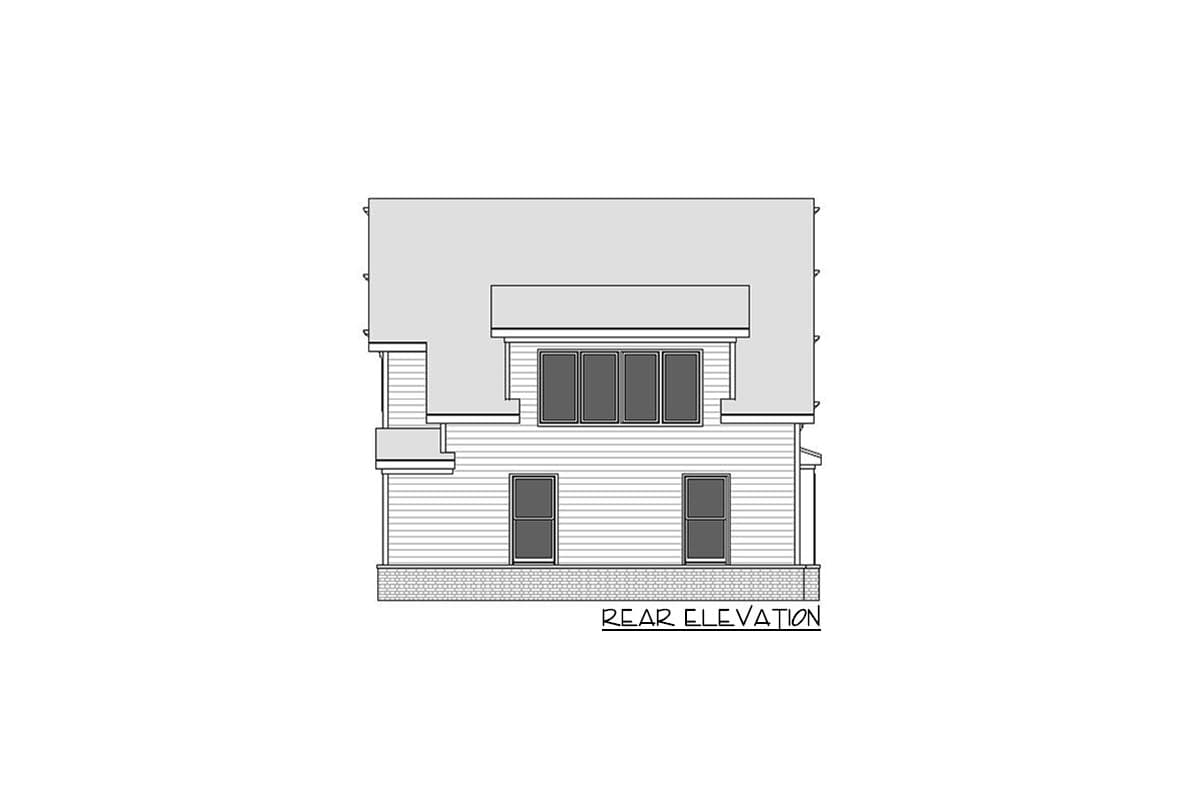

  • All Four Elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section (Typical Wall, Stairs (if applicable))
  • Typical Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

665 sq. ft.

1st Floor

90 sq. ft.

2nd Floor

575 sq. ft.

Porch, Front

16 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

28' 0"

Max Ridge Height

27' 4"

Garage

Type

Detached

Area

710 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 1"

Second Floor

8' 1"

Room

Ceiling Type

Height

Bedroom 1

Flat

0' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick Or Truss

Architectural Style

Carriage

Country

Craftsman

New American

Rustic

Special Features

Master Suite - Upstairs

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

665 sq. ft.

1st Floor

90 sq. ft.

2nd Floor

575 sq. ft.

Porch, Front

16 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1
