Plan 19246GT

Craftsman Carriage House Plan with 2-Car Garage

Heated S.F.
622
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 19246GT

Main Level
Main Level
2nd Floor
2nd Floor

Plan 19246GT

M-F 9am-5pm EST |

1-203-761-8500

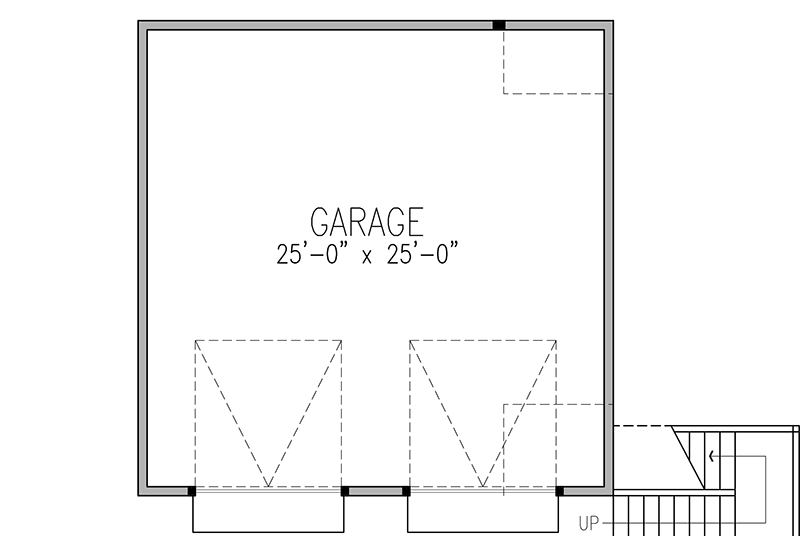

Main Level

Plan 19246GT: Craftsman Carriage House Plan with 2-Car Garage - Floor Plan - Main Level - Carriage, Country, Craftsman, New American

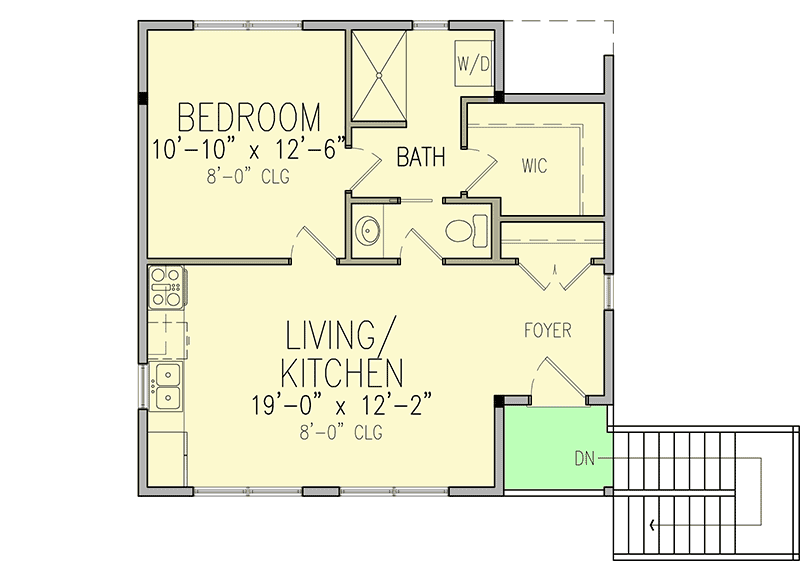

2nd Floor

Plan 19246GT: Craftsman Carriage House Plan with 2-Car Garage - Floor Plan - 2nd Floor - Carriage, Country, Craftsman, New American

Plan Details

  • The square footprint of this Craftsman Carriage house plan helps to stay within budget, while the traditional exterior will pair with any style of home.
  • Two overhead garage doors reside on the front elevation, leading to the 25' by 25' garage.
  • An exterior staircase guides you upstairs to the 1-bedroom apartment.
  • Inside, a coat closet greets you in the foyer, which opens to the combined living and kitchen areas. Cabinets and appliances line the left wall of the living space with a window above the double-bowl sink.
  • The bedroom provides rear-facing views and includes a compartmentalized bath with a washer / dryer unit and a walk-in closet.

What's Included

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior elevations with roof pitches, elements and measurements drawn to 1/4” scale.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

622 sq. ft.

2nd Floor

622 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab, Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 2"

Depth

29' 6"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

676 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Carriage

Country

Craftsman

New American

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

622 sq. ft.

2nd Floor

622 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab, Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 2"

Depth

29' 6"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

676 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Carriage

Country

Craftsman

New American

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU
