Craftsman Carriage House Plan with 3-Car Garage
Heated S.F.
1,353
Beds
2
Baths
2.5
Stories
2
Cars
3
Flyer
What's Included
Plan Details
  • On the front elevation of this Craftsman carriage house plan, three shed dormers line up above the three garage bays.
  • The front porch offers access to the 3-car garage and formal entry that leads to the second level.
  • Enjoy the convenience of a powder bath and storage room accessible from the garage.
  • Upstairs, discover a 2-bedroom apartment with a laundry room.
  • The open family room and eat-in kitchen is located in the center of the layout, flanked by two bedroom suites.
What's Included

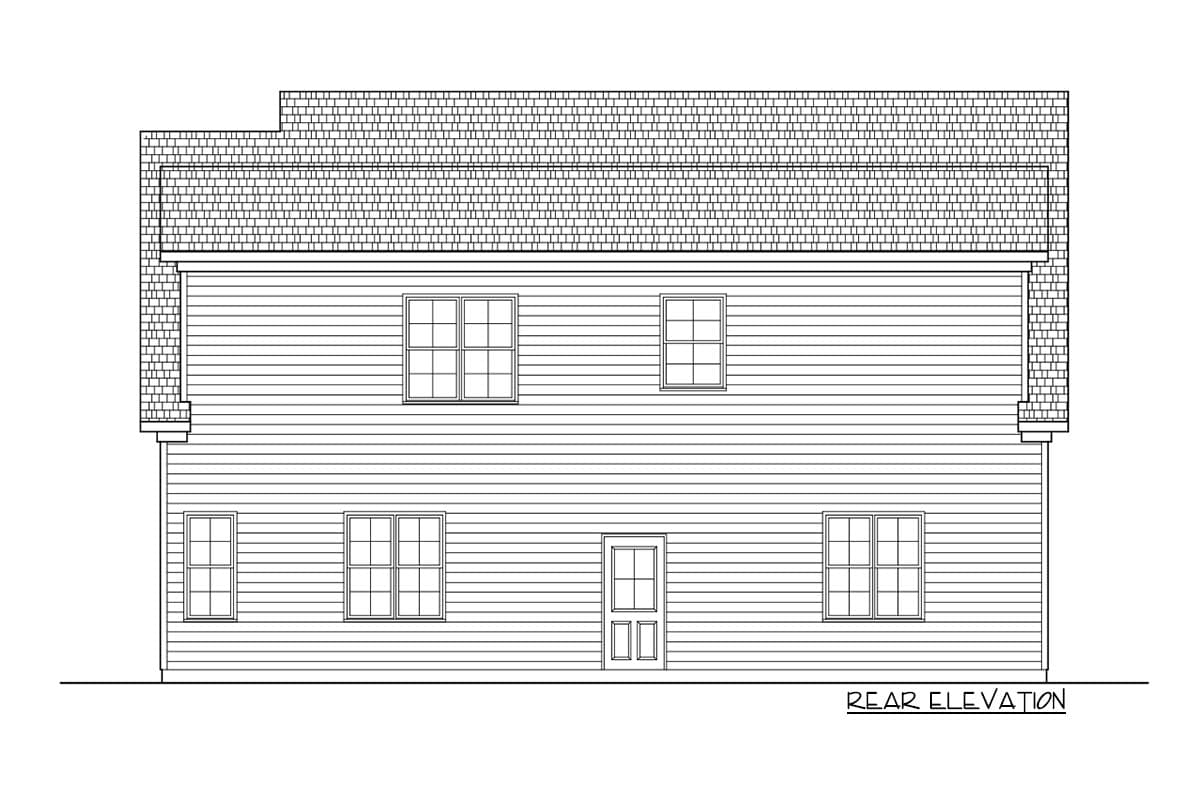

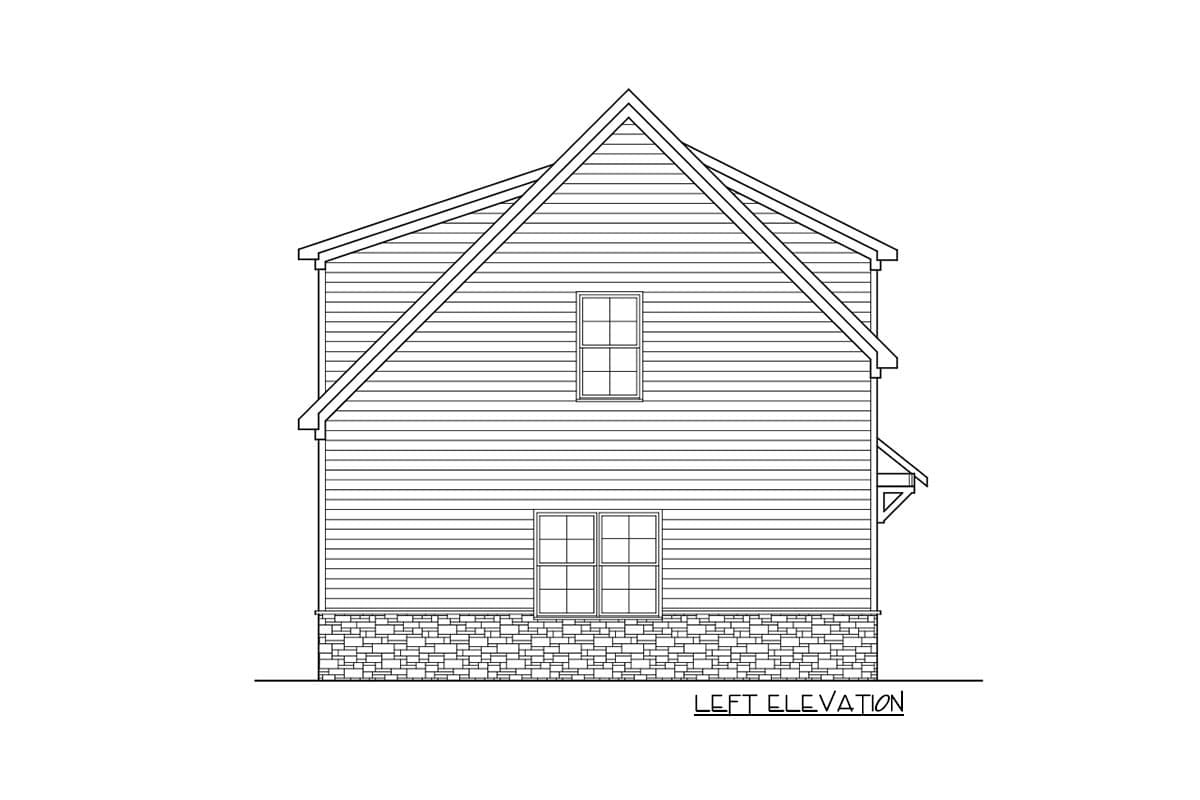

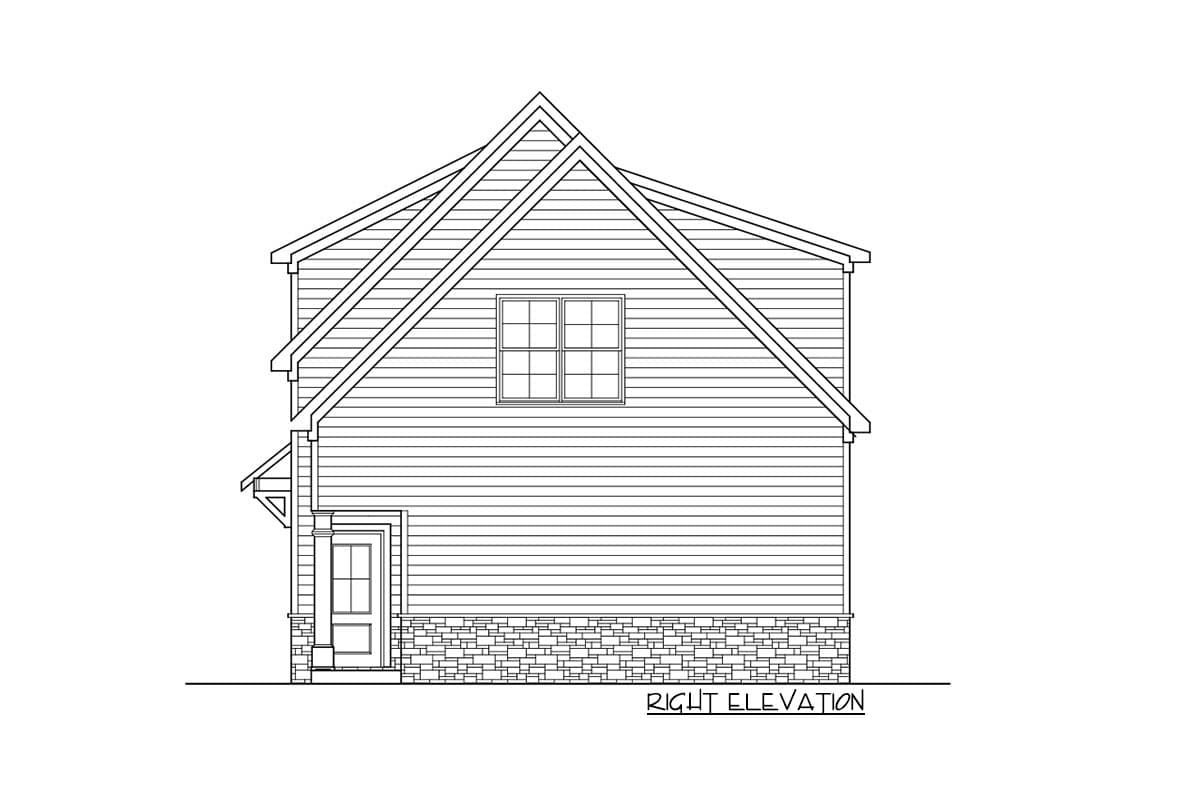

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Carriage House Plan with 3-Car Garage

  • 1,353

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

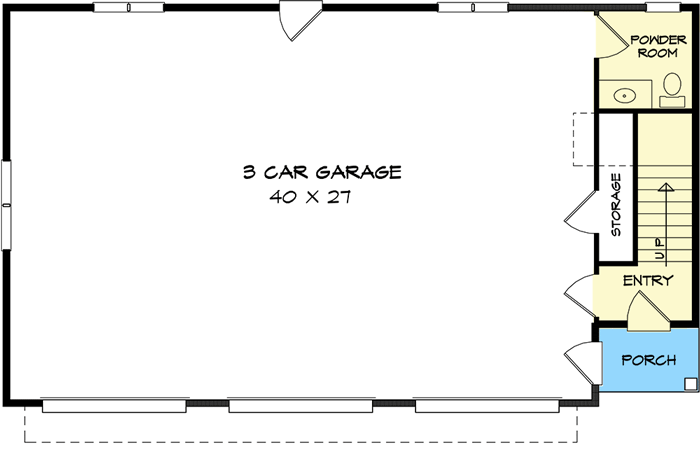

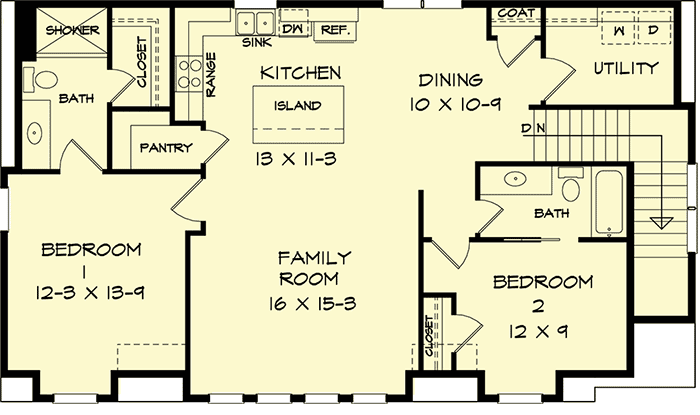

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,353 sq. ft.
  • 1st Floor: 131 sq. ft.
  • 2nd Floor: 1,222 sq. ft.

Dimensions

  • Width: 48' 6"
  • Depth: 28' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Detached
  • Area: 1189 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
