Craftsman Carriage House Plan with Covered Deck

Plan 720056DA

  • 672

    Heated s.f.

  • 0

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This charming, Craftsman Carriage house plan features a double garage on the lower level, topped by a 1-bedroom apartment; perfect for in-laws, an income property, or just additional living space.
  • The garage offers an extra-deep left bay, along with a full bathroom.
  • An exterior staircase takes you to the second-level apartment, where a combined kitchen and great room greet you upon entering.
  • The kitchen's prep island hosts an eating bar, while the vaulted ceiling lends a cohesive element above the living spaces. Slip through the sliding door to find a covered deck off the great room.
  • The bedroom and full bath with two sinks line the left side of the apartment.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

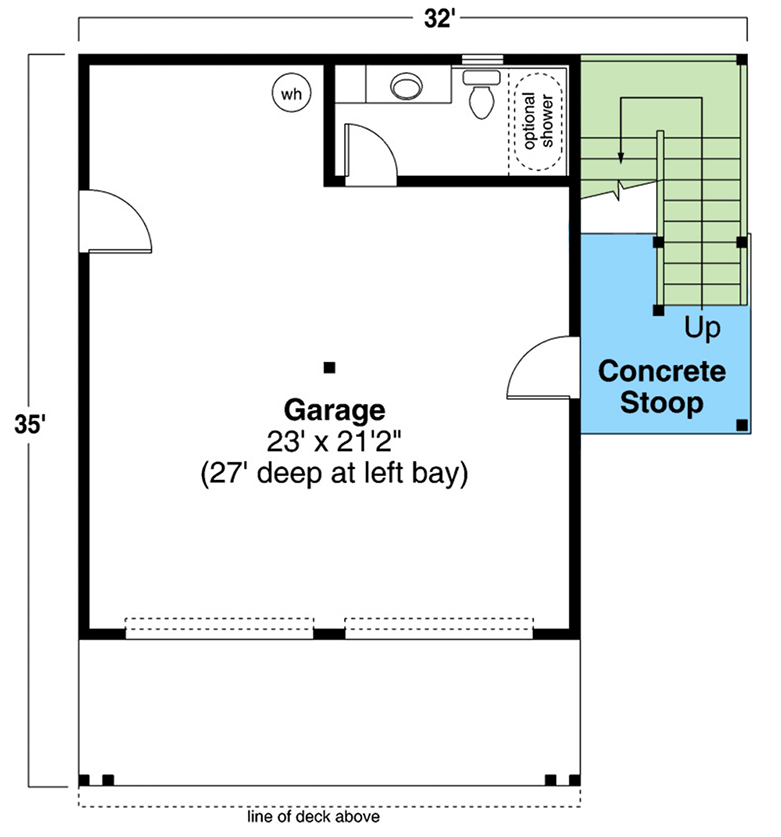

Craftsman Carriage House Plan with Covered Deck - 720056DA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

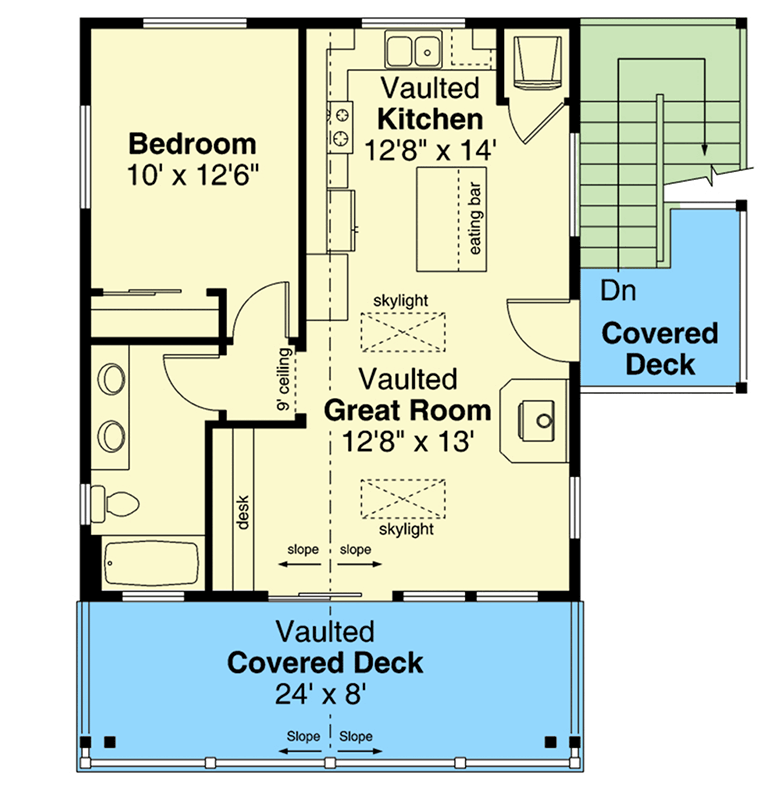

Craftsman Carriage House Plan with Covered Deck - 720056DA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 672 sq. ft.
  • 2nd Floor: 672 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 36' 0"
  • Max ridge height: 31' 2"

Garage

  • Type: Detached
  • Area: 672 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Craftsman Carriage House Plan with Covered Deck

  • 672

    Heated s.f.

  • 0

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $575
  • PDF Light $820
  • 5 Sets + PDF Light $980
  • PDF - Single-Build $1,425
  • CAD - Single-Build $1,535
  • CAD - Unlimited Build $1,685
  • View all purchase option online

About This Plan

  • This charming, Craftsman Carriage house plan features a double garage on the lower level, topped by a 1-bedroom apartment; perfect for in-laws, an income property, or just additional living space.
  • The garage offers an extra-deep left bay, along with a full bathroom.
  • An exterior staircase takes you to the second-level apartment, where a combined kitchen and great room greet you upon entering.
  • The kitchen's prep island hosts an eating bar, while the vaulted ceiling lends a cohesive element above the living spaces. Slip through the sliding door to find a covered deck off the great room.
  • The bedroom and full bath with two sinks line the left side of the apartment.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 672 sq. ft.
  • 2nd Floor: 672 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 36' 0"
  • Max ridge height: 31' 2"

Garage

  • Type: Detached
  • Area: 672 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss
