Plan 41826DB

Craftsman Charm

1,724 3 2 1 2
Pageloader

Craftsman Charm

Plan 41826DB

  • 1,724

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

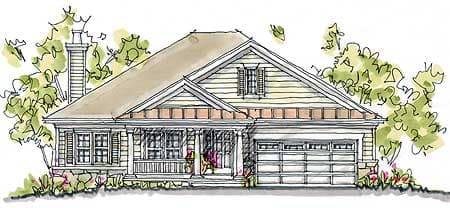

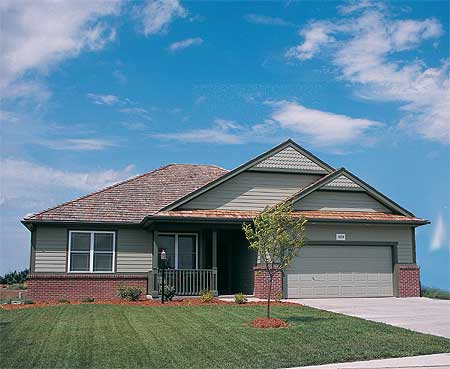

  • Decorative brackets and porch pillars on stone bases attest to the Craftsman origins of this charming one-story design. A second covered porch in back is accessed from the morning room.
  • Flowing together, the living area in back comprises a fireplaced family room next to an entertainment center, a bright morning room and a kitchen with a central island and a corner pantry.
  • The master suite includes a walk-in clothes closet and a separate tub and shower are found in the master bath. Bedrooms two and three are conveniently close to the second full bath.
  • Ceilings: 9' standard.
  • Related Plan: For an alternate exterior, see house plan 4108DB.
  • See plan 40836DB for a version using Structural Insulated Panel (SIP) construction.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details

Architectural Style

Plan Collections



Craftsman Charm

  • 1,724

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $620
  • PDF - single-use $955
  • 5 Sets $1,080
  • 8 Sets $1,150
  • PDF - multi-use $1,455
  • CAD $1,671
  • CAD - multi-use $2,171
  • View all purchase option online

About This Plan

  • Decorative brackets and porch pillars on stone bases attest to the Craftsman origins of this charming one-story design. A second covered porch in back is accessed from the morning room.
  • Flowing together, the living area in back comprises a fireplaced family room next to an entertainment center, a bright morning room and a kitchen with a central island and a corner pantry.
  • The master suite includes a walk-in clothes closet and a separate tub and shower are found in the master bath. Bedrooms two and three are conveniently close to the second full bath.
  • Ceilings: 9' standard.
  • Related Plan: For an alternate exterior, see house plan 4108DB.
  • See plan 40836DB for a version using Structural Insulated Panel (SIP) construction.

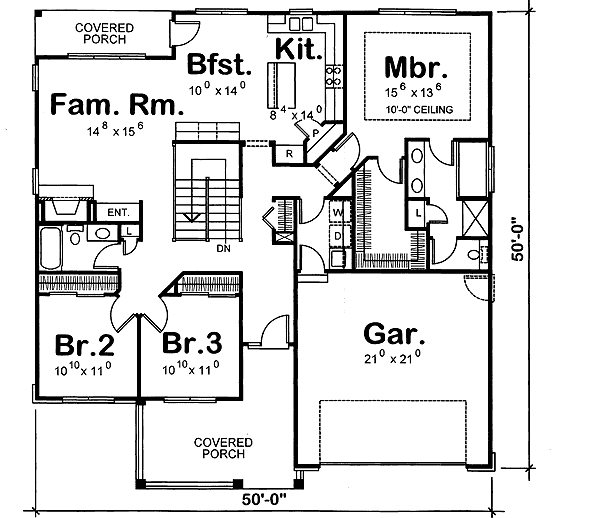

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,724 sq. ft.
  • 1st Floor: 1,724 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 50' 0"
  • Max ridge height: 24' 4"

Garage

  • Type: Attached
  • Area: 460 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Framing Type: Stick
