Plan 72644DA

Craftsman Charmer

Heated S.F.
2,838
Beds
4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 72644DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72644DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

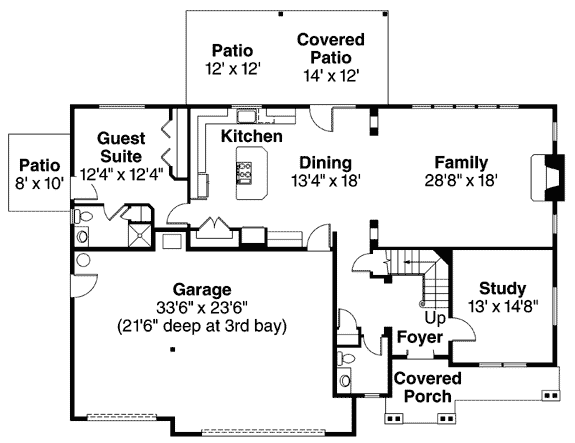

Plan 72644DA: Craftsman Charmer - Floor Plan - Main Level - Craftsman, Northwest

2nd Floor

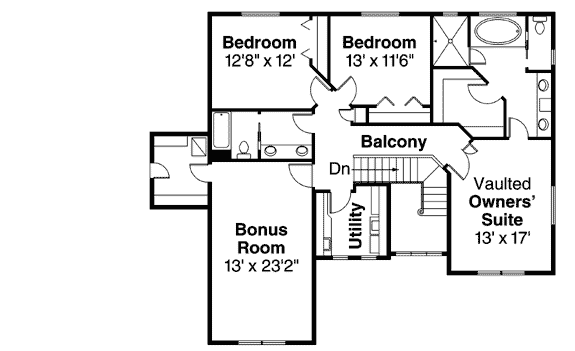

Plan 72644DA: Craftsman Charmer - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • Nostalgic shake-textured siding fronts the garage gable of this Craftsman cottage house plan.
  • The 2-story foyer is bathed in natural light that washes down from a wide window on the upper level. The open stairway angling up the left side ascends to a balcony overlook with a view of the entry. A convenient powder room is right next to the coat closet.
  • The dining room sits at the heart of the large interconnected gathering space at the rear.
  • A wide arched opening from the dinnig room leads into the naturally bright family room, where slender windows flank and highlight the gas fireplace at the far end.
  • A raised eating bar fronts the large work island that bounds the kitchen which has views of the dining room, family room, and most of the covered patio.
  • Three bedrooms and a bonus room are upstairs, and a guest suite is below.
  • The luxurious vaulted owners' suite fills the right side. Amenities include a roomy walk-in closet, dual vanity, private toilet, spa tub and oversized shower.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

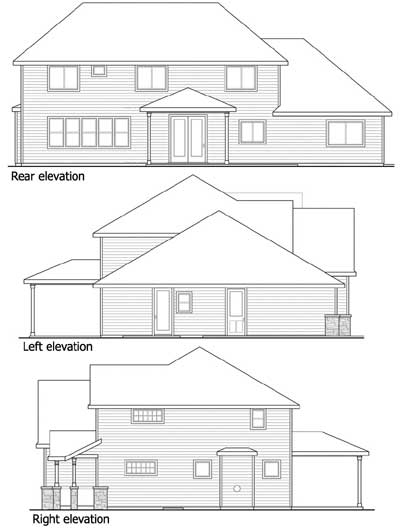

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,838 sq. ft.

1st Floor

1,651 sq. ft.

2nd Floor

1,187 sq. ft.

Bonus

400 sq. ft.

Covered Patio

392 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 0"

Depth

55' 0"

Max Ridge Height

28' 4"

Garage

Type

Attached

Area

815 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Master Suite - Upstairs

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

2,838 sq. ft.

1st Floor

1,651 sq. ft.

2nd Floor

1,187 sq. ft.

Bonus

400 sq. ft.

Covered Patio

392 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 0"

Depth

55' 0"

Max Ridge Height

28' 4"

Garage

Type

Attached

Area

815 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Master Suite - Upstairs

Optionally Finished Bonus Room
