Plan 52478WM

Craftsman Cottage House Plan with Main-Level Master and Versatile Loft

Heated S.F.
1,393
Beds
2
Baths
2.5
Stories
2
Cars
1

Floor Plan

Plan 52478WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52478WM

M-F 9am-5pm EST |

1-203-761-8500

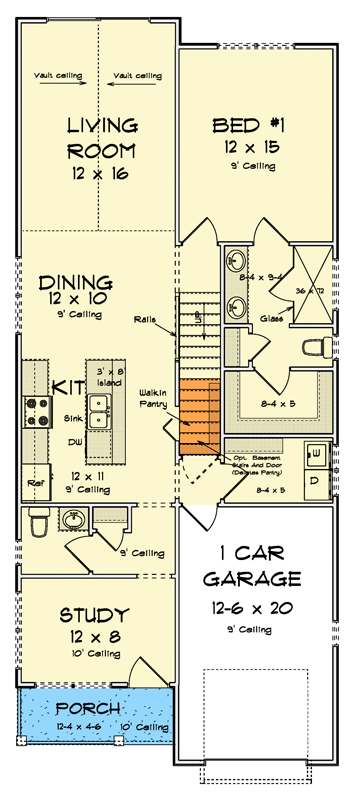

Main Level

Plan 52478WM: Craftsman Cottage House Plan with Main-Level Master and Versatile Loft - Floor Plan - Main Level - Cottage, Craftsman, Traditional

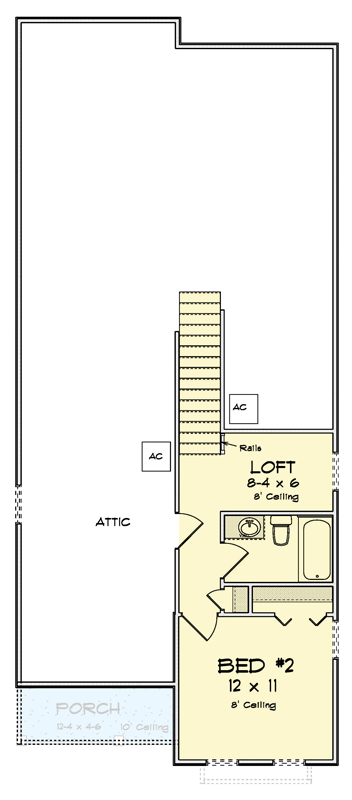

2nd Floor

Plan 52478WM: Craftsman Cottage House Plan with Main-Level Master and Versatile Loft - Floor Plan - 2nd Floor - Cottage, Craftsman, Traditional

Plan Details

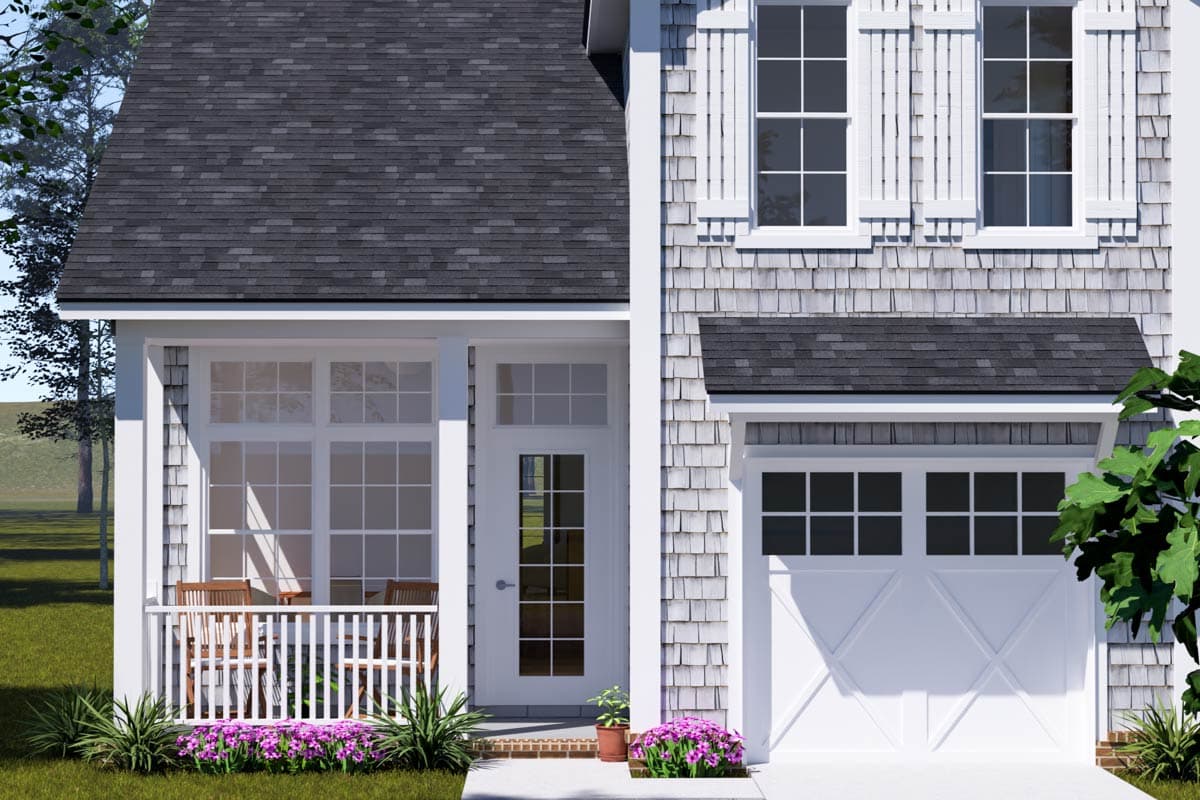

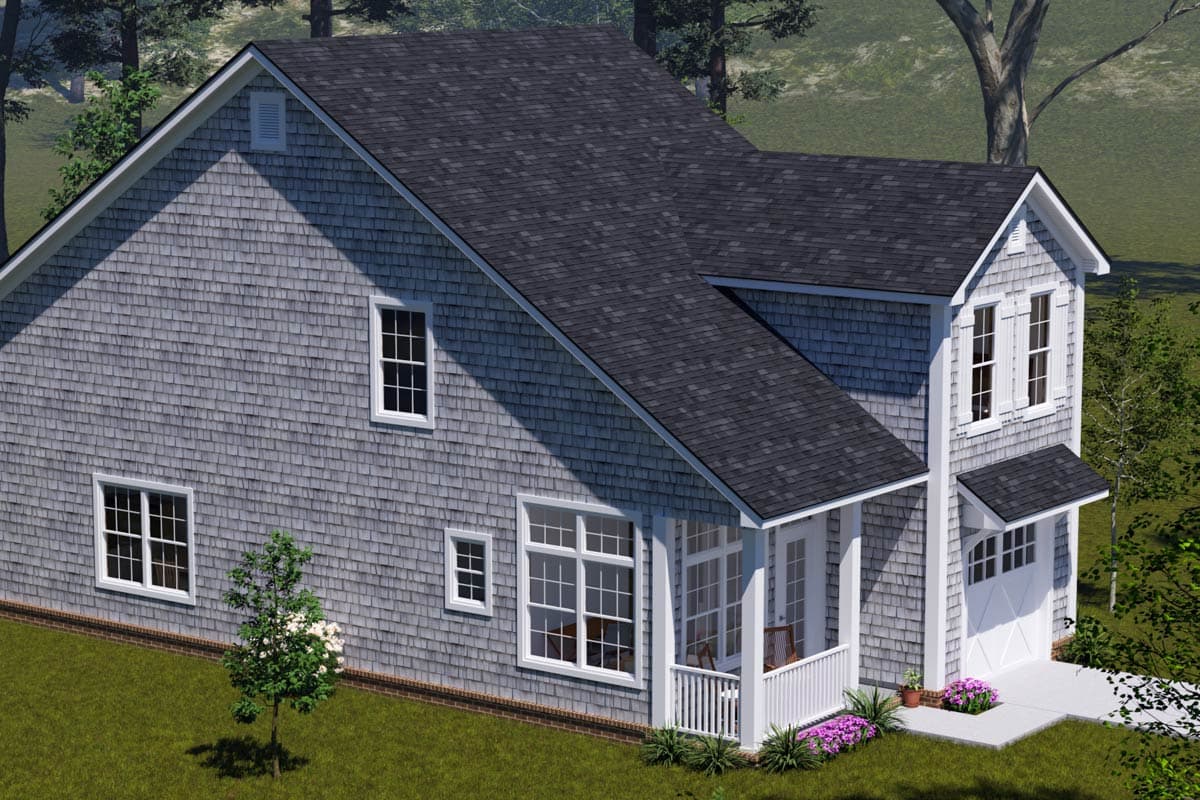

  • This inviting 1,393 sq. ft. Craftsman Cottage house plan offers 2 bedrooms, 2.5 bathrooms, and a convenient 250 sq. ft. 1-car front-entry garage, all wrapped in charming shingle siding and classic trim.
  • Step from the welcoming front porch into a dedicated study, ideal for a home office or quiet library, while the garage entry conveniently leads past a practical main-level laundry and powder room, maintaining a seamless flow into the open-concept living areas.
  • The heart of the home unfolds with a well-appointed kitchen featuring a functional island and a walk-in butler's pantry, seamlessly flowing into the dining area and a spacious living room adorned with a vaulted ceiling, perfect for daily living and intimate gatherings.
  • Retreat to the private main-level primary suite, boasting a generous bedroom with a 9' ceiling, a full en-suite bathroom with dual vanities, and a walk-in closet; upstairs, a second bedroom with its own full bath provides comfort and privacy, complemented by a versatile loft space.
  • Beyond the main living, discover a private study at the front of the home, offering a quiet sanctuary, while the upper-level loft provides a flexible area for relaxation, hobbies, or a secondary media space.
  • Enjoy morning coffee or an evening breeze on the charming 55 sq. ft. covered front porch, providing a welcoming outdoor extension to the home's inviting facade.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,393 sq. ft.

1st Floor

1,071 sq. ft.

2nd Floor

322 sq. ft.

Porch, Front

55 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 8"

Depth

57' 6"

Max Ridge Height

28' 2"

Garage

Type

Standard

Area

250 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Cottage

Craftsman

Traditional

Special Features

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Walk-in Pantry
