Plan 51179MM

Craftsman Cottage with Bonus Room

Craftsman Cottage with Bonus Room

Plan 51179MM

  • 2,023

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • This home plan provides a very functional split-floor plan and with the bonus room gives you one or two floor living al for the same plan cost.
  • Step in off the 8'-deep front porch and enjoy open views with the great room flowing to the kitchen and eating area beyond.
  • This plan features an expansive master bedroom suite with a 10' trayed ceiling and plenty of storage space in his and her walk-in closets. The large great room also includes a trayed ceiling and a gas log fireplace.
  • Front and rear covered porches make the evenings enjoyable.
  • Two bedrooms share a bath across the home and a small office is tucked away near the bonus room stairs.
  • The laundry has a folding table and a utility sink.
  • The roof is stick framed and has an 8:12 main pitch and a 10:12 secondary pitch.
  • Related Plans: Get a slab or crawlspace foundation with house plan 51165MM.

Cover Sheet: Showing architectural rendering of residence.

Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, details/sections for both 2"x4" and 2"x6" wall framing may also be included as part of the plans, or purchased separately.

Foundation Plan and Details: In general, each house plan set includes one foundation type.

Additional foundation types may be available for a given house plan, and these options can be viewed on each plan's detail page.

Foundation types typically offered: (each type may or may not be available for a given design)

·       Slab: Slab is a type of foundation consisting of a structural concrete slab poured directly on the grade. No accessible space exists in slab construction. Slab foundations are popular in areas (i.e. the Southern United States) where there is a relatively high water table (i.e. the "water table" refers to the depth in the soil at which you find water). Traditionally, the slab foundation is the least expensive foundation type when building on a relatively flat lot.

·       Crawlspace: Crawlspace is a type of foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home. Crawlspace construction is predominant in areas where there is heavy clay content in the soil, where the home owner needs additional under-home storage space, or the homeowner needs access to pipes, wiring, etc. under the floor of the home.

·       Basement: Basement is a type of foundation which includes an accessible space between the soil and the bottom of the first floor of a home. It usually has more headroom than a Crawlspace. Basement foundation construction is predominant in cold climates where the foundation needs to be situated below the frost level.



Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.

Roof Drainage Plan:
In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

Exterior Elevations:
In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.

Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.

Specifications Form:
In general, each house plan set includes a blank short-form FHA/VA specifications document for your reference.

License to Build: Each set of construction plans include ONE license to build.

Plans include relevant building sections and details.

Plumbing diagrams and HVAC plans are not available for these homes since each county's code will vary and a licensed plumber and/or electrician must follow the codes.

Plan details



Craftsman Cottage with Bonus Room

  • 2,023

    Heated s.f.

  • 3 - 4

    Beds

  • 3 +

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $990
  • 5 Sets $1,060
  • PDF - single-use $1,200
  • 8 Sets $1,240
  • Reproducible Set $1,270
  • 5 Sets PLUS $1,285
  • CAD $1,820
  • View all purchase option online

About This Plan

  • This home plan provides a very functional split-floor plan and with the bonus room gives you one or two floor living al for the same plan cost.
  • Step in off the 8'-deep front porch and enjoy open views with the great room flowing to the kitchen and eating area beyond.
  • This plan features an expansive master bedroom suite with a 10' trayed ceiling and plenty of storage space in his and her walk-in closets. The large great room also includes a trayed ceiling and a gas log fireplace.
  • Front and rear covered porches make the evenings enjoyable.
  • Two bedrooms share a bath across the home and a small office is tucked away near the bonus room stairs.
  • The laundry has a folding table and a utility sink.
  • The roof is stick framed and has an 8:12 main pitch and a 10:12 secondary pitch.
  • Related Plans: Get a slab or crawlspace foundation with house plan 51165MM.

Floor Plans

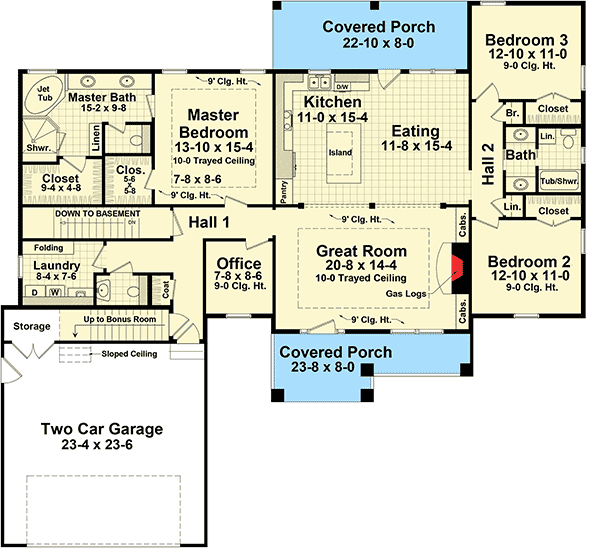

  • Main Level

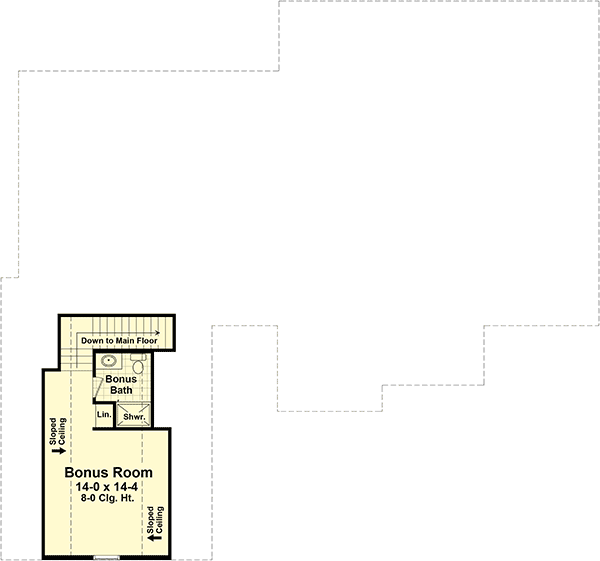

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,023 sq. ft.
  • 1st Floor: 2,023 sq. ft.
  • Bonus: 334 sq. ft.
  • Porch, Front: 154 sq. ft.
  • Porch, Rear: 183 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 68' 6"
  • Depth: 64' 0"
  • Max ridge height: 21' 6"

Garage

  • Type: Attached
  • Area: 651 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
