Plan 90296PD Craftsman Cottage with Covered Porch

Craftsman Cottage with Covered Porch

Plan 90296PD

  • 1,168

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

  • Whether a vacation home or your primary residence, this new take on cottage living merges contemporary and Craftsman styles beautifully.
  • The foyer serves the front door and garage entrance in order share the nearby coat closet.
  • Two steps up and you will find the eat-in kitchen and living room with a cathedral ceiling.
  • An eating bar at the kitchen island is perfect for casual meals and conversation, and the glass door on the rear elevation brings in natural lighting while providing access to the covered porch.
  • The master bedroom is slightly larger than bedroom 2, which is separated by a 4-fixture bathroom.

Each plan set includes the following:

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

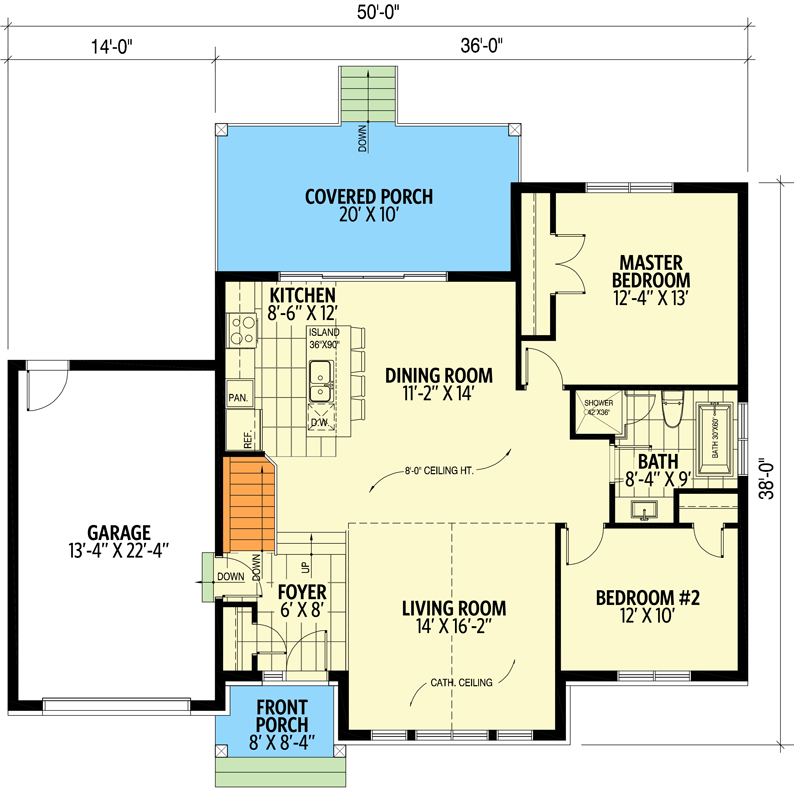

Craftsman Cottage with Covered Porch - 90296PD floor plan - Main Level

Plan details

Craftsman Cottage with Covered Porch

  • 1,168

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $892
  • 8 Sets $935
  • PDF - Single-Build $1,273
  • CAD - Single-Build $1,897
  • View all purchase option online

About This Plan

  • Whether a vacation home or your primary residence, this new take on cottage living merges contemporary and Craftsman styles beautifully.
  • The foyer serves the front door and garage entrance in order share the nearby coat closet.
  • Two steps up and you will find the eat-in kitchen and living room with a cathedral ceiling.
  • An eating bar at the kitchen island is perfect for casual meals and conversation, and the glass door on the rear elevation brings in natural lighting while providing access to the covered porch.
  • The master bedroom is slightly larger than bedroom 2, which is separated by a 4-fixture bathroom.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,168 sq. ft.
  • 1st Floor: 1,168 sq. ft.
  • Porch, Rear: 200 sq. ft.
  • Porch, Front: 46 sq. ft.
  • Basement Unfinished: 1,168 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 38' 0"
  • Max ridge height: 20' 10"

Garage

  • Type: Attached
  • Area: 338 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Framing Type: Truss
