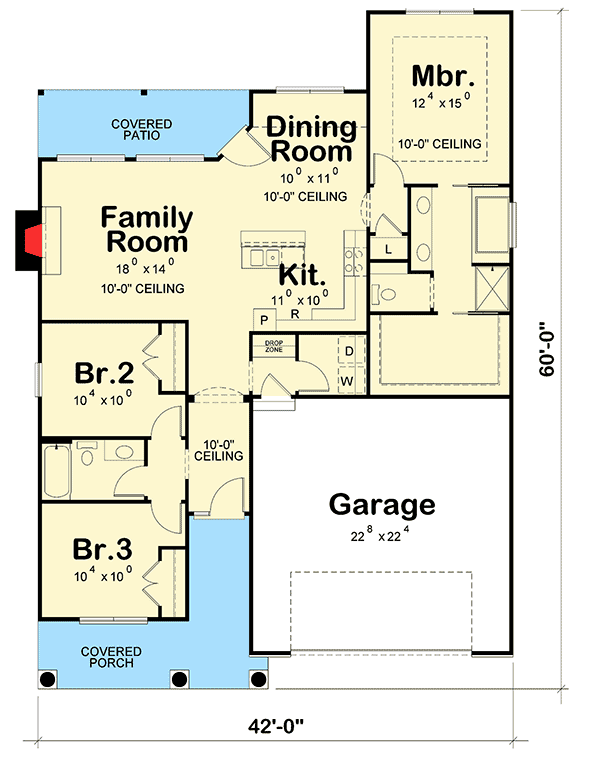

This quaint, Craftsman-inspired home plan offers 3 bedrooms and comes in multiple versions.
A 10-foot high ceiling unifies the open entertaining area featuring large windows.
The owner's bath has a spacious vanity with twin sinks, a secluded toilet area with handy storage and a dreamy soaking tub plus a huge walk-in closet. The two other bedrooms are across the home for your privacy and share a bath.
Related Plans: Swap the master bed location with Beds 2 and 3 with house plan 42303DB.
Get 2 beds on the main floor with house plan 42340DB (1,596 sq. ft.). And with an extra bed upstairs with house plan 42341DB (1,898 sq. ft.).
Each home plan features the rendered elevation and informative
reference sections including: general notes and design criteria 1;
abbreviations; and symbols for your plan.
Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and
sides. All elevations are detailed and an aerial view of the roof is provided,
showing all hips, valleys and ridges.
Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are
standard. We also show the HVAC equipment, structural information, steel beam
and pole locations and the direction and spacing of the floor system above.
Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things
as structural header locations, framing layout and kitchen layout.1
Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted
to the same degree of detail as the main level floor plan.1
Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and
bathroom cabinets as well as any other cabinet elevations.
Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested
electrical layout for the foundation, main and second level floor plans.
Typical wall, cantilever, stair, brick and fireplace sections are provided to
further explain construction of these areas.
Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the
suggested dimensional plan showing lengths, runs, ridge heights and wall plate
