Plan 8159LB

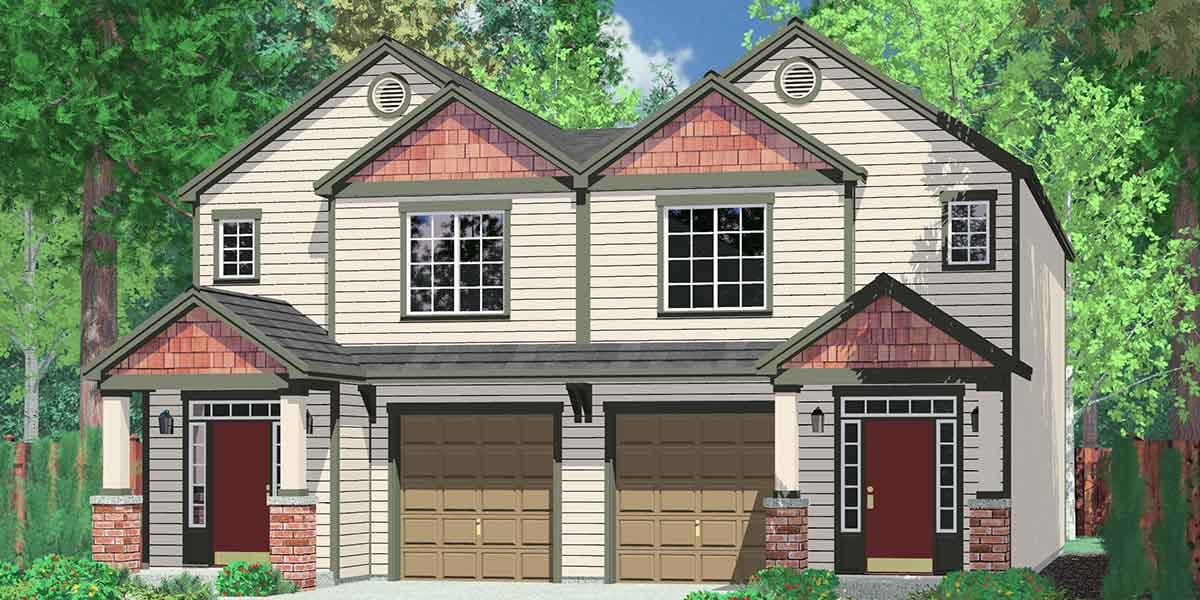

Craftsman Duplex

Heated S.F.
2,732
Units
2
Width
Depth

Floor Plan

Plan 8159LB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 8159LB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

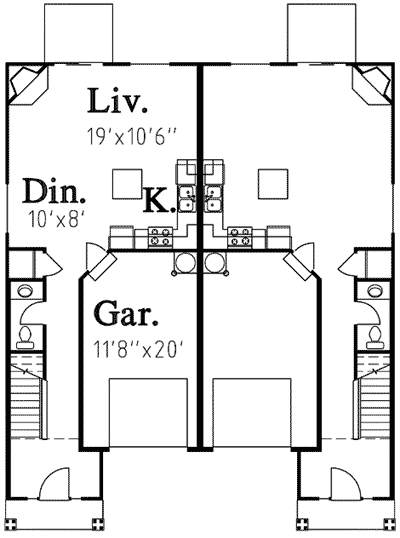

Plan 8159LB: Craftsman Duplex - Floor Plan - Main Level

2nd Floor

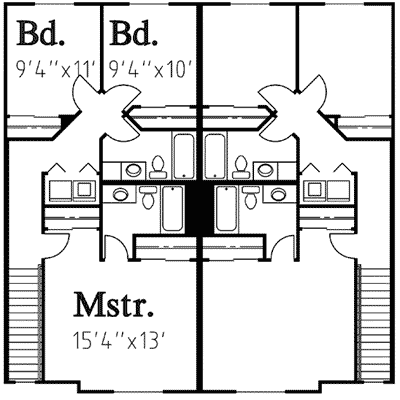

Plan 8159LB: Craftsman Duplex - Floor Plan - 2nd Floor

Plan Details

  • Both units in this Craftsman duplex get a wonderful open layout that makes the space feel larger.
  • A corner fireplace warms the whole area and sliding glass doors lead out to a back patio.
  • The master bedroom is up on the second floor and has two linear closets.
  • All three bedrooms share the handy laundry closet.
Unit A
Heated Area
1,366Sq. Ft.
609 Sq. Ft. 1st
757 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
241 Sq. Ft.
Dimensions
20'width
48'depth
26' 4"height
Unfinished Areas
241 Sq. Ft. Garage
Unit B
Heated Area
1,366Sq. Ft.
609 Sq. Ft. 1st
757 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
Dimensions
20'width
48'depth
26' 4"height
Unfinished Areas
241 Sq. Ft. Basement Unfinished

What's Included

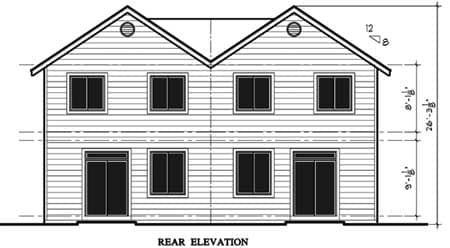

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,732 sq. ft.

1st Floor

1,218 sq. ft.

2nd Floor

1,514 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

48' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

482 sq. ft.

Count

2 Cars

Entry Location

Front

Special Features

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

2,732 sq. ft.

1st Floor

1,218 sq. ft.

2nd Floor

1,514 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

48' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

482 sq. ft.

Count

2 Cars

Entry Location

Front

Special Features

Master Suite - Upstairs
