Craftsman Duplex House Plan: 4 Beds, 2 Garages, Covered Patios

Heated S.F.
1,852
Units
2
Width
Depth

Floor Plan

Plan 720145DA

Main Level
Main Level
2nd Floor
2nd Floor
Optional Basement Stairs
Optional Basement Stairs

Plan 720145DA

M-F 9am-5pm EST |

1-203-761-8500

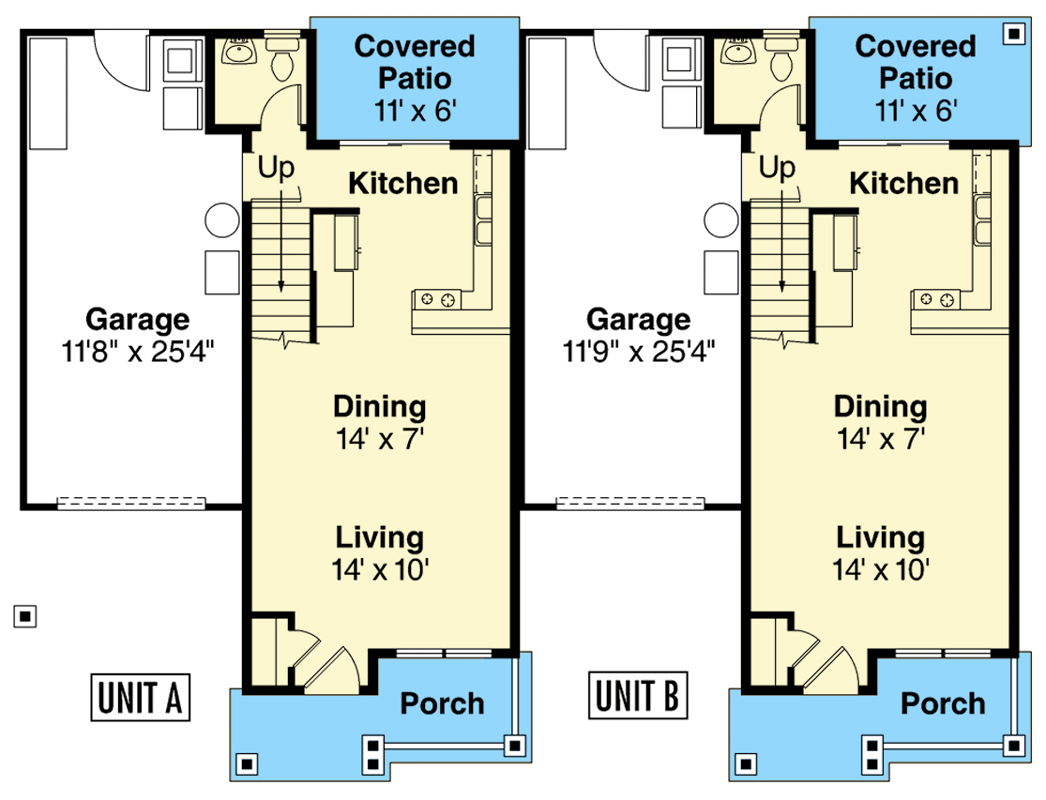

Main Level

Plan 720145DA: Craftsman Duplex House Plan: 4 Beds, 2 Garages, Covered Patios - Floor Plan - Main Level - Country, Craftsman

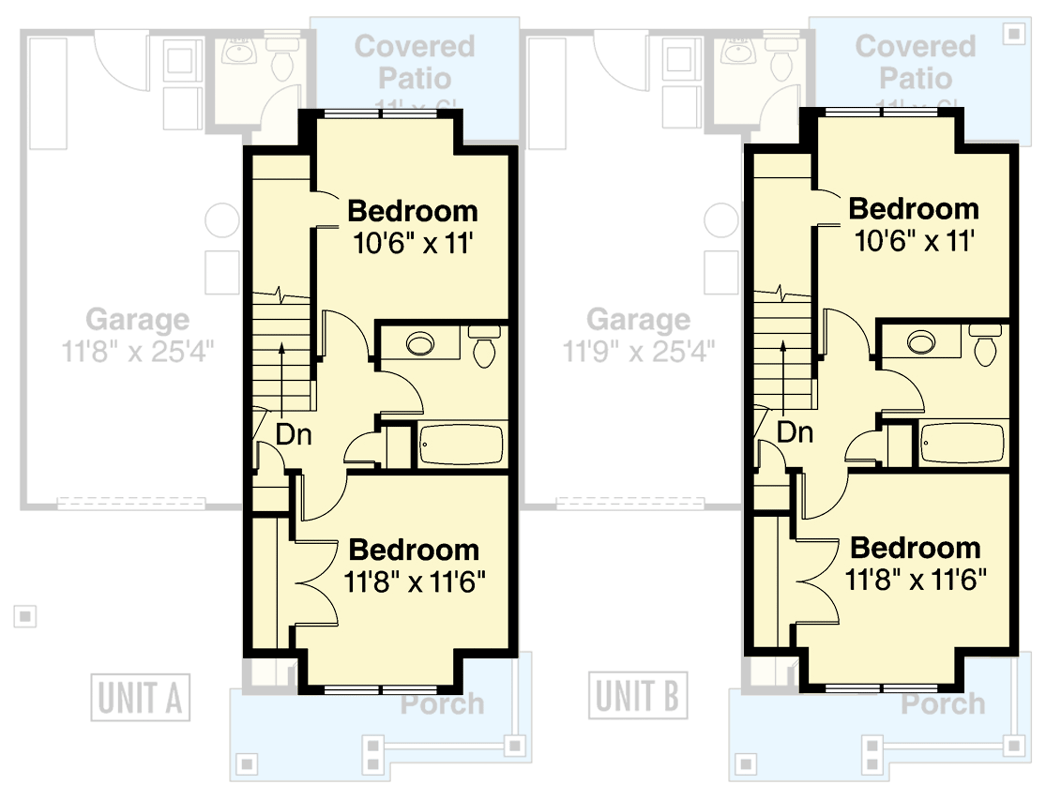

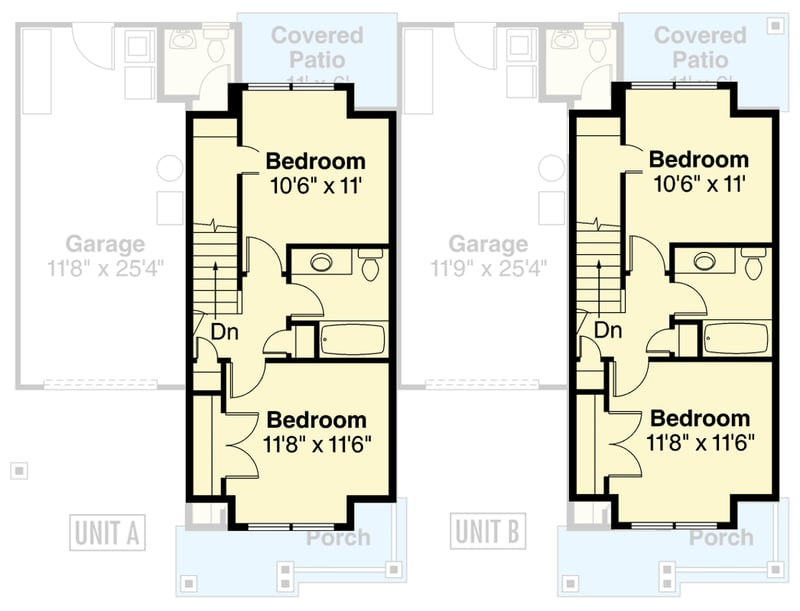

2nd Floor

Plan 720145DA: Craftsman Duplex House Plan: 4 Beds, 2 Garages, Covered Patios - Floor Plan - 2nd Floor - Country, Craftsman

Optional Basement Stairs

Plan 720145DA: Craftsman Duplex House Plan: 4 Beds, 2 Garages, Covered Patios - Floor Plan - Optional Basement Stairs - Country, Craftsman

Plan Details

  • This charming 1,852 sq. ft. Craftsman duplex house plan features a total of 4 bedrooms, 2 full bathrooms, 2 half bathrooms, and two 1-car garages totaling 602 sq. ft., presenting a cohesive and functional multi-family design.
  • Each unit welcomes you through a covered front porch into an open-concept living area, seamlessly connecting the living, dining, and kitchen spaces for effortless everyday living.
  • The efficient kitchen in each unit is thoughtfully designed, flowing into the dining area and offering direct access to a private covered patio, ideal for morning coffee or evening relaxation.
  • Upstairs, each unit provides two comfortable bedrooms and a shared full bathroom, creating private retreats for residents. The layout ensures privacy and convenience with the laundry area also located on this level.
  • Each unit extends its living space outdoors with both a welcoming covered front porch and a private covered patio at the rear, perfect for enjoying the fresh air and al fresco dining.
Unit A & B
Heated Area
926Sq. Ft.
470 Sq. Ft. 1st
456 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
301 Sq. Ft.
Dimensions
27'width
40'depth
Unfinished Areas
301 Sq. Ft. Garage

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,852 sq. ft.

1st Floor

940 sq. ft.

2nd Floor

912 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

40' 0"

Max Ridge Height

23' 9"

Garage

Type

Standard, Attached

Area

602 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Special Features

Bedrooms - Split

Breakfast Nook

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,852 sq. ft.

1st Floor

940 sq. ft.

2nd Floor

912 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

40' 0"

Max Ridge Height

23' 9"

Garage

Type

Standard, Attached

Area

602 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Special Features

Bedrooms - Split

Breakfast Nook

Master Suite - Upstairs
