Craftsman for a Narrow Lot

Plan 17816LV

  • 1,851

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Just 30' wide, this Craftsman house plan (exclusive to Architectural Designs) is ideal for a narrow lot, blending great style and lots of space.
  • Notice how the kitchen is set back a bit - this keeps any kitchen noise from bothering those in the family room and dining room, yet you still have views.
  • The handy washer/dryer closet is close by the kitchen so you can keep laundry moving while preparing meals.
  • The home comes with a large first floor master suite - the only bedroom on this floor.
  • Upstairs, two more bedrooms share loft space and each bedroom has a walk-in closet.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans

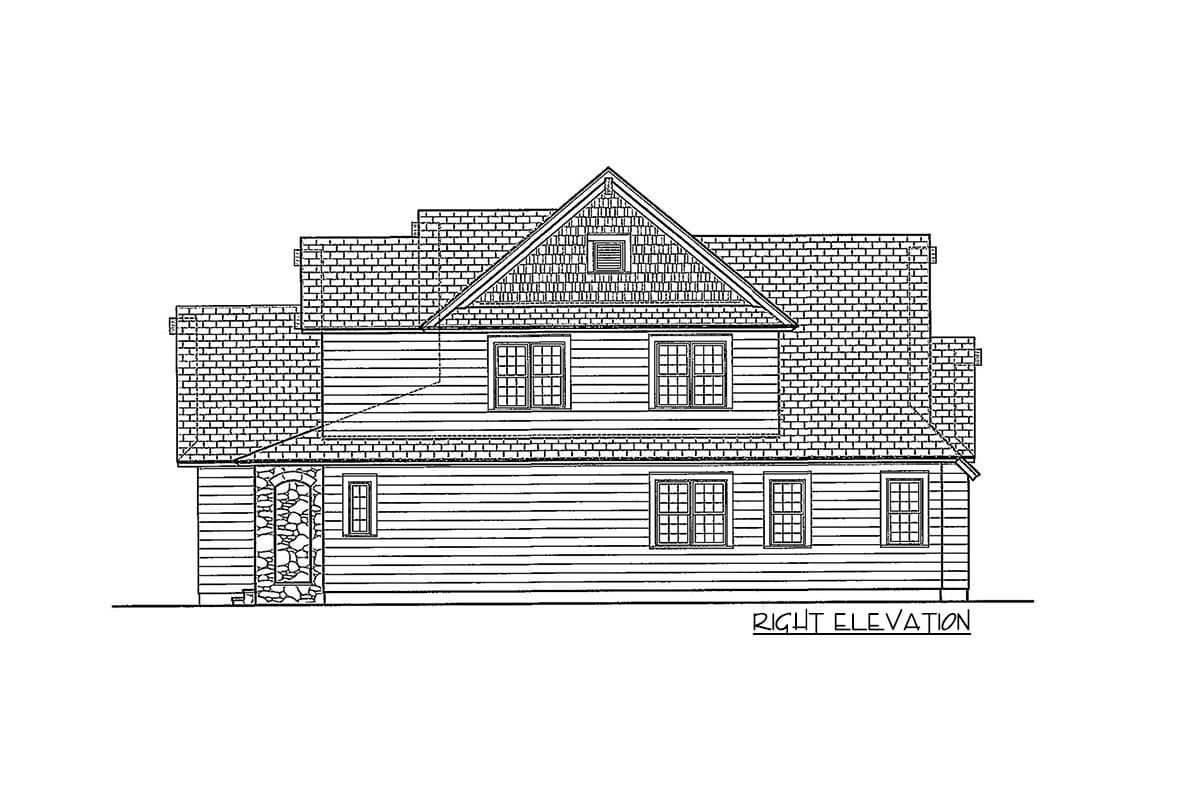

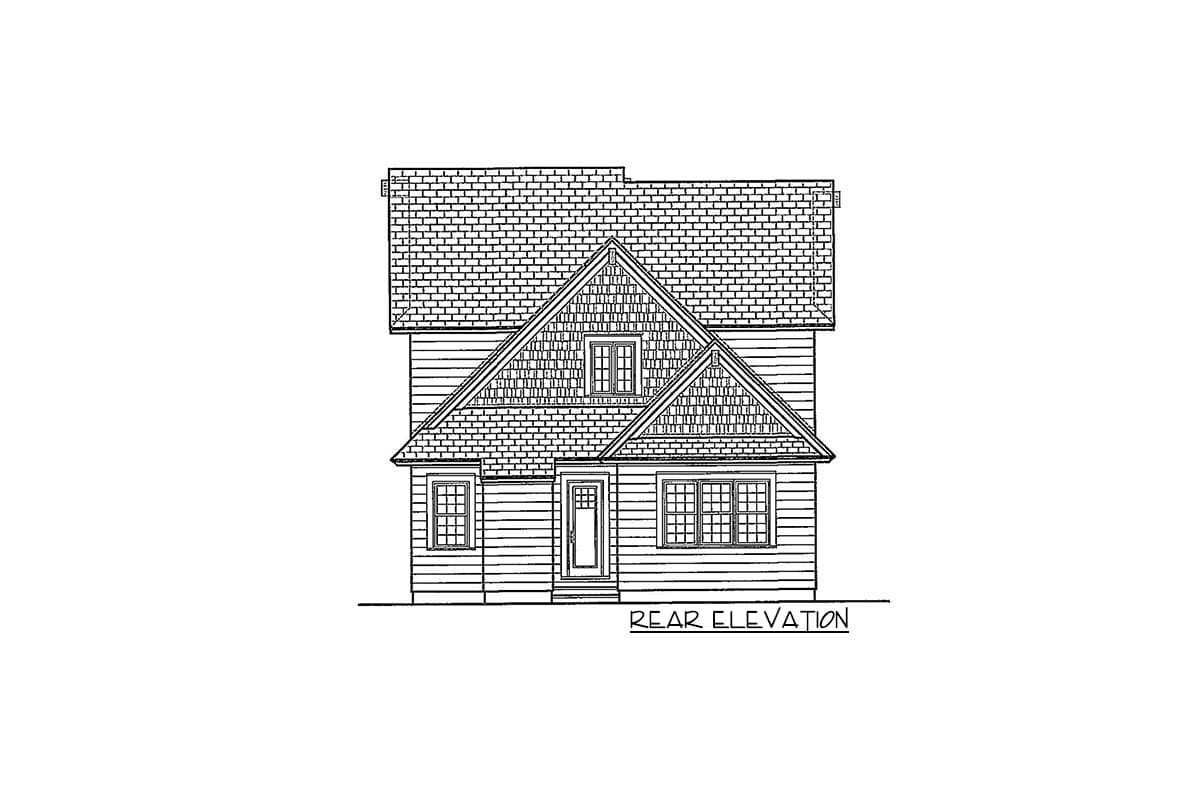

  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

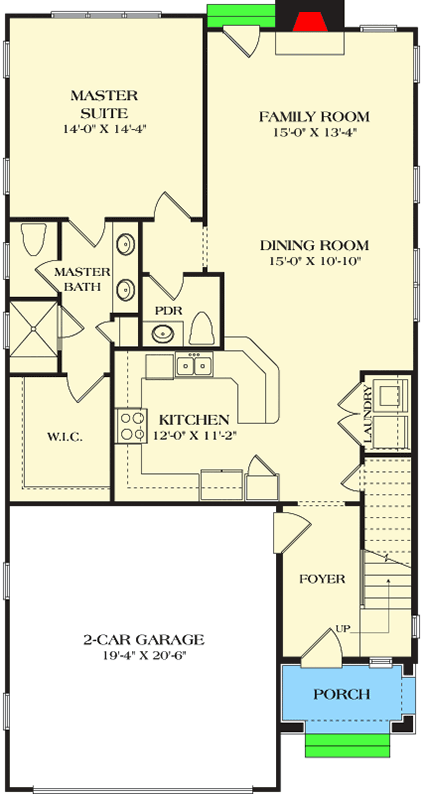

Craftsman for a Narrow Lot - 17816LV floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

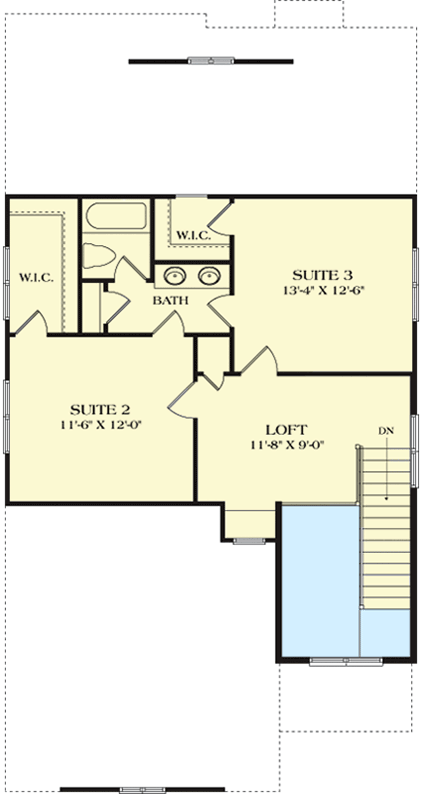

Craftsman for a Narrow Lot - 17816LV floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,851 sq. ft.
  • 1st Floor: 1,178 sq. ft.
  • 2nd Floor: 673 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 30' 0"
  • Depth: 57' 8"

Garage

  • Type: Attached
  • Area: 413 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Architectural Style

Special features

Plan Collections

Craftsman for a Narrow Lot

  • 1,851

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,851 sq. ft.
  • 1st Floor: 1,178 sq. ft.
  • 2nd Floor: 673 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 57' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 413 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
