Craftsman Garage with Living Above

Plan 62576DJ

  • 556

    Heated s.f.

  • 0

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • This plan is a beautiful Craftsman-style carriage house plan. The exterior features wood garage doors and stone accents. Inside, the 2 car garage lies under a studio apartment.
  • The studio apartment includes a great room that doubles as the primary bedroom. The Hayes also features a full kitchen complete with a large island. A built-in desk provides a great place to work or play. A balcony looks out from the great room.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman Garage with Living Above - 62576DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

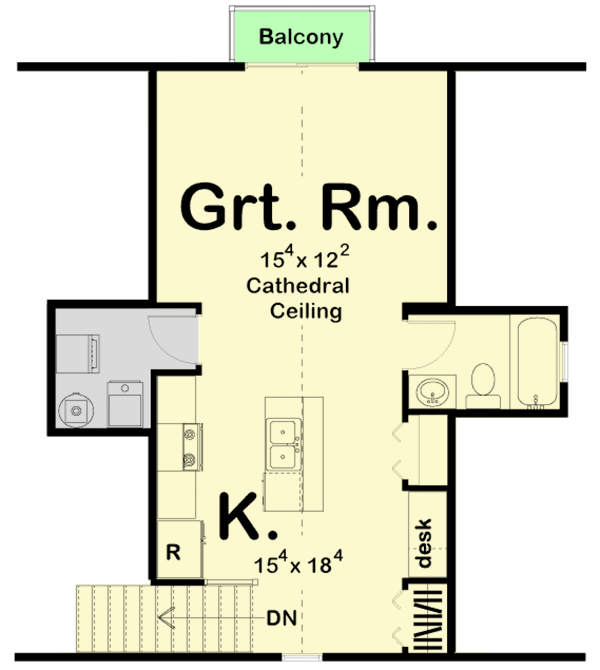

Craftsman Garage with Living Above - 62576DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 556 sq. ft.
  • 2nd Floor: 556 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 31' 4"
  • Depth: 33' 4"
  • Max ridge height: 24' 0"

Garage

  • Type: Detached
  • Area: 1014 sq. ft.
  • Count: 2 Cars

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12

Architectural Style

Special features

Craftsman Garage with Living Above

  • 556

    Heated s.f.

  • 0

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $600
  • 5 Sets + PDF $850
  • CAD + PDF - Single-Build $850
  • PDF - Unlimited Build $1,100
  • CAD Unlimited + PDF $1,350
  • View all purchase option online

About This Plan

  • This plan is a beautiful Craftsman-style carriage house plan. The exterior features wood garage doors and stone accents. Inside, the 2 car garage lies under a studio apartment.
  • The studio apartment includes a great room that doubles as the primary bedroom. The Hayes also features a full kitchen complete with a large island. A built-in desk provides a great place to work or play. A balcony looks out from the great room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 556 sq. ft.
  • 2nd Floor: 556 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 31' 4"
  • Depth: 33' 4"
  • Max ridge height: 24' 0"

Garage

  • Type: Detached
  • Area: 1014 sq. ft.
  • Count: 2 Cars

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof
