Craftsman Home for a Sloping Lot

Plan 92018VS

  • 3,223

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Most often, narrow lot designs only work on flat lots. This house plan allows for a sloping lot.
  • The rear staircase entry can float, allowing for the garage to drop, accommodating the lot's fall.
  • An open layout combines the keeping room, breakfast nook set in a bay and the kitchen with its large island and walk-in pantry.
  • Custom touches include a coffered ceiling in the living room and optional built-in on either side of the fireplace.
  • The second floor receives special treatment too with a sunken master suite with sitting room and plant shelves.
  • A media/guest room lies off the landing on the way upstairs and has a built-in window seat or daybed.

All plans include:

  • Foundation plan
  • Floor plans with electrical layouts

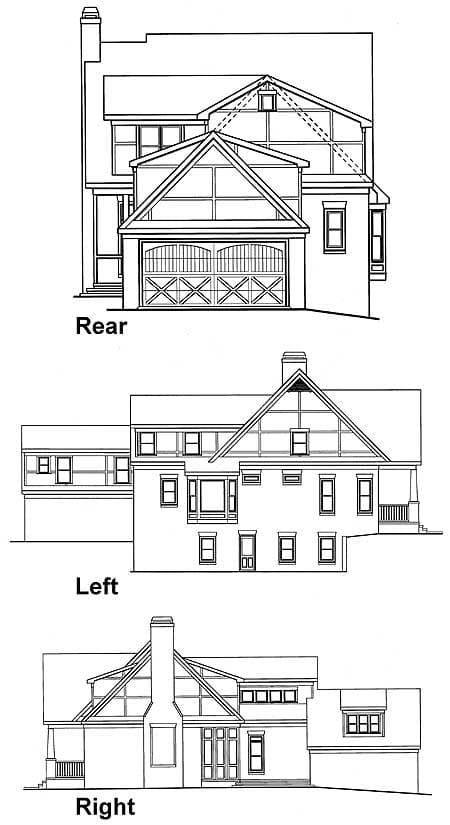

  • 1/4" Elevations (all sides)
  • Cabinet details and interior elevations (when necessary)
  • Roof Plan
  • Typical Wall Section and two standard detail sheets
  • General Notes Page containing reference to the 2012 IRC building code to supplement plans drawn prior to these changes.
  • Other details shown as required by complexity of plans


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

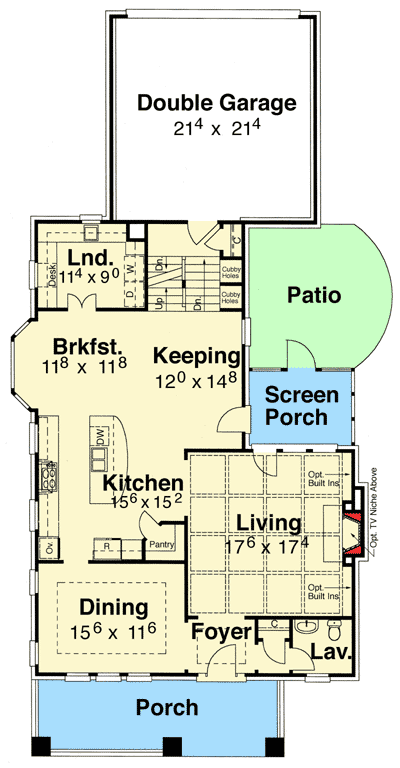

Craftsman Home for a Sloping Lot - 92018VS floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

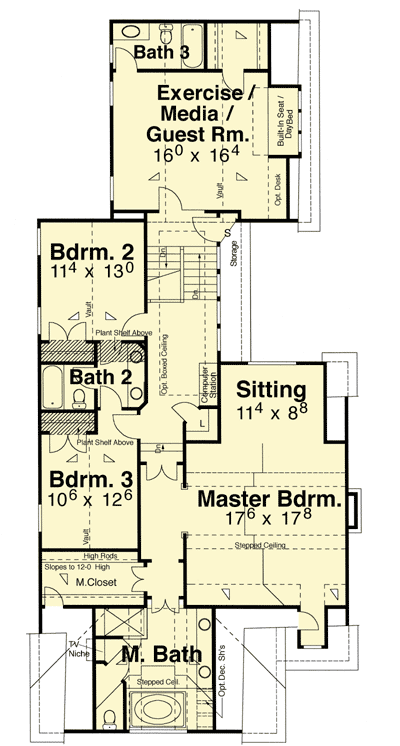

Craftsman Home for a Sloping Lot - 92018VS floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,223 sq. ft.
  • 1st Floor: 1,388 sq. ft.
  • 2nd Floor: 1,835 sq. ft.
  • Porch, Front: 208 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 37' 6"
  • Depth: 78' 5"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 480 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 3.5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Craftsman Home for a Sloping Lot

  • 3,223

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,223 sq. ft.
  • 1st Floor: 1,388 sq. ft.
  • 2nd Floor: 1,835 sq. ft.

Dimensions

  • Width: 37' 6"
  • Depth: 78' 5"
  • Max ridge height: 29' 6"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 480 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 3.5 on 12
  • Framing Type: Stick
