Plan 9313EL
EXCLUSIVE
Craftsman Home For Outdoor Lovers
Heated S.F.
3,826
Beds
4-5
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details

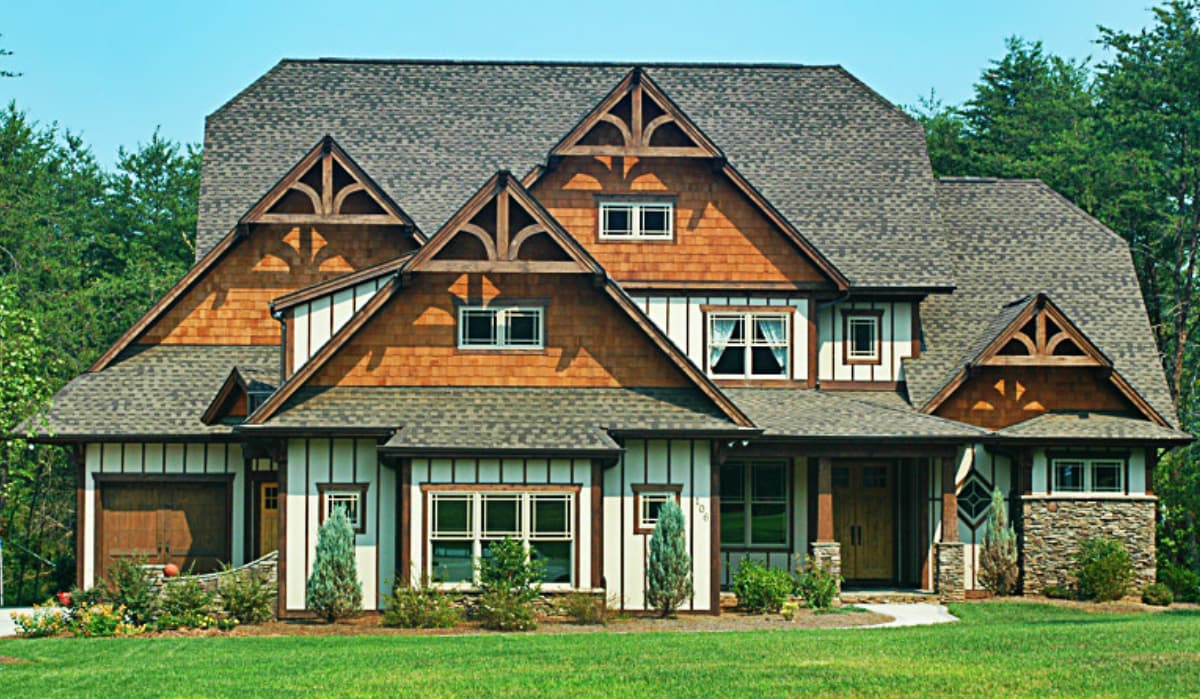

  • Here's a very popular Craftsman style house plan that is made for outdoor lovers, with a large open terrace and a screen porch in back. The terrace opens into a striking vaulted gathering room.
  • The master suite is downstairs along with a second suite perfect for a home office or guest/mother-in-law suite.
  • Mealtime is fun time with this open floor plan, thanks to the large gourmet kitchen with walk-in pantry, plus a breakfast area and formal dining space.
  • Upstairs you'll find three spacious suites and a game room.
  • There are two garages, one for a single car, the other with 2-car dimensions.
What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Home For Outdoor Lovers

  • 3,826

    Heated s.f.

  • 4-5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,826 sq. ft.
  • 1st Floor: 2,036 sq. ft.
  • 2nd Floor: 1,790 sq. ft.

Dimensions

  • Width: 72' 0"
  • Depth: 66' 7"
  • Max ridge height: 38' 0"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 898 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
