Plan 28017J

Craftsman Home Plan with 4 to 6 Bedrooms Just Over 2500 Square Feet

Name: Plan 28017J: Craftsman Home Plan with 4 to 6 Bedrooms Just Over 2500 Square Feet
Brand: Architectural Designs
SKU: 28017J
Price: 1224.64 USD
Availability: InStock

Heated S.F.

2,520

Beds

3 - 5

Baths

Stories

Cars

Floor Plan

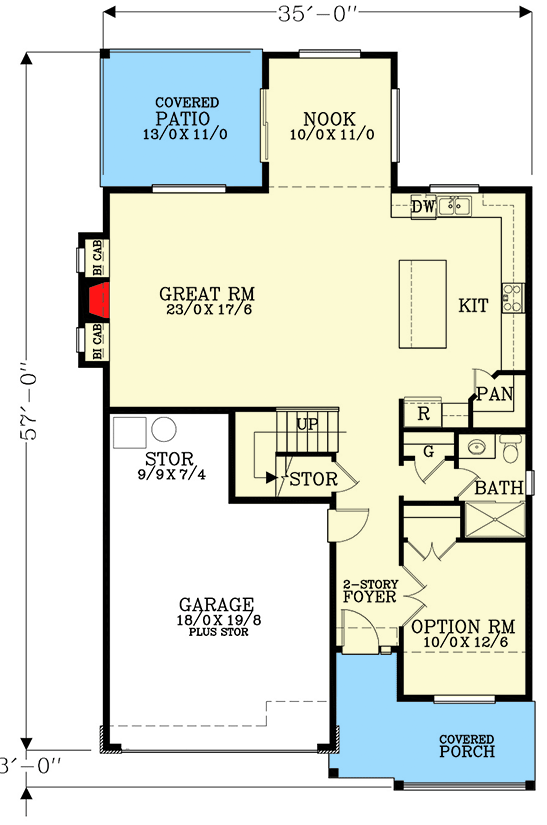

Main Level

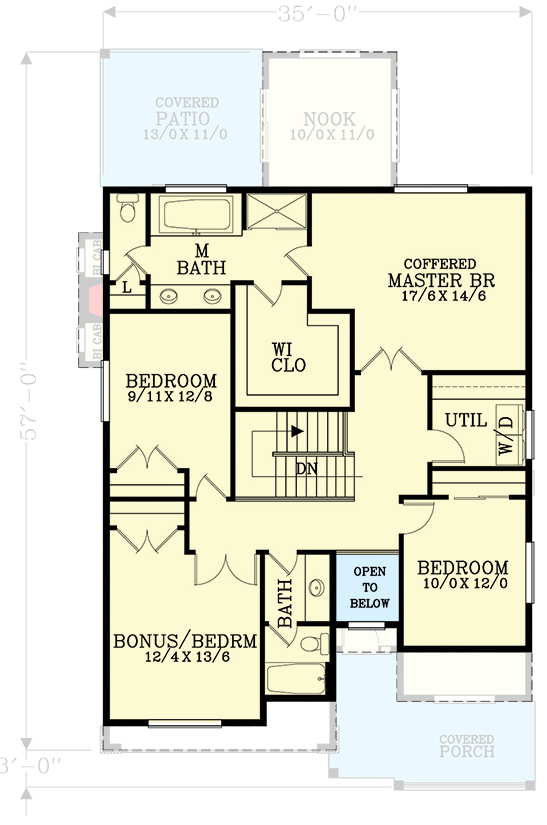

2nd Floor

Plan Details

This 2-story Craftsman home plan gives you 2,520 square feet of heated living space and either 3 to 5 bedrooms depending on how you use the main floor flex room and the upstairs bonus room.
A pair of French doors off the foyer take you to a flex room that could serve as a home office, den or a guest bedroom.
In back, the kitchen is open to the great room with fireplace and a nook bumps out in back and has access to the covered patio.
There's lots of counter space and a big island that gives you cabinet storage underneath and a corner pantry.
Upstairs, the master suite occupies the entire back of the floor. Two more bedrooms plus a bonus room - factored into the total living area - plus a convenient laundry room complete the floor.
Related Plans: Get alternate versions with house plans 28019J, 28018J, 28015J, 28016J (3-car garage) and 2887J.

What's Included

Foundation plan with details
Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Four exterior views (front, rear, right, left)
Roof plan (birds eye view of roof)
Building section
Wall section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
