Plan 39113ST

Craftsman Home Plan with One-Level Living and 3 Bedrooms - 1885 Sq Ft

Heated S.F.
1,885
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 39113ST

Main Level
Main Level

Plan 39113ST

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 39113ST: Craftsman Home Plan with One-Level Living and 3 Bedrooms - 1885 Sq Ft - Floor Plan - Main Level - Craftsman, Ranch

Plan Details

  • This 3 bed, 2 bath Craftsman home plan gives you 1885 square feet of heated living with a stone, clapboard and board and batten exterior.
  • An open floor plan provides a great room with tray ceiling, a dining room with outdoor access and an island kitchen with a double sink set below a window looking out back.
  • Split bedrooms offer privacy to the master bedroom suite located on the right with laundry conveniently located by the mudroom.
  • A covered rear porch expands the living space to the outdoors and a full basement provides storage or additional square footage.
  • Related Plan: Get an alternate version with house plan 39254ST.

What's Included

  • General notes and specifications

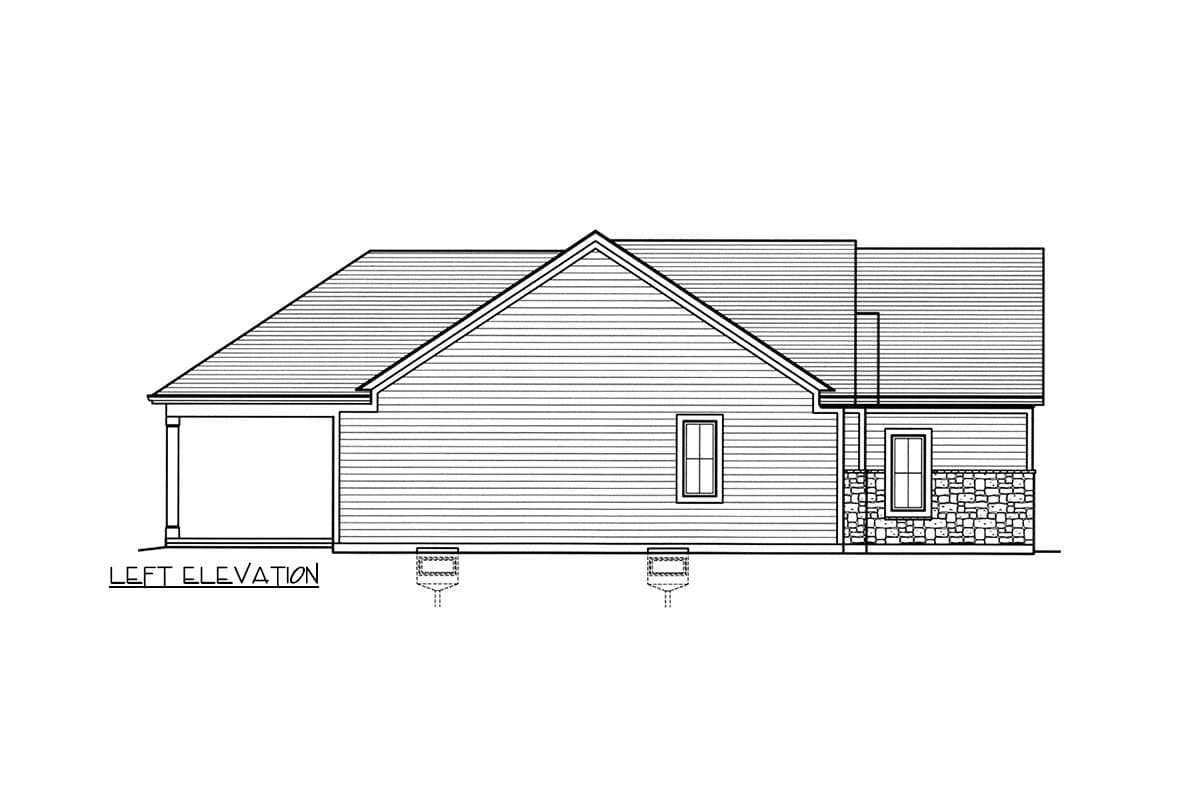

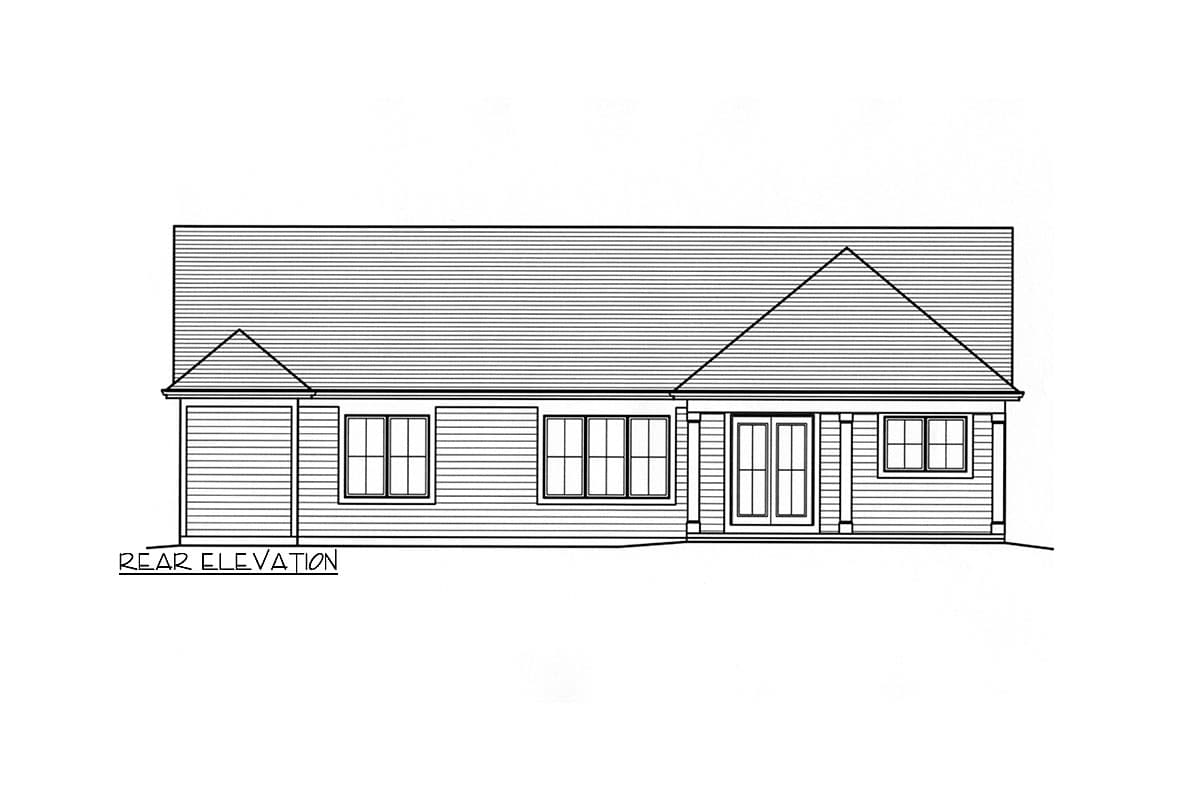

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,885 sq. ft.

1st Floor

1,885 sq. ft.

Basement Unfinished

1,885 sq. ft.

Porch, Rear

300 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

59' 8"

Depth

62' 4"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

300 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 1"

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,885 sq. ft.

1st Floor

1,885 sq. ft.

Basement Unfinished

1,885 sq. ft.

Porch, Rear

300 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

59' 8"

Depth

62' 4"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

300 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 1"

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
