Craftsman Home Plan with Spacious Covered Deck

Plan 29817RL

This plan plants 10 trees

1,769
Heated s.f.
2-4
Beds
2 - 3
Baths
2
Stories

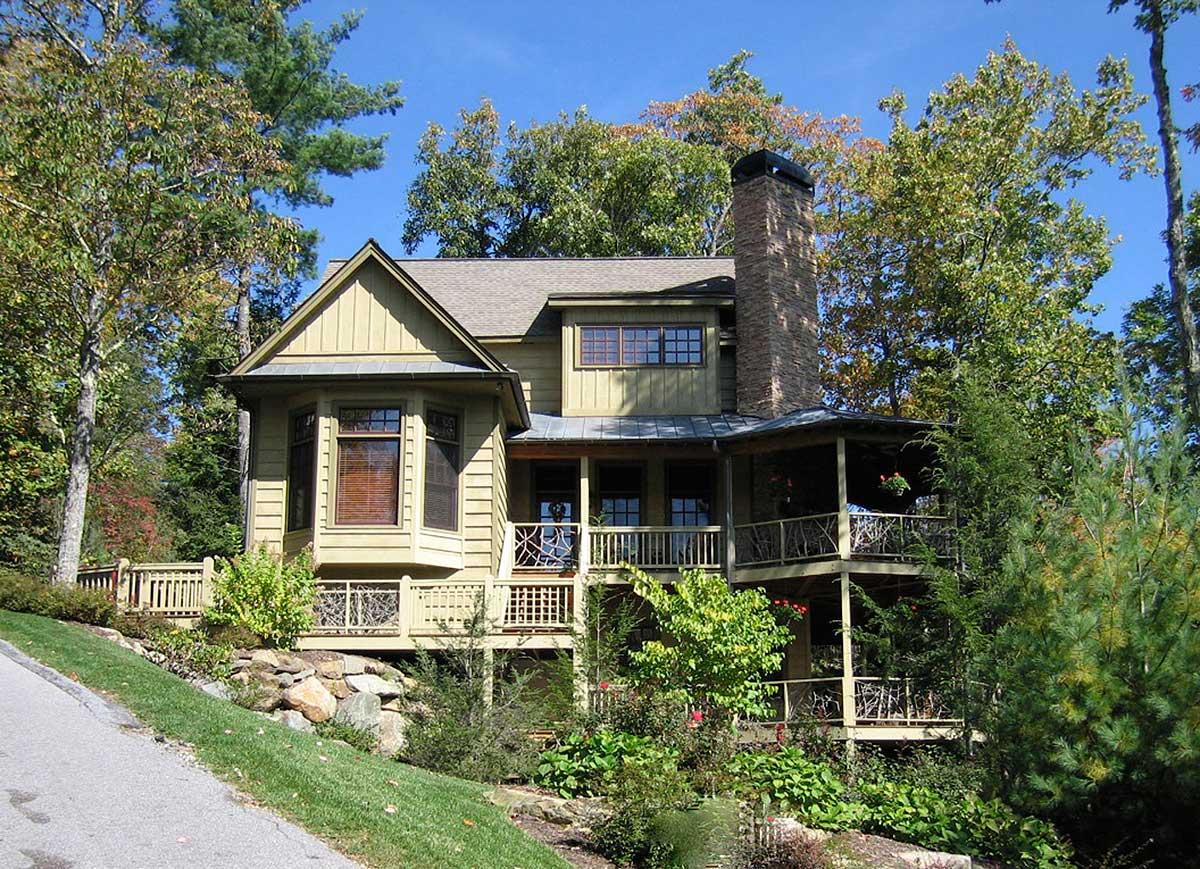

A spacious covered deck with a fireplace wraps around this stunning vacation home.
Inside, an open floor plan makes the home seem huge.
Retire in comfort to the vaulted first floor bedroom or head up to the second floor for a deluxe master suite.
Here, vaulted ceilings and a large dormer window are the highlights.

Each plan set includes the following:

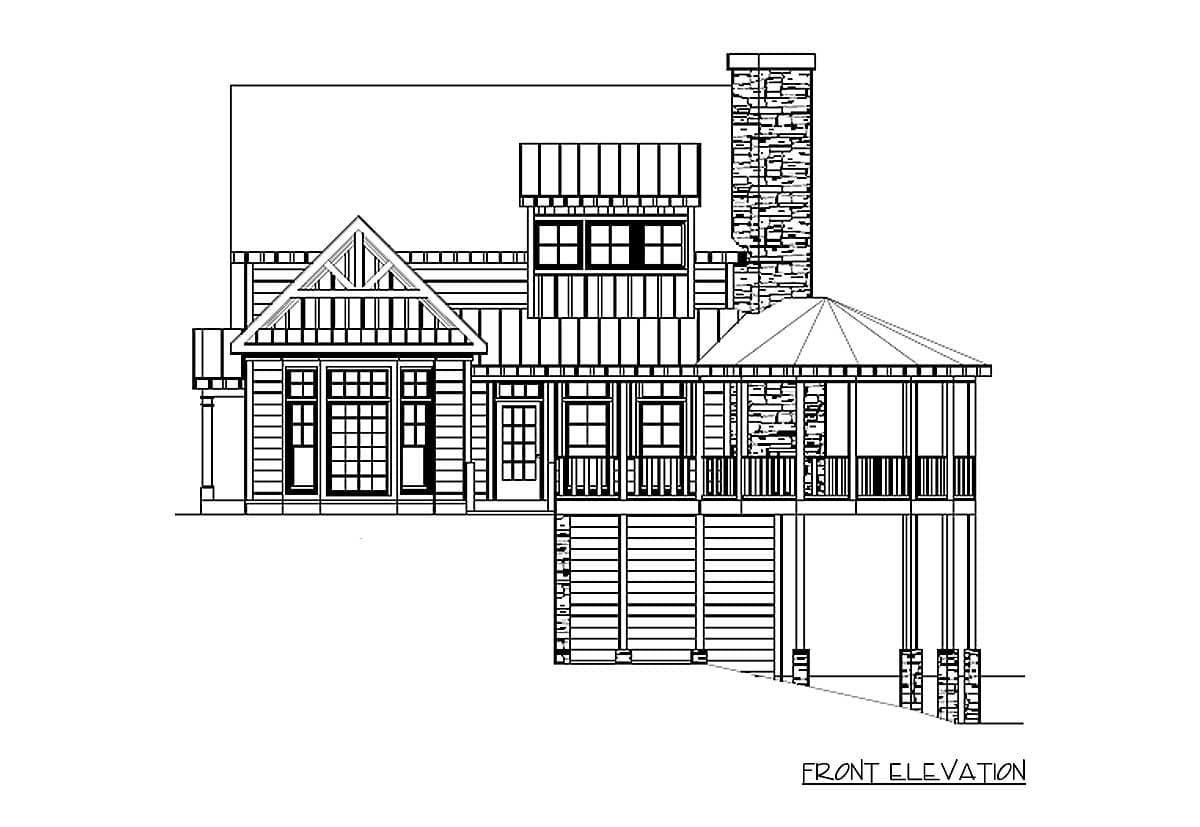

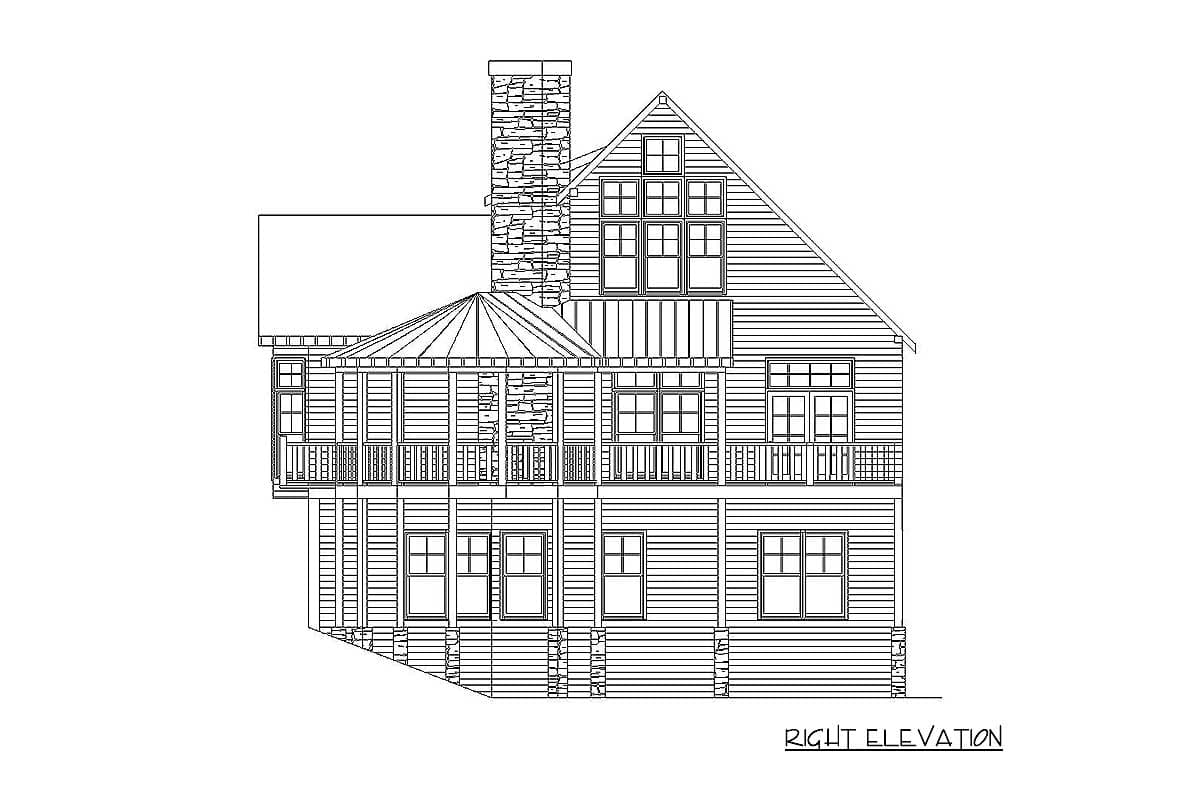

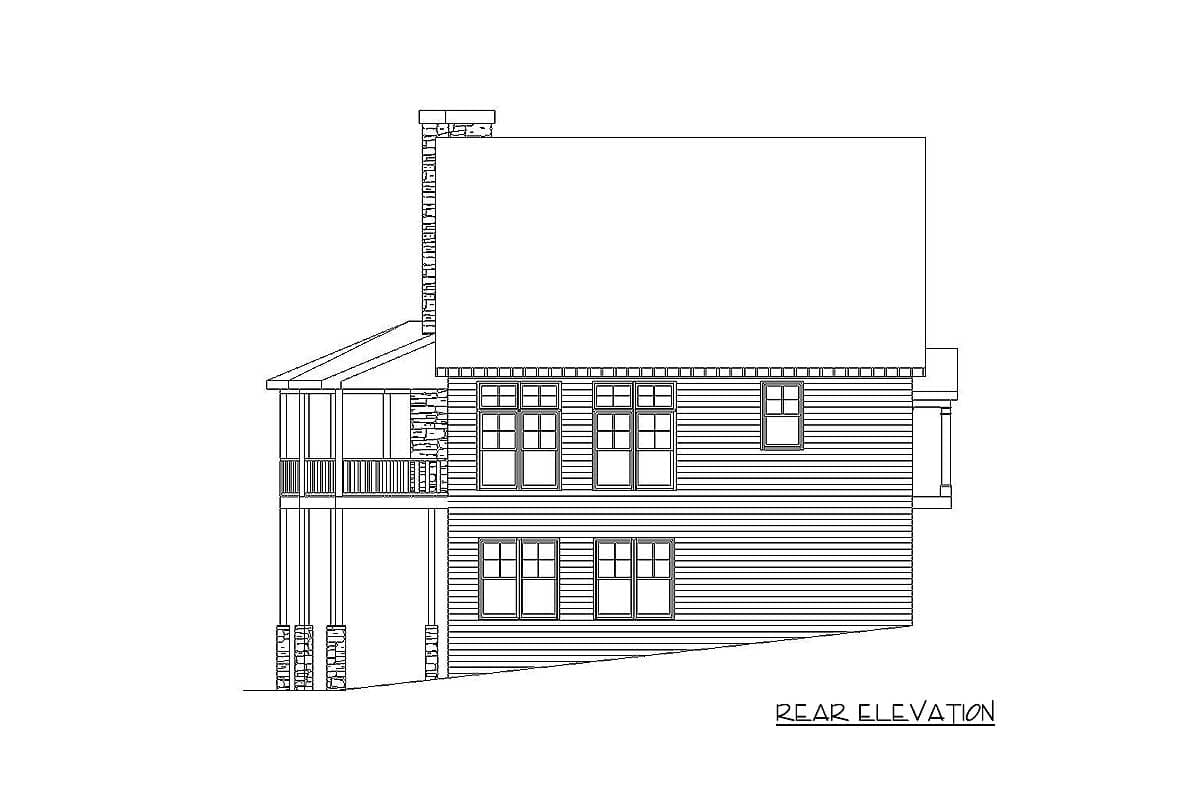

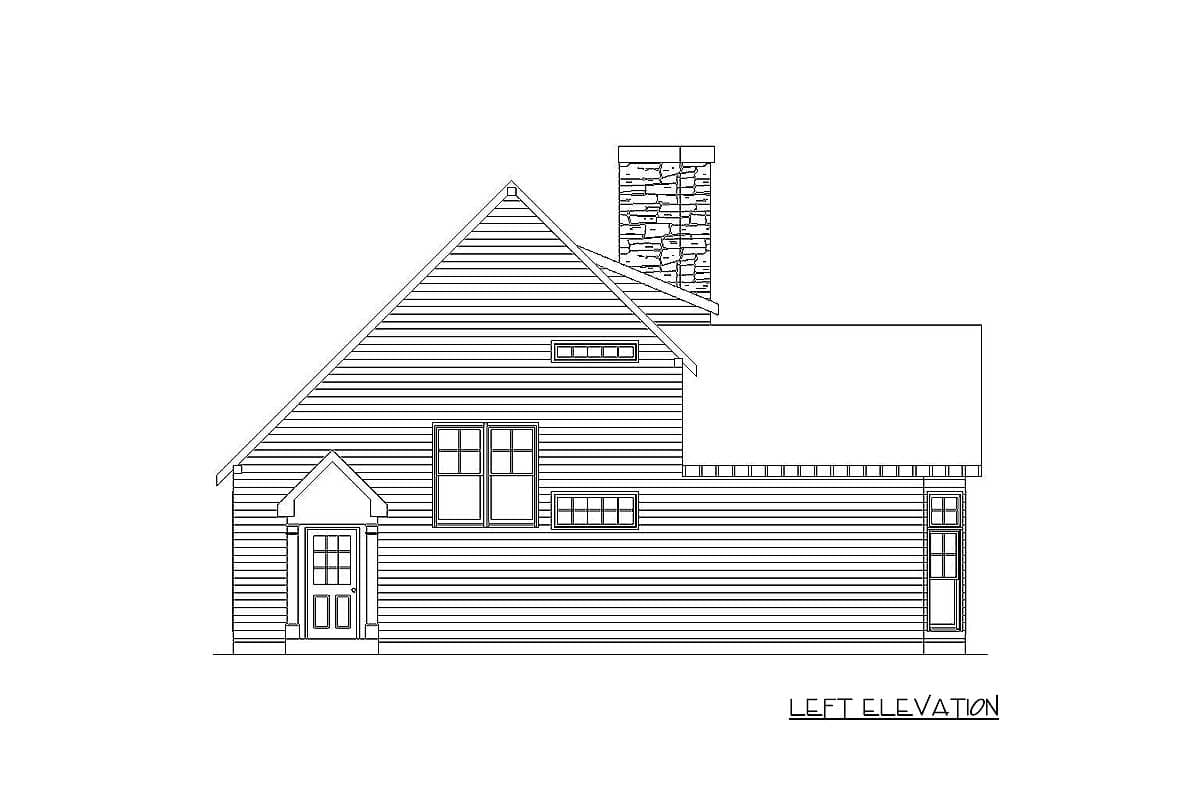

All 4 elevations (front, rear, left, right)
2D Roof overview
3D Roof overview
Main Level Layout
Basement Level Layout
Cross-Section
Typical Details

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

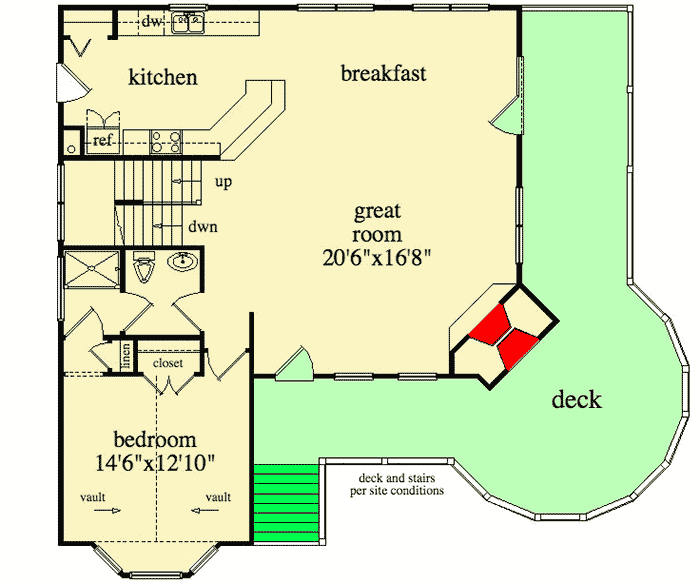

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Craftsman Home Plan with Spacious Covered Deck - 29817RL floor plan - Main Level

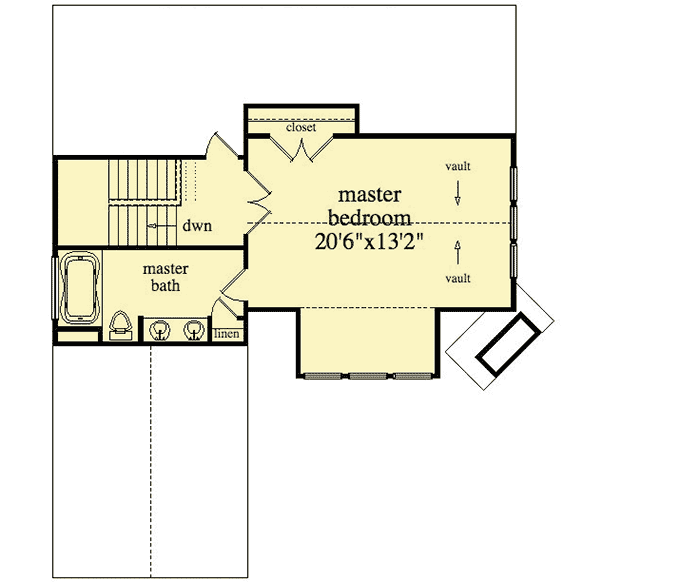

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Craftsman Home Plan with Spacious Covered Deck - 29817RL floor plan - 2nd Floor

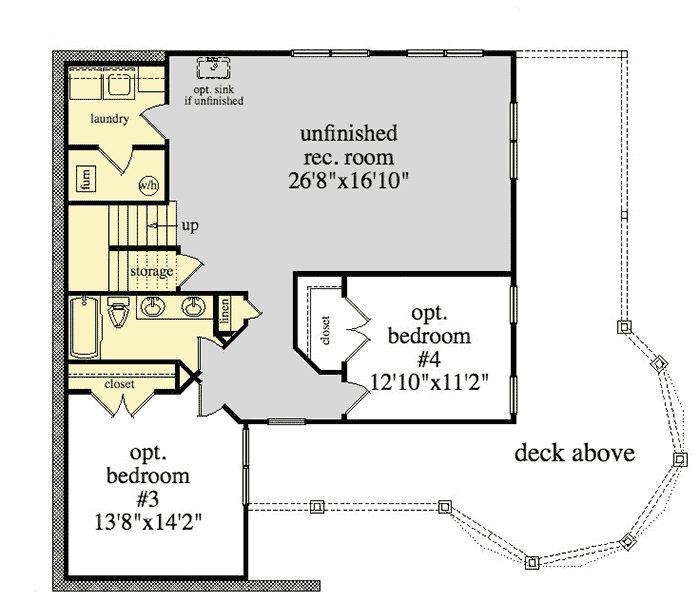

Basement

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Craftsman Home Plan with Spacious Covered Deck - 29817RL floor plan - Basement

Plan details

Square Footage Breakdown

Total Heated Area: 1,769 sq. ft.
1st Floor: 1,258 sq. ft.
2nd Floor: 511 sq. ft.

Basement Unfinished: 1,231 sq. ft.

Beds/Baths

Bedrooms: 2, 3, or 4

Full bathrooms: 2 or 3

Foundation Type

Standard Foundations: Basement, Daylight

Optional Foundations: Crawl, Slab

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 36' 0"
Depth: 42' 0"
Max ridge height: 27' 11"

Ceiling Heights

Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 14 on 12
Secondary Pitch: 14 on 12

Framing Type: Stick

Architectural Style

Special features
