Plan 18277BE

Craftsman Home With Drive Under Garage

Pageloader

Craftsman Home With Drive Under Garage

Plan 18277BE

  • 2,260

    Heated s.f.

  • 2-3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • A gorgeous covered porch wraps around three sides of this captivating Craftsman house plan with a 2 car drive under garage.
  • All your living is done on the main floor where the large master suite is located.
  • Sliding glass doors in the bay window of the master suite take you out to the porch.
  • The kitchen has tons of counter space and a big work island that has an eating bar on one side.
  • On the second floor a bedroom loft looks down into the living room below through an open rail. There's even a lookout on the opposite side that has views down into the kitchen/morning room. Guests or family members having this room get a big walk-in closet, private bathroom and large open balcony.
  • The third bedroom is located on the ground level near the rec room and laundry room.
  • A two car drive-under garage completes this exciting house plan.

Plans include the following

  • General Notes & Design Criteria
  • Perspective views
  • Foundation plan
  • Floor plan
  • Exterior elevations
  • Cross sections
  • Door & window schedules
  • Roof plan and room finish schedule
  • Electrical plan

Plan details



Craftsman Home With Drive Under Garage

  • 2,260

    Heated s.f.

  • 2 - 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $1,035
  • PDF - single-use $1,035
  • 5 Sets $1,085
  • 8 Sets $1,235
  • CAD $1,645
  • View all purchase option online

About This Plan

  • A gorgeous covered porch wraps around three sides of this captivating Craftsman house plan with a 2 car drive under garage.
  • All your living is done on the main floor where the large master suite is located.
  • Sliding glass doors in the bay window of the master suite take you out to the porch.
  • The kitchen has tons of counter space and a big work island that has an eating bar on one side.
  • On the second floor a bedroom loft looks down into the living room below through an open rail. There's even a lookout on the opposite side that has views down into the kitchen/morning room. Guests or family members having this room get a big walk-in closet, private bathroom and large open balcony.
  • The third bedroom is located on the ground level near the rec room and laundry room.
  • A two car drive-under garage completes this exciting house plan.

Floor Plans

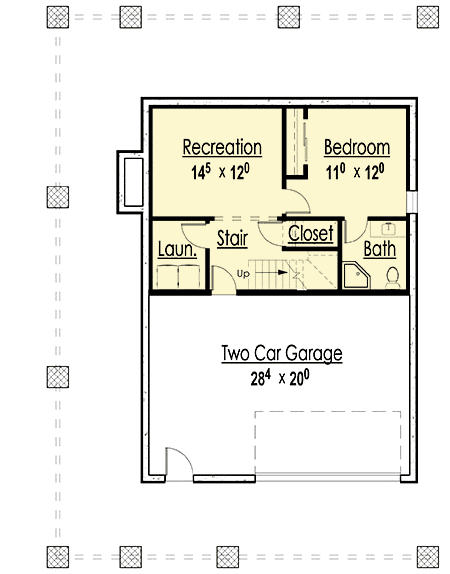

  • Basement

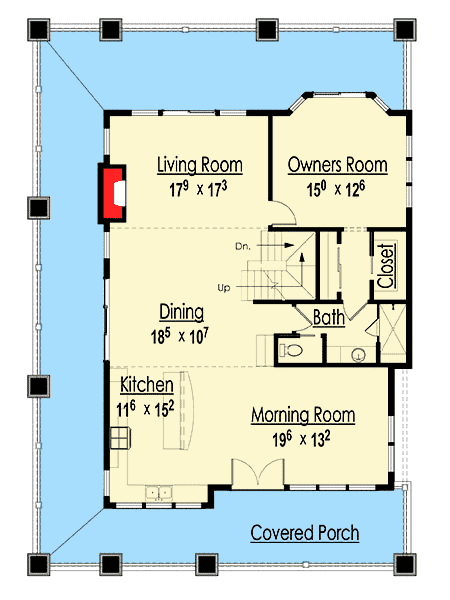

  • Main Level

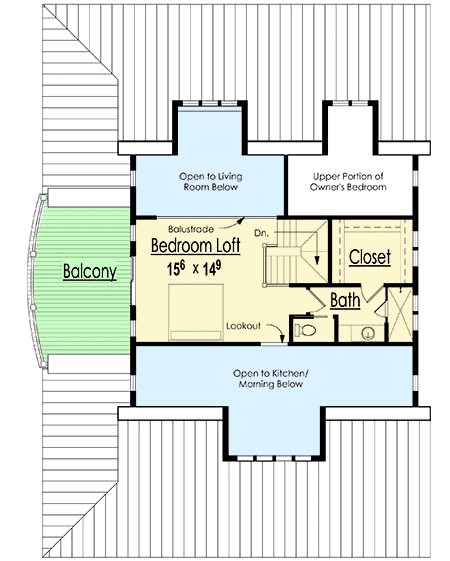

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,260 sq. ft.
  • Lower Level: 557 sq. ft.
  • 1st Floor: 1,307 sq. ft.
  • 2nd Floor: 396 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 6"
  • Depth: 61' 8"

Garage

  • Type: Drive Under
  • Area: 570 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"
