Plan 54014LK Craftsman House Plan Under 3300 Square Feet with 2 Master Suites and Angled 3-Car Garage

3,218 4 4.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman House Plan Under 3300 Square Feet with 2 Master Suites and Angled 3-Car Garage

Plan 54014LK

  • 3,218

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

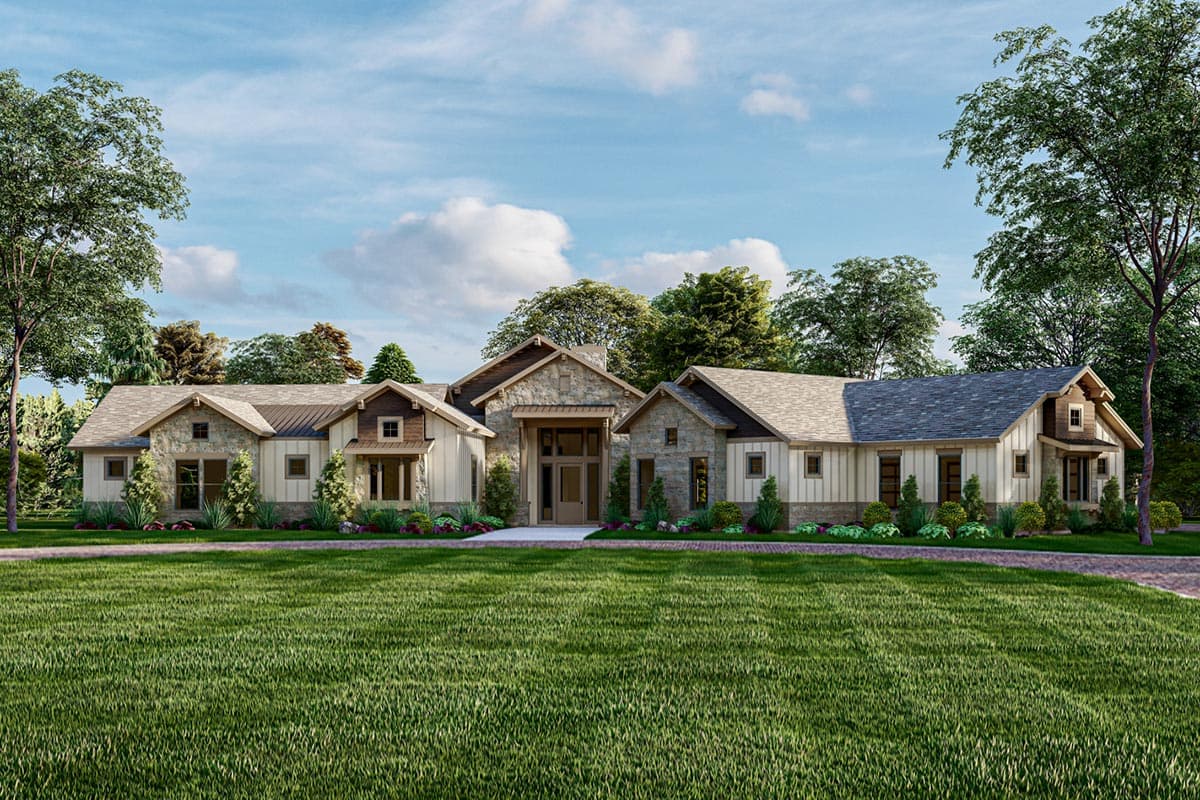

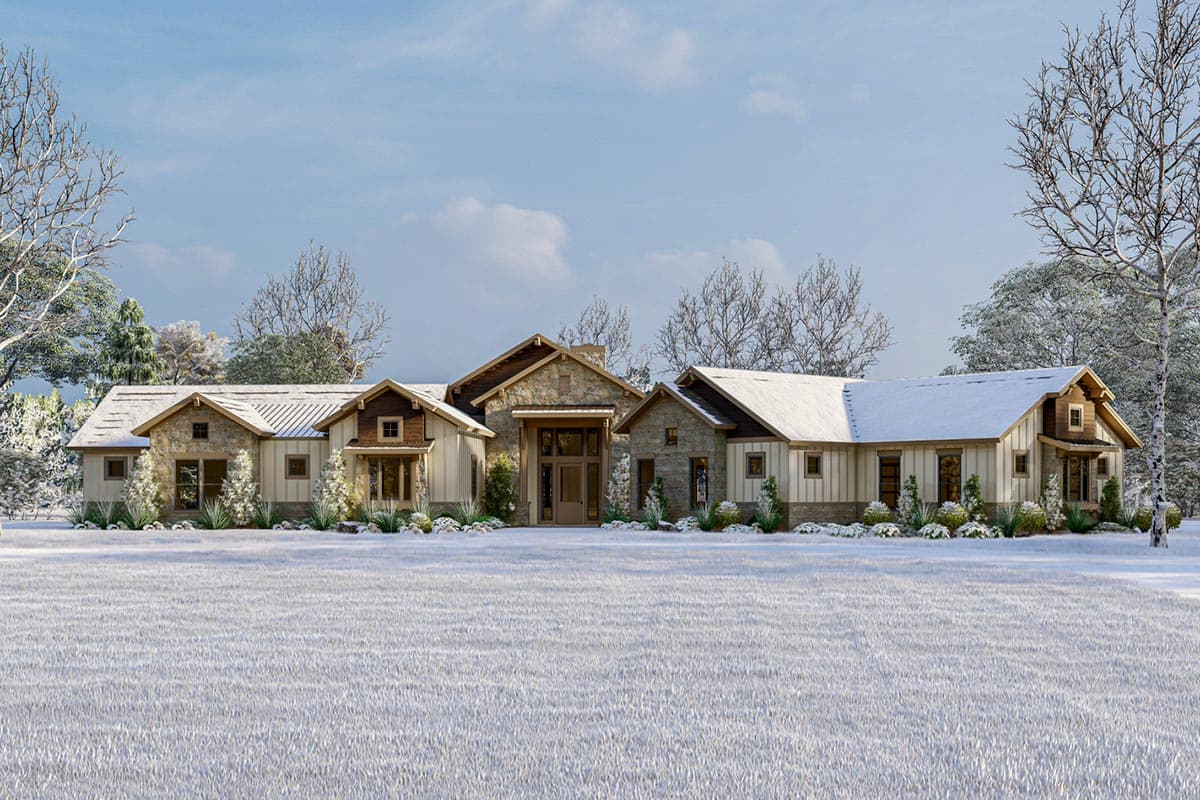

  • This 4-bed Craftsman house plan gives you 4 bedrooms - including 2 master suites - 4.5 baths, and 3,218 square feet of heated living. A 3-car garage is angled off the right side and gives you 1,066 square feet of parking.

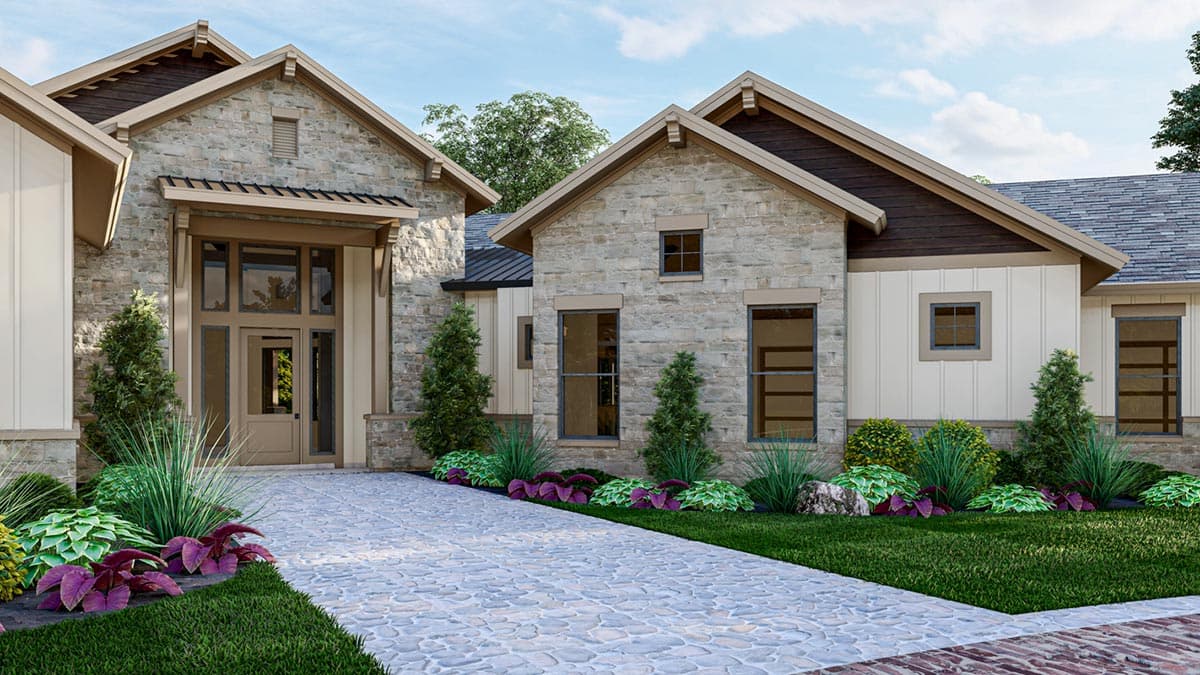

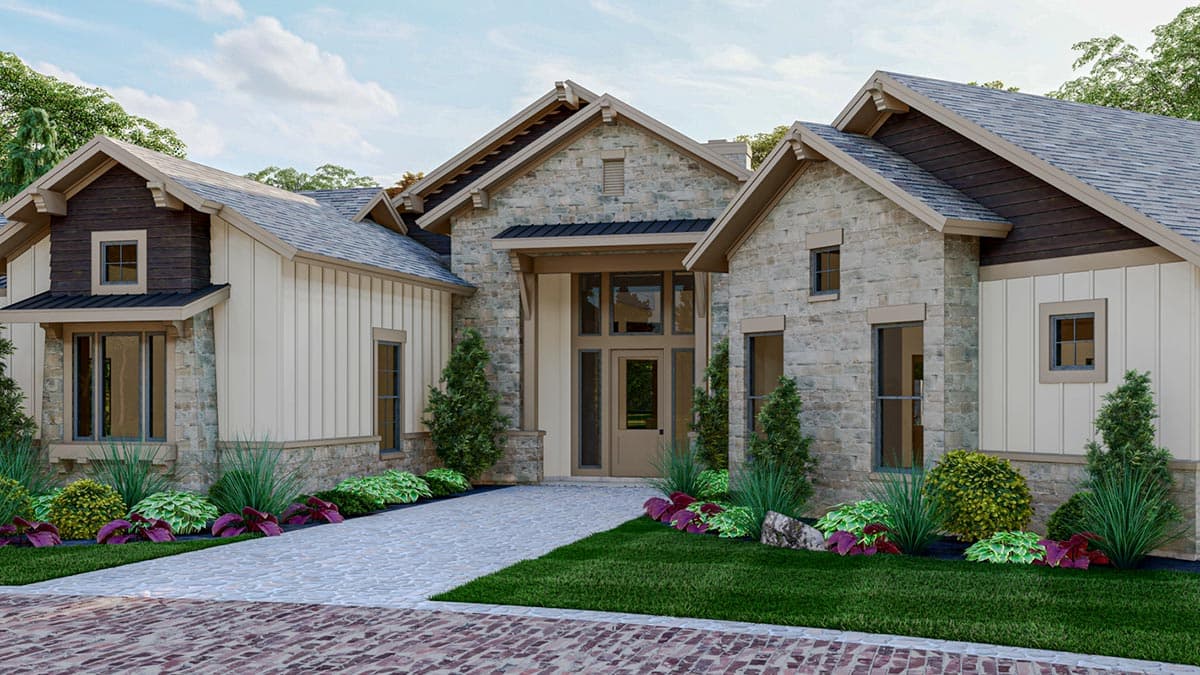

  • The front door opens to a foyer with 12' ceilings and views straight through the great room (14' beamed ceiling) to the fireplace on the back wall. Set at an angle, the room serves as a dividing point if you will between the two sides of the home with each side having a master suite.

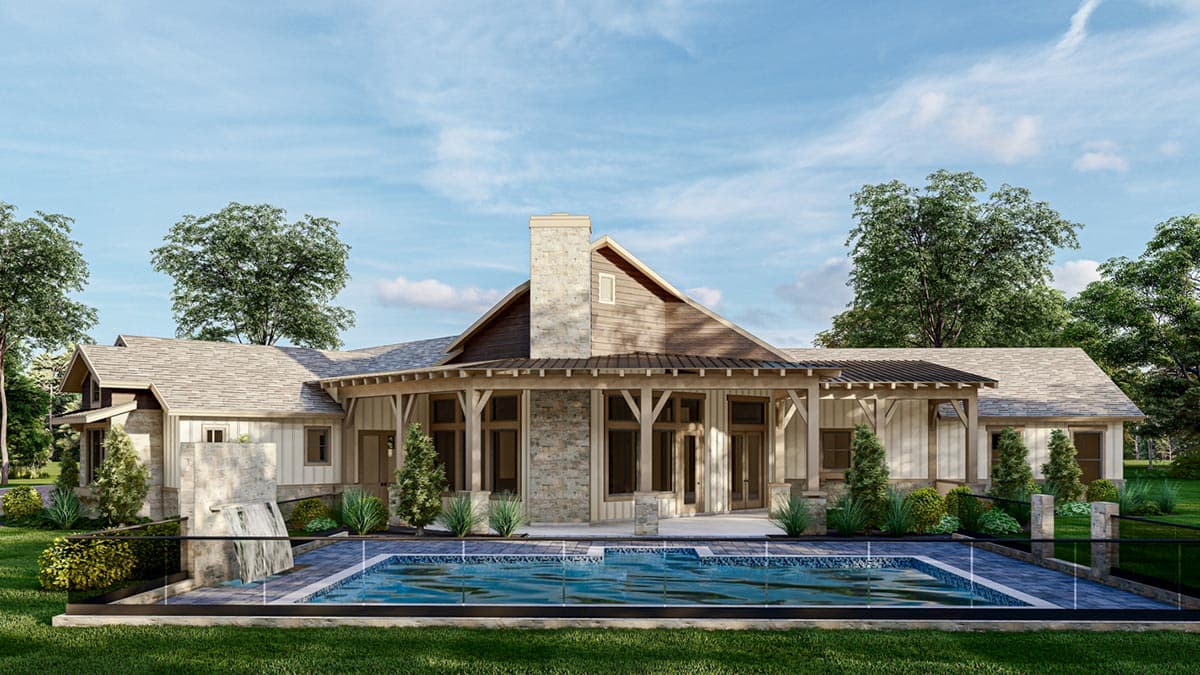

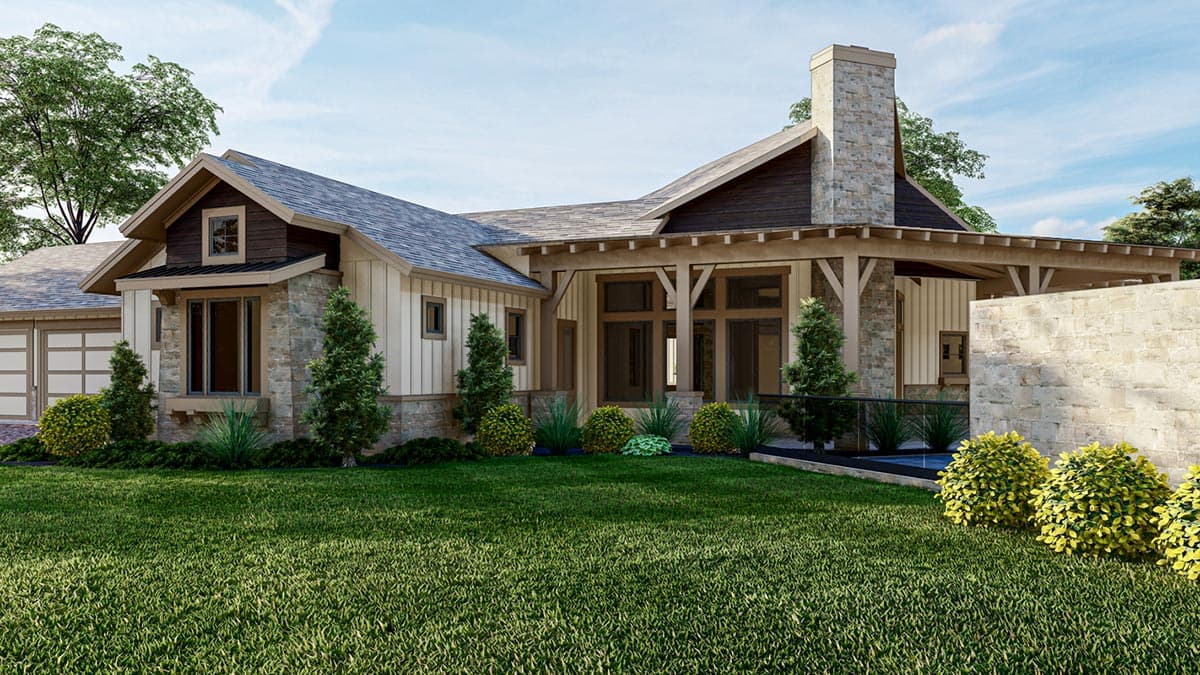

  • The kitchen has a great island with seating for 6 and a double sink. A serving shelf connects to the back covered area (1,293 square feet) with outdoor kitchen.
  • On the left side of the home, a study is accessible with a sliding door and makes a great work-from-home space.
  • Three 10' by 8' overhead doors get you into the garage which has storage space and access to the home through a drop zone with bench and lockers.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
  • ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
  • BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
  • INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
  • NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

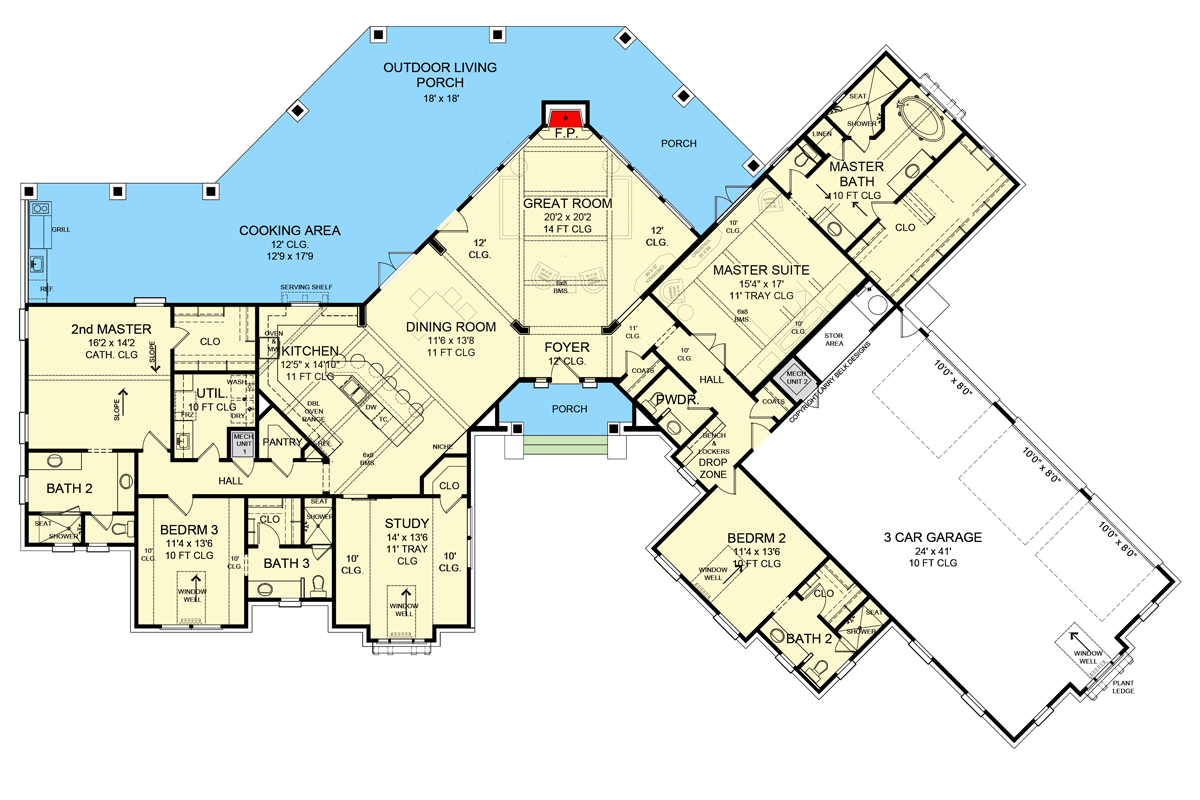

Craftsman House Plan Under 3300 Square Feet with 2 Master Suites and Angled 3-Car Garage - 54014LK floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,218 sq. ft.
  • 1st Floor: 3,218 sq. ft.
  • Porch, Combined: 1,293 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 123' 0"
  • Depth: 76' 0"

Garage

  • Type: Attached
  • Area: 1066 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Craftsman House Plan Under 3300 Square Feet with 2 Master Suites and Angled 3-Car Garage

  • 3,218

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,995
  • CAD - Single-Build $2,995
  • View all purchase option online

About This Plan

  • This 4-bed Craftsman house plan gives you 4 bedrooms - including 2 master suites - 4.5 baths, and 3,218 square feet of heated living. A 3-car garage is angled off the right side and gives you 1,066 square feet of parking.
  • The front door opens to a foyer with 12' ceilings and views straight through the great room (14' beamed ceiling) to the fireplace on the back wall. Set at an angle, the room serves as a dividing point if you will between the two sides of the home with each side having a master suite.
  • The kitchen has a great island with seating for 6 and a double sink. A serving shelf connects to the back covered area (1,293 square feet) with outdoor kitchen.
  • On the left side of the home, a study is accessible with a sliding door and makes a great work-from-home space.
  • Three 10' by 8' overhead doors get you into the garage which has storage space and access to the home through a drop zone with bench and lockers.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,218 sq. ft.
  • 1st Floor: 3,218 sq. ft.
  • Porch, Combined: 1,293 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 123' 0"
  • Depth: 76' 0"

Garage

  • Type: Attached
  • Area: 1066 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Framing Type: Stick
Plan 54014LK
