Plan 54046LK

Craftsman House Plan with 3 Beds and 2-Car Garage

Name: Plan 54046LK: Craftsman House Plan with 3 Beds and 2-Car Garage
Brand: Architectural Designs
SKU: 54046LK
Price: 1441.39 USD
Availability: InStock

Heated S.F.

2,103

Beds

Baths

Stories

Cars

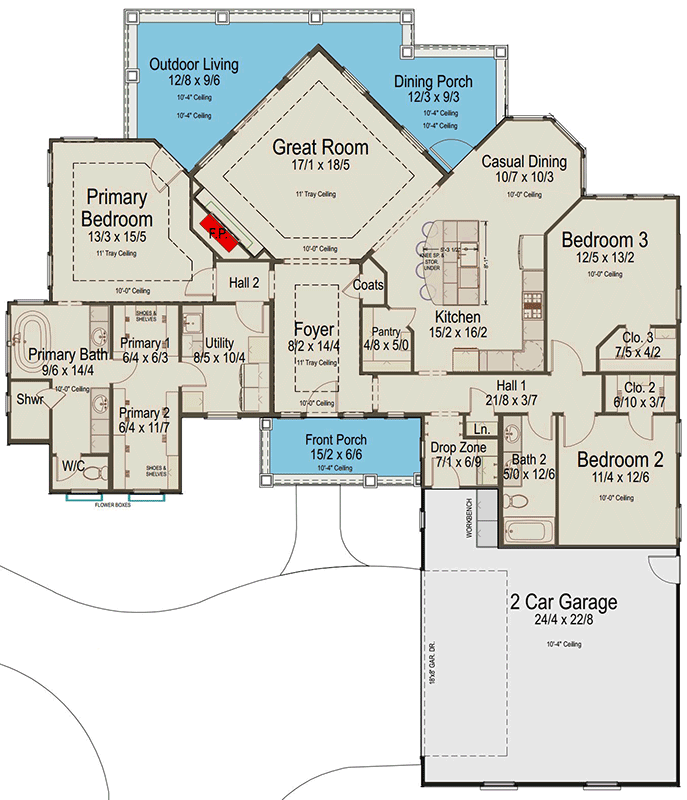

Floor Plan

Main Level

Plan Details

Boasting 2,103 finished sq ft, this 3-bedroom, 2-bath Craftsman and New American house plan features an attached 617 sq ft, 2-car garage.
A welcoming covered porch leads into an inviting foyer with 10-foot ceilings, revealing a thoughtful layout that includes a convenient mudroom.
The main living areas flow effortlessly, centered around a well-appointed kitchen featuring a butler walk-in pantry and a cozy breakfast nook for casual dining.
The private primary suite, located on the first floor, offers direct access to the laundry room, while secondary bedrooms are thoughtfully split for enhanced privacy.
Enjoy outdoor living on the generous 473 sq ft combined porch, perfect for relaxing evenings or morning coffee.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
