Craftsman House Plan with 3 Clustered Bedrooms - 1521 Sq Ft
Heated S.F.
1,521
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This one-story Craftsman house plan gives you 3 beds, 2 baths and 1,521 square feet of heated living space wrapped in an attractive clapboard, board and batten and stone clad exterior.
  • The sink is set beneath windows looking out across the 6'-deep covered entry porch. The kitchen is open to both the dining room with sliding door access to the patio and to the great room.
  • All three bedrooms and the two bathrooms are clustered on the right of the home.
  • The 2-car garage gives you 658 square feet of vehicle space and accesses the home through a well-appointed mud room. A man door on the side is a nice convenience.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman House Plan with 3 Clustered Bedrooms - 1521 Sq Ft

  • 1,521

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

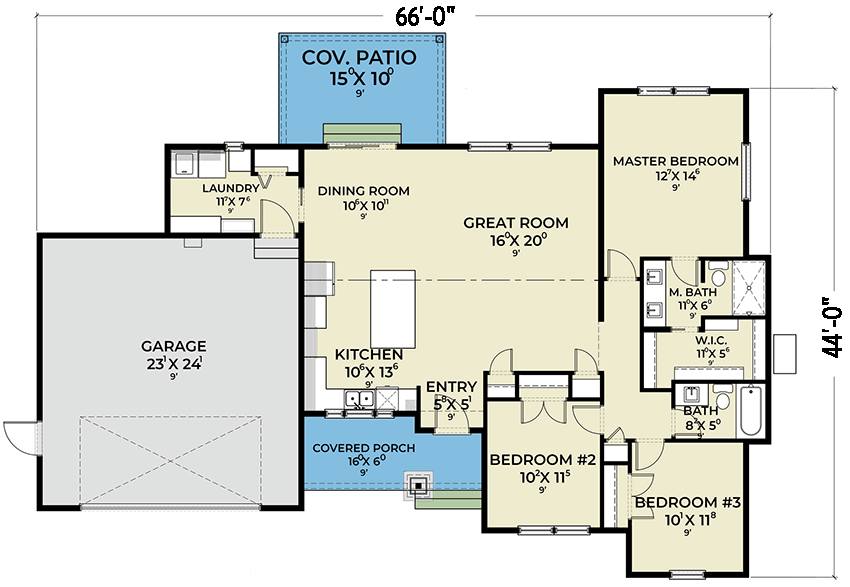

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,521 sq. ft.
  • 1st Floor: 1,521 sq. ft.

Dimensions

  • Width: 66' 0"
  • Depth: 44' 0"
  • Max ridge height: 18' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 658 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
