Plan 623356DJ
Craftsman House Plan with 3 Upstairs Bedrooms and 2-Car Garage - 1586Sq Ft
Heated S.F.
1,586
Beds
3
Baths
2.5
Stories
2
Cars
2
Tour
Flyer
What's Included
Plan Details
  • This Craftsman-inspired house plan gives you 3 beds, 2.5 baths and 1,586 square feet of heated living space spread across its two floors. Anchoring the front is a 445 square foot 2-car front load garage.
  • A covered porch extends a warm invitation. Cross the threshold and you're greeted by an expansive open-concept living expanse, seamlessly melding the living, dining, and kitchen with a central island.
  • All three bedrooms are located upstairs. The master suite has an ensuite bathroom and generous closet space. The remaining bedrooms share a bathroom.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman House Plan with 3 Upstairs Bedrooms and 2-Car Garage - 1586Sq Ft

  • 1,586

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

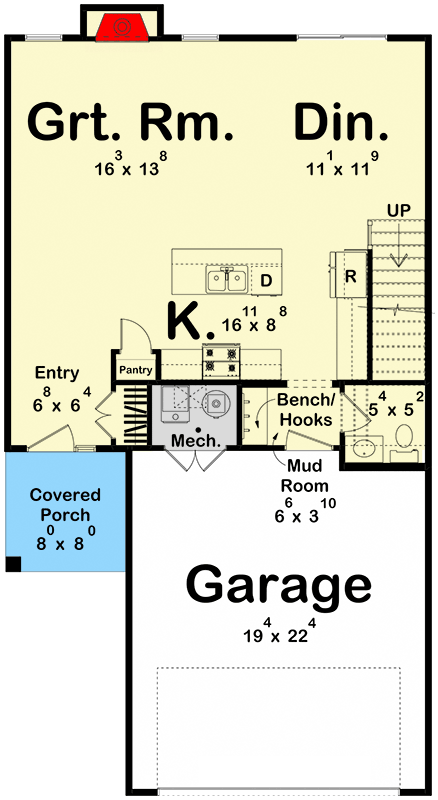

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,586 sq. ft.
  • 1st Floor: 749 sq. ft.
  • 2nd Floor: 837 sq. ft.

Dimensions

  • Width: 28' 0"
  • Depth: 52' 0"
  • Max ridge height: 28' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 445 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
